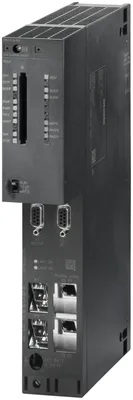

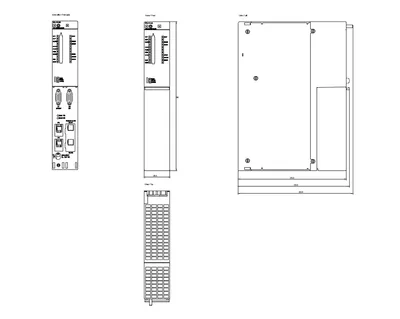

Siemens 6ES7414-5HM06-0AB0
SIMATIC S7-400H, CPU 414-5H, central processing ünite için S7-400H ve S7-400F/FH, 5 interfaces: 1x MPI/DP, 1x DP, 1x PN ve 2 için sync modülleri, 4 MB memory (2 MB data/2 MB program),
Ürün tipi tanımıCPU 414-5H PN/DP
HW functional status1
Firmware sürümüV6.0
Isochronous modeYok
Programlama paketiAs of STEP 7 V5.5 SP2 with HF1
CiR synchronization time, basic load100 ms
Ürün Hakkında
SIMATIC S7-400H, CPU 414-5H, central processing ünite için S7-400H ve S7-400F/FH, 5 interfaces: 1x MPI/DP, 1x DP, 1x PN ve 2 için sync modülleri, 4 MB memory (2 MB data/2 MB program),
Siemens 6ES7414-5HM06-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCPU 414-5H PN/DP
HW functional status1
Firmware sürümüV6.0
Product function
Isochronous modeYok
Mühendislik aracı
Programlama paketiAs of STEP 7 V5.5 SP2 with HF1
CiR - Configuration in RUN
CiR synchronization time, basic load100 ms
CiR synchronization time, time per I/O byte0 µs
Besleme gerilimi
Nominal değer (DC)Power supply via system power supply
Giriş akımı
from backplane bus 5 V DC, typ.1,6 A
from backplane bus 5 V DC, max.1,9 A
from backplane bus 24 V DC, max.150 mA; 150 mA per DP interface
from interface 5 V DC, max.90 mA; At her biri DP interface
Güç kaybı
Güç kaybı, tipik7,5 W
Storage
Type of memoryother
Çalışma belleği
Dahili4 MB
integrated (for program)2 MB
integrated (for data)2 MB
expandableYok
Yükleme belleği
expandable FEPROMVar; with Memory Card (FLASH)
expandable FEPROM, max.64 MB
integrated RAM, max.512 kB
expandable RAMVar
expandable RAM, max.64 MB
Yedekleme
MevcutVar
with batteryVar; all data
PilsizYok
Backup battery
Backup current, typ.180 µA; Valid up to 40°C
Backup current, max.1.000 µA
Backup time, max.Dealt with in the module data manual with the secondary conditions ve the factors of influence
Feeding of external backup voltage to CPU5 V DC to 15 V DC
CPU işlem süreleri
Bit işlemleri için, tipik18,75 ns
Word işlemleri için, tipik18,75 ns
for fixed point arithmetic, typ.18,75 ns
Kayan nokta aritmetiği için, tipik37,5 ns
DB
Sayı, maks.6.000; Number range: 1 to 16000
Boyut, maks.64 kB
FB
Sayı, maks.3.000; Number range: 0 to 7999
Boyut, maks.64 kB
FC
Sayı, maks.3.000; Number range: 0 to 7999
Boyut, maks.64 kB
Organizasyon blokları (OB)
Sayı, maks.see instruction list
Boyut, maks.64 kB
Number of free cycle OBs1; OB 1
Number of time alarm OBs4; OB 10-13
Number of delay alarm OBs4; OB 20-23
Number of cyclic interrupt OBs4; OB 32-35
Number of process alarm OBs4; OB 40-43
Number of DPV1 alarm OBs3; OB 55-57
Number of startup OBs2; OB 100, 102
Number of asynchronous error OBs9; OB 80-88
Number of synchronous error OBs2; OB 121, 122
Nesting depth
per priority class24
additional within an error OB1
S7 counter
Number2.048
Retentivity
— adjustableVar
— presetZ 0 to Z 7
Counting range
— lower limit0
— upper limit999
IEC counter
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
S7 timer
Number2.048
Retentivity
— adjustableVar
— presetYok times retentive
Time range
— lower limit10 ms
— upper limit9.990 s
IEC timer
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
Veri alanları ve kalıcılığı
Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.Total working ve load memory (with backup battery)
Merker (bayrak)
Boyut, maks.8.192 bayt
Retentivity availableVar
Retentivity presetMB 0 to MB 15
Number of clock memories8; in 1 memory bayt
Yerel veri
adjustable, max.16 kB
preset8 kB
I/O address area
Inputs8 kB
Outputs8 kB
Proses görüntüsü
Girişler, ayarlanabilir8 kB
Çıkışlar, ayarlanabilir8 kB
Inputs, default256 bayt
Outputs, default256 bayt
consistent data, max.244 bayt
Access to consistent data in process imageVar
Subprocess images
Number of subprocess images, max.15
Digital channels
Inputs65.536
— of which central65.536
Outputs65.536
— of which central65.536
Analog channels
Inputs4.096
— of which central4.096
Outputs4.096
— of which central4.096
Donanım yapılandırması
Number of expansion units, max.21
connectable OPs63
MulticomputingYok
Interface modules
Number of connectable IMs (total), max.6
Number of connectable IM 460s, max.6
Number of connectable IM 463s, max.4; Single mode only
Number of DP masters
Dahili2
via CP10; CP 443-5 Extended
Mixed mode IM + CP permittedYok
via interface module0
Number of IO Controllers
Dahili1
Via CP0
Number of operable FMs and CPs (recommended)
FMSee manual Automation System S7-400H fault-tolerant systems. Limited by number of slots ve number of connections
CP, PtPSee manual Automation System S7-400H fault-tolerant systems. Limited by number of slots ve number of connections
PROFIBUS and Ethernet CPs14; Of which maks. 10 CP as DP master
Slots
required slots2
Saat
Donanım saati (gerçek zamanlı)Var
retentive and synchronizableVar
Resolution1 ms
Deviation per day (buffered), max.1,7 s; Power off
Deviation per day (unbuffered), max.8,6 s; Power on
Operating hours counter
Number16
Number/Number range0 to 15
Range of valuesSFCs 2, 3 ve 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours
Granularity1 h
retentiveVar
Clock synchronization
DestekleniyorVar
to MPI, masterVar
on MPI, deviceVar
to DP, masterVar
on DP, deviceVar
in AS, masterVar
in AS, deviceVar
on Ethernet via NTPVar; As client
Time difference in system when synchronizing via
Ethernet, max.10 ms; Via NTP
MPI, max.200 ms
Arayüzler
Number of RS 485 interfaces2
Number of other interfaces2; Fiber-optic interface
Optical interfaceYok
1. Arayüz
Arayüz tipiMPI/PROFIBUS DP
İzoleliVar
Arayüz tipleri
RS 485Var
Output current of the interface, max.150 mA
Protokoller
MPIVar
PROFIBUS DP masterVar
PROFIBUS DP deviceYok
MPI
Number of connections32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
İletim hızı, maks.12 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
PROFIBUS DP master
Number of connections, max.16; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
İletim hızı, maks.12 Mbit/s
max. number of DP devices32
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— EquidistanceYok
— Eşzamanlı (isochronous) modYok
— SYNC/FREEZEYok
— activation/deactivation of DP devicesYok
— Direct data exchange (slave-to-slave communication)Yok
— DPV1Var
Address area
— Inputs, max.2 kB
— Outputs, max.2 kB
User data per DP device
— user data per DP device, max.244 bayt
— Inputs, max.244 bayt
— Outputs, max.244 bayt
— Slots, max.244
— per slot, max.128 bayt
PROFIBUS DP device
Number of connectionsYok configuration of CPU as DP slave
2. Interface
Arayüz tipiPROFINET
İzoleliVar
İletim hızının otomatik algılanmasıVar; Autosensing
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Change of IP address at runtime, supportedYok
Arayüz tipleri
RJ 45 (Ethernet)Var
Port sayısı2
Dahili switchVar
Protokoller
PROFINET IO kontrolcüsüVar
PROFINET IO DeviceYok
PROFINET CBAYok
PROFIBUS DP masterYok
PROFIBUS DP deviceYok
Açık IE haberleşmesiVar
Web sunucusuYok
Point-to-point connectionYok
Ortam yedekliliğiVar
PROFINET IO kontrolcüsü
İletim hızı, maks.100 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— S7 communicationVar
— Eşzamanlı (isochronous) modYok
— Paylaşımlı cihazVar; Single mode only
— Önceliklendirilmiş başlatmaYok
— Bağlanabilir IO cihazı sayısı, maks.256; In redundant mode via both interfaces
— RT için bağlanabilir IO cihazı sayısı, maks.256
— Bunlardan hat üzerinde, maks.256
— Activation/deactivation of IO DevicesYok
— IO Devices changing during operation (partner ports), supportedYok
— Device replacement without swap mediumVar
— Send cycles250 µs, 500 µs, 1 ms, 2 ms, 4 ms
— Güncelleme süresi250 µs to 512 ms, minimum value depends on the number of configured user data ve the configured single veya redundant mode
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
— User data consistency, max.1.024 bayt
Açık IE haberleşmesi
Number of connections, max.62
Local port numbers used at the system end0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Keep-alive function, supportedVar
3. Interface
Arayüz tipiPROFIBUS DP
Arayüz tipleri
RS 485Var
Output current of the interface, max.150 mA
Protokoller
PROFIBUS DP masterVar
PROFIBUS DP deviceYok
PROFIBUS DP master
Number of connections, max.16
İletim hızı, maks.12 Mbit/s
max. number of DP devices96
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— EquidistanceYok
— Eşzamanlı (isochronous) modYok
— SYNC/FREEZEYok
— activation/deactivation of DP devicesYok
— Direct data exchange (slave-to-slave communication)Yok
— DPV0Var
— DPV1Var
Address area
— Inputs, max.6 kB
— Outputs, max.6 kB
User data per DP device
— user data per DP device, max.244 bayt
— Inputs, max.244 bayt
— Outputs, max.244 bayt
— Slots, max.244
— per slot, max.128 bayt
4. Interface
Arayüz tipiPluggable synchronization submodule (FO)
Plug-in interface modulesSynchronization modules 6ES7960-1AA06-0XA0 veya 6ES7960-1AB06-0XA0
5. Interface
Arayüz tipiPluggable synchronization submodule (FO)
Plug-in interface modulesSynchronization modules 6ES7960-1AA06-0XA0 veya 6ES7960-1AB06-0XA0
Ortam yedekliliği
— Switchover time on line break, typ.200 ms
— Number of stations in the ring, max.50
SIMATIC haberleşmesi
S7 yönlendirmeVar
Açık IE haberleşmesi
TCP/IPVar; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.62
— Veri uzunluğu, maks.32 kB
— several passive connections per port, supportedVar
ISO-on-TCP (RFC1006)Var; Via dahili PROFINET interface veya CP 443-1 ve loadable FBs
— Number of connections, max.62
— Veri uzunluğu, maks.32 kB; 1.452 bytes via CP 443-1 Adv.
UDPVar; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.62
— Veri uzunluğu, maks.1.472 bayt
Web sunucusu
DestekleniyorYok
Isochronous mode
EquidistanceYok
Communication functions
PG/OP communicationVar
Number of connectable OPs with message processing63; When using Alarm_S/SQ ve Alarm_D/DQ
Number of connectable OPs without message processing63
Data record routingVar
Global data communication
DestekleniyorYok
S7 basic communication
DestekleniyorYok
S7 haberleşmesi
DestekleniyorVar
Sunucu olarakVar
İstemci olarakVar
İş başına kullanıcı verisi, maks.64 kB
User data per job (of which consistent), max.462 bayt; 1 variable
S5 compatible communication
DestekleniyorVar; (via CP maks. 10 ve FC AG_SEND ve FC AG_RECV)
İş başına kullanıcı verisi, maks.8 kB
User data per job (of which consistent), max.240 bayt
Number of simultaneous AG-SEND/AG-RECV orders per CPU, max.64/64
Standard communication (FMS)
DestekleniyorVar; Via CP ve loadable FB
Bağlantı sayısı
Toplam64
— reserved for PG communication1
— adjustable for PG communication, max.0
— reserved for OP communication1
— adjustable for OP communication, max.0
— reserved for S7 basic communication0
— adjustable for S7 basic communication, max.0
— reserved for S7 communication0
— adjustable for S7 communication, max.0
— reserved for routing0
— adjustable for routing, max.0
S7 message functions
Number of login stations for message functions, max.63; Maks. 63 with Alarm_S/SQ ve Alarm_D/DQ (OPs); maks. 8 with Alarm, Alarm_8, Alarm_8P, Notify ve Notify_8 (e.g. WinCC)
Symbol-related messagesYok
SCAN procedureYok
Program alarmsVar
Process diagnostic messagesVar
simultaneously active Alarm_S blocks, max.400; Simultaneously active alarm_S/SQ blocks veya alarm_D/DQ blocks
Alarm 8-blocksVar
Number of instances for alarm 8 and S7 communication blocks, max.2.500
preset, max.900
Process control messagesVar
Number of archives that can log on simultaneously (SFB 37 AR_SEND)16
Test commissioning functions
Status blockVar
Single stepVar
Number of breakpoints16
Durum/kontrol
Durum/kontrol değişkeniVar; Up to 16 variable tables
DeğişkenlerInputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Number of variables, max.70
Zorlama (force)
Zorlama (force)Var
Forcing, variablesInputs/outputs, bit memories, distributed I/Os
Number of variables, max.256
Tanılama arabelleği
MevcutVar
Number of entries, max.3.200
— can be setVar
— preset120
Service data
Can be read outVar
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Configuration software
STEP 7Var
Programming
Command setsee instruction list
Nesting levels7
Access to consistent data in process imageVar
System functions (SFC)see instruction list
System function blocks (SFB)see instruction list
Programlama dili
— LADVar
— FBDVar
— STLVar
— SCLVar
— CFCVar
— GRAPHVar
— HiGraph®Var
Number of simultaneously active SFCs
— RD_REC8
— WR_REC8
— WR_PARM8
— PARM_MOD1
— WR_DPARM2
— DPNRM_DG8
— RDSYSST8
— DP_TOPOL1
Number of simultaneously active SFBs
— RDREC8
— WRREC8
Know-how koruması
Kullanıcı programı/şifre korumasıVar
Block encryptionVar; With S7 block Privacy
Ölçüler
Genişlik50 mm
Yükseklik290 mm
Derinlik219 mm
Ağırlık
Ağırlık, yaklaşık995 g
Aksesuarlar 2
Siemens 6ES7414-5HM06-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9LF1110-6DA13-2AB1 | Servis · Service Card | |
| 9TF6276-2XA11-1AL4 | Servis |
İlgili Ürünler
Detayları Gör
Siemens
1FN3003-0PB03-0AA3
MFR #1FN3003-0PB03-0AA3
SKU #YLSPDCXX5LUPVBP
Detayları Gör
Siemens
1FN3003-0PB04-0BA3
MFR #1FN3003-0PB04-0BA3
SKU #YLSTLFTLVCKOIMT
Detayları Gör
Siemens
1FN3003-0PB05-0BA3
MFR #1FN3003-0PB05-0BA3
SKU #YLS6EWIJX1ZRGHO
Detayları Gör
Siemens
1FN3050-0TB00-1..0
MFR #1FN3050-0TB00-1..0
SKU #YLS5YVWHSMU6WB7
Detayları Gör
Siemens
1FN3050-2NE00-0EA3
MFR #1FN3050-2NE00-0EA3
SKU #YLSE7XSY2HLF5EC
Detayları Gör
Siemens
1FN3050-2NE00-0FA3
MFR #1FN3050-2NE00-0FA3
SKU #YLSMSUG5AP3INVD
Detayları Gör
Siemens
1FN3100-0TB00-1..0
MFR #1FN3100-0TB00-1..0
SKU #YLSTD7J4JZ8UCBX
Detayları Gör
Siemens
1FN3002-0TK03-1AF0
MFR #1FN3002-0TK03-1AF0
SKU #YLS7VTGYJAP381B
Detayları Gör
Siemens
1FN3050-1ND00-0HA3
MFR #1FN3050-1ND00-0HA3
SKU #YLSJTX7SVU4GFKR
Öne Çıkan Ürünler
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
İlgili Aramalar
Siemens 6ES7414-5HM06-0AB0 fiyatSiemens 6ES7414-5HM06-0AB0 teklif alSiemens 6ES7414-5HM06-0AB0 satın al6ES7414-5HM06-0AB0 fiyat6ES7414-5HM06-0AB0 stok durumuSiemens yedek parçaSiemens 6ES7414-5HM06-0AB0 muadilSiemens 6ES7414-5HM06-0AB0 teknik özellikler
