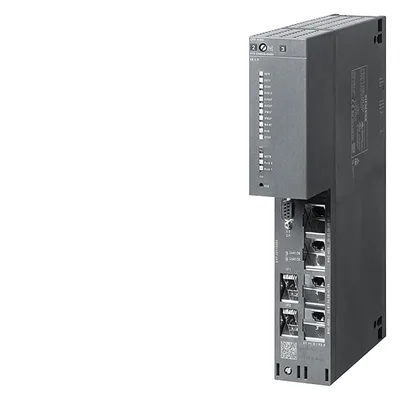

Siemens 6ES7410-5HM08-0AB0
SIMATIC CPU 410E Process Automation, central unit for S7-400 and S7-400H/F/FH; 5 interfaces: 2x PN, 1x DP, 2x for sync modules; for use as spare part; without System Expansion Card
Ürün tipi tanımıCPU 410E
HW functional status2
Firmware sürümüV8.3
Field interface securityVar
CiR synchronization time, basic load60 ms
from backplane bus 5 V DC, typ.2 A
Ürün Hakkında
SIMATIC CPU 410E Process Automation, central unit for S7-400 and S7-400H/F/FH; 5 interfaces: 2x PN, 1x DP, 2x for sync modules; for use as spare part; without System Expansion Card
Siemens 6ES7410-5HM08-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCPU 410E
HW functional status2
Firmware sürümüV8.3
Design of PLC basic unitWith Conformal Coating (ISA-S71.04 severity level G1; G2; G3) ve operating temperature to 70 °C
Product function
SysLogVar; via TCP; up to 4 receivers can be parameterized; buffer capacity maks. 3.200 entries
Field interface securityVar
Mühendislik aracı
Programlama paketifrom SIMATIC PCS 7 V10.0.1 (HSP 324, 325, 326)
CiR - Configuration in RUN
CiR synchronization time, basic load60 ms
CiR synchronization time, time per I/O byte0 µs
Giriş akımı
from backplane bus 5 V DC, typ.2 A
from backplane bus 5 V DC, max.2,4 A
from backplane bus 24 V DC, max.150 mA; DP interface
from interface 5 V DC, max.90 mA; At the DP interface
Güç kaybı
Güç kaybı, tipik10 W
Processor
CPU speed450 MHz; Multi-processor system
Storage
PCS 7 process objects100... yaklaşık 2.600, adjustable with System Expansion Card
Çalışma belleği
Dahili32 MB; maks., dependent on the System Expansion Card used
integrated (for program)Dependent on the System Expansion Card used
integrated (for data)Dependent on the System Expansion Card used
expandableDependent on the System Expansion Card used
Yükleme belleği
integrated RAM, max.48 MB
expandable RAMYok
Yedekleme
with batteryVar; all data
PilsizVar; Program ve data of the load memory
Backup battery
Backup current, typ.370 µA; Valid up to 40°C
Backup current, max.2,1 mA
Backup time, max.Dealt with in the module data manual with the secondary conditions ve the factors of influence
Feeding of external backup voltage to CPUYok
CPU işlem süreleri
average processing time of PCS 7 typicals110 µs; with APL Typicals
Process tasks, max.9; Individually adjustable from 10 ms to 5 s
DB
Sayı, maks.16.000; Number range: 1 to 16.000 (= Instances)
Boyut, maks.64 kB; the toplam size of all data blocks generated with the SFC 22 (CREATE_DB) is limited to 256 KB
FB
Sayı, maks.8.000; Number range: 0 to 7999
Boyut, maks.64 kB
FC
Sayı, maks.8.000; Number range: 0 to 7999
Boyut, maks.64 kB
Organizasyon blokları (OB)
Sayı, maks.see instruction list
Boyut, maks.64 kB
Number of free cycle OBs1; OB 1
Number of time alarm OBs8; OB 10-17
Number of delay alarm OBs4; OB 20-23
Number of cyclic interrupt OBs9; OB 30-38 (= Process Tasks)
Number of process alarm OBs8; OB 40-47
Number of DPV1 alarm OBs3; OB 55-57
Number of startup OBs2; OB 100, 102
Number of asynchronous error OBs9; OB 80-88
Number of synchronous error OBs2; OB 121, 122
Nesting depth
per priority class24
additional within an error OB2
IEC counter
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
IEC timer
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
Veri alanları ve kalıcılığı
Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.Total working ve load memory (with backup battery)
Merker (bayrak)
Boyut, maks.16.384 bayt
Retentivity availableVar
Number of clock memories8; in 1 memory bayt
Yerel veri
adjustable, max.64 kB
I/O address area
Inputs16 kB; maks., dependent on the System Expansion Card used
Outputs16 kB; maks., dependent on the System Expansion Card used
Proses görüntüsü
Inputs, default16 kB; Dependent on the System Expansion Card used
Outputs, default16 kB; Dependent on the System Expansion Card used
consistent data, max.244 bayt
Access to consistent data in process imageVar
Subprocess images
Number of subprocess images, max.15
Donanım yapılandırması
connectable OPs119
MulticomputingYok
Number of DP masters
Dahili1
via CP4; CP 443-5 Extended
Number of IO Controllers
Dahili2
Via CP0
Number of operable FMs and CPs (recommended)
CP, LAN4
PROFIBUS and Ethernet CPs4
Slots
required slots2
Saat
Donanım saati (gerçek zamanlı)Var
retentive and synchronizableVar
Resolution1 ms
Deviation per day (buffered), max.1,7 s; Power off
Deviation per day (unbuffered), max.8,6 s; Power on
Operating hours counter
Number16
Number/Number range0 to 15
Range of valuesSFCs 2, 3 ve 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours
Granularity1 h
retentiveVar
Clock synchronization
DestekleniyorVar
to DP, masterVar
on DP, deviceVar
in AS, masterVar
in AS, deviceVar
on Ethernet via NTPNTP as client ve as server/client via SIMATIC procedure
Arayüzler
PROFINET arayüz sayısı2
Number of RS 485 interfaces1; PROFIBUS DP
Number of other interfaces2; 2x synchronization
1. Arayüz
Arayüz tipiRS 485 / PROFIBUS
İzoleliVar
Number of connections16
Arayüz tipleri
Output current of the interface, max.150 mA
Protokoller
PROFIBUS DP masterVar
PROFIBUS DP deviceYok
PROFIBUS DP master
Number of connections, max.16
İletim hızı, maks.12 Mbit/s
max. number of DP devices96
Number of slots per interface, max.1.632
Servisler
— PG/OP haberleşmesiVar
— RoutingVar; S7 routing
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— EquidistanceYok
— Eşzamanlı (isochronous) modYok
— SYNC/FREEZEYok
— activation/deactivation of DP devicesVar; Approved for stand-alone operation only, not in conjunction with CiR (Configuration in Run)
— Direct data exchange (slave-to-slave communication)Yok
— DPV1Var
Address area
— Inputs, max.6 kB
— Outputs, max.6 kB
User data per DP device
— user data per DP device, max.244 bayt
— Inputs, max.244 bayt
— Outputs, max.244 bayt
— Slots, max.244
— per slot, max.128 bayt
2. Interface
Arayüz tipiPROFINET
İzoleliVar
İletim hızının otomatik algılanmasıVar; Autosensing
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
System redundancyVar
Redundant subnetworksVar
Change of IP address at runtime, supportedYok
Number of connections120
Arayüz tipleri
Port sayısı2
Dahili switchVar
Protokoller
PROFINET IO kontrolcüsüVar
PROFINET IO DeviceYok
PROFINET CBAYok
Açık IE haberleşmesiVar
Web sunucusuYok
Ortam yedekliliğiVar
PROFINET IO kontrolcüsü
İletim hızı, maks.100 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— S7 communicationVar
— Paylaşımlı cihazYok; however, usable as part of S7
— Önceliklendirilmiş başlatmaYok
— Bağlanabilir IO cihazı sayısı, maks.250
— RT için bağlanabilir IO cihazı sayısı, maks.250
— Bunlardan hat üzerinde, maks.250
— Activation/deactivation of IO DevicesVar; Approved for stand-alone operation only, not in conjunction with CiR (Configuration in Run)
— IO Devices changing during operation (partner ports), supportedYok
— Device replacement without swap mediumVar
— Send cycles250 µs, 500 µs, 1 ms, 2 ms, 4 ms
— Güncelleme süresi250 µs to 512 ms, minimum value depends on the number of configured user data ve the configured single veya redundant mode
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
— User data consistency, max.1.024 bayt
Açık IE haberleşmesi
Number of connections, max.118
Local port numbers used at the system end0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Keep-alive function, supportedVar
3. Interface
Arayüz tipiPROFINET
İzoleliVar
İletim hızının otomatik algılanmasıVar; Autosensing
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
System redundancyVar
Redundant subnetworksVar
Number of connections120
Arayüz tipleri
Port sayısı2
Dahili switchVar
Protokoller
PROFINET IO kontrolcüsüVar
PROFINET IO cihazıYok
PROFINET CBAYok
Açık IE haberleşmesiVar
Web sunucusuYok
Ortam yedekliliğiVar
PROFINET IO kontrolcüsü
İletim hızı, maks.100 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— S7 communicationVar
— Paylaşımlı cihazYok; however, usable as part of S7
— Önceliklendirilmiş başlatmaYok
— Bağlanabilir IO cihazı sayısı, maks.250
— RT için bağlanabilir IO cihazı sayısı, maks.250
— Bunlardan hat üzerinde, maks.250
— Activation/deactivation of IO DevicesVar; Approved for stand-alone operation only, not in conjunction with CiR (Configuration in Run)
— IO Devices changing during operation (partner ports), supportedYok
— Device replacement without swap mediumVar
— Send cycles250 µs, 500 µs, 1 ms, 2 ms, 4 ms
— Güncelleme süresi250 µs to 512 ms, minimum value depends on the number of configured user data ve the configured single veya redundant mode
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
— User data consistency, max.1.024 bayt
Açık IE haberleşmesi
Number of connections, max.118
Local port numbers used at the system end0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Keep-alive function, supportedVar
4. Interface
Arayüz tipiPluggable synchronization submodule (FO)
Plug-in interface modulesSynchronization module 6ES7960-1AA06-0XA0, 6ES7960-1AB06-0XA0 veya 6ES7960-1AA08-0XA0
5. Interface
Arayüz tipiPluggable synchronization submodule (FO)
Plug-in interface modulesSynchronization module 6ES7960-1AA06-0XA0, 6ES7960-1AB06-0XA0 veya 6ES7960-1AA08-0XA0
Protokoller
PROFINET IO protokolünü desteklerVar
PROFINET CBAYok
PROFIsafeVar
PROFIBUSVar
AS-InterfaceVar; Via add-on
Ortam yedekliliği
— Switchover time on line break, typ.< 200 ms
— Number of stations in the ring, max.50
SIMATIC haberleşmesi
S7 yönlendirmeVar
Açık IE haberleşmesi
TCP/IPVar; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.118
— Veri uzunluğu, maks.32 kB
— several passive connections per port, supportedVar
ISO-on-TCP (RFC1006)Var; Via dahili PROFINET interface veya CP 443-1 ve loadable FBs
— Number of connections, max.118
— Veri uzunluğu, maks.32 kB; 1.452 bytes via CP 443-1 Adv.
UDPVar; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.118
— Veri uzunluğu, maks.1.472 bayt
Diğer protokoller
Foundation FieldbusVar; via DP/FF Link
MODBUSVar; Via add-on
Communication functions
PG/OP communicationVar
Number of connectable OPs with message processing119; When using Alarm_S/SQ ve Alarm_D/DQ
Number of connectable OPs without message processing119
Data record routingVar
S7 haberleşmesi
DestekleniyorVar
Sunucu olarakVar
İstemci olarakVar
İş başına kullanıcı verisi, maks.64 kB
User data per job (of which consistent), max.462 bayt; 1 variable
S5 compatible communication
DestekleniyorVar; via CP ve FC AG_SEND ve FC AG_RECV
İş başına kullanıcı verisi, maks.8 kB
User data per job (of which consistent), max.240 bayt
Number of simultaneous AG-SEND/AG-RECV orders per CPU, max.64/64
Standard communication (FMS)
DestekleniyorVar; Via CP ve loadable FB
Bağlantı sayısı
Toplam120
— reserved for PG communication1
— reserved for OP communication1
S7 message functions
Number of login stations for message functions, max.119; maks. 119 with Alarm_S/SQ ve Alarm_D/DQ (OPs); maks. 16 with Alarm_8, Alarm_8P, Notify ve Notify_8 (e.g. WinCC)
Program alarmsVar
Process diagnostic messagesVar
simultaneously active Alarm_S blocks, max.1.000; Simultaneously active alarm_S/SQ blocks veya alarm_D/DQ blocks
Alarm 8-blocksVar
Number of instances for alarm 8 and S7 communication blocks, max.10.000
Process control messagesVar
Number of archives that can log on simultaneously (SFB 37 AR_SEND)64
Test commissioning functions
Status blockVar
Single stepVar
Number of breakpoints4
Durum/kontrol
Durum/kontrol değişkeniVar
DeğişkenlerInputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Number of variables, max.70
Tanılama arabelleği
MevcutVar
Number of entries, max.3.200
Service data
Can be read outVar
Standartlar, onaylar, sertifikalar
CE işaretiVar
UKCA markVar
CSA approvalVar
UL onayıVar
cULusVar
FM onayıVar
RCM (eski adıyla C-TICK)Var
KC onayıVar
EAC (formerly Gost-R)Var
CCCYok
Use in hazardous areas
ATEX markingATEX II 3G Ex ec IIC T4 Gc
Çalışma ortam sıcaklığı
Yatay montaj, min.0 °C
Yatay montaj, maks.70 °C
Dikey montaj, min.Not permitted
Dikey montaj, maks.Not permitted
Programming
Command setsee instruction list
Nesting levels7
Access to consistent data in process imageVar
System functions (SFC)see instruction list
System function blocks (SFB)see instruction list
Programlama dili
— SCLVar
— CFCVar
Number of simultaneously active SFCs
— RD_REC8; SFC 59; per interface
— WR_REC8; SFC 58; per interface
— WR_PARM8; SFC 55; per interface
— PARM_MOD1; SFC 57; per interface
— WR_DPARM2; SFC 56; per interface
— DPNRM_DG8; SFC 13; per interface
— RDSYSST8; SFC 51
— DP_TOPOL1; SFC 103; per interface
Number of simultaneously active SFBs
— RDREC8; SFB 52; per interface, but not more than 32 across all external interfaces
— WRREC8; SFB 53; per interface, but not more than 32 across all external interfaces
Know-how koruması
Kullanıcı programı/şifre korumasıVar
Block encryptionVar; With S7 block Privacy
Ölçüler
Genişlik50 mm
Yükseklik290 mm
Derinlik219 mm
Ağırlık
Ağırlık, yaklaşık1,1 kg
Aksesuarlar 2
Siemens 6ES7410-5HM08-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9LA1110-1BH01-0AA0-Z | Servis | |
| 9MC0110-1EG00-0AA3 | Servis · Box PC |
İlgili Ürünler
Detayları Gör
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
Detayları Gör
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
Detayları Gör
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
Detayları Gör
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
Detayları Gör
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
Detayları Gör
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
Detayları Gör
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
Detayları Gör
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
Detayları Gör
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Öne Çıkan Ürünler
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
İlgili Aramalar
Siemens 6ES7410-5HM08-0AB0 fiyatSiemens 6ES7410-5HM08-0AB0 teklif alSiemens 6ES7410-5HM08-0AB0 satın al6ES7410-5HM08-0AB0 fiyat6ES7410-5HM08-0AB0 stok durumuSiemens yedek parçaSiemens 6ES7410-5HM08-0AB0 muadilSiemens 6ES7410-5HM08-0AB0 teknik özellikler
