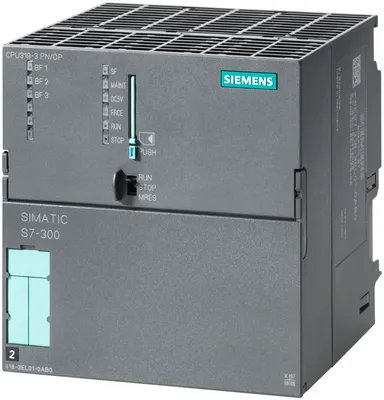

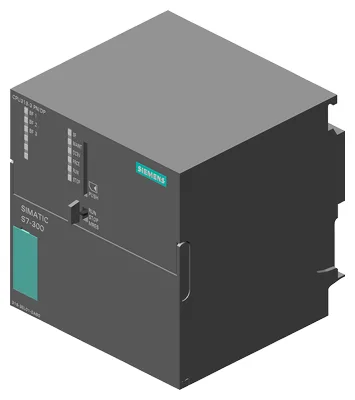

Siemens 6ES7318-3EL01-0AB0
***yedek parça*** SIMATIC S7-300 CPU 319-3 PN/DP, central processing ünite ile 2 MB work memory, 1st arayüz MPI/DP 12 Mbps, 2nd arayüz DP master/slave 3rd arayüz Ethernet PROFINET, ile 2-port anahtar, Micro bellek kartı required
Ürün tipi tanımıCPU 319-3 PN/DP
HW functional status01
Firmware sürümüV3.2
Programlama paketiSTEP 7 V5.5 veya üstü
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
Ürün Hakkında
***yedek parça*** SIMATIC S7-300 CPU 319-3 PN/DP, central processing ünite ile 2 MB work memory, 1st arayüz MPI/DP 12 Mbps, 2nd arayüz DP master/slave 3rd arayüz Ethernet PROFINET, ile 2-port anahtar, Micro bellek kartı required
Siemens 6ES7318-3EL01-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCPU 319-3 PN/DP
HW functional status01
Firmware sürümüV3.2
Product function
Isochronous modeVar; Via 2nd PROFIBUS DP veya PROFINET interface
Mühendislik aracı
Programlama paketiSTEP 7 V5.5 veya üstü
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
external protection for power supply lines (recommendation)2 A min.
Mains buffering
Mains/voltage failure stored energy time5 ms
Repeat rate, min.1 s
Giriş akımı
Akım tüketimi (nominal değer)1.250 mA
Current consumption (in no-load operation), typ.500 mA
Inrush current, typ.4 A
I²t1,2 A²·s
Güç kaybı
Güç kaybı, tipik14 W
Çalışma belleği
Dahili2.048 kB
expandableYok
Yükleme belleği
Plug-in (MMC)Var
Plug-in (MMC), max.8 MB
Data management on MMC (after last programming), min.10 a
Yedekleme
MevcutVar
PilsizVar
CPU işlem süreleri
Bit işlemleri için, tipik0,004 µs
Word işlemleri için, tipik0,01 µs
for fixed point arithmetic, typ.0,01 µs
Kayan nokta aritmetiği için, tipik0,04 µs
CPU blokları
Eleman sayısı (toplam)4.096; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.
DB
Sayı, maks.4.096; Number range: 1 to 16000
Boyut, maks.64 kB
FB
Sayı, maks.4.096; Number range: 0 to 7999
Boyut, maks.64 kB
FC
Sayı, maks.4.096; Number range: 0 to 7999
Boyut, maks.64 kB
Organizasyon blokları (OB)
Boyut, maks.64 kB
Number of free cycle OBs1; OB 1
Number of time alarm OBs1; OB 10
Number of delay alarm OBs2; OB 20, 21
Number of cyclic interrupt OBs4; OB 32, 33, 34, 35 (OB 35: smallest settable clock pulse = 500 µs)
Number of process alarm OBs1; OB 40
Number of DPV1 alarm OBs3; OB 55, 56, 57
Number of isochronous mode OBs1; OB 61
Number of startup OBs1; OB 100
Number of asynchronous error OBs6; OB 80, 82, 83, 85, 86, 87 (OB83 only for PROFINET IO)
Number of synchronous error OBs2; OB 121, 122
Nesting depth
per priority class16
additional within an error OB4
S7 counter
Number2.048
Retentivity
— adjustableVar
— presetZ 0 to Z 7
Counting range
— can be setVar
— lower limit0
— upper limit999
IEC counter
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
S7 timer
Number2.048
Retentivity
— adjustableVar
— presetYok retentivity
Time range
— lower limit10 ms
— upper limit9.990 s
IEC timer
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
Veri alanları ve kalıcılığı
Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.700 kB
Merker (bayrak)
Boyut, maks.8.192 bayt
Retentivity availableVar; From MB 0 to MB 8.191
Retentivity presetMB 0 to MB 15
Number of clock memories8; 1 memory bayt
Data blocks
Retentivity adjustableVar; via non-retain property on DB
Retentivity presetVar
Yerel veri
Öncelik sınıfı başına, maks.32.768 bayt; Maks. 2048 bytes per block
I/O address area
Inputs8.192 bayt
Outputs8.192 bayt
of which distributed
— Inputs8.192 bayt
— Outputs8.192 bayt
Proses görüntüsü
Inputs8.192 bayt
Outputs8.192 bayt
Girişler, ayarlanabilir8.192 bayt
Çıkışlar, ayarlanabilir8.192 bayt
Inputs, default256 bayt
Outputs, default256 bayt
Subprocess images
Number of subprocess images, max.1; With PROFINET IO, the length of the user data is limited to 1600 bytes
Digital channels
Inputs65.536
— of which central1.024
Outputs65.536
— of which central1.024
Analog channels
Inputs4.096
— of which central256
Outputs4.096
— of which central256
Number of DP masters
Dahili2
via CP4
Number of operable FMs and CPs (recommended)
FM8
CP, PtP8
CP, LAN10
Rack
Racks, max.4
Modules per rack, max.8
Saat
Donanım saati (gerçek zamanlı)Var
retentive and synchronizableVar
Yedekleme süresi6 wk; At 40 °C ambient temperature
Günlük sapma, maks.10 s; Typ.: 2 s
Behavior of the clock following POWER-ONClock continues running after POWER OFF
Behavior of the clock following expiry of backup periodthe clock continues the time of day it had when power was switched off
Operating hours counter
Number4
Number/Number range0 to 3
Range of values0 to 2^31 hours (when using SFC 101)
Granularity1 h
retentiveVar; Must be restarted her biri restart
Clock synchronization
DestekleniyorVar
to MPI, masterVar
on MPI, deviceVar
to DP, masterVar; With DP slave only slave clock
on DP, deviceVar
in AS, masterVar
in AS, deviceVar
on Ethernet via NTPVar; As client
Dijital girişler
Dijital giriş sayısı0
Dijital çıkışlar
Dijital çıkış sayısı0
Analog girişler
Analog giriş sayısı0
Arayüzler
PROFINET arayüz sayısı1; 2 ports (switch) RJ45
Number of RS 485 interfaces2; Combined MPI / PROFIBUS DP ve PROFIBUS DP
Number of RS 422 interfaces0
1. Arayüz
Arayüz tipidahili RS 485 interface
İzoleliVar
Arayüz tipleri
RS 485Var
Output current of the interface, max.150 mA
Protokoller
MPIVar
PROFIBUS DP masterVar
PROFIBUS DP deviceVar; A DP slave both interfaces simultaneously is not possible
Point-to-point connectionYok
MPI
İletim hızı, maks.12 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationVar
— S7 basic communicationVar
— S7 communicationVar
— S7 communication, as clientYok; but via CP ve loadable FB
— S7 communication, as serverVar
PROFIBUS DP master
İletim hızı, maks.12 Mbit/s
max. number of DP devices124
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationYok
— S7 basic communicationVar; I blocks only
— S7 communicationVar
— S7 communication, as clientYok
— S7 communication, as serverVar
— EquidistanceVar
— Eşzamanlı (isochronous) modYok
— SYNC/FREEZEVar
— activation/deactivation of DP devicesVar
— max. number of DP devices that can be activated/deactivated at the same time8
— Direct data exchange (slave-to-slave communication)Var; as subscriber
— DPV1Var
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
User data per DP device
— Inputs, max.244 bayt
— Outputs, max.244 bayt
PROFIBUS DP device
İletim hızı, maks.12 Mbit/s
automatic baud rate searchVar; yalnızca şununla: passive interface
Address area, max.32
User data per address area, max.32 bayt
Servisler
— PG/OP haberleşmesiVar
— RoutingVar; with interface active
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientYok
— S7 communication, as serverVar; Connection configured on one side only
— Direct data exchange (slave-to-slave communication)Var
— DPV1Yok
Transfer memory
— Inputs244 bayt
— Outputs244 bayt
2. Interface
Arayüz tipidahili RS 485 interface
İzoleliVar
Arayüz tipleri
RS 485Var
Output current of the interface, max.200 mA
Protokoller
MPIYok
PROFINET IO kontrolcüsüYok
PROFINET IO DeviceYok
PROFINET CBAYok
PROFIBUS DP masterVar
PROFIBUS DP deviceVar; A DP slave both interfaces simultaneously is not possible
Açık IE haberleşmesiYok
Web sunucusuYok
PROFIBUS DP master
İletim hızı, maks.12 Mbit/s
max. number of DP devices124
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationYok
— S7 basic communicationVar; I blocks only
— S7 communicationVar
— S7 communication, as clientYok
— S7 communication, as serverVar; Connection configured on one side only
— EquidistanceVar
— Eşzamanlı (isochronous) modVar; OB 61 - isochronous mode is possible either on DP veya PROFINET IO (not simultaneously)
— SYNC/FREEZEVar
— activation/deactivation of DP devicesVar
— max. number of DP devices that can be activated/deactivated at the same time8
— Direct data exchange (slave-to-slave communication)Var; as subscriber
— DPV1Var
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
User data per DP device
— Inputs, max.244 bayt
— Outputs, max.244 bayt
PROFIBUS DP device
İletim hızı, maks.12 Mbit/s
automatic baud rate searchVar; yalnızca şununla: passive interface
Address area, max.32
User data per address area, max.32 bayt
Servisler
— PG/OP haberleşmesiVar
— RoutingVar; with interface active
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientYok
— S7 communication, as serverVar; Connection configured on one side only
— Direct data exchange (slave-to-slave communication)Var
— DPV1Yok
Transfer memory
— Inputs244 bayt
— Outputs244 bayt
3. Interface
Arayüz tipiPROFINET
İzoleliVar
İletim hızının otomatik algılanmasıVar; 10/100 Mbit/s
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Change of IP address at runtime, supportedVar
Arayüz tipleri
RJ 45 (Ethernet)Var
Port sayısı2
Dahili switchVar
Protokoller
MPIYok
PROFINET IO kontrolcüsüVar; Also simultaneously with I-Device functionality
PROFINET IO cihazıVar; Also simultaneously with IO Controller functionality
PROFINET CBAVar
PROFIBUS DP masterYok
PROFIBUS DP deviceYok
Açık IE haberleşmesiVar; Via TCP/IP, ISO on TCP, ve UDP
Web sunucusuVar
Ortam yedekliliğiVar
PROFINET IO kontrolcüsü
İletim hızı, maks.100 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— S7 communicationVar; with loadable FBs, maks. configurable connections: 16, maks. number of instances: 32
— Eşzamanlı (isochronous) modVar; OB 61 - isochronous mode is possible either on DP veya PROFINET IO (not simultaneously)
— Paylaşımlı cihazVar
— Önceliklendirilmiş başlatmaVar
— Önceliklendirilmiş başlatmalı IO cihazı sayısı, maks.32
— Bağlanabilir IO cihazı sayısı, maks.256
— Of which IO devices with IRT, max.64
— Bunlardan hat üzerinde, maks.64
— Number of IO Devices with IRT and the option "high flexibility"256
— Bunlardan hat üzerinde, maks.61
— RT için bağlanabilir IO cihazı sayısı, maks.256
— Bunlardan hat üzerinde, maks.256
— Activation/deactivation of IO DevicesVar
— Eşzamanlı etkinleştirilebilen/devre dışı bırakılabilen IO cihazı sayısı, maks.8
— IO Devices changing during operation (partner ports), supportedVar
— Number of IO Devices per tool, max.8
— Device replacement without swap mediumVar
— Send cycles250 μs, 500 μs,1 ms; 2 ms, 4 ms (not in the case of IRT with "high flexibility" option)
— Güncelleme süresi250 µs to 512 ms (depending on the operating mode, see Manual "S7-300 CPU 31xC ve CPU 31x, technical Data" for more details)
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
— User data consistency, max.1.024 bayt
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— S7 communicationVar; with loadable FBs, maks. configurable connections: 16, maks. number of instances: 32
— Eşzamanlı (isochronous) modYok
— IRTVar
— PROFIenergyVar; With SFB 73 / 74 prepared for loadable PROFIenergy standard FB for I-Device
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.2
Transfer memory
— Inputs, max.1.440 bayt; Per IO Controller with shared device
— Outputs, max.1.440 bayt; Per IO Controller with shared device
Submodules
— Number, max.64
— User data per submodule, max.1.024 bayt
PROFINET CBA
acyclic transmissionVar
cyclic transmissionVar
Açık IE haberleşmesi
Number of connections, max.32
Local port numbers used at the system end0, 20, 21, 23, 25, 80, 102, 135, 161, 443, 8080, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Keep-alive function, supportedVar
Protokoller
PROFIsafeYok
Ortam yedekliliği
— Switchover time on line break, typ.200 ms; PROFINET MRP
— Number of stations in the ring, max.50
Açık IE haberleşmesi
TCP/IPVar; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.32
— Data length for connection type 01H, max.1.460 bayt
— Data length for connection type 11H, max.32.768 bayt
— several passive connections per port, supportedVar
ISO-on-TCP (RFC1006)Var; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.32
— Veri uzunluğu, maks.32.768 bayt
UDPVar; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.32
— Veri uzunluğu, maks.1.472 bayt
Web sunucusu
DestekleniyorVar
Kullanıcı tanımlı web sayfalarıVar
Number of HTTP clients5
Communication functions
PG/OP communicationVar
Data record routingVar
Global data communication
DestekleniyorVar
Number of GD loops, max.8
Number of GD packets, max.8
Number of GD packets, transmitter, max.8
Number of GD packets, receiver, max.8
Size of GD packets, max.22 bayt
Size of GD packet (of which consistent), max.22 bayt
S7 basic communication
DestekleniyorVar
İş başına kullanıcı verisi, maks.76 bayt
User data per job (of which consistent), max.76 bayt; 76 bytes (with X_SEND veya X_RCV); 64 bytes (with X_PUT veya X_GET as server)
S7 haberleşmesi
DestekleniyorVar
Sunucu olarakVar
İstemci olarakVar; via dahili PROFINET interface ve loadable FB veya via CP ve loadable FB
İş başına kullanıcı verisi, maks.See online help of STEP 7 (shared parameters of the SFBs/FBs ve of the SFCs/FCs of S7 Communication)
S5 compatible communication
DestekleniyorVar; via CP ve loadable FC
PROFINET CBA (at set setpoint communication load)
Setpoint for the CPU communication load20 %
Number of remote interconnection partners32
number of master/device functions50
total of all master/device connections3.000
data length of all incoming master/device connections, max.24.000 bayt
data length of all outgoing master/device connections, max.24.000 bayt
Number of device-internal and PROFIBUS interconnections1.000
Data length of device-internal und PROFIBUS interconnections, max.8.000 bayt
Data length per connection, max.1.400 bayt
Remote interconnections with cyclic transmission
— Transmission frequency: Transmission interval, min.1 ms
— Number of incoming interconnections300
— Number of outgoing interconnections300
— Data length of all incoming interconnections, max.4.800 bayt
— Data length of all outgoing interconnections, max.4.800 bayt
— Data length per connection, max.450 bayt
HMI variables via PROFINET (acyclic)
— Number of stations that can log on for HMI variables (PN OPC/iMap)3; 2x PN OPC/1x iMap
— HMI variable updating500 ms
— Number of HMI variables600
— Data length of all HMI variables, max.9.600 bayt
PROFIBUS proxy functionality
— supportedVar
— Number of linked PROFIBUS devices32
— Data length per connection, max.240 bayt; Slave-dependent
Bağlantı sayısı
Toplam32
usable for PG communication31
— reserved for PG communication1
— adjustable for PG communication, min.1
— adjustable for PG communication, max.31
usable for OP communication31
— reserved for OP communication1
— adjustable for OP communication, min.1
— adjustable for OP communication, max.31
usable for S7 basic communication30
— reserved for S7 basic communication0
— adjustable for S7 basic communication, min.0
— adjustable for S7 basic communication, max.30
usable for S7 communication16
— reserved for S7 communication0
— adjustable for S7 communication, min.0
— adjustable for S7 communication, max.16
total number of instances, max.32
usable for routingX1 as MPI: maks. 10; X1 as DP master: maks. 24; X1 as DP slave (active): maks. 14; X2 as DP master: maks. 24; X2 as DP slave (active): maks. 14; X3 as PROFINET: 48 maks.
S7 message functions
Number of login stations for message functions, max.32; Depending on the configured connections for PG/OP ve S7 basic communication
Process diagnostic messagesVar
simultaneously active Alarm_S blocks, max.300
Test commissioning functions
Status blockVar; Up to 2 simultaneously
Single stepVar
Number of breakpoints4
Durum/kontrol
Durum/kontrol değişkeniVar
DeğişkenlerInputs, outputs, memory bits, DB, times, counters
Number of variables, max.30
— of which status variables, max.30
— of which control variables, max.14
Zorlama (force)
Zorlama (force)Var
Forcing, variablesInputs, outputs
Number of variables, max.10
Tanılama arabelleği
MevcutVar
Number of entries, max.500
— can be setYok
— of which powerfail-proof100
Number of entries readable in RUN, max.499
— can be setVar; From 10 to 499
— preset10
Service data
Can be read outVar
Çalışma ortam sıcaklığı
min.0 °C
maks.60 °C
Configuration software
STEP 7Var; V5.5 veya üstü
Programming
Command setsee instruction list
Nesting levels8
System functions (SFC)see instruction list
System function blocks (SFB)see instruction list
Programlama dili
— LADVar
— FBDVar
— STLVar
— SCLVar
— CFCVar
— GRAPHVar
— HiGraph®Var
Know-how koruması
Kullanıcı programı/şifre korumasıVar
Block encryptionVar; With S7 block Privacy

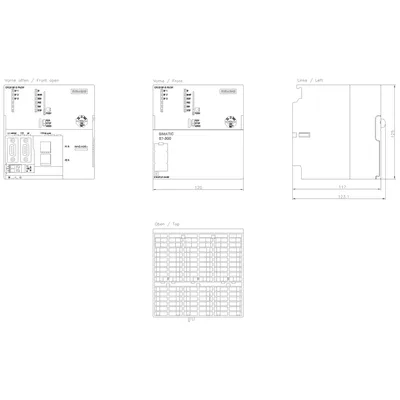

Ölçüler
Genişlik120 mm
Yükseklik125 mm
Derinlik130 mm
Ağırlık
Ağırlık, yaklaşık1.250 g
Aksesuarlar 7
Siemens 6ES7318-3EL01-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7953-8LF31-0AA0 | Aksesuar · Memory card | |
| 6ES7953-8LG31-0AA0 | Aksesuar · Memory card | |
| 6ES7953-8LJ31-0AA0 | Aksesuar · Memory card | |
| 6ES7953-8LL31-0AA0 | Aksesuar · Memory card | |
| 6ES7953-8LP31-0AA0 | Aksesuar · Memory card | |
| 9LF1110-6DA13-2AB1 | Servis · Service Card | |
| 9TF6276-2XA11-1AL4 | Servis |
İlgili Ürünler
Detayları Gör
Siemens
1FN3003-0PB03-0AA3
MFR #1FN3003-0PB03-0AA3
SKU #YLSPDCXX5LUPVBP
Detayları Gör
Siemens
1FN3003-0PB04-0BA3
MFR #1FN3003-0PB04-0BA3
SKU #YLSTLFTLVCKOIMT
Detayları Gör
Siemens
1FN3003-0PB05-0BA3
MFR #1FN3003-0PB05-0BA3
SKU #YLS6EWIJX1ZRGHO
Detayları Gör
Siemens
1FN3050-0TB00-1..0
MFR #1FN3050-0TB00-1..0
SKU #YLS5YVWHSMU6WB7
Detayları Gör
Siemens
1FN3050-2NE00-0EA3
MFR #1FN3050-2NE00-0EA3
SKU #YLSE7XSY2HLF5EC
Detayları Gör
Siemens
1FN3050-2NE00-0FA3
MFR #1FN3050-2NE00-0FA3
SKU #YLSMSUG5AP3INVD
Detayları Gör
Siemens
1FN3100-0TB00-1..0
MFR #1FN3100-0TB00-1..0
SKU #YLSTD7J4JZ8UCBX
Detayları Gör
Siemens
1FN3002-0TK03-1AF0
MFR #1FN3002-0TK03-1AF0
SKU #YLS7VTGYJAP381B
Detayları Gör
Siemens
1FN3050-1ND00-0HA3
MFR #1FN3050-1ND00-0HA3
SKU #YLSJTX7SVU4GFKR
Öne Çıkan Ürünler
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
İlgili Aramalar
Siemens 6ES7318-3EL01-0AB0 fiyatSiemens 6ES7318-3EL01-0AB0 teklif alSiemens 6ES7318-3EL01-0AB0 satın al6ES7318-3EL01-0AB0 fiyat6ES7318-3EL01-0AB0 stok durumuSiemens yedek parçaSiemens 6ES7318-3EL01-0AB0 muadilSiemens 6ES7318-3EL01-0AB0 teknik özellikler
