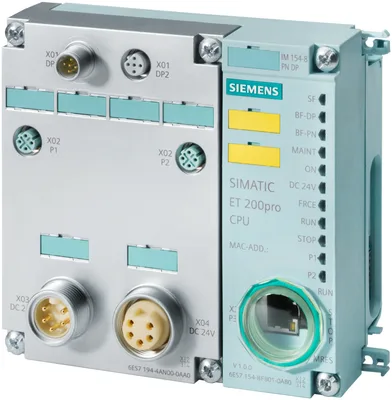

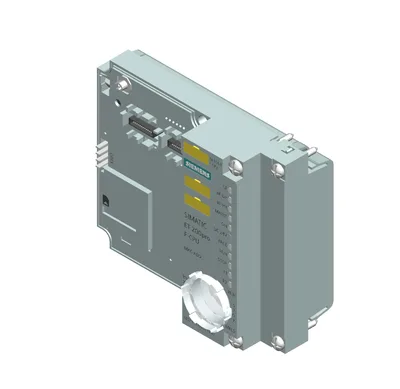

Siemens 6ES7154-8FB01-0AB0
SIMATIC DP, IM154-8F PN/DP CPU için ET 200pro, 512 KB work memory, internal PROFINET arayüz, internal PROFIBUS DP master/cihaz arayüz koruma sınıfı IP65/67, Micro bellek kartı ve bağlantı modül için teslimat
Ürün tipi tanımıIM 154-8F PN/DP CPU
HW functional status01
Firmware sürümüV3.2
Nominal değer (DC)24 V
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
Ürün Hakkında
SIMATIC DP, IM154-8F PN/DP CPU için ET 200pro, 512 KB work memory, internal PROFINET arayüz, internal PROFIBUS DP master/cihaz arayüz koruma sınıfı IP65/67, Micro bellek kartı ve bağlantı modül için teslimat
Siemens 6ES7154-8FB01-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıIM 154-8F PN/DP CPU
HW functional status01
Firmware sürümüV3.2
Product function
Isochronous modeVar; Via PROFIBUS DP veya PROFINET interface
Mühendislik aracı
Programlama paketiSTEP 7 V5.5 veya üstü, Distributed Safety V5.4 SP4
Besleme gerilimi
Nominal değer (DC)24 V
external protection for power supply lines (recommendation)MCB 24 V DC / 16 A with tripping characteristic Type B ve C (see ET 200pro manual)
Yük gerilimi L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Current consumption, typ.350 mA
Current consumption (in no-load operation), typ.250 mA; tipik, current consumption for CPU in STOP state
Inrush current, typ.2 A
I²t0,25 A²·s; tipik
Güç kaybı
Güç kaybı, tipik8,5 W
Çalışma belleği
Dahili512 kB
expandableYok
Yükleme belleği
Plug-in (MMC), max.8 MB
Data management on MMC (after last programming), min.10 a
Yedekleme
MevcutVar; Guaranteed by MMC (bakım gerektirmez)
PilsizVar; Program ve data
CPU işlem süreleri
Bit işlemleri için, tipik0,05 µs
Word işlemleri için, tipik0,09 µs
for fixed point arithmetic, typ.0,12 µs
Kayan nokta aritmetiği için, tipik0,45 µs
CPU blokları
Eleman sayısı (toplam)1.024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.
DB
Sayı, maks.1.024; Number range: 1 to 16000
Boyut, maks.64 kB
FB
Sayı, maks.1.024; Number range: 0 to 7999
Boyut, maks.64 kB
FC
Sayı, maks.1.024; Number range: 0 to 7999
Boyut, maks.64 kB
Organizasyon blokları (OB)
Boyut, maks.64 kB
Number of free cycle OBs1; OB 1
Number of time alarm OBs1; OB 10
Number of delay alarm OBs2; OB 20, 21
Number of cyclic interrupt OBs4; OB 32, 33, 34, 35
Number of process alarm OBs1; OB 40
Number of DPV1 alarm OBs3; OB 55, 56, 57
Number of isochronous mode OBs1; OB 61
Number of startup OBs1; OB 100
Number of asynchronous error OBs6; OB 80, 82, 83, 85, 86, 87 (OB83 only for centralized I/O ve PROFINET IO)
Number of synchronous error OBs2; OB 121, 122
Nesting depth
per priority class16
additional within an error OB4
S7 counter
Number256
Retentivity
— adjustableVar
— presetZ 0 to Z 7
Counting range
— can be setVar
— lower limit0
— upper limit999
IEC counter
TypeSFB
NumberUnlimited (limited only by RAM capacity)
S7 timer
Number256
Retentivity
— adjustableVar
— presetYok retentivity
Time range
— lower limit10 ms
— upper limit9.990 s
IEC timer
TypeSFB
NumberUnlimited (limited only by RAM capacity)
Veri alanları ve kalıcılığı
Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.128 kB
Merker (bayrak)
Boyut, maks.2.048 bayt
Retentivity availableVar; MB 0 to MB 2.047
Retentivity presetMB 0 to MB 15
Number of clock memories8
Data blocks
Retentivity adjustableVar; via non-retain property on DB
Retentivity presetVar
Yerel veri
Öncelik sınıfı başına, maks.32.768 bayt; Maks. 2048 bytes per block
I/O address area
Inputs2.048 bayt
Outputs2.048 bayt
of which distributed
— Inputs2.048 bayt
— Outputs2.048 bayt
Proses görüntüsü
Girişler, ayarlanabilir2.048 bayt
Çıkışlar, ayarlanabilir2.048 bayt
Inputs, default128 bayt
Outputs, default128 bayt
Subprocess images
Number of subprocess images, max.1; With PROFINET IO, the length of the user data is limited to 1600 bytes
Digital channels
Inputs16.384
— of which central128
Outputs16.384
— of which central64
Analog channels
Inputs1.024
— of which central64
Outputs1.024
— of which central64
Number of DP masters
Dahili1
Rack
Racks, max.1
Modules per rack, max.16; Expansion width maks. 1 m
Saat
Donanım saati (gerçek zamanlı)Var
retentive and synchronizableVar
Yedekleme süresi6 wk; At 40 °C ambient temperature
Günlük sapma, maks.10 s; Typ.: 2 s
Operating hours counter
Number1
Number/Number range0
Range of values0 to 2^31 hours (when using SFC 101)
Granularity1 h
retentiveVar; Must be restarted her biri restart
Clock synchronization
DestekleniyorVar
to MPI, masterVar
on MPI, deviceVar
to DP, masterVar; With DP slave only slave clock
on DP, deviceVar
on Ethernet via NTPVar; As client
1. Arayüz
Arayüz tipidahili RS 485 interface
İzoleliVar
Arayüz tipleri
RS 485Var
Output current of the interface, max.May only be used for external terminating resistor
Design of the connection2x M12 B-coded
Protokoller
MPIVar
PROFIBUS DP masterVar
PROFIBUS DP deviceVar
Point-to-point connectionYok
MPI
İletim hızı, maks.12 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationVar
— S7 basic communicationVar
— S7 communicationVar
— S7 communication, as clientYok
— S7 communication, as serverVar
PROFIBUS DP master
İletim hızı, maks.12 Mbit/s
max. number of DP devices124
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationYok
— S7 basic communicationVar; I blocks only
— S7 communicationVar
— S7 communication, as clientYok
— S7 communication, as serverVar; Connection configured on one side only
— EquidistanceVar
— Eşzamanlı (isochronous) modVar; OB 61 - isochronous mode is possible either on DP veya PROFINET IO (not simultaneously)
— SYNC/FREEZEVar
— activation/deactivation of DP devicesVar
— Direct data exchange (slave-to-slave communication)Var; as subscriber
— DPV1Var
Address area
— Inputs, max.2.048 bayt
— Outputs, max.2.048 bayt
User data per DP device
— Inputs, max.244 bayt
— Outputs, max.244 bayt
PROFIBUS DP device
İletim hızı, maks.12 Mbit/s
automatic baud rate searchVar; yalnızca şununla: passive interface
Address area, max.32
User data per address area, max.32 bayt
Servisler
— RoutingVar; with interface active
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientYok
— S7 communication, as serverVar; Connection configured on one side only
— Direct data exchange (slave-to-slave communication)Var
— DPV1Yok
Transfer memory
— Inputs244 bayt
— Outputs244 bayt
2. Interface
Arayüz tipiPROFINET
İzoleliVar; Galvanic isolation for P3 is implemented in IM154-8, for P1 ve P2 in CM
İletim hızının otomatik algılanmasıVar; 10/100 Mbit/s
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Change of IP address at runtime, supportedVar
Arayüz tipleri
Port sayısı3
Dahili switchVar
Design of the connectionEthernet (2x M12 D-coded; 1x RJ45)
Protokoller
MPIYok
PROFINET IO kontrolcüsüVar; Also simultaneously with IO-Device functionality
PROFINET IO DeviceVar; Also simultaneously with IO Controller functionality
PROFINET CBAVar
PROFIBUS DP masterYok
PROFIBUS DP deviceYok
Açık IE haberleşmesiVar; Via TCP/IP, ISO on TCP, ve UDP
Web sunucusuVar
Ortam yedekliliğiVar
PROFINET IO kontrolcüsü
İletim hızı, maks.100 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— S7 communicationVar; With loadable FBs, maks. configurable connections: 14, maks. number of instances: 32
— Eşzamanlı (isochronous) modVar; OB 61 - isochronous mode is possible either on DP veya PROFINET IO (not simultaneously)
— IRTVar
— Önceliklendirilmiş başlatmaVar
— Önceliklendirilmiş başlatmalı IO cihazı sayısı, maks.32
— Bağlanabilir IO cihazı sayısı, maks.128
— Of which IO devices with IRT, max.64
— Bunlardan hat üzerinde, maks.64
— Number of IO Devices with IRT and the option "high flexibility"128
— Bunlardan hat üzerinde, maks.61
— RT için bağlanabilir IO cihazı sayısı, maks.128
— Bunlardan hat üzerinde, maks.128
— Activation/deactivation of IO DevicesVar
— Eşzamanlı etkinleştirilebilen/devre dışı bırakılabilen IO cihazı sayısı, maks.8
— IO Devices changing during operation (partner ports), supportedVar
— Number of IO Devices per tool, max.8
— Device replacement without swap mediumVar
— Send cycles250 μs, 500 μs,1 ms; 2 ms, 4 ms (not in the case of IRT with "high flexibility" option)
— Güncelleme süresi250 µs to 512 ms (depending on the operating mode, see "IM 154-8 CPU Interface Module" operating instructions for more details)
Address area
— Inputs, max.2.048 bayt
— Outputs, max.2.048 bayt
— User data consistency, max.1.024 bayt
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— S7 communicationVar; With loadable FBs, maks. configurable connections: 14, maks. number of instances: 32
— Eşzamanlı (isochronous) modYok
— IRTVar
— PROFIenergyVar; With SFB 73 / 74 prepared for loadable PROFIenergy standard FB for I-Device
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.2
Transfer memory
— Inputs, max.1.440 bayt; Per IO Controller with shared device
— Outputs, max.1.440 bayt; Per IO Controller with shared device
Submodules
— Number, max.64
— User data per submodule, max.1.024 bayt
PROFINET CBA
acyclic transmissionVar
cyclic transmissionVar
Açık IE haberleşmesi
Number of connections, max.8
Local port numbers used at the system end0, 20, 21, 23, 25, 80, 102, 135, 161, 443, 8080, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Keep-alive function, supportedVar
Ortam yedekliliği
— Switchover time on line break, typ.200 ms; PROFINET MRP
— Number of stations in the ring, max.50
SIMATIC haberleşmesi
S7 yönlendirmeVar
Açık IE haberleşmesi
TCP/IPVar; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.8
— Veri uzunluğu, maks.32.768 bayt; 1.460 bytes with connection type 01H; 32.768 bytes with connection type 11H
— several passive connections per port, supportedVar
ISO-on-TCP (RFC1006)Var
— Number of connections, max.8
— Veri uzunluğu, maks.32.768 bayt
UDPVar
— Number of connections, max.8
— Veri uzunluğu, maks.1.472 bayt
Web sunucusu
DestekleniyorVar
Kullanıcı tanımlı web sayfalarıVar
Number of HTTP clients5
Communication functions
PG/OP communicationVar
Global data communication
DestekleniyorVar
Number of GD loops, max.8
Number of GD packets, max.8
Number of GD packets, transmitter, max.8
Number of GD packets, receiver, max.8
Size of GD packets, max.22 bayt
Size of GD packet (of which consistent), max.22 bayt
S7 basic communication
DestekleniyorVar
İş başına kullanıcı verisi, maks.76 bayt
User data per job (of which consistent), max.76 bayt; 76 bytes (with X_SEND veya X_RCV); 64 bytes (with X_PUT veya X_GET as server)
S7 haberleşmesi
DestekleniyorVar
Sunucu olarakVar
İstemci olarakVar; via dahili PROFINET interface ve loadable FBs
İş başına kullanıcı verisi, maks.See online help of STEP 7 (shared parameters of the SFBs/FBs ve of the SFCs/FCs of S7 Communication)
PROFINET CBA (at set setpoint communication load)
Setpoint for the CPU communication load50 %
Number of remote interconnection partners32
number of master/device functions30
total of all master/device connections1.000
data length of all incoming master/device connections, max.4.000 bayt
data length of all outgoing master/device connections, max.4.000 bayt
Number of device-internal and PROFIBUS interconnections500
Data length of device-internal und PROFIBUS interconnections, max.4.000 bayt
Data length per connection, max.1.400 bayt
Remote interconnections with cyclic transmission
— Transmission frequency: Transmission interval, min.1 ms
— Number of incoming interconnections200
— Number of outgoing interconnections200
— Data length of all incoming interconnections, max.2.000 bayt
— Data length of all outgoing interconnections, max.2.000 bayt
— Data length per connection, max.450 bayt
HMI variables via PROFINET (acyclic)
— Number of stations that can log on for HMI variables (PN OPC/iMap)3; 2x PN OPC/1x iMap
— HMI variable updating500 ms
— Number of HMI variables200
— Data length of all HMI variables, max.2.000 bayt
PROFIBUS proxy functionality
— supportedVar
— Number of linked PROFIBUS devices16
— Data length per connection, max.240 bayt; Slave-dependent
Bağlantı sayısı
Toplam16
usable for PG communication15
— reserved for PG communication1
— adjustable for PG communication, min.1
— adjustable for PG communication, max.15
usable for OP communication15
— reserved for OP communication1
— adjustable for OP communication, min.1
— adjustable for OP communication, max.15
usable for S7 basic communication14
— reserved for S7 basic communication0
— adjustable for S7 basic communication, min.0
— adjustable for S7 basic communication, max.14
usable for routingX1 as MPI: maks. 10; X1 as DP master: maks. 24; X1 as DP slave (active): maks. 14; X2 as PROFINET: 24 maks.
S7 message functions
Number of login stations for message functions, max.16; Depending on the configured connections for PG/OP ve S7 basic communication
Process diagnostic messagesVar
simultaneously active Alarm_S blocks, max.300
Test commissioning functions
Status blockVar; Up to 2 simultaneously
Single stepVar
Number of breakpoints4
Durum/kontrol
Durum/kontrol değişkeniVar
DeğişkenlerInputs, outputs, memory bits, DB, times, counters
Number of variables, max.30
— of which status variables, max.30
— of which control variables, max.14
Zorlama (force)
Zorlama (force)Var
Forcing, variablesI/O
Number of variables, max.10
Tanılama arabelleği
MevcutVar
Number of entries, max.500; Only the last 100 entries are retentive power on/off
— can be setYok
— preset10
Potential separation
between backplane bus and electronicsYok
between backplane bus and all other circuit componentsVar
between supply and all other circuitsVar
Isolation
Isolation tested withIn general, 707 V DC (type test), Ethernet interface 1.500 V AC (for P1 ve P2 on CM, for P3 on IM)
Standartlar, onaylar, sertifikalar
CE işaretiVar
CSA approvalYok
cULusVar
FM onayıYok
RCM (eski adıyla C-TICK)Var
Highest safety class achievable in safety mode
Performance level according to ISO 13849-1PLe
SIL acc. to IEC 61508SIL 3
Configuration software
STEP 7Var; V5.5 veya üstü
Programming
Command setsee instruction list
Nesting levels8
System functions (SFC)see instruction list
System function blocks (SFB)see instruction list
Programlama dili
— LADVar
— FBDVar
— STLVar
— SCLVar
— CFCVar
— GRAPHVar
— HiGraph®Var
Know-how koruması
Kullanıcı programı/şifre korumasıVar
Block encryptionVar; With S7 block Privacy
Ölçüler
Genişlik135 mm
Yükseklik130 mm
Derinlik65 mm; 60 mm without cover for RJ45 socket; 65 mm with cover for RJ45 socket
Ağırlık
Ağırlık, yaklaşık720 g
Aksesuarlar 10
Siemens 6ES7154-8FB01-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7590-1AB60-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AC40-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AF30-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AJ30-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1BC00-0AA0 | Aksesuar · Mounting rail | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1BB10-2AB0 | Aksesuar | |
| 6ES7590-0AA00-0AA0 | Yedek parça · spare part | |
| 6ES7528-0AA70-7AA0 | Yedek parça · spare part | |
| 6ES7590-1AE80-0AA0 | Zorunlu ek ürün · Mounting rail |
İlgili Ürünler
Detayları Gör
Siemens
1FN3003-0PB03-0AA3
MFR #1FN3003-0PB03-0AA3
SKU #YLSPDCXX5LUPVBP
Detayları Gör
Siemens
1FN3003-0PB04-0BA3
MFR #1FN3003-0PB04-0BA3
SKU #YLSTLFTLVCKOIMT
Detayları Gör
Siemens
1FN3003-0PB05-0BA3
MFR #1FN3003-0PB05-0BA3
SKU #YLS6EWIJX1ZRGHO
Detayları Gör
Siemens
1FN3050-0TB00-1..0
MFR #1FN3050-0TB00-1..0
SKU #YLS5YVWHSMU6WB7
Detayları Gör
Siemens
1FN3050-2NE00-0EA3
MFR #1FN3050-2NE00-0EA3
SKU #YLSE7XSY2HLF5EC
Detayları Gör
Siemens
1FN3050-2NE00-0FA3
MFR #1FN3050-2NE00-0FA3
SKU #YLSMSUG5AP3INVD
Detayları Gör
Siemens
1FN3100-0TB00-1..0
MFR #1FN3100-0TB00-1..0
SKU #YLSTD7J4JZ8UCBX
Detayları Gör
Siemens
1FN3002-0TK03-1AF0
MFR #1FN3002-0TK03-1AF0
SKU #YLS7VTGYJAP381B
Detayları Gör
Siemens
1FN3050-1ND00-0HA3
MFR #1FN3050-1ND00-0HA3
SKU #YLSJTX7SVU4GFKR
Öne Çıkan Ürünler
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
İlgili Aramalar
Siemens 6ES7154-8FB01-0AB0 fiyatSiemens 6ES7154-8FB01-0AB0 teklif alSiemens 6ES7154-8FB01-0AB0 satın al6ES7154-8FB01-0AB0 fiyat6ES7154-8FB01-0AB0 stok durumuSiemens yedek parçaSiemens 6ES7154-8FB01-0AB0 muadilSiemens 6ES7154-8FB01-0AB0 teknik özellikler
