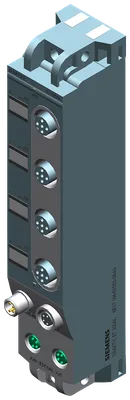

Siemens 6ES7144-5KD50-0BA0

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 6ES7144-5KD50-0BA0

SIMATIC ET 200AL, AI 4xRTD/TC, 4x M12, koruma sınıfı IP67

SiemensMFR # 6ES7144-5KD50-0BA0SKU # YLSKB7282KZWM9
Ürün tipi tanımıAI 4xRTD/TC
HW functional statusFS03
Firmware sürümüV2.0.x
I&M dataVar; I&M0 to I&M3
PROFIBUS from GSD version/GSD revisionGSD as of Revision 5
PROFINET from GSD version/GSD revisionGSDML V2.34
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6ES7144-5KD50-0BA0 (SIMATIC ET 200AL, AI 4xRTD/TC, 4x M12, koruma sınıfı IP67), Yılsa Mühendislik güvencesiyle orijinal ve hızlı şekilde tedarik edilir. Siemens 6ES7144-5KD50-0BA0 fiyatı, stok durumu ve teknik özellikleri için hemen teklif alın.

Siemens 6ES7144-5KD50-0BA0

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler
Ürün tipi tanımıAI 4xRTD/TC
HW functional statusFS03
Firmware sürümüV2.0.x
Product function
I&M dataVar; I&M0 to I&M3
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V16 veya üstü
STEP 7 configurable/integrated from versionV5.5 SP4 ve üstü
PROFIBUS from GSD version/GSD revisionGSD as of Revision 5
PROFINET from GSD version/GSD revisionGSDML V2.34
Besleme gerilimi
power supply according to NEC Class 2 requiredYok
Load voltage 1L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar; against destruction
Giriş akımı
Akım tüketimi (nominal değer)30 mA; without load
from load voltage 1L+ (unswitched voltage)4 A; Maximum value
from load voltage 2L+, max.4 A; Maximum value
Güç kaybı
Güç kaybı, tipik1,5 W
Analog girişler
Analog giriş sayısı4
For voltage measurement4
For resistance/resistance thermometer measurement4
For thermocouple measurement4
permissible input voltage for voltage input (destruction limit), max.15 V
Constant measurement current for resistance-type transmitter, typ.230... 300 µA
Cycle time (all channels), min.90 ms
Technical unit for temperature measurement adjustableVar; Degrees Celsius / degrees Fahrenheit / Kelvin
Giriş aralıkları (nominal değerler), gerilim
-80 mV to +80 mVVar; 16 bit incl. sign
— Input resistance (-80 mV to +80 mV)10 MΩ
Input ranges (rated values), thermocouples
Type BVar; 16 bit incl. sign
— Input resistance (Type B)10 MΩ
Type CVar; 16 bit incl. sign
— Input resistance (Type C)10 MΩ
Type EVar; 16 bit incl. sign
— Input resistance (Type E)10 MΩ
Type JVar; 16 bit incl. sign
— Input resistance (type J)10 MΩ
Type KVar; 16 bit incl. sign
— Input resistance (Type K)10 MΩ
Type LVar; 16 bit incl. sign
— Input resistance (Type L)10 MΩ
Type NVar; 16 bit incl. sign
— Input resistance (Type N)10 MΩ
Type RVar; 16 bit incl. sign
— Input resistance (Type R)10 MΩ
Type SVar; 16 bit incl. sign
— Input resistance (Type S)10 MΩ
Type TVar; 16 bit incl. sign
— Input resistance (Type T)10 MΩ
Type UVar; 16 bit incl. sign
— Input resistance (Type U)10 MΩ
Input ranges (rated values), resistance thermometer
Ni 100Var; Standard/climate
— Input resistance (Ni 100)10 MΩ
Ni 1000Var; Standard/climate
— Input resistance (Ni 1000)10 MΩ
Pt 100Var; Standard/climate
— Input resistance (Pt 100)10 MΩ
Pt 1000Var; Standard/climate
— Input resistance (Pt 1000)10 MΩ
Input ranges (rated values), resistors
0 to 150 ohmsVar
— Input resistance (0 to 150 ohms)10 MΩ
0 to 300 ohmsVar
— Input resistance (0 to 300 ohms)10 MΩ
Temperature compensation
— ParametrelenebilirVar
— internal temperature compensationVar
— external temperature compensation with compensations socketVar
— dynamic reference temperature valueVar
— fixed reference temperatureVar
Kablo uzunluğu
Ekranlı, maks.30 m
Analog value generation for the inputs
Measurement principleintegrating
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Entegrasyon süresi, parametrelenebilirVar; channel by channel
Integration time (ms)16,7 / 20 / 60
Basic conversion time, including integration time (ms)18 / 21 / 61 ms
— additional conversion time for wire-break monitoring4 ms
— additional conversion time for resistance measurement2 ms
Interference voltage suppression for interference frequency f1 in Hz60 / 50 / 16,7
Smoothing of measured values
parameterizableVar
Step: NoneVar; 1x cycle time
Step: lowVar; 4x cycle time
Step: MediumVar; 16x cycle time
Step: HighVar; 32x cycle time
Connection of signal encoders
for resistance measurement with two-wire connectionVar
for resistance measurement with three-wire connectionVar
for resistance measurement with four-wire connectionVar
Errors/accuracies
Linearity error (relative to input range), (+/-)0,025 %
Temperature error (relative to input range), (+/-)0,01 %/K
Crosstalk between the inputs, max.-70 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,01 %; 0,02% for Pt1000
Temperature error of internal compensation±4 °C
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)0,35 %
Resistance, relative to input range, (+/-)0,25 %
Resistance thermometer, relative to input range, (+/-)0,25 %
Thermocouple, relative to input range, (+/-)TC type E, J, K, N, C, U, L: 0,35 %; TC type R, S, T: 0,4 %; TC type B: 0,45 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,25 %
Resistance, relative to input range, (+/-)0,15 %
Resistance thermometer, relative to input range, (+/-)0,15 %
Thermocouple, relative to input range, (+/-)0,25 %
Interference voltage suppression for f = n x (f1 +/- 0.5 %), f1 = interference frequency
Series mode interference (peak value of interference < rated value of input range), min.40 dB
Alarms
Diagnostic alarmVar; Parameterizable
Limit value alarmVar; Parameterizable
Diagnoses
Wire breakVar; Not for ±80 mV
Overflow/UnderflowVar
Tanılama gösterge LED’i
Channel status displayVar; green LED
for module diagnosticsVar; green/red LED
Potential separation
between the load voltagesVar
Potential separation channels
Kanallar arasıYok
between the channels and backplane busVar
between the channels and the power supply of the electronicsYok
Isolation
Isolation tested with707 V DC (type test)
Koruma derecesi ve sınıfı
IP koruma sınıfıIP65/67
Standartlar, onaylar, sertifikalar
Suitable for safety-related tripping of standard modulesVar; from FS01
Suitable for applications according to AMS 2750Var; Declaration of Conformity, see online support entry 109757262
Suitable for applications according to CQI-9Var; Based on AMS 2750 E
Highest safety class achievable for safety-related tripping of standard modules
Performance level according to ISO 13849-1PL d
Category according to ISO 13849-1Cat. 3
SIL acc. to IEC 62061SIL 2
Security
signed firmware updateVar
data integrityVar
Çalışma ortam sıcaklığı
min.-30 °C
maks.55 °C
Deniz seviyesine göre çalışma yüksekliği
Ambient air temperature-barometric pressure-altitudeUp to maks. 5.000 m, installation height > 2.000 m additional restrictions
Connection method
Design of electrical connection for the inputs and outputsM12, 5-pole
Design of electrical connection for supply voltageM8, 4-pole
ET-Connection
ET-ConnectionM8, 4-pin, shielded
Ölçüler
Genişlik30 mm
Yükseklik159 mm
Derinlik40 mm
Ağırlık
Ağırlık, yaklaşık168 g

Aksesuarlar 78

Siemens 6ES7144-5KD50-0BA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça noAçıklamaUyumlu motor
6ES7194-2CA00-0AA0Aksesuar · Voltage distributor
6ES7194-2KA00-0AA0Aksesuar · Accessories
3RK1901-1PN00Aksesuar
3RK1901-1KA00Aksesuar
6ES7194-2AC00-0AA0Aksesuar · Connection plug
6ES7194-2AA00-0AA0Aksesuar · Connection plug
6ES7194-2AB00-0AA0Aksesuar · Connection plug
6ES7194-2LH02-1AA0Aksesuar · Power cable
6ES7194-2LH03-1AA0Aksesuar · Power cable
6ES7194-2LH10-1AA0Aksesuar · Power cable
6ES7194-2LH20-1AA0Aksesuar · Power cable
6ES7194-2LH50-1AA0Aksesuar · Power cable
6ES7194-2LN10-1AA0Aksesuar · Power cable
6ES7194-2LN15-1AA0Aksesuar · Power cable
6ES7194-2LH02-0AA0Aksesuar · Bus cable
6ES7194-2LH03-0AA0Aksesuar · Bus cable
6ES7194-2LH10-0AA0Aksesuar · Bus cable
6ES7194-2LH20-0AA0Aksesuar · Bus cable
6ES7194-2LH50-0AA0Aksesuar · Bus cable
6ES7194-2LN10-0AA0Aksesuar · Bus cable
6ES7194-2LN15-0AA0Aksesuar · Bus cable
6ES7194-2LH20-1AC0Aksesuar · Power cable
6ES7194-2LH50-1AC0Aksesuar · Power cable
6ES7194-2LN10-1AC0Aksesuar · Power cable
6ES7194-2LN15-1AC0Aksesuar · Power cable
6ES7194-2LH20-0AC0Aksesuar · Bus cable
6ES7194-2LH50-0AC0Aksesuar · Bus cable
6ES7194-2LN10-0AC0Aksesuar · Bus cable
6ES7194-2LN15-0AC0Aksesuar · Bus cable
6ES7194-2LH03-1AB0Aksesuar · Power cable
6ES7194-2LH10-1AB0Aksesuar · Power cable
6ES7194-2LH20-1AB0Aksesuar · Power cable
6ES7194-2LH50-1AB0Aksesuar · Power cable
6ES7194-2LN10-1AB0Aksesuar · Power cable
6ES7194-2LN15-1AB0Aksesuar · Power cable
6ES7194-2LH03-0AB0Aksesuar · Bus cable
6ES7194-2LH10-0AB0Aksesuar · Bus cable
6ES7194-2LH20-0AB0Aksesuar · Bus cable
6ES7194-2LH50-0AB0Aksesuar · Bus cable
6ES7194-2LN10-0AB0Aksesuar · Bus cable
6ES7194-2LN15-0AB0Aksesuar · Bus cable
6ES7194-2MH02-1AA0Aksesuar · Power cable
6ES7194-2MH03-1AA0Aksesuar · Power cable
6ES7194-2MH10-1AA0Aksesuar · Power cable
6ES7194-2MH20-1AA0Aksesuar · Power cable
6ES7194-2MH50-1AA0Aksesuar · Power cable
6ES7194-2MN10-1AA0Aksesuar · Power cable
6ES7194-2MN15-1AA0Aksesuar · Power cable
6ES7194-2MH02-0AA0Aksesuar · Bus cable
6ES7194-2MH03-0AA0Aksesuar · Bus cable
6ES7194-2MH10-0AA0Aksesuar · Bus cable
6ES7194-2MH20-0AA0Aksesuar · Bus cable
6ES7194-2MH50-0AA0Aksesuar · Bus cable
6ES7194-2MN10-0AA0Aksesuar · Bus cable
6ES7194-2MN15-0AA0Aksesuar · Bus cable
6ES7194-2MH20-1AC0Aksesuar · Power cable
6ES7194-2MH50-1AC0Aksesuar · Power cable
6ES7194-2MN10-1AC0Aksesuar · Power cable
6ES7194-2MN15-1AC0Aksesuar · Power cable
6ES7194-2MH20-0AC0Aksesuar · Bus cable
6ES7194-2MH50-0AC0Aksesuar · Bus cable
6ES7194-2MN10-0AC0Aksesuar · Bus cable
6ES7194-2MN15-0AC0Aksesuar · Bus cable
6ES7194-2MH03-1AB0Aksesuar · Power cable
6ES7194-2MH10-1AB0Aksesuar · Power cable
6ES7194-2MH20-1AB0Aksesuar · Power cable
6ES7194-2MH50-1AB0Aksesuar · Power cable
6ES7194-2MN10-1AB0Aksesuar · Power cable
6ES7194-2MN15-1AB0Aksesuar · Power cable
6ES7194-2MH03-0AB0Aksesuar · Bus cable
6ES7194-2MH10-0AB0Aksesuar · Bus cable
6ES7194-2MH20-0AB0Aksesuar · Bus cable
6ES7194-2MH50-0AB0Aksesuar · Bus cable
6ES7194-2MN10-0AB0Aksesuar · Bus cable
6ES7194-2MN15-0AB0Aksesuar · Bus cable
6ES7194-2LH02-0AD0Aksesuar · Bus cable
6ES7194-2MH02-0AD0Aksesuar · Bus cable
6ES7194-2BA00-0AA0Yedek parça · label

İlgili Ürünler

1FN3003-0PB02-0AA3
Siemens 1FN3003-0PB02-0AA3
Detayları Gör

Siemens

1FN3003-0PB02-0AA3

MFR #1FN3003-0PB02-0AA3

SKU #YLS7ACYY31VH29I

1FN3003-0PB03-0AA3
Siemens 1FN3003-0PB03-0AA3
Detayları Gör

Siemens

1FN3003-0PB03-0AA3

MFR #1FN3003-0PB03-0AA3

SKU #YLSPDCXX5LUPVBP

1FN3003-0PB04-0BA3
Siemens 1FN3003-0PB04-0BA3
Detayları Gör

Siemens

1FN3003-0PB04-0BA3

MFR #1FN3003-0PB04-0BA3

SKU #YLSTLFTLVCKOIMT

1FN3003-0PB05-0BA3
Siemens 1FN3003-0PB05-0BA3
Detayları Gör

Siemens

1FN3003-0PB05-0BA3

MFR #1FN3003-0PB05-0BA3

SKU #YLS6EWIJX1ZRGHO

1FN3050-0TB00-1..0
Siemens 1FN3050-0TB00-1..0
Detayları Gör

Siemens

1FN3050-0TB00-1..0

MFR #1FN3050-0TB00-1..0

SKU #YLS5YVWHSMU6WB7

1FN3050-2NE00-0EA3
Siemens 1FN3050-2NE00-0EA3
Detayları Gör

Siemens

1FN3050-2NE00-0EA3

MFR #1FN3050-2NE00-0EA3

SKU #YLSE7XSY2HLF5EC

1FN3050-2NE00-0FA3
Siemens 1FN3050-2NE00-0FA3
Detayları Gör

Siemens

1FN3050-2NE00-0FA3

MFR #1FN3050-2NE00-0FA3

SKU #YLSMSUG5AP3INVD

1FN3100-0TB00-1..0
Siemens 1FN3100-0TB00-1..0
Detayları Gör

Siemens

1FN3100-0TB00-1..0

MFR #1FN3100-0TB00-1..0

SKU #YLSTD7J4JZ8UCBX

1FN3002-0TK03-1AF0
Detayları Gör

Siemens

1FN3002-0TK03-1AF0

MFR #1FN3002-0TK03-1AF0

SKU #YLS7VTGYJAP381B

1FN3050-1ND00-0HA3
Detayları Gör

Siemens

1FN3050-1ND00-0HA3

MFR #1FN3050-1ND00-0HA3

SKU #YLSJTX7SVU4GFKR

Öne Çıkan Ürünler

CM2B40-75Z
SMC CM2B40-75Z
Detayları Gör

SMC

CM2B40-75Z

MFR #CM2B40-75Z

SKU #YLSOGLJ512KWTEJ

MXQ25-40B-M9NZ
SMC MXQ25-40B-M9NZ
Detayları Gör

SMC

MXQ25-40B-M9NZ

MFR #MXQ25-40B-M9NZ

SKU #YLST5TX9LNATRNS

MGPL25TN-200BZ-XC9
SMC MGPL25TN-200BZ-XC9
Detayları Gör

SMC

MGPL25TN-200BZ-XC9

MFR #MGPL25TN-200BZ-XC9

SKU #YLSPBI637NOCN0Y

BC8M12
Brush Research Mfg BC8M12
Detayları Gör

Brush Research Mfg

BC8M12

MFR #BC8M12

SKU #YLSA0P5BE6ZJCIW

MY1M20-200AH
SMC MY1M20-200AH
Detayları Gör

SMC

MY1M20-200AH

MFR #MY1M20-200AH

SKU #YLSIZ8K8N4KBPBQ

VM8001-5
Baldor VM8001-5
Detayları Gör

Baldor

VM8001-5

MFR #VM8001-5

SKU #YLS3TOWVXWW0DHP

VFSWDM3546T-5E
Baldor VFSWDM3546T-5E
Detayları Gör

Baldor

VFSWDM3546T-5E

MFR #VFSWDM3546T-5E

SKU #YLSRYYEFOOW6J5E

NCDGFN25-0100
SMC NCDGFN25-0100
Detayları Gör

SMC

NCDGFN25-0100

MFR #NCDGFN25-0100

SKU #YLST0TDV975HLIN

AR30-N02E-1Z-B
SMC AR30-N02E-1Z-B
Detayları Gör

SMC

AR30-N02E-1Z-B

MFR #AR30-N02E-1Z-B

SKU #YLSYFNHADE6GRKV

İlgili Aramalar

Siemens 6ES7144-5KD50-0BA0 fiyatSiemens 6ES7144-5KD50-0BA0 teklif alSiemens 6ES7144-5KD50-0BA0 satın al6ES7144-5KD50-0BA0 fiyat6ES7144-5KD50-0BA0 stok durumuSiemens yedek parçaSiemens 6ES7144-5KD50-0BA0 muadilSiemens 6ES7144-5KD50-0BA0 teknik özellikler
