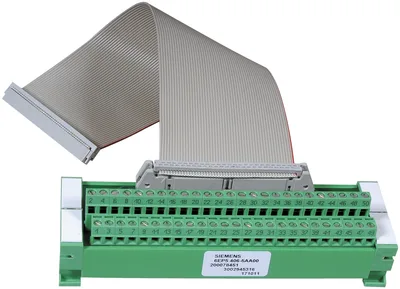

Siemens 6EP5406-5AA00
Terminal strip converter from 50-pin IDC connector to Screw terminals for 1 to 1 connection O. LED
target systemSINUMERIK
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationConnection module
at DC / rated value60 V
rated value60 V
Ürün Hakkında
Terminal strip converter from 50-pin IDC connector to Screw terminals for 1 to 1 connection O. LED
Siemens 6EP5406-5AA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
target systemSINUMERIK
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationConnection module
electrical data
at DC / rated value60 V
rated value60 V
at DC / maximum60 V
ampacity / per pin / maximum1 A
continuous current / at DC / per signal cable / maximum1 A
product function / infeed functionYok
PE connectionYok
shield connectionYok
disconnectorYok
product feature / cross-connectableYok
connection method
number of terminals50
type of connecting terminalScrew-type terminal
position / of the terminalTop
number of terminal levels1
design of terminal / terminal levels internally linkedYok
type of electrical connection / for connecting cablePlug-in connection
number of poles / at the 1st interface50; IDC connector with installed strain relief for the connecting cable
number of the plug contacts / of the electrical connection1
type of connectable conductor cross-sections / solidYok
for flexible conductor / with core end processing0,14... 1,5 mm²
stranded0,14... 1,5 mm²
finely stranded / without core end processing0,14... 1,5 mm²
finely stranded / with core end processing0,14... 1,5 mm²
number of cables / per connection1
width of screwdriver blade3,5 mm
standards, specifications, approvals
design tested acc. to type of protection / EEx eYok
overvoltage category2
degree of pollution2
ambient conditions
during operation-20... +50 °C
during storage-20... +70
mechanical data
width × height × depth151 mm × 45 mm × 50 mm
mounting positionany
height / with lowest-profile installation50 mm
net weight0,16 kg
of the enclosuregreen
of the light sourcewithout
product component / required / end cover plateYok
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
marketing textthe terminal strip converter of 50-pole IDC plug to screw terminals for 1-to-1 connection without LED
