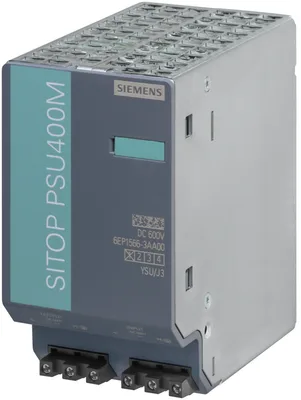

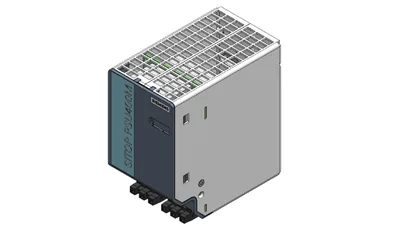

Siemens 6EP1566-3AA00
SITOP PSE400M SAB ballast for 6EP1536-3AA00 input: 300 to 900 V DC output: 300 to 900 V DC
product brand nameSITOP
product type designationPSU400M
product designationPower supply SITOP modular
type of current supply600 V/1 A
type of the power supply networkDC voltage
voltage curve at inputDC
Ürün Hakkında
SITOP PSE400M SAB ballast for 6EP1536-3AA00 input: 300 to 900 V DC output: 300 to 900 V DC
Siemens 6EP1566-3AA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSU400M
product designationPower supply SITOP modular
type of current supply600 V/1 A
input
type of the power supply networkDC voltage
voltage curve at inputDC
supply voltage at DC600 V
input voltage at DC200... 900 V
at rated input voltage 600 V0,85 A
fuse protection type3 A/1 kV DC (internal fuse, not accessible)
fuse protection type in the feederyes, switch-off capacity 20 kA; L/R < 2 ms ("+" ve "-" input)
output
voltage curve at outputCorresponding to the DC input voltage
number of outputs1
output voltage at DC rated value600 V
at output 1 at DC rated value600 V
at output 1 at DC200... 900 V
rated value0,85 A
maximum rated value2,8 A
rated range2,8 A
supplied active power typical505 W
on short-circuiting during the start-up typical3 A
efficiency
efficiency in percent99,5 %
at rated output voltage for rated value of the output current typical1,5 W
safety
operating resource protection classClass I
protection class IPIP20
EMC
for emitted interferenceClass A (also conducted) with PSU400M
for interference immunityEN 61000-6-2 with PSU400M
standards, specifications, approvals
CE markingVar
UL onayıYok
EAC approvalVar
NEC Class 2Yok
CB-certificateVar
MTBF at 40 °C1.240.810 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalYok
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Lloyds Register of Shipping (LRS)Yok
ambient conditions
during operation-25... +70 °C
during transport-40... +85 °C
during storage-40... +85 °C
ambient condition relating to ambient temperature - air pressure - installation altitude< 2000 m
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionscrew terminal
at inputDC input, +, -, PE: 1 screw terminal her biri for 0,2... 6/4 mm² single-core/finely stranded
at outputDC input +, -, PE: 1 screw terminal for 0,2... 6/4 mm² single-core/finely stranded

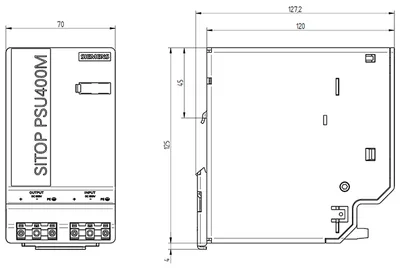

mechanical data
width × height × depth of the enclosure70 × 125 × 120 mm
installation width × mounting height70 mm × 129 mm
top50 mm
bottom50 mm
DIN-rail mountingVar
net weight0,515 kg
