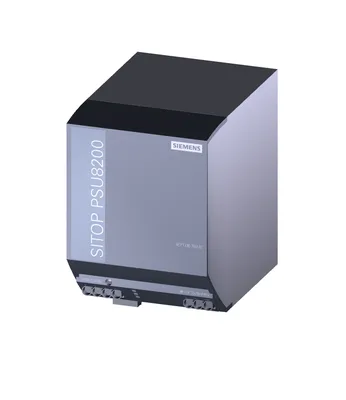

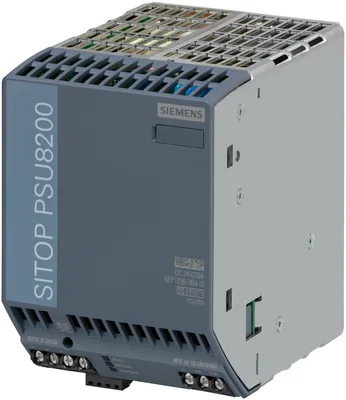

Siemens 6EP1336-3BA10
SITOP PSU8200 20 A stabilized power supply input: 120-230 V AC 110-220 V DC output: 24 V DC/20 A
product brand nameSITOP
product type designationPSU8200
product designationPower supply SITOP modular
type of current supply24 V/20 A
type of the power supply network1-phase ve 2-phase AC veya DC
phase number1
Ürün Hakkında
SITOP PSU8200 20 A stabilized power supply input: 120-230 V AC 110-220 V DC output: 24 V DC/20 A
Siemens 6EP1336-3BA10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSU8200
product designationPower supply SITOP modular
type of current supply24 V/20 A
input
type of the power supply network1-phase ve 2-phase AC veya DC
phase number1
voltage curve at inputAC/DC
minimum rated value120 V
maximum rated value230 V
initial value85 V
full-scale value275 V
supply voltage at ACtemperature derating necessary Uin<100 V AC veya DC 50 °C; additional derating Uin<100 V: Uin=95 V Pa max=460 W, Uin=90 V Pa max=440 W, Uin=85 V Pa max=420 W
supply voltage at DC110... 220 V
input voltage at DC88... 350 V
at 50 Hz230 V
at 60 Hz120 V
line frequency50/60 Hz
line frequency47... 63 Hz
wide range inputVar
buffering time for rated value of the output current in the event of power failure minimum20 ms
operating condition of the mains bufferingVin = 230 V
at rated input voltage 120 V4,6 A
at rated input voltage 230 V2,5 A
current limitation of inrush current at 25 °C maximum20 A
I2t value maximum5 A²·s
fuse protection typeVar
fuse protection type in the feederRecommended miniature circuit breaker 1-phase operation: 10 A characteristic C; required 2-phase operation: circuit breaker 2-pole connected veya circuit breaker 3RV2711-1HD10 (UL 489) 120 V veya 3RV2711-1ED10 (UL 489) 230 V
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
output voltage at DC rated value24 V
at output 1 at DC rated value24 V
at output 1 at DC24 V
output voltage adjustableVar; via potentiometer
adjustable output voltage24... 28 V
relative overall tolerance of the voltage3 %
on slow fluctuation of input voltage0,1 %
on slow fluctuation of ohm loading0,3 %
maximum100 mV
typical80 mV
maximum200 mV
typical100 mV
display version for normal operationGreen LED for 24 V OK
type of signal at outputRelay contact (NO contact, rating 60 V DC/ 0,3 A) for "24 V OK"
behavior of the output voltage when switching onYok overshoot of Vout (soft start)
response delay maximum1,5 s
typical250 ms
rated value20 A
rated range0... 20 A; +60... +70 °C: Derating 3%/K
supplied active power typical480 W
at short-circuit during operation typical60 A
at short-circuit during operation25 ms
on short-circuiting during the start-up typical30 A
bridging of equipmentVar; switchable characteristic
number of parallel-switched equipment resources for increasing the power2
efficiency
efficiency in percent94 %
at rated output voltage for rated value of the output current typical31 W
closed-loop control
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,5 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical1 %
load step 50 to 100% typical1 ms
load step 100 to 50% typical1 ms
maximum5 ms
protection and monitoring
design of the overvoltage protection< 31,8 V
property of the output short-circuit proofVar
design of short-circuit protectionAlternatively, constant current characteristic yaklaşık 21,5 A veya latching shutdown
typical21,5 A
in normal operationoverload capability 150 % Iout rated up to 5 s/min
typical21,5 A
display version for overload and short circuitLED yellow for "overload", LED red for "latching shutdown"
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass I
maximum3,5 mA
typical1 mA
protection class IPIP20
EMC
for emitted interferenceEN 55022 Class B
for mains harmonics limitationEN 61000-3-2
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
UKCA markingVar
EAC approvalVar
Regulatory Compliance Mark (RCM)Var
NEC Class 2Yok
SEMI F47Var
BISVar; R-41183539
CB-certificateVar
MTBF at 40 °C583.500 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Var
Lloyds Register of Shipping (LRS)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total814,3 kg
during manufacturing28,7 kg
during operation785 kg
after end of life0,24 kg
ambient conditions
during operation-25... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

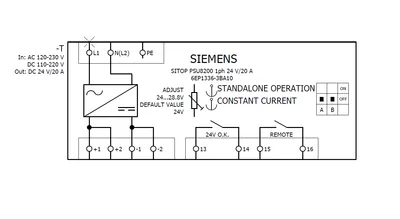

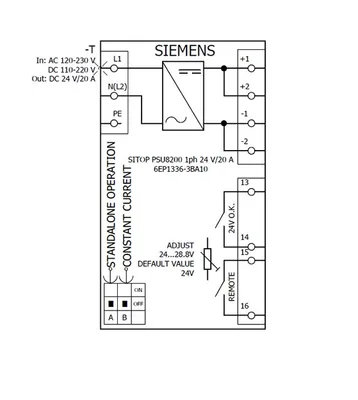

connection method
type of electrical connectionscrew terminal
at inputL, N, PE: 1 screw terminal her biri for 0,2... 4 mm² single-core/finely stranded
at output+, -: 2 screw terminals her biri for 0,2... 4 mm²
for auxiliary contacts13, 14 (alarm signal), 15, 16 (Remote ON OFF): 1 screw terminal her biri for 0,14... 1,5 mm²
mechanical data

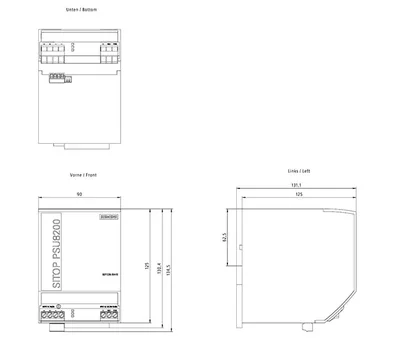

width × height × depth of the enclosure90 × 125 × 125 mm
installation width × mounting height90 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight1,2 kg
accessories
electrical accessoriesBuffer module
mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing28,7 kg
global warming potential [CO2 eq] / during operation785 kg
global warming potential [CO2 eq] / after end of life0,24 kg
