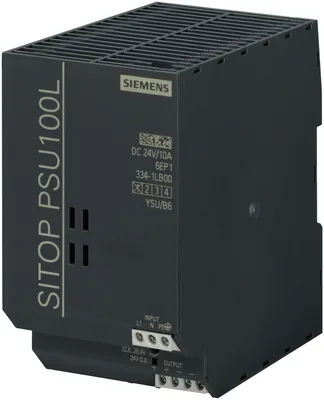

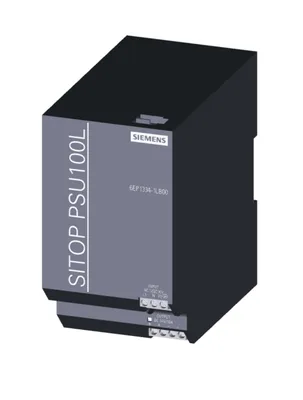

Siemens 6EP1334-1LB00
SITOP PSU100L 24 V/10 A Stabilized power supply input: 120/230 V AC, output: DC 24 V/10 A
product brand nameSITOP
product type designationPSU100L
product designationPower supply SITOP lite
type of current supply24 V/10 A
type of the power supply network1-phase AC
phase number1
Ürün Hakkında
SITOP PSU100L 24 V/10 A Stabilized power supply input: 120/230 V AC, output: DC 24 V/10 A
Siemens 6EP1334-1LB00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSU100L
product designationPower supply SITOP lite
type of current supply24 V/10 A
input
type of the power supply network1-phase AC
phase number1
voltage curve at inputAC
supply voltage at ACSet by means of selector switch on the device
supply voltage120 V/230 V
input voltage 1 at AC93... 132 V
input voltage 2 at AC187... 264 V
at 50 Hz230 V
at 60 Hz120 V
line frequency50/60 Hz
line frequency47... 63 Hz
wide range inputYok
overvoltage overload capability2,3 × Vin rated, 1,3 ms
buffering time for rated value of the output current in the event of power failure minimum20 ms
operating condition of the mains bufferingVin = 93/187 V
at rated input voltage 120 V4,1 A
at rated input voltage 230 V2 A
current limitation of inrush current at 25 °C maximum65 A
typical3 ms
I2t value maximum3,3 A²·s
fuse protection typeT 6,3 A/250 V (not accessible)
fuse protection type in the feederRecommended miniature circuit breaker: from 10 A characteristic C
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
output voltage at DC rated value24 V
at output 1 at DC rated value24 V
at output 1 at DC24 V
output voltage adjustableVar; via potentiometer
adjustable output voltage22,8... 26,4 V
relative overall tolerance of the voltage3 %
on slow fluctuation of input voltage0,1 %
on slow fluctuation of ohm loading0,5 %
maximum150 mV
typical50 mV
maximum240 mV
typical150 mV
display version for normal operationGreen LED for 24 V OK
behavior of the output voltage when switching onOvershoot of Vout yaklaşık 4 %
response delay maximum1,5 s
typical170 ms
rated value10 A
rated range0... 10 A; +45... +60 °C: Derating 2%/K
supplied active power typical240 W
bridging of equipmentVar
number of parallel-switched equipment resources for increasing the power2
efficiency
efficiency in percent89 %
at rated output voltage for rated value of the output current typical34 W
closed-loop control
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,3 %
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical2 %
load step 10 to 90% typical0,5 ms
load step 90 to 10% typical0,7 ms
protection and monitoring
design of the overvoltage protection< 33 V
property of the output short-circuit proofVar
design of short-circuit protectionConstant current characteristic
typical16 A
typical12,6 A
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass I
maximum3,5 mA
typical0,8 mA
protection class IPIP20
EMC
for emitted interferenceEN 55022 Class A
for mains harmonics limitation-
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
UKCA markingVar
EAC approvalVar
NEC Class 2Yok
BISVar; R-41183539
CB-certificateVar
MTBF at 40 °C2.333.396 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalYok
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Lloyds Register of Shipping (LRS)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total941,9 kg
during manufacturing19,3 kg
during operation921,8 kg
after end of life0,56 kg
ambient conditions
during operation0... 60 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method

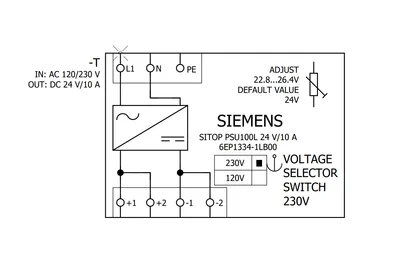

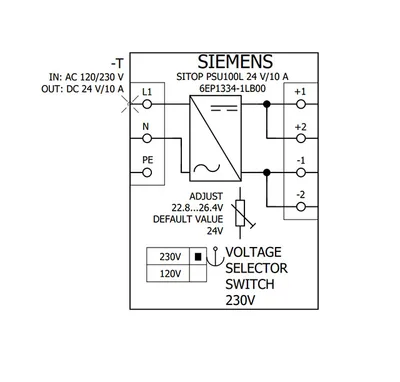

type of electrical connectionscrew terminal
at inputL, N, PE: 1 screw terminal her biri for 0,5... 2,5 mm² single-core/finely stranded
at output+, -: 2 screw terminals her biri for 0,5... 2,5 mm²
for auxiliary contacts-
mechanical data

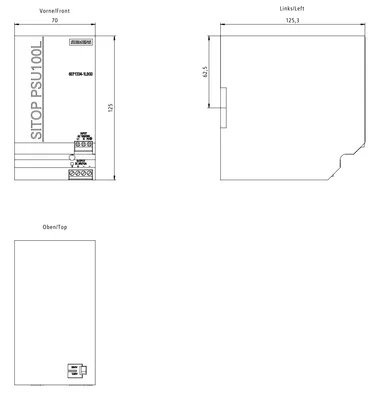

width × height × depth of the enclosure70 × 125 × 120 mm
installation width × mounting height70 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,75 kg
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing19,3 kg
global warming potential [CO2 eq] / during operation921,8 kg
global warming potential [CO2 eq] / after end of life0,56 kg
global warming potential [CO2 eq] / total941,9 kg
