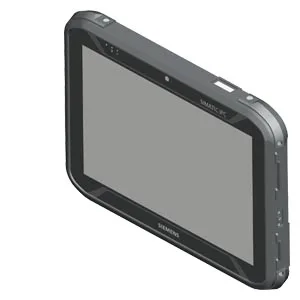

Siemens 6AV7880-4CB01-1AA3
SIMATIC IPC MD-34A High End with with Windows 11, 10.1" multi-touch 512 GB SSD, 32 GB RAM Intel Core i5-11th, Windows 11 IoT Enterprise LTSC 2024 resolution: 1920x1200 pixels, brightness: 800 cd/m2, 1D/2D bar code reader built-in,HF RFID, reader module built-in, global 4G/LTE module built-in , built-in GPS & GLONASS with 3,500 mAh battery; you must select your power supply cord: EU: 6ES7900-5AA00-0XA0 GB: 6ES7900-5BA00-0XA0; Swiss: 6ES7900-5CA00-0XA0; USA: 6ES7900-5DA00-0XA0; Italy: 6ES7900-5EA00-0XA0; China: 6ES7900-5F00-0XA0; India: 6ES7900-5GA00-0XA0
Design of the programming deviceMobile computer
Design of display10,1" TFT LCD with Multi-Touch
Screen diagonal10,1 in; TFT display, LED backlighting
Horizontal image resolution1.920 pixel
Vertical image resolution1.200 pixel
Non-reflectingVar; Anti-Glare, etching on cover glass
Ürün Hakkında
SIMATIC IPC MD-34A High End with with Windows 11, 10.1" multi-touch 512 GB SSD, 32 GB RAM Intel Core i5-11th, Windows 11 IoT Enterprise LTSC 2024 resolution: 1920x1200 pixels, brightness: 800 cd/m2, 1D/2D bar code reader built-in,HF RFID, reader module built-in, global 4G/LTE module built-in , built-in GPS & GLONASS with 3,500 mAh battery; you must select your power supply cord: EU: 6ES7900-5AA00-0XA0 GB: 6ES7900-5BA00-0XA0; Swiss: 6ES7900-5CA00-0XA0; USA: 6ES7900-5DA00-0XA0; Italy: 6ES7900-5EA00-0XA0; China: 6ES7900-5F00-0XA0; India: 6ES7900-5GA00-0XA0
Siemens 6AV7880-4CB01-1AA3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Design of the programming deviceMobile computer
Display
Design of display10,1" TFT LCD with Multi-Touch
Screen diagonal10,1 in; TFT display, LED backlighting
Resolution (pixels)
Horizontal image resolution1.920 pixel
Vertical image resolution1.200 pixel
General features
Non-reflectingVar; Anti-Glare, etching on cover glass
Luminance800 cd/m²
Backlighting
Type of backlightingLED
Keyboard
DesignTouch
Touch operation
Integrated touch padYok
Besleme gerilimi
Design of the power supplyExternal wide-range power supply; 3-pole
Nominal değer (DC)19 V
permissible range, lower limit (AC)100 V; ±10 %, sinusoidal
permissible range, upper limit (AC)240 V; ±10 %, sinusoidal
Processor
Processor typeIntel Core i5-1135G7 2,4 GHz
ChipsetIntel HM570 PCH
Hyper-threadingYok
Turbo Boost Technology 2.0Var
Graphic
Graphics controllerIntel® Iris® Xe dahili Graphics Controller
Drives
CD-RWYok
DVD-ROMYok
DVD-RWYok
Hard diskYok
Memory capacity32 Gbyte
SSDVar
Memory capacity512 Gbyte
TPM Security ChipVar; 2,0 (version for China without TPM)
Storage
Type of memoryDDR4 SO-DIMM
Çalışma belleği
Dahili32 Gbyte
Number of slots1
Accumulator
ReplaceableVar; Lithium-ion battery
Capacity3.500 mA·h
Battery runtime, min.6 h
Slots
Number of ExpressCard slots0
Arayüzler
Number of industrial Ethernet interfaces1
Number of interfaces PROFIBUS DP0
Number of RS 232 interfaces0
Number of USB interfaces2
Type A1; USB 3,0
type C1; USB 3,0
MPIYok
Bluetooth radio standardVar; V5.3
Universal Audio JackVar; combo audio socket for 3,5 mm jack
Video interfaces
analog video signal (VGA)Yok
DVI-IYok
DisplayPortYok
Micro HDMIVar
Industrial Ethernet
— 100 MbpsVar
— 1000 MbpsVar
Wake on LANYok
IAMT (Intel Active Management Technology)Yok
WLAN
Type802,11 a/b/g/n/ac/ax ve global 4G LTE module
Wireless transmission
Protocol for wireless transmissionLegic Prime, Legic Advant, ISO 15693, ISO 14443 A/B
Operating frequency (rated value)13,56 MHz
Range, max.30 mm
Multitag capabilityVar
Interrupts/diagnostics/status information
LED status display2x LED Indicator for Power, Battery
Statik elektrik boşalmasına karşı bağışıklık
IEC 61000-4-2’ye göre statik elektrik boşalmasına karşı bağışıklıkVar; ±6 kV contact discharge acc. to IEC 61000-4-2, ESD; ±8 kV air discharge acc. to IEC 61000-4-2, ESD
— Hava boşalmasında test gerilimi8 kV
— Temas boşalmasında test gerilimi6 kV
Kablo kaynaklı girişime karşı bağışıklık
IEC 61000-4-4’e göre besleme hatlarında girişim bağışıklığıVar; 2 kV acc. to IEC 61000-4-4, burst
IEC 61000-4-4’e göre sinyal kablolarında girişim bağışıklığıVar; 1 kV acc. to IEC 61000-4-4, burst, length < 3 m; 2 kV acc. to IEC 61000-4-4, burst, length > 3 m
Emission of radio interference acc. to EN 55 022
Interference emission acc. to EN 55022, class BVar; CISPR 32 Class B
Koruma derecesi ve sınıfı
IP koruma sınıfıIP65
Standartlar, onaylar, sertifikalar
CE işaretiVar
CSA approvalVar
UL onayıYok
FCCVar
Military use
Conforms to MIL-STD-810GYok
Çalışma ortam sıcaklığı
min.-20 °C; AC mode
maks.60 °C; AC mode
Depolama/taşıma ortam sıcaklığı
min.-30 °C
maks.70 °C
Bağıl nem
Çalışma, min.50 %; non condensing
Çalışma, maks.95 %; non condensing
Titreşim
Çalışma, IEC 60068-2-6’ya göre test edilmişVar; Operating: Frequency / Deflection 10 - 58 Hz / 0,0375 mm 58 - 200 Hz / 4,9 m/s², 10 cycles Storage/Transportation: Cycles per Axle 10 / Octaves/min 1 Frequency / Deflection 5 - 8,4 Hz / 3,5 mm 8,4 - 500Hz / 9,8 m/s²
Şok testi
IEC 60068-2-27’ye göre test edilmişVar; operating: 15G, 11ms half sine; The interval time is set to 2 veya 3 seconds generally, 3 Shock times per direction Storage/Transportation: 25G, 6ms half sine, The interval time is set to 2 veya 3 seconds generally
tested according to IEC 60068-2-29Yok
Operating systems
Local language of operating systemMulti-Language User Interface (MUI): 6 languages (English, German, French, Spanish, Italian, Chinese)
pre-installed operating system
Windows 11Var; Windows 11 IoT Enterprise 2024 LTSC
Preinstalled
STEP 7 Professional 2010Yok
STEP 7 Professional (TIA Portal)Yok
STEP 7Yok
WinCC flexible Advanced 2008Yok
WinCC Advanced (TIA Portal)Yok
STEP 5Yok
Mechanics/material
Material of housingplastic
HandleYok
Socket for Kensington lockVar
rubber corner guardsVar; 4 corners covered by rubber bumpers as protectors
Ölçüler
Genişlik272 mm
Yükseklik25 mm
Derinlik192 mm
Ağırlık
Ağırlık, yaklaşık1,1 kg
Scope of supply
AccumulatorVar
Power supply unitVar
backpackYok
SIMATIC SoftwareYok
Recovery mediaYok; Restore & Recovery
