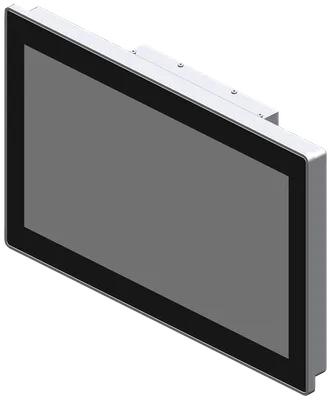

Siemens 6AV7863-5MA00-2NA0
SIMATIC IFP1500 V2, 15" multi-touch display (16:9) with 1920x1080 pixel resolution, built-in unit, for 24 V DC, display port/DVI interface, including DP/USB cable 1.8 m, on the rear USB, neutral design
Ürün tipi tanımıIFP1500 V2
Short designationFlat Panel 15" multi-touch
Design of displayTFT widescreen display, LED backlighting
Screen diagonal15,6 in; 15"
Screen diagonal [cm]40 cm
Display width344,2 mm
Ürün Hakkında
SIMATIC IFP1500 V2, 15" multi-touch display (16:9) with 1920x1080 pixel resolution, built-in unit, for 24 V DC, display port/DVI interface, including DP/USB cable 1.8 m, on the rear USB, neutral design
Siemens 6AV7863-5MA00-2NA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıIFP1500 V2
Short designationFlat Panel 15" multi-touch
Display
Design of displayTFT widescreen display, LED backlighting
Screen diagonal15,6 in; 15"
Screen diagonal [cm]40 cm
Display width344,2 mm
Display height193,5 mm
On Screen Display (OSD) configurationYok; Adjustable by means of software
Number of colors16.777.216; 24 bit
Viewing angle178° x 178°
Resolution (pixels)
Image resolution1.920 x 1.080
Horizontal image resolution1.920 pixel
Vertical image resolution1.080 pixel
Pixel size, horizontal0,17925 mm
Pixel size, vertical0,17925 mm
General features
Brightness/contrast400 cd/m² / 700:1
non-reflective and tempered mineral glass screenVar
Detachable from computer unit5 m
Luminance400 cd/m²
Backlighting
Type of backlightingLED
MTBF backlighting (at 25 °C)50.000 h; At 25°C
Backlight dimmableVar; 0-100 %
Control elements
Control elementsmulti-touch screen
Input device
Integrated mouse cursor controlVar
Touch operation
Design as touch screenVar; Projective-capacitive
Design as multi-touch screenVar; Projective-capacitive
Monitor keyboardVar; If supported by operating system
Installation type/mounting
DesignBuilt-in unit
Front mountingVar
VESA mountingVar; VESA 100 x 100 dahili
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
Built-in unitVar; Portrait mode possible
maximum permitted forward tilt angle from vertical35°
maximum permitted backward tilt angle from vertical35°
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V; PELV / SELV floating
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)1 A
Akım tüketimi, maks.1,3 A
Starting current inrush I²t0,5 A²·s
Güç kaybı
Güç kaybı, tipik24 W
Power loss, max.30 W
Arayüzler
Number of USB interfaces2; USB 2,0 type A
USB on the rearVar; 2x onboard
Connection for keyboard/mouseUSB
Video interfaces
DVI-DVar
DisplayPortVar; Display port V1.2
Touch interfaces
USBVar
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP20
Enclosure Type 4 at the frontVar
Enclosure Type 4x at the frontVar
Enclosure Type 12 at the frontVar
Standartlar, onaylar, sertifikalar
Certificate of suitabilityhazardous zone 2/22; shipbuilding
CE işaretiVar
UL onayıVar; cULus, cUL
cULusVar
FM onayıVar; Class I Div. 2
RCM (eski adıyla C-TICK)Var
EAC (formerly Gost-R)Var
EMCCE, EN 55011, EN 61000-6-4, EN 61000-6-2
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]403,10657 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]65,49073 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]347,89539 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-12.02022 kg
Use in hazardous areas
ATEX Zone 2Var
ATEX Zone 22Var
IECEx Zone 2Var
IECEx Zone 22Var
FM Class I Division 2Yok
Marine approval
Germanischer Lloyd (GL)Var
American Bureau of Shipping (ABS)Var
Bureau Veritas (BV)Var
Det Norske Veritas (DNV)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (Class NK)Var
Çalışma ortam sıcaklığı
min.0 °C
maks.50 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.3.500 m
Bağıl nem
Çalışma, maks.90 %; no condensation
Titreşim
Vibration load in operation10 m/s²
Vibration load during transport/storage10 m/s²
Şok testi
Shock load during operation150 m/s²
shock acceleration during storage/transport250 m/s²
Mechanics/material
Enclosure material (front)With neutral design
AluminumVar
Aluminum castingVar
GlassVar; front
Enclosure material (rear)aluminum
Ölçüler
Width of the housing front398 mm
Height of housing front257 mm
Mounting cutout, width382 mm; Tolerance: +1 mm
Mounting cutout, height241 mm; Tolerance: +1 mm
mounting depth63,4 mm
Ağırlık
Weight (without packaging)4 kg
Weight (with packaging)6 kg
Aksesuarlar 39
Siemens 6AV7863-5MA00-2NA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AV6671-8XA00-0AX0 | Aksesuar · Connection plug · HMI connecting components | |
| 6AV6881-0AV22-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6881-0AV61-0AA0 | Aksesuar · spare part | |
| 6AV6881-0AV62-1AA0 | Aksesuar · spare part | |
| 6AV7674-1KA00-0AA0 | Aksesuar · spare part | |
| 6AV2181-8AT00-0AX1 | Aksesuar · Accessories · input devices, cables | |
| 6AV2185-8FF01-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-0KD00-0AA0 | Aksesuar · Adapter | |
| 6AV7674-0KE00-0AA0 | Aksesuar · Adapter | |
| 6AV7674-1LA60-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LA61-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LA62-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LA63-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LB10-0AA0 | Aksesuar · Accessories | |
| 6AV7674-1LB50-0AA0 | Aksesuar · Adapter | |
| 6AV7674-1LX00-0AA0 | Aksesuar · Accessories | |
| 6AV7860-0DH50-0AA0 | Aksesuar · Cable · process coupling, connecting cables | |
| 6AV7860-0DH30-0AA0 | Aksesuar · Cable · process coupling, connecting cables | |
| 6AV7860-0CH50-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV7674-1NF01-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AF21-0LB0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF22-0DC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF22-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AU14-0DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-1DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV7860-0CH30-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV7674-1NG00-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6ES7648-1AA50-0XG0 | Aksesuar · Accessories · service sets | |
| 6AV6881-0AV21-0AA0 | Aksesuar · Accessories · input tools | |
| 6ES7193-4JB00-0AA0 | Aksesuar · Connection plug · HMI connecting components | |
| 6AV6881-0VJ22-0AA0 | Aksesuar · protective film · protective films | |
| 6AV6881-0VJ22-1AA0 | Aksesuar · protective film · protective films | |
| 6AV7860-0BH30-0AA0 | Aksesuar · line · process coupling, connecting cables | |
| 6AV7860-0BH50-0AA0 | Aksesuar · line · process coupling, connecting cables | |
| 6AV6881-0AU14-1AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 9LF1110-6DA13-2AB1 | Servis · Service Card | |
| 9TF6276-2XA11-1AL4 | Servis |
