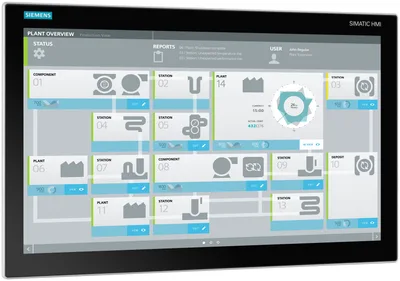

Siemens 6AV7241-.D...-....
SIMATIC IPC 477E 19" Touch (1366 x 768); with front USB; 4 USB (back), Ethernet (10/100/1000);
Ürün tipi tanımıIPC477E
Design of display19" TFT touch
Screen diagonal18,5 in
Horizontal image resolution1.366 pixel
Vertical image resolution768 pixel
MTBF backlighting (at 25 °C)50.000 h
Ürün Hakkında
SIMATIC IPC 477E 19" Touch (1366 x 768); with front USB; 4 USB (back), Ethernet (10/100/1000);
Siemens 6AV7241-.D...-....
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıIPC477E
Display
Design of display19" TFT touch
Screen diagonal18,5 in
Resolution (pixels)
Horizontal image resolution1.366 pixel
Vertical image resolution768 pixel
Backlighting
MTBF backlighting (at 25 °C)50.000 h
Input device
Mouse, at frontYok
Keyboard
Function keysYok
alphanumeric keyboardYok
Touch operation
Design as touch screenVar; analog, resistive
Installation type/mounting
MountingFor yatay ve dikey mounting
DesignPanel PC, built-in unit
central designVar
distributed designYok
Mounting in portrait format possibleVar
Besleme gerilimi
Type of supply voltage100/240 V AC (autorange) 50/60 Hz; optional 24 V DC
Nominal değer (DC)24 V; PELV / SELV floating
Line frequency
Rated value 50 HzVar
Rated value 60 HzVar
Mains buffering
Mains/voltage failure stored energy time20 ms
Güç kaybı
In full configuration24 V DC: maks. 65 W, PCIe APCB additionally 5 W
Processor
Processor typeCeleron G3902 (2C/2T, 1,6 GHz, 2 MB Cache); Core i3-6102E (2C/4T, 1,9 GHz, 3 MB Cache); Core i5-6442EQ (4C/4T, 1,9 (2,7) GHz, 6 MB Cache, iAMT); Xeon E3-1505L v5 (4C/8T, 2,0 (2,8) GHz, 8 MB Cache, iAMT)
ChipsetIntel C236 / Intel H110
Graphic
Graphics controllerIntel HD graphics controller
Drives
Hard disk2,5" SATA ≥ 320 GB
SSDVar; 128 / 240 / 480 GB
Storage
Type of memoryDDR4-2400 SO-DIMM
Main memory4 / 8 / 16 GB, ECC optional
Capacity of main memory, max.16 Gbyte
Veri alanları ve kalıcılığı
Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.512 kB; 128 KB can be stored in the buffer time; optional
Slots
Number of PCI slots1; Optional
Number of compact flash slots1; CFast
Arayüzler
Number of industrial Ethernet interfaces3; 3x Ethernet (RJ45)
USB port4x USB 3,0
serial interfaceWithout / 2x COM (RS 232 / 422 / 485), selectable in the BIOS
Video interfaces
Graphics interface2x DisplayPort
Industrial Ethernet
Industrial Ethernet interface3x Ethernet (RJ45)
— 100 MbpsVar
— 1000 MbpsVar
Interrupts/diagnostics/status information
Bus diagnosticsVar
Monitoring functions
Temperature monitoringVar
WatchdogVar
FanYok
Monitoring function via networkOptional
Statik elektrik boşalmasına karşı bağışıklık
Interference immunity against discharge of static electricity±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2
Interference immunity against high-frequency electromagnetic fields
Interference immunity against high frequency radiation10 V/m, 80... 2.000 MHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2... 2,7 GHz; 10 V, 10 kHz... 80 MHz acc. to IEC 61000-4-6
Kablo kaynaklı girişime karşı bağışıklık
Interference immunity on supply cables±2 kV acc. to IEC 61000-4-4, burst; ±1 kV acc. to IEC 61000-4-5, surge symmetric; ±2 kV acc. to IEC 61000-4-5, surge asymmetric
Interference immunity on signal cables >30m±2 kV acc. to IEC 61000-4-5, surge, length > 30 m
Interference immunity on signal cables < 30m±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m
Gerilim darbesine karşı bağışıklık
asymmetric interference±2 kV acc. to IEC 61000-4-5, surge asymmetric
symmetric interference±1 kV acc. to IEC 61000-4-5, surge symmetric
Interference immunity to magnetic fields
Interference immunity to magnetic fields at 50 Hz100 A/m; to IEC 61000-4-8
Emission of conducted and non-conducted interference
Interference emission via line/AC current cablesEN 61000-6-3, EN 61000-6-4, CISPR 22 Class B, FCC Class A
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP20
Standartlar, onaylar, sertifikalar
CE işaretiVar
CSA approvalVar
UL onayıVar
UL 508Var
cULusVar
RCM (eski adıyla C-TICK)Var
KC onayıVar
EAC (formerly Gost-R)Var
FCCVar
EMCCE, EN 61000-6-4; CISPR 22:2004 Class A; FCC Class A
Use in hazardous areas
ATEX Zone 2Var; for inscription on device rating plate
ATEX Zone 22Var; for inscription on device rating plate
IECEx Zone 2Var; for inscription on device rating plate
IECEx Zone 22Var; for inscription on device rating plate
CCC ExVar; for inscription on device rating plate
cULus Class I Zone 1Yok
cULus Class I Zone 2, Division 2Var; for inscription on device rating plate
cULus Class II Division 2Var; for inscription on device rating plate
FM Class I Division 2Yok
FM Class II Division 2Yok
Marine approval
Germanischer Lloyd (GL)Var
American Bureau of Shipping (ABS)Var
Bureau Veritas (BV)Var
Det Norske Veritas (DNV)Var
Korean Register of Shipping (KRS)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (Class NK)Var
Çalışma ortam sıcaklığı
min.0 °C
maks.45 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Bağıl nem
Relative humidityTested according to IEC 60068-2-78, IEC 60068-2-30: 5% to 80% 25 °C (no condensation)
Titreşim
IEC 60068-2-6’ya göre çalışmada titreşim dayanımıIEC 60068-2-6; 5 Hz to 9 Hz: 3,5 mm; 9 Hz to 500 Hz: 9,8 m/s² (with SSD veya CFast); 10 Hz to 58 Hz: 0,0375 mm; 58 Hz to 200 Hz: 4,9 m/s² (hard disk)
Şok testi
Shock load during operationIEC 60068-2-27; 150 m/s², 11 ms (without hard disk); 50 m/s², 30 ms (with hard disk)
Operating systems
pre-installed operating systemWindows 7 Ultimate (Multi-Language) 64-bit, Windows Embedded Standard 7 E/P 32-bit / 64-bit, Windows 10
without operating systemVar; Optional
pre-installed operating system
Windows 7Var; Ultimate 64 bit
Windows 10 EnterpriseVar; Windows 10 Enterprise 2016 LTSB, 64 bit, MUI
Ölçüler
Width of the housing front483 mm
Height of housing front337 mm
Mounting cutout, width465 mm
Mounting cutout, height319 mm
mounting depth76 mm
Ağırlık
Ağırlık, yaklaşık8,4 kg
