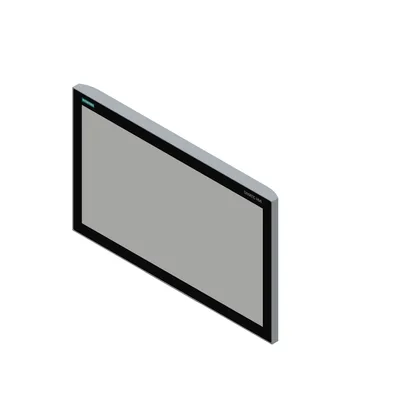

Siemens 6AV6646-1BD24-0AA1
SIMATIC ITC2400 V3 PRO, industrial thin client, 24" widescreen TFT display, capacitive touch sensor, supported protocols: RDP, VNC, SmartServer, HTML5 and others, standard design, prepared for support arm with expansion elements
Ürün tipi tanımıITC2400 V3 PRO
Design of displayTFT widescreen display, LED backlighting
Screen diagonal23,8 in
Display width527 mm
Display height296,5 mm
Number of colors16.777.216
Ürün Hakkında
SIMATIC ITC2400 V3 PRO, industrial thin client, 24" widescreen TFT display, capacitive touch sensor, supported protocols: RDP, VNC, SmartServer, HTML5 and others, standard design, prepared for support arm with expansion elements
Siemens 6AV6646-1BD24-0AA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıITC2400 V3 PRO
Display
Design of displayTFT widescreen display, LED backlighting
Screen diagonal23,8 in
Display width527 mm
Display height296,5 mm
Number of colors16.777.216
Resolution (pixels)
Horizontal image resolution1.920 pixel
Vertical image resolution1.080 pixel
General features
non-reflective and tempered mineral glass screenVar
Backlighting
MTBF backlighting (at 25 °C)30.000 h; At 25°C
Backlight dimmableVar; LED, dimmable
Touch operation
Design as touch screenVar
Design as multi-touch screenVar; Projective-capacitive
Monitor keyboardVar
Installation type/mounting
DesignSupport arm mounting
Front mountingYok
Support arm mountingVar; Suitable for support arm ve extension components (please refer to manual)
Stand mountingYok
Built-in unitYok
maximum permitted forward tilt angle from vertical35°
maximum permitted backward tilt angle from vertical35°
Besleme gerilimi
Type of supply voltage24 V DC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)2,1 A
Akım tüketimi, maks.2,6 A
Starting current inrush I²t0,5 A²·s
Power
Active power input, typ.50,4 W
Arayüzler
Number of industrial Ethernet interfaces2; 2 ports (switch)
Number of USB interfaces4; on rear
Connection for keyboard/mouseUSB
Industrial Ethernet
İletim hızı, maks.1.000 Mbit/s
Protokoller (Ethernet)
TCP/IPVar
DHCPVar
SNMPVar
DCPVar
LLDPVar
WEB characteristics
HTTPVar
HTTPSVar
HTMLVar; HTML5
XMLVar
CSSVar
JavaScriptVar
Java VMYok
Protocols (terminal link)
Sm@rtServerVar
RDPVar
VNC viewerVar
CitrixVar
SINUMERIKVar
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP65
Enclosure Type 4x at the frontVar
Enclosure Type 12 at the frontVar
Standartlar, onaylar, sertifikalar
CE işaretiVar
cULusVar
FM onayıVar
RCM (eski adıyla C-TICK)Var
KC onayıVar
EAC (formerly Gost-R)Yok; in preparation
Use in hazardous areas
ATEX Zone 2Var
ATEX Zone 22Var
IECEx Zone 2Var
IECEx Zone 22Var
cULus Class I Zone 2, Division 2Var
FM Class I Division 2Var
Marine approval
Germanischer Lloyd (GL)Yok
American Bureau of Shipping (ABS)Yok
Bureau Veritas (BV)Yok
Det Norske Veritas (DNV)Yok
Korean Register of Shipping (KRS)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (Class NK)Yok
Polski Rejestr Statkow (PRS)Yok
Chinese Classification Society (CCS)Yok
Çalışma ortam sıcaklığı
min.0 °C
maks.45 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Bağıl nem
Çalışma, maks.90 %; no condensation
Titreşim
Vibration load in operation10 m/s²
Vibration load during transport/storage10 m/s²
Şok testi
Shock load during operation150 m/s²
shock acceleration during storage/transport150 m/s²
Software
Web browserVar; HTML5, CSS
PDF readerVar
Configuration
LocalVar
RemoteVar; Via web page
Online languages
Number of online/runtime languages2; german / english
Peripherals/Options
USB memoryVar; USB storage medium can be connected
Mechanics/material
AluminumVar
Ölçüler
Width of the housing front583 mm
Height of housing front361 mm; Without basic adapter
mounting depth163 mm; Without basic adapter
Ağırlık
Weight (without packaging)10 kg
Aksesuarlar 34
Siemens 6AV6646-1BD24-0AA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AV6881-0AU14-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV7674-1LA72-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LA71-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LA70-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LB15-0AA0 | Aksesuar · Accessories | |
| 6AV6881-0WJ22-0AA0 | Aksesuar · protective film · protective films | |
| 6AV7674-1LB50-0AA0 | Aksesuar · Adapter | |
| 6AV7674-1LB40-0AA0 | Aksesuar · Cover | |
| 6AV7674-1KA00-0AA0 | Aksesuar · spare part | |
| 6AV7674-0LX01-0AA0 | Aksesuar · Accessories | |
| 6AV7674-0KE00-0AA0 | Aksesuar · Adapter | |
| 6AV7674-0KD00-0AA0 | Aksesuar · Adapter | |
| 6AV7674-1NG00-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV7674-1NF01-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV7674-1KF00-0AA0 | Aksesuar · Adapter | |
| 6AV6881-0AD56-3CA0 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV7674-0LX00-0AA0 | Aksesuar · Accessories · distribution boards, HUBs | |
| 6AV6881-0AV62-1AA0 | Aksesuar · spare part | |
| 6AV6881-0AU14-1AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AF21-0LB0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF22-0DC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF22-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AU14-0DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV7674-1LA73-0AA0 | Aksesuar · Extension Unit | |
| 6AV6881-0AU14-1DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AD56-2CA0 | Aksesuar · Adapter · fixing elements, mounting | |
| 6AV6881-0AV21-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV7860-0CH30-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV7860-0CH50-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV6881-0AV22-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6881-0AV61-0AA0 | Aksesuar · spare part | |
| 6AV6881-0AD56-0AA0 | Aksesuar · Adapter · fixing elements, mounting | |
| 6AV2181-8AT00-0AX1 | Aksesuar · Accessories · input devices, cables |
