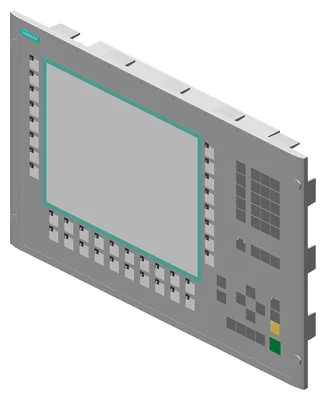

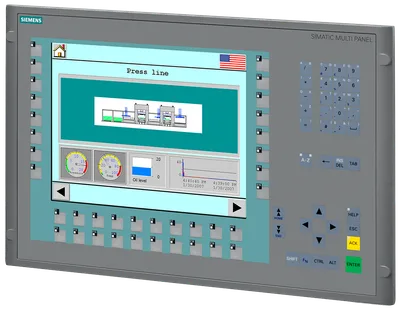

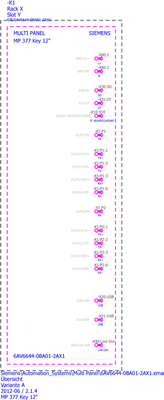

Siemens 6AV6644-0BA01-2AX1
Spare part prices can deviate from the neutral price. Credit possible on returns 01.01.2015, the new part is blocked for delivery. Spare part can continue to be purchased, but price may deviate from new part. Further information under SIMATIC current entry ID: 109486162. For questions, the familiar contact persons are available. SIMATIC MP 377 12" Key Multi Panel, Windows CE 5.0 12" color TFT display 12 MB configuration memory configurable as of WinCC flexible 2007 new Key aluminum front with uniform clamps
Ürün tipi tanımıMP377 12" key
Design of displayTFT
Screen diagonal12,1 in
Color displayVar
Number of colors65.536
Horizontal image resolution800 pixel
Ürün Hakkında
Spare part prices can deviate from the neutral price. Credit possible on returns 01.01.2015, the new part is blocked for delivery. Spare part can continue to be purchased, but price may deviate from new part. Further information under SIMATIC current entry ID: 109486162. For questions, the familiar contact persons are available. SIMATIC MP 377 12" Key Multi Panel, Windows CE 5.0 12" color TFT display 12 MB configuration memory configurable as of WinCC flexible 2007 new Key aluminum front with uniform clamps
Siemens 6AV6644-0BA01-2AX1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıMP377 12" key
Display
Design of displayTFT
Screen diagonal12,1 in
Color displayVar
Number of colors65.536
Resolution (pixels)
Horizontal image resolution800 pixel
Vertical image resolution600 pixel
Backlighting
MTBF backlighting (at 25 °C)50.000 h
Control elements
Control elementsMembrane keyboard
Keyboard
— Number of function keys36
— Number of function keys with LEDs36
System keysVar
— Number of system keys38
Numeric keyboardVar
alphanumeric keyboardVar
hexadecimal keyboardVar
Multi-key operationVar
— Number of multi-key operations2
Touch operation
Design as touch screenYok; without
Connection type
Type of connection for mouse/keyboard/barcode readerUSB / USB / USB
Installation type/mounting
maximum permissible angle of inclination without external ventilation35°
Besleme gerilimi
Type of supply voltageDC
Giriş akımı
Akım tüketimi (nominal değer)1,5 A
Starting current inrush I²t4 A²·s
Power
Active power input, typ.36 W
Storage
Type of memoryFlash / RAM
Memory available for user data12.288 kB
Saat
TypeHardware clock, battery backup, synchronizable
retentiveVar
synchronizableVar
Arayüzler
Interfaces/bus type1x RS 422, 1x RS 485, 2x Ethernet (RJ45)
Number of industrial Ethernet interfaces2
Number of RS 485 interfaces1
Number of RS 422 interfaces1
Number of USB interfaces2; Up to 1 GB respectively
CF card slot1x CF card slot
Multimedia card/SD card slot1x Multimedia Card slot, up to 128 MB
With software interfacesYok
Protokoller
PROFINET IO protokolünü desteklerVar
PROFIsafeYok
PROFIBUSVar
EtherNet/IPVar
MPIVar
Protokoller (Ethernet)
TCP/IPVar
Protocols (terminal link)
Sm@rtServerVar
Diğer protokoller
MODBUSVar
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP20
NEMA (front)NEMA 4, NEMA 12 (when installed)
Standartlar, onaylar, sertifikalar
CE işaretiVar
UL onayıVar
cULusVar
Use in hazardous areas
ATEX Zone 2Yok; certificate no longer available as of 1 October 2020
ATEX Zone 22Yok; certificate no longer available as of 1 October 2020
Çalışma ortam sıcaklığı
min.0 °C
maks.50 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Bağıl nem
Çalışma, maks.90 %
Operating systems
pre-installed operating systemWindows CE
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Process value display (output)Var
Process value default (input) possibleVar
Recipe managementVar
Configuration software
Configuration toolWinCC flexible Standard Version 2007 veya üstü (to be ordered separately)
STEP 7 Basic (TIA Portal)Yok
STEP 7 Professional (TIA Portal)Yok
WinCC flexible CompactYok
WinCC flexible StandardVar
WinCC flexible AdvancedVar
WinCC Basic (TIA Portal)Yok
WinCC Comfort (TIA Portal)Var
WinCC Advanced (TIA Portal)Var
WinCC Professional (TIA Portal)Var
Online languages
Number of online/runtime languages16
Project languages
Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesVar
Task plannerVar
Help systemVar
Number of characters per info text70
Message system
Number of alarm classes32
Number of messages4.000
Bit messagesVar
— Number of bit messages4.000
Analog messagesVar
— Number of analog messages200
Telegram message procedure Alarm SVar
System messages HMIVar
System messages PLCVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Var
Lines1
Number of characters per message80
Number of process values per message8
Message indicatorVar
First/last valueVar
Recipe management
Number of recipes500
Data records per recipe1.000
Entries per data record1.000
Recipe memory128 KB dahili Flash, expandable
Variables
Number of variables per device4.096; Configuration with WinCC flexible 2008 ve üstü
Number of variables per screen400
Number of variables2.000
Initial values2.048
Type Date & Time2.048
Limit valuesVar
MultiplexingVar
StructuresVar
Images
Number of configurable images500
Permanent window/defaultVar
Start screen configurableVar
Image selection by PLCVar
Image number in the PLCVar
Image objects
Text objects30.000 text elements
Number of I/O fields per image400
Number of date/time fields400
ReturnVar
Graphics objectBit maps, icons, vector graphics
— Icons2.000
Complex image objects
Status/controlWith SIMATIC S7
dynamic objectsDiagrams, bar graphs, sliders, analog display, invisible buttons
— Number of objects per project2.000
— Number of curve diagrams per image20
MethodsTrend / profile
— Number of bars per chart20
— Number of slides per image20
— Number of analog indicators per image20
Limit value linesVar
Number of alphanumerical fields300
— alphanumeric fields per image400
Number of numerical fields2.048
— numerical fields per image400
Number of password fields2.048
Number of visible switches per project400
— visible switches per image400
— hidden switches per image400
Number of status switches per project400
— Number of status switches per image400
Number of selector switches per project400
— Selector switches per image400
Number of signal lamps per project400
— Signal lamps per image400
Attributes for dynamic objects
Color changeVar
X/Y movementVar
HideVar
Lists
Number of text lists per project500
Number of text lists per image400
Number of entries per text list256
Number of graphics lists per project500
Number of graphic lists per image400
Number of entries per graphics list256
Archiving
Number of archives per device50
Number of measuring points per project50
Number of entries per archive50.000
Message archiveVar
Process value archiveVar
Archiving methodsSequential log, circular log, alarm log, process value archive
— Sequential archiveVar
— Short-term archiveVar
Memory locationCF card, SD/MMC card, Ethernet, USB memory stick
— CF cardVar
— EthernetVar
Data storage formatCSV file, readable, e.g. with MS Excel, MS Access
— CSVVar
external evaluationreadable, e.g. with MS Excel, MS Access, etc.
Size of archivedepending on free memory on ext. card/stick veya on free hard disk space via network drive
Online evaluationvia trends
— using trend curvesVar
Filters
cyclicVar
ToleranceVar
ChangeVar
Security
Number of user groups50
Number of user rights32
Password export/importVar
Data carrier support
CF cardVar
Hard diskVar
Logging through printer
Recording/PrintingAlarms, report (shift report), color print, hardcopy
Transfer (upload/download)
Transfer of configurationMPI/PROFIBUS DP, serial, USB, Ethernet, by means of external storage medium, automatic transfer recognition
Process coupling
Connection to controllerS5, S7-200, S7-300/400, TI 505, Win AC, PC (TCP/IP), SINUMERIK, SIMOTION, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), OMRON (LINK/Multilink), Modicon (Modbus), further non-Siemens drivers, see chapter "System interfaces"
S7-1200Var
S7-1500Var
S7-200Var
— PPI (point-to-point)Var
— PPI networkVar
— MPIVar
— PROFIBUS DPVar
S7-300/400Var
— MPIVar
— PROFIBUS DPVar
— PROFINETVar
S5Var
— PROFIBUS DPVar
TI 505Var
Allen Bradley (DF1)Var
Allen Bradley (DF485)Var
Mitsubishi (FX)Var
Mitsubishi (MP4)Var
Telemecanique (Uni-Telway)Var
OMRON (Host Link)Var
Modicon (Modbus RTU)Var
GE-Fanuc (SNP)Var
Functions
Key repeatVar
TAB sequenceVar
Calculating functionsVar
AnimateVar
Service tools/configuration aids
Backup/Restore manuallyVar
SimulationVar
Device switchoverVar
Delta transferVar
Monitoring function for battery and memoryVar
Expandability/openness
Open Platform ProgramVar
Peripherals/Options
PeripheralsPrinter, card reader, barcode reader
SIMATIC HMI MM memory card: Multi Media CardVar
SIMATIC HMI SD memory card: Secure Digital memory cardVar
USB memoryVar
Additional software components loadableVar

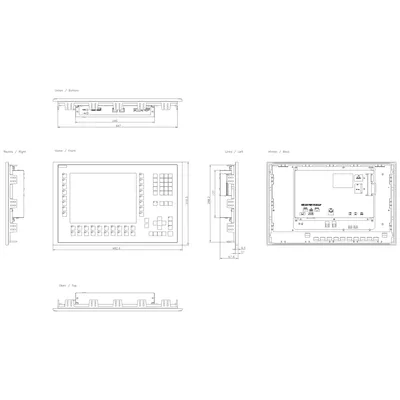

Ölçüler
Width of the housing front483 mm
Height of housing front310 mm
Mounting cutout, width450 mm
Mounting cutout, height290 mm
mounting depth59 mm
Ağırlık
Weight (without packaging)5,5 kg
Aksesuarlar 23
Siemens 6AV6644-0BA01-2AX1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AV6881-0AU14-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0MJ22-0AA0 | Aksesuar · protective film · protective films | |
| 6AV6881-0MH21-2BA0 | Aksesuar · Accessories (mounting) · protective covers, protective caps | |
| 6AV6881-0MH21-2AA0 | Aksesuar · Accessories (mounting) | |
| 6AV6881-0MD33-0DA0 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV6881-6AD10-0AA0 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV6671-8XK00-0AX3 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV6671-8XA00-0AX0 | Aksesuar · Connection plug · HMI connecting components | |
| 6AV6881-0AV62-1AA0 | Aksesuar · spare part | |
| 6AV6881-0AV61-0AA0 | Aksesuar · spare part | |
| 6AV6881-0MJ22-1AA0 | Aksesuar · protective film · protective films | |
| 6AV6881-0AV22-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV7860-0CH30-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV6881-0AV21-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6881-0AU14-1DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-0DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AF22-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF22-0DC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LB0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AU14-1AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV7860-0CH50-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV2181-8AT00-0AX1 | Aksesuar · Accessories · input devices, cables |
İlgili Ürünler
Detayları Gör
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
Detayları Gör
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
Detayları Gör
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
Detayları Gör
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
Detayları Gör
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
Detayları Gör
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
Detayları Gör
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
Detayları Gör
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
Detayları Gör
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Öne Çıkan Ürünler
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
İlgili Aramalar
Siemens 6AV6644-0BA01-2AX1 fiyatSiemens 6AV6644-0BA01-2AX1 teklif alSiemens 6AV6644-0BA01-2AX1 satın al6AV6644-0BA01-2AX1 fiyat6AV6644-0BA01-2AX1 stok durumuSiemens yedek parçaSiemens 6AV6644-0BA01-2AX1 muadilSiemens 6AV6644-0BA01-2AX1 teknik özellikler
