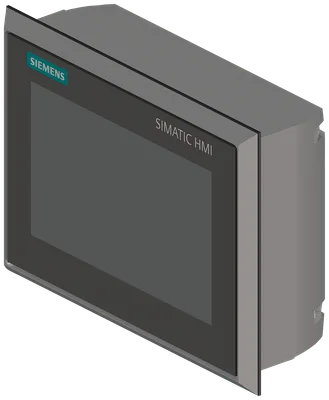

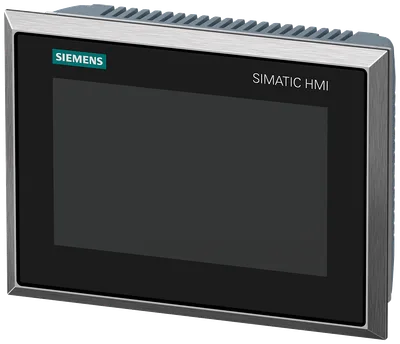

Siemens 6AV2144-8GC20-0AA0
SIMATIC HMI TP700 Comfort INOX paslanmaz çelik ön, glass pane, capacitive touch, koruma sınıfı ön IP69K, 7" widescreen TFT gösterge, PROFINET arayüz, MPI/PROFIBUS DP arayüz, 12 MB configuration memory, Windows CE 6,0, WinCC Comfort V15.1
Ürün tipi tanımıTP700 Comfort INOX PCT
Design of displayTFT
Screen diagonal7 in
Display width152,4 mm
Display height91,4 mm
Number of colors16.777.216
Ürün Hakkında
SIMATIC HMI TP700 Comfort INOX paslanmaz çelik ön, glass pane, capacitive touch, koruma sınıfı ön IP69K, 7" widescreen TFT gösterge, PROFINET arayüz, MPI/PROFIBUS DP arayüz, 12 MB configuration memory, Windows CE 6,0, WinCC Comfort V15.1
Siemens 6AV2144-8GC20-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıTP700 Comfort INOX PCT
Display
Design of displayTFT
Screen diagonal7 in
Display width152,4 mm
Display height91,4 mm
Number of colors16.777.216
Resolution (pixels)
Horizontal image resolution800 pixel
Vertical image resolution480 pixel
Backlighting
MTBF backlighting (at 25 °C)80.000 h
Backlight dimmableVar; 0-100 %
Keyboard
— Number of function keys0
— Number of function keys with LEDs0
Keys with LEDYok
System keysYok
Numeric keyboardVar; Onscreen keyboard
alphanumeric keyboardVar; Onscreen keyboard
Touch operation
Design as touch screenVar; capacitive
Design as multi-touch screenYok
Monitor keyboardVar
Expansions for operator control of the process
— F1...Fx0
— F1...Fx0
Direct keys (touch buttons as S7 input I/O)32
Installation type/mounting
Mounting positiondikey
Mounting in portrait format possibleYok
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation35°
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)0,5 A
Starting current inrush I²t0,5 A²·s
Power
Active power input, typ.12 W
Processor
Processor typex86, 500 MHz
Storage
FlashVar
RAMVar
Memory available for user data12 MB
Type of output
Info LEDYok
Power LEDYok
Error LEDYok
AcousticsSpeaker
BuzzerYok
SpeakerVar
Saat
Donanım saati (gerçek zamanlı)Var
Software clockVar
retentiveVar; Back-up duration typically 6 weeks
synchronizableVar
Arayüzler
Number of industrial Ethernet interfaces1; 2 ports (switch)
Number of RS 485 interfaces1; RS 422 / 485 combined
Number of RS 422 interfaces0; together with RS 485
Number of RS 232 interfaces0
Number of USB interfaces2; USB 2,0
USB Mini B1; 5-pole
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of SD card slots2
With software interfacesYok
Industrial Ethernet
Industrial Ethernet status LED2
Number of ports of the integrated switch2
Protokoller
PROFINETVar
PROFINET IO protokolünü desteklerVar
IRTVar; As of WinCC V15.1
PROFIBUSVar
EtherNet/IPVar
MPIVar
Protokoller (Ethernet)
TCP/IPVar
DHCPVar
SNMPVar
DCPVar
LLDPVar
WEB characteristics
HTTPVar
HTTPSVar
HTMLVar
XMLVar
CSSVar
Active XVar
JavaScriptVar
Java VMYok
Ortam yedekliliği
— MRPVar; As of WinCC V15.1
Diğer protokoller
CANYok
MODBUSVar
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP66 / IPx6K ve IP69 / IPx9K
IP (rear)IP20
Enclosure Type 4 at the frontYok
Enclosure Type 12 at the frontYok
Standartlar, onaylar, sertifikalar
CE işaretiVar
cULusVar
RCM (eski adıyla C-TICK)Var
KC onayıYok
EAC (formerly Gost-R)Var
Use in hazardous areas
ATEX Zone 2Var
ATEX Zone 22Var
IECEx Zone 2Var
IECEx Zone 22Var
cULus Class I Zone 1Yok
cULus Class I Zone 2, Division 2Var
cULus Class II Division 2Yok
FM Class I Division 2Yok
FM Class II Division 2Yok
Ambient conditions
Suited for indoor useVar
Suited for outdoor useYok
Operation (vertical installation)
— For vertical installation, min.0 °C
— For vertical installation, max.50 °C; (55 °C, see entry ID: 64847814)
Operation (max. tilt angle)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.40 °C
Operation (vertical installation, portrait format)
— For vertical installation, min.0 °C
— For vertical installation, max.40 °C
Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.35 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Bağıl nem
Çalışma, maks.90 %; no condensation
Operating systems
proprietaryYok
pre-installed operating system
Windows CEVar
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Process value display (output)Var
Process value default (input) possibleVar
Recipe managementVar
Configuration software
STEP 7 Basic (TIA Portal)Yok
STEP 7 Professional (TIA Portal)Yok
WinCC flexible CompactYok
WinCC flexible StandardYok
WinCC flexible AdvancedYok
WinCC Basic (TIA Portal)Yok
WinCC Comfort (TIA Portal)Var; From WinCC V15.1 HSP
WinCC Advanced (TIA Portal)Var; From WinCC V15.1 HSP
WinCC Professional (TIA Portal)Var; From WinCC V15.1 HSP
Online languages
Number of online/runtime languages32
Project languages
Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesVar
Applications/optionsInternet Explorer, PDF/Word/Excel Viewer, Sm@rtService, Sm@rtAccess, ProAgent
Web browserVar
Pocket WordVar; Viewer
Pocket ExcelVar; Viewer
PDF ViewerVar
Media PlayerVar
SIMATIC WinCC Sm@rtServerVar
SIMATIC WinCC AuditVar
Number of Visual Basic ScriptsVar
Task plannerVar
time-controlledVar
task-controlledVar
Number of characters per info text70
Message system
Number of alarm classes32
— Number of bit messages4.000
— Number of analog messages200
S7 alarm number procedureVar
System messages HMIVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Var
Number of characters per message80
Number of process values per message8
Acknowledgment groupsVar
Message indicatorVar
— Number of entries1.024
— Circulating bufferVar
— retentiveVar
— maintenance-freeVar
Recipe management
Number of recipes300
Data records per recipe500
Entries per data record1.000
Size of internal recipe memory2 MB
Recipe memory expandableVar
Variables
Number of variables per device2.048
Number of variables per screen400
Limit valuesVar
MultiplexingVar
StructuresVar
ArraysVar
Images
Number of configurable images500
Permanent window/defaultVar
Global imageVar
Pop-up imagesVar
Slide-in imagesVar
Image selection by PLCVar
Image number in the PLCVar
Image objects
Number of objects per image400
Text fieldsVar
I/O fieldsVar
Graphic I/O fields (graphics list)Var
Symbolic I/O fields (text list)Var
Date/time fieldsVar
SwitchesVar
ButtonsVar
Graphic displayVar
IconsVar
Geometric objectsVar
Complex image objects
Number of complex objects per screen20
Alarm viewVar
Trend viewVar
User viewVar
Status/controlVar
Sm@rtClient viewVar
Recipe viewVar
f(x) trend viewVar
System diagnostics viewVar
Media PlayerVar
HTML browserVar
PDF displayVar
IP camera displayVar
Bar graphsVar
SlidersVar
Pointer instrumentsVar
Analog/digital clockVar
Lists
Number of text lists per project500
Number of entries per text list500
Number of graphics lists per project500
Number of entries per graphics list500
Archiving
Number of archives per device50
Number of entries per archive20.000
Message archiveVar
Process value archiveVar
Archiving methodsSequential log, circular log, alarm log, process value archive
— Sequential archiveVar
— Short-term archiveVar
Memory locationSD/MMC card, Ethernet, USB memory stick
— Memory cardVar
— USB memoryVar
— EthernetVar
Data storage formatCSV file, readable, e.g. with MS Excel, MS Access
— CSVVar
— TXTVar
— RDBVar
Security
Number of user groups50
Number of user rights32
Kullanıcı sayısı50
Password export/importVar
SIMATIC LogonVar
Logging through printer
AlarmsVar
Report (shift log)Var
HardcopyVar
Electronic print to fileYok
Character sets
Keyboard fontsUS American (English)
— US EnglishVar
Transfer (upload/download)
MPI/PROFIBUS DPVar
USBVar
EthernetVar
using external storage mediumVar
Process coupling
S7-1200Var
S7-1500Var
S7-200Var
S7-300/400Var
LOGO!Var
WinACVar
SINUMERIKVar; with SINUMERIK option package
SIMOTIONVar
Allen Bradley (EtherNet/IP)Var
Allen Bradley (DF1)Var
Mitsubishi (MC TCP/IP)Var
Mitsubishi (FX)Var
OMRON (FINS TCP)Yok
OMRON (Host Link)Var
Modicon (Modbus TCP/IP)Var
Modicon (Modbus RTU)Var
OPC UA ClientVar
OPC UA sunucusuVar
Service tools/configuration aids
Backup/Restore manuallyVar
Backup/Restore automaticallyVar
SimulationVar
Device switchoverVar
Peripherals/Options
PrinterVar
SIMATIC HMI MM memory card: Multi Media CardVar; Up to 128 MB
SIMATIC HMI SD memory card: Secure Digital memory cardVar; Up to 2 GB
SIMATIC HMI CF memory card Compact Flash CardYok
USB memoryVar
SIMATIC IPC USB Flashdrive (USB stick)Var; Up to 16 GB
SIMATIC HMI USB stickVar; Up to 8 GB
Network cameraVar
Accessories
Further accessories are availableVar; Service Pack (seal, mounting clips, clamping frame, power supply connector)
Mechanics/material
plasticYok
AluminumYok
Stainless steelVar
Ölçüler
Width of the housing front214 mm
Height of housing front158 mm
Mounting cutout, width197 mm
Mounting cutout, height141 mm
mounting depth66 mm
Ağırlık
Weight (without packaging)2 kg
Weight (with packaging)2,3 kg
İlgili Ürünler
Detayları Gör
Siemens
1FN3003-0PB03-0AA3
MFR #1FN3003-0PB03-0AA3
SKU #YLSPDCXX5LUPVBP
Detayları Gör
Siemens
1FN3003-0PB04-0BA3
MFR #1FN3003-0PB04-0BA3
SKU #YLSTLFTLVCKOIMT
Detayları Gör
Siemens
1FN3003-0PB05-0BA3
MFR #1FN3003-0PB05-0BA3
SKU #YLS6EWIJX1ZRGHO
Detayları Gör
Siemens
1FN3050-0TB00-1..0
MFR #1FN3050-0TB00-1..0
SKU #YLS5YVWHSMU6WB7
Detayları Gör
Siemens
1FN3050-2NE00-0EA3
MFR #1FN3050-2NE00-0EA3
SKU #YLSE7XSY2HLF5EC
Detayları Gör
Siemens
1FN3050-2NE00-0FA3
MFR #1FN3050-2NE00-0FA3
SKU #YLSMSUG5AP3INVD
Detayları Gör
Siemens
1FN3100-0TB00-1..0
MFR #1FN3100-0TB00-1..0
SKU #YLSTD7J4JZ8UCBX
Detayları Gör
Siemens
1FN3002-0TK03-1AF0
MFR #1FN3002-0TK03-1AF0
SKU #YLS7VTGYJAP381B
Detayları Gör
Siemens
1FN3050-1ND00-0HA3
MFR #1FN3050-1ND00-0HA3
SKU #YLSJTX7SVU4GFKR
Öne Çıkan Ürünler
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
İlgili Aramalar
Siemens 6AV2144-8GC20-0AA0 fiyatSiemens 6AV2144-8GC20-0AA0 teklif alSiemens 6AV2144-8GC20-0AA0 satın al6AV2144-8GC20-0AA0 fiyat6AV2144-8GC20-0AA0 stok durumuSiemens yedek parçaSiemens 6AV2144-8GC20-0AA0 muadilSiemens 6AV2144-8GC20-0AA0 teknik özellikler
