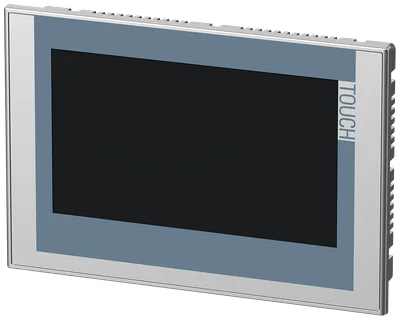

Siemens 6AV2143-6JB00-0AA0
SIMATIC HMI, TP900 temel Keyless; temel panel, nötr tasarım, touch çalışma, 9" TFT gösterge, 65536 colors, PROFINET arayüz, configurable from WinCC temel V13/ STEP 7 temel V13, contains open-source yazılım, which is provided free of charge see enclosed CD
Ürün tipi tanımıTP900 Basic Keyless
Design of displayTFT widescreen display, LED backlighting
Screen diagonal9 in
Display width198 mm
Display height111,7 mm
Number of colors65.536
Ürün Hakkında
SIMATIC HMI, TP900 temel Keyless; temel panel, nötr tasarım, touch çalışma, 9" TFT gösterge, 65536 colors, PROFINET arayüz, configurable from WinCC temel V13/ STEP 7 temel V13, contains open-source yazılım, which is provided free of charge see enclosed CD
Siemens 6AV2143-6JB00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıTP900 Basic Keyless
Display
Design of displayTFT widescreen display, LED backlighting
Screen diagonal9 in
Display width198 mm
Display height111,7 mm
Number of colors65.536
Resolution (pixels)
Horizontal image resolution800 pixel
Vertical image resolution480 pixel
Backlighting
MTBF backlighting (at 25 °C)20.000 h
Backlight dimmableVar
Keyboard
Function keysYok
— Number of function keys0
— Number of function keys with LEDs0
Keys with LEDYok
System keysYok
Numeric keyboardVar; Onscreen keyboard
alphanumeric keyboardVar; Onscreen keyboard
Touch operation
Design as touch screenVar; Analog-resistive
Design as multi-touch screenYok
Monitor keyboardVar
Installation type/mounting
Mounting positiondikey
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation35°
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)230 mA
Starting current inrush I²t0,2 A²·s
Processor
Processor typeARM
Storage
FlashVar
RAMVar
Memory available for user data10 MB
Type of output
AcousticsBuzzer
BuzzerVar
SpeakerYok
Saat
Donanım saati (gerçek zamanlı)Var
Software clockVar
retentiveVar; Back-up duration typically 6 weeks
synchronizableVar
Arayüzler
Number of industrial Ethernet interfaces1
Number of RS 485 interfaces0
Number of RS 422 interfaces0
Number of RS 232 interfaces0
Number of USB interfaces1; USB 2,0, up to 16 GB respectively
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of other interfaces0
Number of SD card slots0
With software interfacesYok
Industrial Ethernet
Industrial Ethernet status LED2
Number of ports of the integrated switch0
Protokoller
PROFINETVar
PROFINET IOYok
IRTYok
PROFIBUSYok
EtherNet/IPVar
MPIYok
Protokoller (Ethernet)
TCP/IPVar
DHCPVar
SNMPVar
DCPVar
LLDPVar
WEB characteristics
HTTPYok
HTMLYok
Ortam yedekliliği
— MRPYok
Diğer protokoller
CANYok
MODBUSVar; Modicon (MODBUS TCP/IP)
Diagnoses
Diagnostic information readableYok
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP20
Enclosure Type 4 at the frontVar
Enclosure Type 4x at the frontVar
Standartlar, onaylar, sertifikalar
CE işaretiVar
Operation (vertical installation)
— For vertical installation, min.0 °C
— For vertical installation, max.50 °C
Operation (max. tilt angle)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.40 °C
Operation (vertical installation, portrait format)
— For vertical installation, min.0 °C
— For vertical installation, max.40 °C
Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.35 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Bağıl nem
Çalışma, maks.90 %; no condensation
Operating systems
proprietaryVar
pre-installed operating system
Windows CEYok
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Process value display (output)Var
Process value default (input) possibleVar
Recipe managementVar
Configuration software
STEP 7 Basic (TIA Portal)Var; via dahili WinCC Basic (TIA Portal)
STEP 7 Professional (TIA Portal)Var; via dahili WinCC Basic (TIA Portal)
WinCC flexible CompactYok
WinCC flexible StandardYok
WinCC flexible AdvancedYok
WinCC Basic (TIA Portal)Var
WinCC Comfort (TIA Portal)Var
WinCC Advanced (TIA Portal)Var
WinCC Professional (TIA Portal)Var
Online languages
Number of online/runtime languages10
Project languages
Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesVar
Web browserYok
SIMATIC WinCC Sm@rtServerYok
Number of Visual Basic ScriptsYok
Task plannerVar
time-controlledYok
task-controlledVar
Help systemVar
Number of characters per info text500
Message system
Number of alarm classes32
— Number of bit messages1.000
— Number of analog messages25
S7 alarm number procedureYok
System messages HMIVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Var; System message buffer of the SIMATIC S7-1200 ve S7-1500
Number of characters per message80
Number of process values per message8
Acknowledgment groupsVar
Message indicatorVar
— Number of entries256
— Circulating bufferVar
— retentiveVar
— maintenance-freeVar
Recipe management
Number of recipes50
Data records per recipe100
Entries per data record100
Size of internal recipe memory256 kB
Variables
Number of variables per device800
Number of variables per screen100
Limit valuesVar
MultiplexingVar
StructuresYok
ArraysVar
Images
Number of configurable images100
Permanent window/defaultVar
Global imageVar
Image selection by PLCVar
Image number in the PLCVar
Image objects
Text fieldsVar
I/O fieldsVar
Graphic I/O fields (graphics list)Var
Symbolic I/O fields (text list)Var
Date/time fieldsVar
SwitchesVar
ButtonsVar
Graphic displayVar
IconsVar
Geometric objectsVar
Complex image objects
Alarm viewVar
Trend viewVar
User viewVar
Status/controlYok
Sm@rtClient viewYok
Recipe viewVar
f(x) trend viewYok
System diagnostics viewVar
Media PlayerYok
HTML browserYok
PDF displayYok
IP camera displayYok
Bar graphsVar
SlidersYok
Pointer instrumentsYok
Analog/digital clockYok
Archiving
Number of archives per device2
Number of entries per archive10.000
Message archiveVar
Process value archiveVar
— Sequential archiveVar
— Short-term archiveVar
— Memory cardYok
— USB memoryVar
— EthernetYok
— CSVYok
— TXTVar
— RDBYok
Security
Number of user groups50
Password export/importVar; Possible via ProSave
SIMATIC LogonYok
Character sets
— US EnglishVar
Transfer (upload/download)
MPI/PROFIBUS DPYok
USBYok
EthernetVar
using external storage mediumVar; Backup/restore
Process coupling
S7-1200Var
S7-1500Var
S7-200Var
S7-300/400Var
LOGO!Var
WinACVar
SIMOTIONVar
Allen Bradley (EtherNet/IP)Var
Allen Bradley (DF1)Yok
Mitsubishi (MC TCP/IP)Var
Mitsubishi (FX)Yok
OMRON (FINS TCP)Yok
OMRON (Host Link)Yok
Modicon (Modbus TCP/IP)Var
Modicon (Modbus RTU)Yok
Service tools/configuration aids
Backup/Restore manuallyVar
Backup/Restore automaticallyYok
SimulationVar
Device switchoverVar
Peripherals/Options
PrinterYok
SIMATIC HMI MM memory card: Multi Media CardYok
SIMATIC HMI SD memory card: Secure Digital memory cardYok
SIMATIC HMI CF memory card Compact Flash CardYok
USB memoryVar; USB storage medium can be connected
SIMATIC IPC USB Flashdrive (USB stick)Yok
SIMATIC HMI USB stickYok
Mechanics/material
plasticVar
AluminumYok
Stainless steelYok
Ölçüler
Width of the housing front267 mm
Height of housing front182 mm
Mounting cutout, width251 mm
Mounting cutout, height166 mm
mounting depth55 mm
Ağırlık
Weight (without packaging)1.130 g
Weight (with packaging)1.393 g
Aksesuarlar 20
Siemens 6AV2143-6JB00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AV6671-8XA00-0AX0 | Aksesuar · Connection plug · HMI connecting components | |
| 6AV6645-7AB14-0AS1 | Aksesuar · Accessories | |
| 6AV6881-0AV63-0BA0 | Aksesuar · spare part | |
| 6AV6881-0AV62-1AA0 | Aksesuar · spare part | |
| 6AV6881-0AV61-0AA0 | Aksesuar · spare part | |
| 6AV6881-0AV22-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6881-0AV21-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6881-0AU14-1DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-0DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AF22-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF22-0DC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LB0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AU14-1AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV2181-3JJ20-0AX0 | Aksesuar · protective film · protective films | |
| 6AV6881-0AS42-0AA1 | Aksesuar · Storage · Storage media | |
| 6AV6671-8XK00-0AX2 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV2181-8AT00-0AX1 | Aksesuar · Accessories · input devices, cables | |
| 6AV7860-0CH30-0AA0 | Aksesuar · line · input devices, cables |
