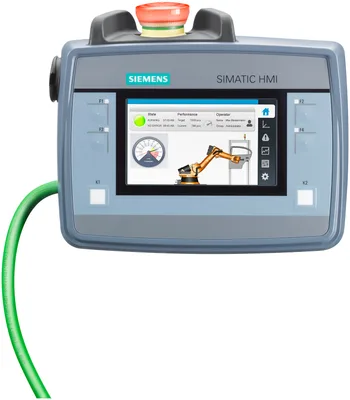

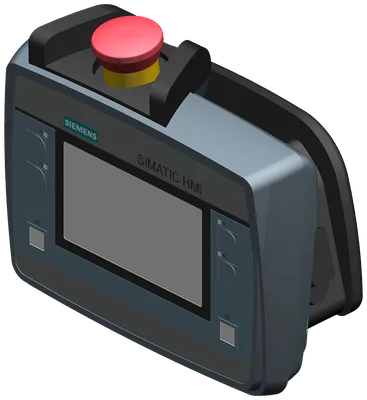

Siemens 6AV2125-2DB23-0AX0
***yedek parça*** SIMATIC HMI KTP400F Mobile ile dahili acknowledgment buton, EMERGENCY-OFF anahtar, touch ve tuş çalışma, 4" widescreen TFT gösterge, PROFINET arayüz, configurable from WinCC Comfort V13 SP1 ile HSP
Ürün tipi tanımıKTP400F Mobile
Design of displayTFT
Screen diagonal4,3 in
Color displayVar
Number of colors16.777.216
Horizontal image resolution480 pixel
Ürün Hakkında
***yedek parça*** SIMATIC HMI KTP400F Mobile ile dahili acknowledgment buton, EMERGENCY-OFF anahtar, touch ve tuş çalışma, 4" widescreen TFT gösterge, PROFINET arayüz, configurable from WinCC Comfort V13 SP1 ile HSP
Siemens 6AV2125-2DB23-0AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıKTP400F Mobile
Display
Design of displayTFT
Screen diagonal4,3 in
Color displayVar
Number of colors16.777.216
Resolution (pixels)
Horizontal image resolution480 pixel
Vertical image resolution272 pixel
Backlighting
MTBF backlighting (at 25 °C)50.000 h
Backlight dimmableVar; 0-100 %
Keyboard
— Number of function keys4
— Number of function keys with LEDs4
Keys with LEDVar
Numeric keyboardVar; Onscreen keyboard
alphanumeric keyboardVar; Onscreen keyboard
Touch operation
Design as touch screenVar
Design as multi-touch screenYok
Special operator controls
Stop button (forced blocking)Var
Emergency stop button (illuminated and forced blocking)Var
Acknowledgement button (3-stage)Var
Key-operated switchYok
Illuminated pushbuttonVar
Camera
integrated cameraYok
Expansions for operator control of the process
— F1...Fx4
— F1...Fx4
Direct keys (touch buttons as S7 input I/O)32
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)210 mA
Starting current inrush I²t0,37 A²·s
Power
Active power input, typ.5 W
Processor
Processor typeARM
Storage
FlashVar
RAMVar
Memory available for user data4 MB
Type of output
Power LEDYok
LED for safeYok
LED for communicationYok
LED for batteryYok
VibrationsYok
Saat
Donanım saati (gerçek zamanlı)Var
retentiveVar
synchronizableVar
Arayüzler
Number of industrial Ethernet interfaces1
PROFINET arayüz sayısı1
Number of RS 485 interfaces0
Number of RS 422 interfaces0
Number of RS 232 interfaces0
Number of USB interfaces1; USB 2,0
Number of wireless interfaces0
Number of SD card slots0
Protokoller
PROFINETVar
PROFINET IO protokolünü desteklerVar
PROFIsafeVar
PROFIBUSYok
EtherNet/IPVar
MPIYok
Protokoller (Ethernet)
TCP/IPVar
DHCPVar
SNMPVar
DCPVar
LLDPVar
WEB characteristics
HTTPVar
HTTPSVar
HTMLVar
XMLYok
CSSVar
Active XYok
JavaScriptVar
Java VMYok
Diğer protokoller
MODBUSVar
other bus systemsYok
Wireless communication
— Radio standard WLAN 802.11Yok
— Bluetooth radio standardYok
Diagnoses
Diagnostic information readableVar
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP65 (all-round)Var
Standartlar, onaylar, sertifikalar
CE işaretiVar
cULusVar
RCM (eski adıyla C-TICK)Var
KC onayıVar
Suitable for safety functionsVar
Denizcilik onayıVar
Highest safety class achievable in safety mode
Performance level according to ISO 13849-1PLe
SIL acc. to IEC 61508SIL 3
Use in hazardous areas
ATEX Zone 2Yok
ATEX Zone 22Yok
IECEx Zone 2Yok
IECEx Zone 22Yok
cULus Class I Zone 1Yok
cULus Class I Zone 2, Division 2Yok
FM Class I Division 2Yok
Marine approval
Germanischer Lloyd (GL)Var
American Bureau of Shipping (ABS)Var
Bureau Veritas (BV)Var
Det Norske Veritas (DNV)Var
Korean Register of Shipping (KRS)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (Class NK)Var
Polski Rejestr Statkow (PRS)Yok
Chinese Classification Society (CCS)Var
Serbest düşme
Düşme yüksekliği, maks.1,2 m
Çalışma ortam sıcaklığı
min.0 °C
maks.45 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Bağıl nem
Çalışma, maks.90 %
pre-installed operating system
Windows CEVar
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Process value display (output)Var
Process value default (input) possibleVar
Recipe managementVar
Configuration software
STEP 7 Basic (TIA Portal)Yok
STEP 7 Professional (TIA Portal)Yok
WinCC flexible CompactYok
WinCC flexible StandardYok
WinCC flexible AdvancedYok
WinCC Basic (TIA Portal)Yok
WinCC Comfort (TIA Portal)Var
WinCC Advanced (TIA Portal)Var
WinCC Professional (TIA Portal)Var
Online languages
Number of online/runtime languages32
Project languages
Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesVar
Web browserVar
Pocket WordYok
Pocket ExcelYok
PDF ViewerVar
Media PlayerYok
SIMATIC WinCC Sm@rtServerVar
SIMATIC WinCC AuditVar
Number of Visual Basic ScriptsVar
time-controlledVar
task-controlledVar
Number of characters per info text500
Multiproject
Number of projects (internal)0
Number of projects (external)0
Message system
Number of alarm classes32
— Number of bit messages4.000
— Number of analog messages200
S7 alarm number procedureVar
System messages HMIVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Var
Number of characters per message80
Number of process values per message8
Acknowledgment groupsVar
Message indicatorVar
— Number of entries1.024
— Circulating bufferVar
— retentiveVar
— maintenance-freeVar
Recipe management
Number of recipes300
Data records per recipe500
Entries per data record1.000
Size of internal recipe memory2 MB
Recipe memory expandableVar
Variables
Number of variables per device2.048
Number of variables per screen50
Limit valuesVar
MultiplexingVar
StructuresVar
ArraysVar
Images
Number of configurable images500
Permanent window/defaultVar
Global imageVar
Pop-up imagesVar
Slide-in imagesVar
Image selection by PLCVar
Image number in the PLCVar
Image objects
Number of objects per image50
Text fieldsVar
I/O fieldsVar
Graphic I/O fields (graphics list)Var
Symbolic I/O fields (text list)Var
Date/time fieldsVar
SwitchesVar
Graphic displayVar
IconsVar
Geometric objectsVar
Complex image objects
Number of complex objects per screen5
Alarm viewVar
Trend viewVar
User viewVar
Status/controlVar
Sm@rtClient viewVar
Recipe viewVar
f(x) trend viewVar
System diagnostics viewVar
Media PlayerYok
HTML browserYok
PDF displayYok
IP camera displayVar
Bar graphsVar
SlidersVar
Pointer instrumentsVar
Analog/digital clockVar
Lists
Number of text lists per project500
Number of entries per text list500
Number of graphics lists per project500
Number of entries per graphics list500
Archiving
Number of archives per device50
Number of entries per archive20.000
Message archiveVar
Process value archiveVar
— Sequential archiveVar
— Short-term archiveVar
— Memory cardYok
— USB memoryVar
— EthernetVar
— CSVVar
— TXTYok
— RDBVar
Security
Number of user groups50
Number of user rights32
Kullanıcı sayısı50
Password export/importVar
SIMATIC LogonVar
Logging through printer
AlarmsVar
Report (shift log)Var
HardcopyVar
Electronic print to fileYok
Character sets
— US EnglishVar
Transfer (upload/download)
MPI/PROFIBUS DPYok
USBYok
EthernetVar
Wireless LANYok
using external storage mediumVar; Backup/restore
Process coupling
S7-1200Var
S7-1500Var
S7-200Var
S7-300/400Var
LOGO!Var
WinACVar; WinAC RTX
SINUMERIKVar; without NC channel
SIMOTIONVar
Allen Bradley (EtherNet/IP)Var
Allen Bradley (DF1)Yok
Mitsubishi (MC TCP/IP)Var
Mitsubishi (FX)Yok
OMRON (FINS TCP)Yok
OMRON (Host Link)Yok
Modicon (Modbus TCP/IP)Var
Modicon (Modbus RTU)Yok
OPC UA ClientVar
OPC UA sunucusuVar
Service tools/configuration aids
Backup/Restore manuallyVar
Backup/Restore automaticallyYok
SimulationVar
Device switchoverVar
Peripherals/Options
PrinterVar
SIMATIC HMI MM memory card: Multi Media CardYok
SIMATIC HMI SD memory card: Secure Digital memory cardYok
SIMATIC HMI CF memory card Compact Flash CardYok
USB memoryVar
SIMATIC IPC USB Flashdrive (USB stick)Var
SIMATIC HMI USB stickVar
Network cameraVar
Additional software components loadableVar; SIMATIC options
Mechanics/material
PlasticVar
AluminumYok
Stainless steelYok
Ağırlık
Weight (without packaging)0,7 kg
Weight (with packaging)0,95 kg
Aksesuarlar 7
Siemens 6AV2125-2DB23-0AX0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AV2181-5AF02-0AX0 | Aksesuar · Cable · process coupling, connecting cables | |
| 6AV2181-5AF05-0AX0 | Aksesuar · Cable · process coupling, connecting cables | |
| 6AV2181-5AF08-0AX0 | Aksesuar · Cable · process coupling, connecting cables | |
| 6AV2181-5AF10-0AX0 | Aksesuar · Cable · process coupling, connecting cables | |
| 6AV2181-5AF15-0AX0 | Aksesuar · Cable · process coupling, connecting cables | |
| 6AV2181-5AF20-0AX0 | Aksesuar · Cable · process coupling, connecting cables | |
| 6AV2181-5AF25-0AX0 | Aksesuar · Cable · process coupling, connecting cables |
