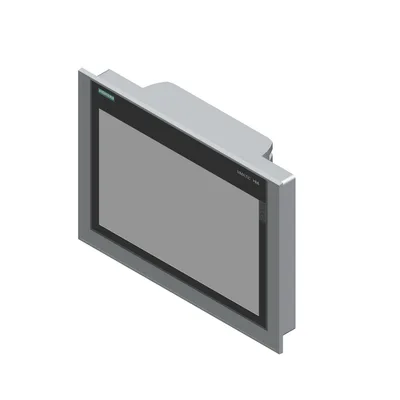

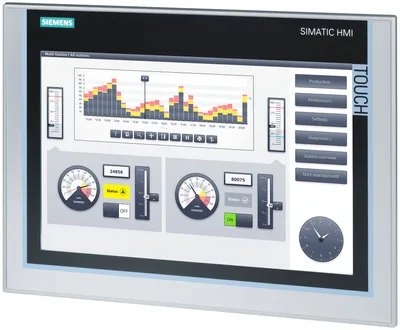

Siemens 6AV2124-0MC01-0AX0
SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11
Ürün tipi tanımıTP1200 Comfort
Design of displayTFT
Screen diagonal12,1 in
Display width261,1 mm
Display height163,2 mm
Number of colors16.777.216
Ürün Hakkında
SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11
Siemens 6AV2124-0MC01-0AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıTP1200 Comfort
Display
Design of displayTFT
Screen diagonal12,1 in
Display width261,1 mm
Display height163,2 mm
Number of colors16.777.216
Resolution (pixels)
Horizontal image resolution1.280 pixel
Vertical image resolution800 pixel
Backlighting
MTBF backlighting (at 25 °C)80.000 h
Backlight dimmableVar; 0-100 %
Keyboard
— Number of function keys0
— Number of function keys with LEDs0
Keys with LEDYok
System keysYok
Numeric keyboardVar; Onscreen keyboard
alphanumeric keyboardVar; Onscreen keyboard
Touch operation
Design as touch screenVar; Analog-resistive
Expansions for operator control of the process
— F1...Fx0
— F1...Fx0
Direct keys (touch buttons as S7 input I/O)40
Installation type/mounting
Mounting positiondikey
Wall mounting/direct mountingYok
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation35°
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)0,85 A
Starting current inrush I²t0,5 A²·s
Power
Active power input, typ.20 W
Processor
Processor typeX86
Storage
FlashVar
RAMVar
Memory available for user data12 MB
Type of output
Info LEDYok
Power LEDYok
Error LEDYok
BuzzerYok
SpeakerVar
Saat
Donanım saati (gerçek zamanlı)Var
Software clockVar
retentiveVar; Back-up duration typically 6 weeks
synchronizableVar
Arayüzler
Number of industrial Ethernet interfaces1; 2 ports (switch)
Number of RS 485 interfaces1; RS 422 / 485 combined
Number of RS 422 interfaces0; together with RS 485
Number of RS 232 interfaces0
Number of USB interfaces2; USB 2,0
USB Mini B1; 5-pole
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of SD card slots2
With software interfacesYok
Industrial Ethernet
Industrial Ethernet status LED2
Number of ports of the integrated switch2
Protokoller
PROFINETVar
PROFINET IO protokolünü desteklerVar
IRTVar; As of WinCC V12
PROFIBUSVar
EtherNet/IPVar
MPIVar
Protokoller (Ethernet)
TCP/IPVar
DHCPVar
SNMPVar
DCPVar
LLDPVar
WEB characteristics
HTTPVar
HTTPSVar
HTMLVar
XMLVar
CSSVar
Active XVar
JavaScriptVar
Java VMYok
Ortam yedekliliği
— MRPVar; As of WinCC V12
Diğer protokoller
CANYok
MODBUSVar
Diagnoses
Diagnostic information readableVar; S7 controller
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP20
Enclosure Type 4 at the frontVar
Enclosure Type 4x at the frontVar
Standartlar, onaylar, sertifikalar
CE işaretiVar
cULusVar
RCM (eski adıyla C-TICK)Var
KC onayıVar
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]301 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]81,2 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]221 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-2.25 kg
Use in hazardous areas
ATEX Zone 2Var
ATEX Zone 22Var
IECEx Zone 2Var
IECEx Zone 22Var
cULus Class I Zone 1Yok
cULus Class I Zone 2, Division 2Var
FM Class I Division 2Var
Marine approval
Germanischer Lloyd (GL)Var; As of product version: 10
American Bureau of Shipping (ABS)Var; As of product version: 10
Bureau Veritas (BV)Var; As of product version: 10
Det Norske Veritas (DNV)Var; As of product version: 10
Lloyds Register of Shipping (LRS)Var; As of product version: 10
Nippon Kaiji Kyokai (Class NK)Var; As of product version: 10
Polski Rejestr Statkow (PRS)Yok
Ambient conditions
Suited for indoor useVar
Suited for outdoor useYok
Operation (vertical installation)
— For vertical installation, min.0 °C
— For vertical installation, max.50 °C; (55 °C, see entry ID: 64847814)
Operation (max. tilt angle)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.40 °C
Operation (vertical installation, portrait format)
— For vertical installation, min.0 °C
— For vertical installation, max.40 °C
Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.35 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Bağıl nem
Çalışma, maks.90 %; no condensation
Operating systems
proprietaryYok
pre-installed operating system
Windows CEVar
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Process value display (output)Var
Process value default (input) possibleVar
Recipe managementVar
Configuration software
STEP 7 Basic (TIA Portal)Yok
STEP 7 Professional (TIA Portal)Yok
WinCC flexible CompactYok
WinCC flexible StandardYok
WinCC flexible AdvancedYok
WinCC Basic (TIA Portal)Yok
WinCC Comfort (TIA Portal)Var; from V11
WinCC Advanced (TIA Portal)Var; from V11
WinCC Professional (TIA Portal)Var; from V11
Online languages
Number of online/runtime languages32
Project languages
Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesVar
Web browserVar
Pocket WordVar
Pocket ExcelVar
PDF ViewerVar
Media PlayerVar
SIMATIC WinCC Sm@rtServerVar
SIMATIC WinCC AuditVar
Number of Visual Basic ScriptsVar
time-controlledVar
task-controlledVar
Number of characters per info text70
Message system
Number of alarm classes32
Bit messagesVar
— Number of bit messages4.000
Analog messagesVar
— Number of analog messages200
S7 alarm number procedureVar
System messages HMIVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Var
Number of characters per message80
Number of process values per message8
Acknowledgment groupsVar
Message indicatorVar
— Number of entries1.024
— Circulating bufferVar
— retentiveVar
— maintenance-freeVar
Recipe management
Number of recipes300
Data records per recipe500
Entries per data record1.000
Size of internal recipe memory2 MB
Recipe memory expandableVar
Variables
Number of variables per device2.048
Number of variables per screen400
Limit valuesVar
MultiplexingVar
StructuresVar
ArraysVar
Images
Number of configurable images500
Permanent window/defaultVar
Global imageVar
Pop-up imagesVar
Slide-in imagesVar
Image selection by PLCVar
Image number in the PLCVar
Image objects
Number of objects per image400
Text fieldsVar
I/O fieldsVar
Graphic I/O fields (graphics list)Var
Symbolic I/O fields (text list)Var
Date/time fieldsVar
SwitchesVar
ButtonsVar
Graphic displayVar
IconsVar
Geometric objectsVar
Complex image objects
Number of complex objects per screen20
Alarm viewVar
Trend viewVar
User viewVar
Status/controlVar
Sm@rtClient viewVar
Recipe viewVar
f(x) trend viewVar
System diagnostics viewVar
Media PlayerVar
HTML browserVar
PDF displayVar
IP camera displayVar
Bar graphsVar
SlidersVar
Pointer instrumentsVar
Analog/digital clockVar
Lists
Number of text lists per project500
Number of entries per text list500
Number of graphics lists per project500
Number of entries per graphics list500
Archiving
Number of archives per device50
Number of entries per archive20.000
Message archiveVar
Process value archiveVar
— Sequential archiveVar
— Short-term archiveVar
— Memory cardVar
— USB memoryVar
— EthernetVar
— CSVVar
— TXTVar
— RDBVar
Security
Number of user groups50
Number of user rights32
Kullanıcı sayısı50
Password export/importVar
SIMATIC LogonVar
Logging through printer
AlarmsVar
Report (shift log)Var
HardcopyVar
Electronic print to fileVar; PDF, HTML
Character sets
— US EnglishVar
Transfer (upload/download)
MPI/PROFIBUS DPVar
USBVar
EthernetVar
using external storage mediumVar
Process coupling
S7-1200Var
S7-1500Var
S7-200Var
S7-300/400Var
LOGO!Var
WinACVar
SINUMERIKVar; with SINUMERIK option package
SIMOTIONVar
Allen Bradley (EtherNet/IP)Var
Allen Bradley (DF1)Var
Mitsubishi (MC TCP/IP)Var
Mitsubishi (FX)Var
OMRON (FINS TCP)Yok
OMRON (Host Link)Var
Modicon (Modbus TCP/IP)Var
Modicon (Modbus RTU)Var
OPC UA ClientVar
OPC UA sunucusuVar
Service tools/configuration aids
Backup/Restore manuallyVar
Backup/Restore automaticallyVar
SimulationVar
Device switchoverVar
Peripherals/Options
PrinterVar
SIMATIC HMI MM memory card: Multi Media CardVar; Up to 128 MB
SIMATIC HMI SD memory card: Secure Digital memory cardVar; Up to 2 GB
SIMATIC HMI CF memory card Compact Flash CardYok
USB memoryVar
SIMATIC IPC USB Flashdrive (USB stick)Var; Up to 16 GB
SIMATIC HMI USB stickVar; Up to 8 GB
Network cameraVar
Mechanics/material
PlasticYok
AluminumVar
Stainless steelYok
Ölçüler
Width of the housing front330 mm
Height of housing front241 mm
Mounting cutout, width310 mm
Mounting cutout, height221 mm
mounting depth64 mm
Ağırlık
Weight (without packaging)2,8 kg
Weight (with packaging)3,5 kg
Aksesuarlar 48
Siemens 6AV2124-0MC01-0AX0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AV6671-8XA00-0AX0 | Aksesuar · Connection plug · HMI connecting components | |
| 6AV6881-0AV61-0AA0 | Aksesuar · spare part | |
| 6AV6881-0AV62-1AA0 | Aksesuar · spare part | |
| 6AV6881-0MJ22-1AA0 | Aksesuar · protective film · protective films | |
| 6AV7674-0LX00-0AA0 | Aksesuar · Accessories · distribution boards, HUBs | |
| 6AV7674-0LX01-0AA0 | Aksesuar · Accessories | |
| 6AV7674-1KA00-0AA0 | Aksesuar · spare part | |
| 6AV7674-1LB40-0AA0 | Aksesuar · Cover | |
| 6AV2185-8CE01-0AA0 | Aksesuar · Extension Unit | |
| 6AV2185-8CE08-0AA0 | Aksesuar · Extension Unit | |
| 6AV6881-0AV22-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV2185-8CF01-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LA31-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LA32-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LA33-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1KF00-0AA0 | Aksesuar · Adapter | |
| 6AV2181-8AT00-0AX1 | Aksesuar · Accessories · input devices, cables | |
| 6AV7674-0KD00-0AA0 | Aksesuar · Adapter | |
| 6AV7674-0KE00-0AA0 | Aksesuar · Adapter | |
| 6AV7674-1LB10-0AA0 | Aksesuar · Accessories | |
| 6AV7674-1LB50-0AA0 | Aksesuar · Adapter | |
| 6AV7674-1LA30-0AA0 | Aksesuar · Extension Unit | |
| 6AV6881-0MJ22-0AA0 | Aksesuar · protective film · protective films | |
| 6AV7860-0CH50-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV7860-0CH30-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV6671-8XD00-0AX0 | Aksesuar · Adapter · HMI connecting components | |
| 6AV6671-8XE00-0AX0 | Aksesuar · Accessories · HMI connecting components | |
| 6AV6671-8XJ00-0AX0 | Aksesuar · Accessories · HMI connecting components | |
| 6AV6881-0AS42-0AA1 | Aksesuar · Storage · Storage media | |
| 6AV2181-8XP00-0AX0 | Aksesuar · Memory card · Storage media | |
| 6AV6881-0AD56-3CA0 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV6881-0AU14-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-1AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AF21-0LB0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF22-0DC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF22-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AU14-0DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-1DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AQ10-0AA0 | Aksesuar · Memory card · Storage media | |
| 6AV6881-0AD56-0AA0 | Aksesuar · Adapter · fixing elements, mounting | |
| 6AV7674-1NF01-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV7674-1NG00-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6ES7648-1AA50-0XG0 | Aksesuar · Accessories · service sets | |
| 6AV6881-0AD56-2CA0 | Aksesuar · Adapter · fixing elements, mounting | |
| 6AV6881-0AV21-0AA0 | Aksesuar · Accessories · input tools | |
| 9LF1110-6DA13-2AB1 | Servis · Service Card | |
| 9TF6276-2XA11-1AL4 | Servis |
İlgili Ürünler
Detayları Gör
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
Detayları Gör
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
Detayları Gör
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
Detayları Gör
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
Detayları Gör
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
Detayları Gör
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
Detayları Gör
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
Detayları Gör
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
Detayları Gör
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Öne Çıkan Ürünler
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
İlgili Aramalar
Siemens 6AV2124-0MC01-0AX0 fiyatSiemens 6AV2124-0MC01-0AX0 teklif alSiemens 6AV2124-0MC01-0AX0 satın al6AV2124-0MC01-0AX0 fiyat6AV2124-0MC01-0AX0 stok durumuSiemens yedek parçaSiemens 6AV2124-0MC01-0AX0 muadilSiemens 6AV2124-0MC01-0AX0 teknik özellikler
