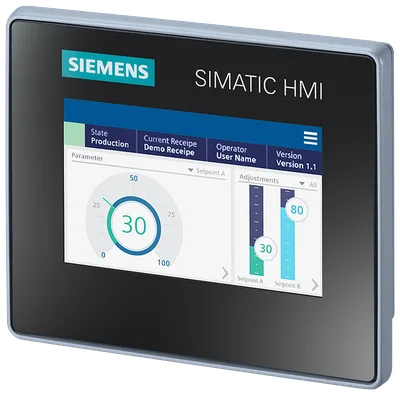

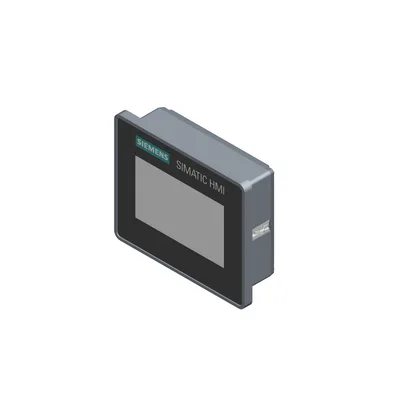

Siemens 6AV2123-3DB32-0AW0
SIMATIC HMI MTP400, Unified Basic Panel, touch operation, 4" widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Basic V18 Update 3, contains open-source software, which is provided free of charge see enclosed Blu-ray
Ürün tipi tanımıMTP400 Unified Basic
Design of displayTFT
Screen diagonal4,3 in
Display width93,6 mm
Display height56,2 mm
Number of colors16.777.216
Ürün Hakkında
SIMATIC HMI MTP400, Unified Basic Panel, touch operation, 4" widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Basic V18 Update 3, contains open-source software, which is provided free of charge see enclosed Blu-ray
Siemens 6AV2123-3DB32-0AW0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıMTP400 Unified Basic
Display
Design of displayTFT
Screen diagonal4,3 in
Display width93,6 mm
Display height56,2 mm
Number of colors16.777.216
Resolution (pixels)
Horizontal image resolution800 pixel
Vertical image resolution480 pixel
Backlighting
MTBF backlighting (at 25 °C)20.000 h; At 25°C
Backlight dimmableVar; 10... 100%
Keyboard
Numeric keyboardVar; Onscreen keyboard
alphanumeric keyboardVar; Onscreen keyboard
Touch operation
Design as touch screenVar
Design as multi-touch screenVar
Monitor keyboardVar
Installation type/mounting
Mounting positiondikey
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation35°
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)0,16 A
current consumption (for rated value of supply voltage), min.0,14 A
current consumption (for rated value of supply voltage), max.0,47 A
Akım tüketimi, maks.0,63 A; 19,2 V
Starting current inrush I²t0,45 A²·s
Power
Active power input, typ.3,8 W
Processor
Processor typeARM
Storage
FlashVar
RAMVar
Type of output
BuzzerYok
SpeakerYok
Saat
Donanım saati (gerçek zamanlı)Var
Software clockVar
retentiveVar; Back-up duration typically 6 weeks
synchronizableVar
Arayüzler
Number of industrial Ethernet interfaces1; Gigabit Ethernet (IE/PN), RJ45
Number of RS 485 interfaces0
Number of RS 422 interfaces0
Number of USB interfaces2; USB 2,0
Number of SD card slots0
Industrial Ethernet
Industrial Ethernet status LED2
Number of ports of the integrated switch1
Protokoller
PROFINETVar
PROFINET IO protokolünü desteklerYok
MPIYok
Protokoller (Ethernet)
TCP/IPVar
DHCPVar
SNMPVar
DCPVar
LLDPVar
Ortam yedekliliği
— MRPYok
Diğer protokoller
CANYok
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP20
NEMA (front)NEMA 4, NEMA 4x (when installed)
Enclosure Type 4 at the frontVar
Enclosure Type 4x at the frontVar
Enclosure Type 12 at the frontYok
Standartlar, onaylar, sertifikalar
CE işaretiVar
UKCA markVar
cULusVar
FM onayıYok
RCM (eski adıyla C-TICK)Var
KC onayıVar
EAC (formerly Gost-R)Yok
CCCYok
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]89,7 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]16,2 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]74,4 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-1.09 kg
Use in hazardous areas
ATEX Zone 2Yok
ATEX Zone 22Yok
IECEx Zone 2Yok
IECEx Zone 22Yok
cULus Class I Zone 2, Division 2Yok
cULus Class II Division 2Yok
FM Class I Division 2Yok
FM Class II Division 2Yok
Marine approval
Germanischer Lloyd (GL)Yok; included in DNV
American Bureau of Shipping (ABS)Var; in preparation
Bureau Veritas (BV)Var; in preparation
Det Norske Veritas (DNV)Var
Korean Register of Shipping (KRS)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (Class NK)Var
Chinese Classification Society (CCS)Var
Ambient conditions
Suited for indoor useVar
Suited for outdoor useYok
Operation (vertical installation)
— For vertical installation, min.0 °C
— For vertical installation, max.50 °C
Operation (max. tilt angle)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.40 °C
Operation (vertical installation, portrait format)
— For vertical installation, min.0 °C
— For vertical installation, max.40 °C
Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.35 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Bağıl nem
Çalışma, maks.90 %; no condensation
Operating systems
proprietaryVar
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Recipe managementVar
Configuration software
WinCC Advanced (TIA Portal)Var
WinCC Professional (TIA Portal)Var
WinCC Unified Basic Engineering (TIA Portal)Var
WinCC Unified Comfort Engineering (TIA Portal)Var
WinCC Unified PC Engineering (TIA Portal)Var
Online languages
Number of online/runtime languages32
Project languages
Languages per project32
Functionality under WinCC Unified
LibrariesVar
Applications/optionsYok
Number of Visual Basic ScriptsYok
JavaScriptVar
time-controlledVar
task-controlledVar
Number of characters per info text70
Number of message texts per message10
Message system
Number of alarm classes32
— Number of bit messages2.000
— Number of analog messages100
S7 alarm number procedureVar
System messages HMIVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Var
Number of characters per message512
Number of process values per message10
Acknowledgment groupsVar
Message indicatorYok
Message bufferVar; Configured as alarm archive
— Circulating bufferVar
— retentiveVar
— maintenance-freeVar
Parameter set management (recipes)
Number of parameter set types250
Parameter sets per parameter set type250
Entries per parameter set250
Size of internal parameter set memory5 MB
Parameter set memory expandableVar
Variables
Number of variables per device1.000
Number of variables per screen300
Limit valuesVar
StructuresVar
ArraysVar
Images
Number of configurable images300
FaceplateVar
Image objects
Number of objects per image600
Picture windowVar
Text fieldsVar
I/O fieldsVar
Graphic I/O fields (graphics list)Var
Symbolic I/O fields (text list)Var
Scalable Vector Graphics (SVG)Var
Date/time fieldsVar
CheckboxVar
Option buttonVar
SwitchesVar
ButtonsVar
Graphic displayVar
IconsVar
Custom web displayYok
Geometric objectsVar
Complex image objects
Number of complex objects per screen5
Alarm viewVar
Trend viewVar
User viewVar
Status/controlVar
Parameter set displayVar
HTML browserVar
Bar graphsVar
SlidersVar
Pointer instrumentsVar
Analog/digital clockVar
Lists
Number of text lists per project300
Number of entries per text list250
Number of graphics lists per project100
Number of entries per graphics list250
Archiving
Number of archives per device10
Number of entries per archive50.000
Message archiveVar
Process value archiveVar
— Sequential archiveVar
— Short-term archiveVar
— Memory cardYok
— USB memoryVar
— EthernetYok
Security
Rol sayısı50
Number of function rights20; V18
Kullanıcı sayısı200
Password export/importVar
Central user administrationVar
Transfer (upload/download)
USBVar
EthernetVar
using external storage mediumVar
Process coupling
S7-1200Var
S7-1500Var
S7-200Yok
S7-300/400Var
Number of S7 connections8
LOGO!Var; as of WinCC Unified V20
SIMOTIONYok
OPC UA ClientVar
OPC UA sunucusuYok
Software Controller/Open ControllerYok
Service tools/configuration aids
Backup/Restore manuallyVar
Backup/Restore automaticallyYok
SimulationVar
Device switchoverVar
Peripherals/Options
PeripheralsBarcode reader
PrinterYok
SIMATIC HMI MM memory card: Multi Media CardYok
SIMATIC HMI SD memory card: Secure Digital memory cardYok
SIMATIC HMI CF memory card Compact Flash CardYok
USB memoryVar
SIMATIC IPC USB Flashdrive (USB stick)Var
SIMATIC HMI USB stickVar
Network cameraYok
Mechanics/material
PlasticVar
Ölçüler
Width of the housing front140 mm
Height of housing front116 mm
Mounting cutout, width123 mm
Mounting cutout, height99 mm
mounting depth36 mm
Ağırlık
Weight (without packaging)0,45 kg
Weight (with packaging)0,53 kg
Aksesuarlar 23
Siemens 6AV2123-3DB32-0AW0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AV6671-8XA00-0AX0 | Aksesuar · Connection plug · HMI connecting components | |
| 6AV7860-0CH30-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV2181-8AT00-0AX1 | Aksesuar · Accessories · input devices, cables | |
| 6AV6645-7AB14-0AS1 | Aksesuar · Accessories | |
| 6AV6881-0AV63-0BA0 | Aksesuar · spare part | |
| 6AV6881-0AV62-1AA0 | Aksesuar · spare part | |
| 6AV6881-0AV61-0AA0 | Aksesuar · spare part | |
| 6AV6881-0AV22-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6881-0AV21-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6881-0AU14-0DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-1DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AF22-0DC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LB0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AU14-1AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV2181-3MJ20-0AX0 | Aksesuar · protective film · protective films | |
| 6AV6881-0AS42-0AA1 | Aksesuar · Storage · Storage media | |
| 6AV6671-8XK00-0AX2 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV6881-0AF22-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6671-8XE00-0AX0 | Aksesuar · Accessories · HMI connecting components | |
| 6AV6671-8XD00-0AX0 | Aksesuar · Adapter · HMI connecting components | |
| 6AV6671-8XJ00-0AX0 | Aksesuar · Accessories · HMI connecting components |
İlgili Ürünler
Detayları Gör
Siemens
1FG1304-..E13-4...
MFR #1FG1304-..E13-4...
SKU #YLSTD3LEQFZSPUI
Detayları Gör
Siemens
1FG1304-..E14-4...
MFR #1FG1304-..E14-4...
SKU #YLS38EV3MXRMZE
Detayları Gör
Siemens
1FG1304-..E22-2...
MFR #1FG1304-..E22-2...
SKU #YLS1VTYLYSZGEHH
Detayları Gör
Siemens
1FG1304-..E23-2...
MFR #1FG1304-..E23-2...
SKU #YLSYJHZ7RJOW3P
Detayları Gör
Siemens
1FG1304-..E24-2...
MFR #1FG1304-..E24-2...
SKU #YLSLDB8JS1BGM
Detayları Gör
Siemens
1FG1304-..E32-2...
MFR #1FG1304-..E32-2...
SKU #YLSGG6PS2F7GD1A
Detayları Gör
Siemens
1FG1304-..E33-2...
MFR #1FG1304-..E33-2...
SKU #YLSOH5S5SGQLUMY
Detayları Gör
Siemens
1FG1304-..E34-2...
MFR #1FG1304-..E34-2...
SKU #YLSHHDQZTTYGW1E
Detayları Gör
Siemens
1FG1304-..E42-4...
MFR #1FG1304-..E42-4...
SKU #YLSPL73HUQANCV
Öne Çıkan Ürünler
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
İlgili Aramalar
Siemens 6AV2123-3DB32-0AW0 fiyatSiemens 6AV2123-3DB32-0AW0 teklif alSiemens 6AV2123-3DB32-0AW0 satın al6AV2123-3DB32-0AW0 fiyat6AV2123-3DB32-0AW0 stok durumuSiemens yedek parçaSiemens 6AV2123-3DB32-0AW0 muadilSiemens 6AV2123-3DB32-0AW0 teknik özellikler
