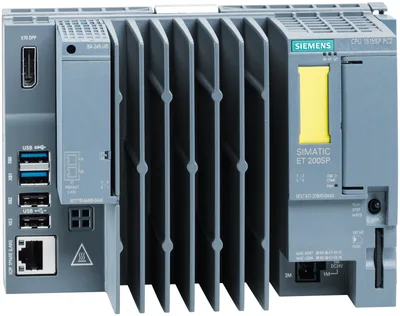

Siemens 6AG2677-2SB43-2GB1
SIPLUS ET 200SP CPU 1515SP PC2 F L rail based on 6ES7677-2SB43-0GB0 ile conformal coating -40...+60 °C, OT2 ile ST1/2 (+70 °C için 10 minutes), 8 GB RAM 128 GB CFast SIMATIC Industrial OS, S7-1500 Failsafe yazılım kontrolcü CPU 1505SP F interfaces: 1x slot CFast, 1x slot SD/MMC, 1x bağlantı için ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet 2x USB 3,0; 2x USB 2,0, 1x DisplayPort, 2x USB 3,0; 2x USB 2,0, 1x DisplayPort,
Ürün tipi tanımıCPU 1515SP PC2 F L
based on6ES7677-2SB43-0GB1
I&M dataVar; I&M0 to I&M3
SysLogVar
VisualizationYok
ControlS7-1500 Software Controller CPU 1505SP
Ürün Hakkında
SIPLUS ET 200SP CPU 1515SP PC2 F L rail based on 6ES7677-2SB43-0GB0 ile conformal coating -40...+60 °C, OT2 ile ST1/2 (+70 °C için 10 minutes), 8 GB RAM 128 GB CFast SIMATIC Industrial OS, S7-1500 Failsafe yazılım kontrolcü CPU 1505SP F interfaces: 1x slot CFast, 1x slot SD/MMC, 1x bağlantı için ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet 2x USB 3,0; 2x USB 2,0, 1x DisplayPort, 2x USB 3,0; 2x USB 2,0, 1x DisplayPort,
Siemens 6AG2677-2SB43-2GB1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCPU 1515SP PC2 F L
based on6ES7677-2SB43-0GB1
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeVar; yalnızca şununla: PROFINET; with minimum OB 6x cycle of 500 µs
SysLogVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Installed software
VisualizationYok
ControlS7-1500 Software Controller CPU 1505SP
Configuration control
via datasetVar
Control elements
Mode selector switch1
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Mains buffering
Mains/voltage failure stored energy time5 ms
Giriş akımı
Akım tüketimi (nominal değer)1,8 A; Full processor load, incl. ET 200SP modules ve using USB
Current consumption (in no-load operation), typ.0,5 A
Akım tüketimi, maks.2,9 A
I²t0,426 A²·s; with starting current inrush
Power
Active power input, max.43 W; incl. ET 200SP modules ve using USB
Infeed power to the backplane bus8,75 W
Güç kaybı
Güç kaybı, tipik16 W; without ET 200SP modules ve without using USB
Processor
Processor typeIntel Atom E3940, 1,6 GHz, 4 cores
Storage
Type of memoryDDR3L
Main memory8 GB RAM
CFast memory cardVar; 128 GB flash memory
SIMATIC memory card requiredYok
Çalışma belleği
integrated (for program)3 MB
integrated (for data)7,5 MB
integrated (for CPU function library of CPU Runtime)20 MB
Yükleme belleği
integrated (on PC mass storage)320 MB
Yedekleme
with UPSVar; all memory areas declared retentive
with non-volatile memoryVar
CPU blokları
Eleman sayısı (toplam)8.000; In addition to blocks such as DBs, FBs ve FCs, UDTs, global constants, etc. are also regarded as elements
DB
Sayı, maks.7.999; Number range: 1 to 65535
Boyut, maks.5 MB
FB
Sayı, maks.7.998; Number range: 1 to 65535
Boyut, maks.1.024 kB
FC
Sayı, maks.7.999; Number range: 1 to 65535
Boyut, maks.1.024 kB
Organizasyon blokları (OB)
Boyut, maks.1.024 kB
Number of free cycle OBs100
Number of time alarm OBs20
Number of delay alarm OBs20
Number of cyclic interrupt OBs20
Number of process alarm OBs50
Number of DPV1 alarm OBs3
Number of isochronous mode OBs1
Number of technology synchronous alarm OBs2
Number of startup OBs100
Number of asynchronous error OBs4
Number of synchronous error OBs2
Number of diagnostic alarm OBs1
Nesting depth
per priority class24; Up to 8 possible for F-blocks
S7 counter
Number2.048
Retentivity
— adjustableVar
IEC counter
NumberAny (only limited by the main memory)
Retentivity
— adjustableVar
S7 timer
Number2.048
Retentivity
— adjustableVar
IEC timer
NumberAny (only limited by the main memory)
Retentivity
— adjustableVar
Veri alanları ve kalıcılığı
Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.410 kB; For storage in NVRAM; for storage in mass storage 5.242.020 bytes
Merker (bayrak)
Boyut, maks.16 kB
Number of clock memories8; 8 clock memory bit, grouped into one clock memory bayt
Data blocks
Retentivity adjustableVar
Retentivity presetYok
Yerel veri
Öncelik sınıfı başına, maks.64 kB; maks. 16 KB per block
Address area
Number of IO modules8.192
I/O address area
Inputs32 kB; All inputs are in the process image
Outputs32 kB; All outputs are in the process image
Subprocess images
Number of subprocess images, max.32
Donanım yapılandırması
Integrated power supplyVar
Number of distributed IO systems20
Number of DP masters
Via CM1
Rack
Modules per rack, max.82; CPU + 64 modules + server module (mounting width maks. 1 m) + 16 ET 200AL modules
Quantity of operable ET 200SP modules, max.64
Quantity of operable ET 200AL modules, max.16
Number of lines, max.1
PtP CM
Number of PtP CMsthe number of connectable PtP CMs is only limited by the number of available slots
Saat
TypeHardware clock
Donanım saati (gerçek zamanlı)Var; Resolution: 1 s
Yedekleme süresi6 wk; At 40 °C ambient temperature, typically
Günlük sapma, maks.10 s; Typ.: 2 s
Clock synchronization
DestekleniyorVar
to DP, masterVar; Via CM DP module
on Ethernet via NTPVar
on Windows clock, deviceVar
Arayüzler
Number of industrial Ethernet interfaces2
PROFINET arayüz sayısı1
Number of PROFIBUS interfaces1
Number of RS 485 interfaces1; Via CM DP module
Number of USB interfaces4; 2x USB 2,0, 2x USB 3,0 on front side
Number of SD card slots1
Video interfaces
Graphics interface1x DisplayPort
1. Arayüz
Arayüz tipiPROFINET
İletim hızının otomatik algılanmasıVar
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Number of connections88
Arayüz tipleri
RJ 45 (Ethernet)Var; Via BusAdapter BA 2x RJ45
— Transmission rate, max.100 Mbit/s
— Industrial Ethernet status LEDVar
Port sayısı2
Dahili switchVar
BusAdapter (PROFINET)Var
Protokoller
IP protocolVar; IPv4
PROFINET IO kontrolcüsüVar
PROFINET IO DeviceVar
SIMATIC haberleşmesiVar
Açık IE haberleşmesiVar; Optionally also encrypted
Web sunucusuVar
Servisler
— Eşzamanlı (isochronous) modVar
— Direct data exchangeVar; Requirement: IRT ve isochronous mode (MRPD optional)
— shortest clock pulse500 µs
— IRTVar
— PROFIenergyVar
— Önceliklendirilmiş başlatmaVar; Maks. 32 PROFINET devices
— Bağlanabilir IO cihazı sayısı, maks.128
— Of which IO devices with IRT, max.64
— Bunlardan hat üzerinde, maks.64
— RT için bağlanabilir IO cihazı sayısı, maks.128
— Bunlardan hat üzerinde, maks.128
— Eşzamanlı etkinleştirilebilen/devre dışı bırakılabilen IO cihazı sayısı, maks.8
— IO Devices changing during operation (partner ports), supportedVar
— Number of IO Devices per tool, max.8
— Updating timesThe minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, ve on the quantity of configured user data
— PROFINET Security Class1
Update time for IRT
— for send cycle of 500 µs500 µs to 8 ms
— for send cycle of 1 ms1 ms to 16 ms
— for send cycle of 2 ms2 ms to 32 ms
— for send cycle of 4 ms4 ms to 64 ms
— With IRT and parameterization of "odd" send cyclesUpdate time = set "odd" send clock (any multiple of 125 µs: 625 µs... 3.875 µs) minimum cycle time start from 500 µs
Update time for RT
— for send cycle of 500 µs500 µs to 256 ms
— for send cycle of 1 ms1 ms to 512 ms
— for send cycle of 2 ms2 ms to 512 ms
— for send cycle of 4 ms4 ms to 512 ms
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
Servisler
— Eşzamanlı (isochronous) modYok
— IRTVar
— PROFIenergyVar; per user program
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.4
— activation/deactivation of I-devicesVar; per user program
— Varlık yönetimi kaydıVar; per user program
— PROFINET Security ClassSNMP Configuration ve DCP Read Only
2. Interface
Arayüz tipidahili Ethernet interface
İletim hızının otomatik algılanmasıVar
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Arayüz tipleri
RJ 45 (Ethernet)Var; dahili
— Transmission rate, max.1.000 Mbit/s
— Industrial Ethernet status LEDYok
Port sayısı1
3. Interface
Arayüz tipiPROFIBUS with CM DP
Number of connections44
Arayüz tipleri
RS 485Var
Protokoller
PROFIBUS DP masterVar
PROFIBUS DP deviceVar
SIMATIC haberleşmesiVar
PROFIBUS DP master
max. number of DP devices125
Servisler
— EquidistanceYok
— Eşzamanlı (isochronous) modYok
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
RS 485
İletim hızı, maks.12 Mbit/s
Protokoller
PROFIsafeVar
Bağlantı sayısı
Number of connections, max.88
Number of connections reserved for ES/HMI/web10
Number of S7 routing paths16
Ortam yedekliliği
— Media redundancyVar; only via BusAdapter
— MRPVar; MRP Automanager according to IEC 62439-2 Edition 2,0, MRP Manager; MRP Client
— MRP ara bağlantısı, destekleniyorVar; as MRP ring node according to IEC 62439-2 Edition 3,0
— MRPDVar; Requirement: IRT
— Switchover time on line break, typ.200 ms; For MRP, bumpless for MRPD
— Number of stations in the ring, max.50
SIMATIC haberleşmesi
PG/OP communicationVar; encryption with TLS V1.3 pre-selected
S7 yönlendirmeVar
S7 communication, as serverVar
S7 communication, as clientVar
İş başına kullanıcı verisi, maks.64 kB; BSEND/BRCV: 64 KB; PUT/GET: 960 bytes
Açık IE haberleşmesi
TCP/IPVar
— Veri uzunluğu, maks.64 kB
ISO-on-TCP (RFC1006)Var
— Veri uzunluğu, maks.64 kB
UDPVar
— Veri uzunluğu, maks.2 kB; 1.472 bytes for UDP broadcast
— UDP multicastVar; Maks. 5 multicast circuits
DHCPVar
DNSVar
SNMPVar
DCPVar
LLDPVar
EncryptionVar; Optional
Web sunucusu
HTTPVar; Standard ve user pages
HTTPSVar; Standard ve user pages
— Oturum sayısı, maks.50
— number of simultaneous HTTP calls, max.4
— HTTP request body, max.131.072 bayt
OPC UA
Çalışma zamanı lisansı gerekirVar; "Small" license required
OPC UA ClientVar; Data access (read, write), method call
— Uygulama kimlik doğrulamasıVar
— Security policiesVar; Available security policies: Yok, Basic128Rsa15, Basic256Rsa15, Basic256Sha256
— Kullanıcı kimlik doğrulamasıVar; "anonymous" veya by user name & password
— Number of connections, max.10
— Number of nodes of the client interfaces, recommended max.2.000
— Number of elements for one call of OPC_UA_NodeGetHandleList/OPC_UA_ReadList/OPC_UA_WriteList, max.300
— Number of elements for one call of OPC_UA_NameSpaceGetIndexList, max.20
— Number of elements for one call of OPC_UA_MethodGetHandleList, max.100
— Number of simultaneous calls of the client instructions for session management, per connection, max.1
— Number of simultaneous calls of the client instructions for data access, per connection, max.5
— Number of registerable nodes, max.5.000
— Number of registerable method calls of OPC_UA_MethodCall, max.100
— Number of inputs/outputs when calling OPC_UA_MethodCall, max.20
OPC UA sunucusuVar; Data access (read, write, subscribe), method call, custom address space
— Uygulama kimlik doğrulamasıVar
— Security policiesVar; Available security policies: Yok, Basic128Rsa15, Basic256Rsa15, Basic256Sha256
— Kullanıcı kimlik doğrulamasıVar
— GDS support (certificate management)Var
— Oturum sayısı, maks.48
— Number of accessible variables, max.100.000
— Number of registerable nodes, max.20.000
— Oturum başına abonelik sayısı, maks.50
— Örnekleme aralığı, min.100 ms
— Yayınlama aralığı, min.200 ms
— Sunucu metodu sayısı, maks.50
— Number of inputs/outputs per server method, max.20
— İzlenen öğe sayısı, önerilen maks.2.000; for 1 s sampling interval ve 1 s send interval
— Sunucu arayüzü sayısı, maks.10
— Kullanıcı tanımlı sunucu arayüzleri için düğüm sayısı, maks.5.000
Alarms and ConditionsVar
— Number of program alarms200
— Number of alarms for system diagnostics100
Diğer protokoller
MODBUSVar; MODBUS TCP
S7 message functions
Number of login stations for message functions, max.32
Program alarmsVar
Number of configurable program messages, max.10.000
Number of simultaneously active program alarms1.000
Number of program alarms1.000
Number of alarms for system diagnostics200
Number of alarms for motion technology objects160
Test commissioning functions
Joint commission (Team Engineering)Var; Parallel online access possible for up to 10 engineering systems
Status blockVar; up to 8 simultaneously
Single stepVar
Number of breakpoints8
ProfilingYok
Durum/kontrol
Durum/kontrol değişkeniVar
DeğişkenlerInputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
— of which status variables, max.200; per job
— of which control variables, max.200; per job
Zorlama (force)
Zorlama (force)Var
Forcing, variablesPeripheral inputs/outputs
Number of variables, max.200
Tanılama arabelleği
MevcutVar
Number of entries, max.1.000
— of which powerfail-proof300
İzlemeler (trace)
Yapılandırılabilir izleme sayısı4
İzleme başına bellek boyutu, maks.512 kB
Tanılama gösterge LED’i
RUN/STOP LED’iVar
ERROR LED’iVar
MAINT LED’iVar
Supported technology objects
Motion ControlVar; Note: The number of technology objects affects the cycle time of the PLC program; selection guide via the TIA Selection Tool veya SIZER
Number of available Motion Control resources for technology objects2.400
— per speed-controlled axis40
— per positioning axis80
— per synchronous axis160
— per external encoder80
— per output cam20
— per cam track160
— per probe40
— Number of positioning axes at motion control cycle of 4 ms (typical value)30
— Number of positioning axes at motion control cycle of 8 ms (typical value)30
PID_CompactVar; Universal PID controller with dahili optimization
PID_3StepVar; PID controller with dahili optimization for valves
PID-TempVar; PID controller with dahili optimization for temperature
High-speed counterVar
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]432 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]73,8 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]365 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-6.71 kg
Highest safety class achievable in safety mode
Performance level according to ISO 13849-1PLe
SIL acc. to IEC 61508Up to SIL 3
Probability of failure (for service life of 20 years and repair time of 100 hours)
— Low demand mode: PFDavg in accordance with SIL3< 2.00E-05
— High demand/continuous mode: PFH in accordance with SIL3< 1.00E-09
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
min.-40 °C; = Tmin
maks.from 55 °C: with maks. 32 ET 200SP modules ve 4x 500 mA USB load; from 60 °C with maks. 16 ET 200SP modules, maks. 4x 100 mA USB load, no visualization ve projected empty space between CPU ve ET 200SP module
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax; with maks. 32 ET 200SP modules ve maks. 4x 500 mA USB load
Depolama/taşıma ortam sıcaklığı
min.-40 °C
maks.70 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Titreşim
Çalışma, IEC 60068-2-6’ya göre test edilmişVar
Transport, tested acc. to IEC 60068-2-6Var
Şok testi
tested according to IEC 60068-2-6Var
IEC 60068-2-27’ye göre test edilmişVar
tested according to IEC 60068-2-29Var
Storage/transport, tested acc. to IEC 60068-2-27Var
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; class PC2 protective coating acc. to EN 50155
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Operating systems
pre-installed operating systemSIMATIC Industrial OS
Programlama dili
— LADVar; incl. failsafe
— FBDVar; incl. failsafe
— STLVar
— SCLVar
— CFCYok
— GRAPHVar
Know-how koruması
Kullanıcı programı/şifre korumasıVar
Kopya korumasıVar
Blok korumasıVar
Erişim koruması
Gizli yapılandırma verisinin korunmasıVar
Koruma seviyesi: yazma korumasıVar
Koruma seviyesi: okuma/yazma korumasıVar
Protection level: Write protection for FailsafeVar
Koruma seviyesi: tam korumaVar
Kullanıcı yönetimiVar; device-wide
Kullanıcı sayısı100
Çevrim süresi izleme
lower limitadjustable minimum cycle time
upper limitadjustable maximum cycle time
Open Development interfaces
Size of ODK SO file, max.5,8 MB
Peripherals/Options
SD cardOptionally for additional mass storage
Ölçüler
Genişlik160 mm
Yükseklik117 mm
Derinlik75 mm
Ağırlık
Ağırlık, yaklaşık0,83 kg
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 31
Siemens 6AG2677-2SB43-2GB1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG2193-6AM00-4AA0 | Aksesuar · BusAdapter | |
| 6ES7193-6CP86-2AC0 | Aksesuar · label | |
| 6ES7193-6CP85-2AC0 | Aksesuar · label | |
| 6ES7193-6CP84-2AC0 | Aksesuar · label | |
| 6ES7193-6CP83-2AB0 | Aksesuar · label | |
| 6ES7193-6CP82-2AB0 | Aksesuar · label | |
| 6ES7193-6CP81-2AB0 | Aksesuar · label | |
| 6ES7193-6CP73-2AA0 | Aksesuar · label | |
| 6ES7193-6CP71-2AA0 | Aksesuar · label | |
| 6ES7193-6CP63-2MA0 | Aksesuar · label | |
| 6ES7193-6CP72-2AA0 | Aksesuar · label | |
| 6ES7193-6CP52-2MC0 | Aksesuar · label | |
| 6AG2193-6AR00-4AA0 | Aksesuar · BusAdapter | |
| 6ES7193-6CP00-2MA0 | Aksesuar · label | |
| 6ES7193-6CP01-2MA0 | Aksesuar · label | |
| 6ES7193-6CP62-2MA0 | Aksesuar · label | |
| 6ES7193-6CP03-2MA0 | Aksesuar · label | |
| 6ES7193-6CP04-2MA0 | Aksesuar · label | |
| 6ES7193-6CP02-2MA0 | Aksesuar · label | |
| 6ES7193-6CP11-2MT0 | Aksesuar · label | |
| 6ES7193-6CP12-2MT0 | Aksesuar · label | |
| 6ES7193-6CP13-2MT0 | Aksesuar · label | |
| 6ES7193-6CP41-2MB0 | Aksesuar · label | |
| 6ES7193-6CP51-2MC0 | Aksesuar · label | |
| 6ES7193-6CP10-2MT0 | Aksesuar · label | |
| 6AG2193-6AF00-4AA0 | Aksesuar · BusAdapter | |
| 6AG1193-6PA00-7AA0 | Yedek parça · spare part | |
| 6ES7193-6MR00-0AA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0BA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0CA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0DA0 | Zorunlu ek ürün · Mounting rail |
İlgili Ürünler
Detayları Gör
Siemens
1FN3050-8SA00-0AA0
MFR #1FN3050-8SA00-0AA0
SKU #YLSPEYTCHSLPEPH
Detayları Gör
Siemens
1FN3100-8SA00-0AA0
MFR #1FN3100-8SA00-0AA0
SKU #YLSJZNRPZ4VXXL
Detayları Gör
Siemens
1FN3150-8SA00-0AA0
MFR #1FN3150-8SA00-0AA0
SKU #YLSZOWEGFUAGXOH
Detayları Gör
Siemens
1FN3300-8SA00-0AA0
MFR #1FN3300-8SA00-0AA0
SKU #YLSZMAEBPCROKIZ
Detayları Gör
Siemens
1FN3450-8SA00-0AA0
MFR #1FN3450-8SA00-0AA0
SKU #YLSNONBMS6EF28
Detayları Gör
Siemens
1FN3600-8SA00-0AA0
MFR #1FN3600-8SA00-0AA0
SKU #YLS8CPR47M6DMNJ
Detayları Gör
Siemens
1FN3900-8SA00-0AA0
MFR #1FN3900-8SA00-0AA0
SKU #YLSQEN1CGSWWALU
Detayları Gör
Siemens
1FY2105-0AA00
MFR #1FY2105-0AA00
SKU #YLSGTZWOTRQID
Detayları Gör
Siemens
1FY2105-4AA00
MFR #1FY2105-4AA00
SKU #YLSDLAYIMNHTZJE
Öne Çıkan Ürünler
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
İlgili Aramalar
Siemens 6AG2677-2SB43-2GB1 fiyatSiemens 6AG2677-2SB43-2GB1 teklif alSiemens 6AG2677-2SB43-2GB1 satın al6AG2677-2SB43-2GB1 fiyat6AG2677-2SB43-2GB1 stok durumuSiemens yedek parçaSiemens 6AG2677-2SB43-2GB1 muadilSiemens 6AG2677-2SB43-2GB1 teknik özellikler
