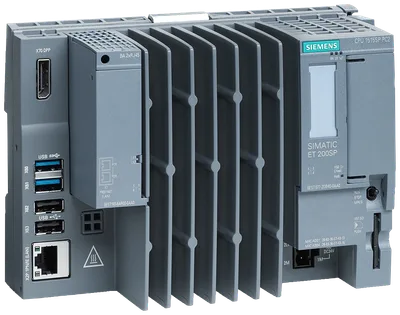

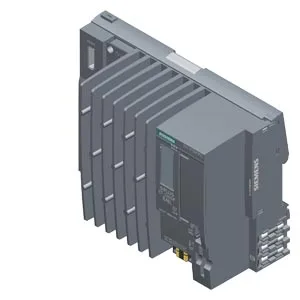

Siemens 6AG2677-2DB40-2AA0
SIPLUS ET 200SP CPU 1515SP PC2 rail spare based on 6ES7677-2DB40-0AA0 with conformal coating, -40…+60 °C, OT2 with ST1/2 (+70 °C für 10 minutes), spare part, 8 GB RAM, without CFast, interfaces: 1x slot CFast, 1x slot SD/MMC, 1x connection for ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet 2x USB 3.0; 2x USB 2.0, 1x display port
Ürün tipi tanımıCPU 1515SP PC2
based on6ES7677-2DB40-0AA0
VisualizationYok
ControlYok
via datasetVar
Mode selector switch1
Ürün Hakkında
SIPLUS ET 200SP CPU 1515SP PC2 rail spare based on 6ES7677-2DB40-0AA0 with conformal coating, -40…+60 °C, OT2 with ST1/2 (+70 °C für 10 minutes), spare part, 8 GB RAM, without CFast, interfaces: 1x slot CFast, 1x slot SD/MMC, 1x connection for ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet 2x USB 3.0; 2x USB 2.0, 1x display port
Siemens 6AG2677-2DB40-2AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCPU 1515SP PC2
based on6ES7677-2DB40-0AA0
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Installed software
VisualizationYok
ControlYok
Configuration control
via datasetVar
Control elements
Mode selector switch1
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Mains buffering
Mains/voltage failure stored energy time5 ms
Giriş akımı
Akım tüketimi (nominal değer)1,8 A; Full processor load, incl. ET 200SP modules ve using USB
Current consumption (in no-load operation), typ.0,5 A
Akım tüketimi, maks.2,9 A
I²t0,426 A²·s; with starting current inrush
Power
Active power input, max.43 W; incl. ET 200SP modules ve using USB
Infeed power to the backplane bus8,75 W
Güç kaybı
Güç kaybı, tipik16 W
Processor
Processor typeIntel Atom E3940, 1,6 GHz, 4 cores
Storage
Type of memoryDDR3L
Main memory8 GB RAM
CFast memory cardYok
SIMATIC memory card requiredYok
Donanım yapılandırması
Integrated power supplyVar
Number of DP masters
Via CM1
Rack
Modules per rack, max.64; CPU + 64 modules + server module (mounting width maks. 1 m)
Saat
TypeHardware clock
Yedekleme süresi6 wk; At 40 °C ambient temperature, typically
Günlük sapma, maks.10 s; Typ.: 2 s
Arayüzler
Number of industrial Ethernet interfaces2
PROFINET arayüz sayısı1; via BusAdapter
Number of PROFIBUS interfaces1; Via CM DP module
Number of RS 485 interfaces1; Via CM DP module
Number of USB interfaces4; 2x USB 2,0, 2x USB 3,0 on front side
Video interfaces
Graphics interface1x DisplayPort
1. Arayüz
Arayüz tipiPROFINET
Arayüz tipleri
RJ 45 (Ethernet)Var; Via BusAdapter BA 2x RJ45
— Transmission rate, max.100 Mbit/s
— Industrial Ethernet status LEDVar
Port sayısı2
Dahili switchVar
RJ 45 (Ethernet)Var; dahili
— Transmission rate, max.1.000 Mbit/s
— Industrial Ethernet status LEDYok
Port sayısı1
Açık IE haberleşmesi
— Veri uzunluğu, maks.64 kB
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]432 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]73,8 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]365 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-6.71 kg
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT2, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
min.-40 °C; = Tmin
maks.up to 55 °C with maks. 64 ET 200SP modules, maks. 2x 900 mA USB load ve maks. 2x 500 mA USB load; up to 60 °C with maks. 32 ET 200SP modules ve 4x 500 mA USB load; FS06 veya üstü: up to 70 °C with maks. 16 ET 200SP modules, 4x 100 mA USB load ve no visualization
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax; with maks. 32 ET 200SP modules ve maks. 4x 500 mA USB load
Depolama/taşıma ortam sıcaklığı
min.-40 °C
maks.70 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Peripherals/Options
SD cardOptionally for additional mass storage
Ölçüler
Genişlik160 mm
Yükseklik117 mm
Derinlik75 mm
Ağırlık
Ağırlık, yaklaşık0,83 kg
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 31
Siemens 6AG2677-2DB40-2AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG2193-6AM00-4AA0 | Aksesuar · BusAdapter | |
| 6ES7193-6CP86-2AC0 | Aksesuar · label | |
| 6ES7193-6CP85-2AC0 | Aksesuar · label | |
| 6ES7193-6CP84-2AC0 | Aksesuar · label | |
| 6ES7193-6CP83-2AB0 | Aksesuar · label | |
| 6ES7193-6CP82-2AB0 | Aksesuar · label | |
| 6ES7193-6CP81-2AB0 | Aksesuar · label | |
| 6ES7193-6CP73-2AA0 | Aksesuar · label | |
| 6ES7193-6CP71-2AA0 | Aksesuar · label | |
| 6ES7193-6CP63-2MA0 | Aksesuar · label | |
| 6ES7193-6CP72-2AA0 | Aksesuar · label | |
| 6ES7193-6CP52-2MC0 | Aksesuar · label | |
| 6AG2193-6AR00-4AA0 | Aksesuar · BusAdapter | |
| 6ES7193-6CP00-2MA0 | Aksesuar · label | |
| 6ES7193-6CP01-2MA0 | Aksesuar · label | |
| 6ES7193-6CP62-2MA0 | Aksesuar · label | |
| 6ES7193-6CP03-2MA0 | Aksesuar · label | |
| 6ES7193-6CP04-2MA0 | Aksesuar · label | |
| 6ES7193-6CP02-2MA0 | Aksesuar · label | |
| 6ES7193-6CP11-2MT0 | Aksesuar · label | |
| 6ES7193-6CP12-2MT0 | Aksesuar · label | |
| 6ES7193-6CP13-2MT0 | Aksesuar · label | |
| 6ES7193-6CP41-2MB0 | Aksesuar · label | |
| 6ES7193-6CP51-2MC0 | Aksesuar · label | |
| 6ES7193-6CP10-2MT0 | Aksesuar · label | |
| 6AG2193-6AF00-4AA0 | Aksesuar · BusAdapter | |
| 6AG1193-6PA00-7AA0 | Yedek parça · spare part | |
| 6ES7193-6MR00-0AA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0BA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0CA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0DA0 | Zorunlu ek ürün · Mounting rail |
