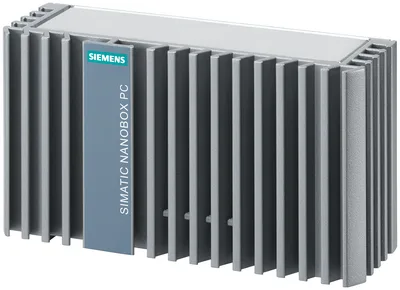

Siemens 6AG2647-8BE72-1HA1
***yedek parça*** SIPLUS IPC 227E ET rail based on 6ES7647-8BE72-7HA1 ile conformal coating, -25…+60 °C, OT1 ile ST1/2 (+70 °C için 10 minutes), 1x gösterge port; 2x 10/100/1000 Mbps Ethernet RJ45; 1x USB3.0, 3x USB2.0; CFast slot; 24 V DC industrial güç kaynağı Celeron E3845 ET (4C/4T) ile TPM (not için China); 4 GB ET ile NVRAM; box: temel ile COM 1/2; Windows 10 IoT Enterprise LTSB 2016, 64-bit, MUI (en, de, fr, it, es) 60 GB SSD ET, not exchangeable
Ürün tipi tanımıIPC227E
based on6ES7647-8BE72-7HA1
DesignBox PC, built-in unit
Type of supply voltage24 V DC
Mains/voltage failure stored energy time20 ms
Processor typeIntel Atom E3845
Ürün Hakkında
***yedek parça*** SIPLUS IPC 227E ET rail based on 6ES7647-8BE72-7HA1 ile conformal coating, -25…+60 °C, OT1 ile ST1/2 (+70 °C için 10 minutes), 1x gösterge port; 2x 10/100/1000 Mbps Ethernet RJ45; 1x USB3.0, 3x USB2.0; CFast slot; 24 V DC industrial güç kaynağı Celeron E3845 ET (4C/4T) ile TPM (not için China); 4 GB ET ile NVRAM; box: temel ile COM 1/2; Windows 10 IoT Enterprise LTSB 2016, 64-bit, MUI (en, de, fr, it, es) 60 GB SSD ET, not exchangeable
Siemens 6AG2647-8BE72-1HA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıIPC227E
based on6ES7647-8BE72-7HA1
Installation type/mounting
MountingDIN rail, wall mounting, portrait mounting
DesignBox PC, built-in unit
Besleme gerilimi
Type of supply voltage24 V DC
Mains buffering
Mains/voltage failure stored energy time20 ms
Processor
Processor typeIntel Atom E3845
ChipsetSoC
Graphic
Graphics controllerdahili
Graphics cardVar
Drives
SSDVar
Storage
Type of memoryDDR3L SO-DIMM
Capacity of main memory, max.4 Gbyte
Veri alanları ve kalıcılığı
Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.512 kB; 128 KB can be stored in the buffer time; optional
Slots
Number of PCI slots0
Number of PCI slots1; Optional
Number of compact flash slots1; CFast
Arayüzler
Number of industrial Ethernet interfaces2; 2x Ethernet (RJ45)
PROFINET arayüz sayısı2
serial interfaceWithout / 2x COM (RS 232 / 422 / 485), selectable in the BIOS
Video interfaces
Graphics interface1x DisplayPort
Industrial Ethernet
— 100 MbpsVar
— 1000 MbpsVar
Interrupts/diagnostics/status information
LED status display1x power, 3x user
Monitoring functions
Temperature monitoringVar
FanYok
Monitoring function via networkOptional
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Koruma derecesi ve sınıfı
IP koruma sınıfıIP40
IP (rear)IP40
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT1, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
min.-25 °C; = Tmin (incl. condensation/frost)
maks.60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155)
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Titreşim
IEC 60068-2-6’ya göre çalışmada titreşim dayanımıtested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0,075 mm, 58 Hz to 200 Hz: 9,8 m/s² (1 g)
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Available soon
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5in preparation
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4in preparation
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04in preparation
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Operating systems
pre-installed operating systemWindows 10 IoT Enterprise 2016 LTSB, 64bit, MUI
without operating systemVar; Optional
pre-installed operating system
Windows 7Var; Ultimate 32 bit veya 64 bit
Windows 10 EnterpriseVar; Windows 10 Enterprise 2016 LTSB, 64 bit, MUI
Ölçüler
Genişlik191 mm
Yükseklik100 mm
Derinlik60 mm
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
