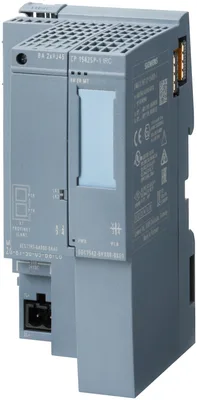

Siemens 6AG2542-6VX00-4XE0
SIPLUS ET 200SP CP 1542SP-1 IRC TX rail based on 6GK7542-6VX00-0XE0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), için bağlantı of a SIMATIC S7-ET 200SP to Industrial Ethernet, SINAUT ST7, TeleControl Server temel, IEC-60870-5-104 veya DNP3 protocol to a kontrol center; open IE communication (TCP/IP, ISO-on-TCP, UDP), IP broadcast/multicast, SNMPV1 DHCP, secure email, IPv4/IPv6, support of SINEMA uzak Connect
product brand nameSIPLUS
at the 1st interface10... 100 Mbit/s
type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage19,2... 28,8 V
power loss [W]6 W
Ürün Hakkında
SIPLUS ET 200SP CP 1542SP-1 IRC TX rail based on 6GK7542-6VX00-0XE0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), için bağlantı of a SIMATIC S7-ET 200SP to Industrial Ethernet, SINAUT ST7, TeleControl Server temel, IEC-60870-5-104 veya DNP3 protocol to a kontrol center; open IE communication (TCP/IP, ISO-on-TCP, UDP), IP broadcast/multicast, SNMPV1 DHCP, secure email, IPv4/IPv6, support of SINEMA uzak Connect
Siemens 6AG2542-6VX00-4XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIPLUS
transfer rate
at the 1st interface10... 100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet1
at the 1st interface / according to Industrial Ethernet2
at the 1st interface / according to Industrial Ethernetvia ET 200SP bus adapter (RJ45, FC, SCRJ), dahili switch
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage19,2... 28,8 V
power loss [W]6 W
ambient conditions
for vertical installation / during operation-40... +50 °C
for horizontally arranged busbars / during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
note+85 °C for 10 min (OT4, ST1/ST2 according to EN 50155)
installation altitude / at height above sea level / maximum2000 m
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation
chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets
conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna), Class 3B3 talep üzerine
conformity according to EN 60721-3-5Var; Class 5B2 mold ve fungal spores (excluding fauna), Class 5B3 talep üzerine
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.
conformity according to EN 60721-3-5Var; Class 5C3 (RH < 75%) including salt spray acc. to EN 60068-2-52 (Severity level 3). The supplied plug covers must remain in place over the unused interfaces during operation!
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
conformity according to EN 60721-3-5Var; Class 5S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation!
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Var; Protection of the type 1
type of coating / for electronic devices in railway applications according to EN 50155Var; Protective coating of the Class PC2 according to EN 50155:2017
type of test / of the coating / according to MIL-I-46058CVar; Coating discoloration during service life possible
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, class A
protection class IPIP20
design, dimensions and weights
width60 mm
height117 mm
depth74 mm
net weight0,18 kg
35 mm DIN-rail mountingVar
product features, product functions, product components / general
per CPU / maximum2
note2 CPs can be pluged in per CPU, simultaneous operation with BA Send ve CM DP is possible
performance data / open communication
by means of T blocks / maximum32
as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum65536 bayt
performance data / S7 communication
maximum16
with OP connections / maximum16
performance data / multi-protocol mode
number of active connections / with multi-protocol mode32
performance data / IT functions
as email client / maximum1
performance data / telecontrol
node stationYok
substationVar
TIM control centerYok
control center connectionIEC 60870-5, DNP3, (Modbus TCP by block solutions of the CPU) capable control stations, connection to Telecontrol Server Basic ve ST7 capable control station
by means of a permanent connectionsupported
by means of demand-oriented connectionsupported
noteConnection to SCADA system by IEC 60870-5 104, DNP3, Telecontrol Server Basic ve ST7 capable control center
DNP3Var
IEC 60870-5Var
SINAUT ST7 protocolVar
product function / data buffering if connection is abortedVar; TCSB 64000 events, SINAUT ST7 32000 telegrams, DNP3 100000 events, IEC 60870-5 100000 events
number of data points per device / maximum1500
in send direction / maximum3
in receive direction / maximum15
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
SNMP v3Var
DCPVar
LLDPVar
requiredSTEP 7 Professional V14 (TIA Portal) veya üstü
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar; via ET 200SP CPU
product functions / security
product function / with VPN connectionSINEMA RC
blocking of communication via physical portsVar
product functions / time
product function / SICLOCK supportVar
product function / pass on time synchronizationVar
NTPVar
NTP (secure)Yok
from NTP-serverVar
from control centerVar
product functions / position detection
certificate of suitability / railway application in accordance with EN 50121-3-2Var; EMC for railway vehicles
certificate of suitability / railway application in accordance with EN 50121-4Var; EMC for signaling ve telecommunications equipment
certificate of suitability / railway application in accordance with EN 50124-1Var; Railway applications - Overvoltage category OV2 pollution degree PD2 rated impulse voltage UNi = 0,5 kVUNm = DC 24
certificate of suitability / railway application in accordance with EN 50125-1Var; Railway vehicles - See ambient conditions
certificate of suitability / railway application in accordance with EN 50125-2Var; Fixed-electrical installations - see ambient conditions
certificate of suitability / railway application in accordance with EN 50125-3Var; Signal ve telecommunications equipment - see Ambient conditions vibrations ve shocks: Application point outside the rails (distance 1 m to 3 m from rail)
certificate of suitability / railway application in accordance with EN 50155Var; Railway vehicles - temperature class OT4, ST1/ST2, yatay mounting position
certificate of suitability / railway application in accordance with EN 61373Var; Railway vehicles - Vibrations ve shocks Category 1 Class A/B
certificate of suitability / fire protection in accordance with EN 45545-2Var; Railway vehicles - for proof, see Service & Support
Aksesuarlar 3
Siemens 6AG2542-6VX00-4XE0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG2193-6AF00-4AA0 | Aksesuar · BusAdapter | |
| 6AG2193-6AR00-4AA0 | Aksesuar · BusAdapter | |
| 6AG2193-6AM00-4AA0 | Aksesuar · BusAdapter |
