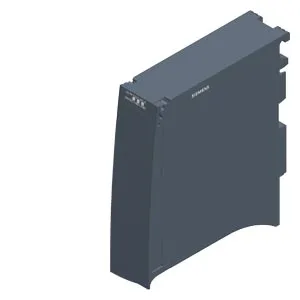

Siemens 6AG2541-1AB01-4AB0
SIPLUS S7-1500 CM PTP RS422/485 RAIL based on 6ES7541-1AB01-0AB0 ile conformal coating, OT4: -40...+70 °C ST1/2: 85 °C için 10 minutes RS422/485 HF communications modül için serial bağlantı RS-422 ve RS-485, Freeport, 3964(R), USS, Modbus RTU Master, cihaz, 250000 bit/s, 15-pin D-sub socket 15-pin D-sub socket
Ürün tipi tanımıCM PtP RS 422 / 485 HF
based on6ES7541-1AB01-0AB0
I&M dataVar; I&M 0
Fast startupVar
Rail mountingVar; S7-1500 mounting rail
Akım tüketimi (nominal değer)43 mA; From the backplane bus
Ürün Hakkında
SIPLUS S7-1500 CM PTP RS422/485 RAIL based on 6ES7541-1AB01-0AB0 ile conformal coating, OT4: -40...+70 °C ST1/2: 85 °C için 10 minutes RS422/485 HF communications modül için serial bağlantı RS-422 ve RS-485, Freeport, 3964(R), USS, Modbus RTU Master, cihaz, 250000 bit/s, 15-pin D-sub socket 15-pin D-sub socket
Siemens 6AG2541-1AB01-4AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCM PtP RS 422 / 485 HF
based on6ES7541-1AB01-0AB0
Product function
I&M dataVar; I&M 0
Fast startupVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Installation type/mounting
Rail mountingVar; S7-1500 mounting rail
Giriş akımı
Akım tüketimi (nominal değer)43 mA; From the backplane bus
Power
Power consumption from the backplane bus0,65 W
Güç kaybı
Güç kaybı, tipik0,6 W
Address space per module
Inputs8 bayt; performance mode: 32 bayt
Outputs0 bayt; performance mode: 32 bayt
RS 485
İletim hızı, maks.250 kbit/s
Cable length, max.1.200 m
RS 422
İletim hızı, maks.115,2 kbit/s
Cable length, max.1.200 m
4-wire full duplex connectionVar
4-wire multipoint connectionYok
Freeport
— Telegram length, max.4 kB
— Bits per character7 veya 8
— Number of stop bits1 veya 2 bit
— ParityYok, even, odd, always 1, always 0, any
3964 (R)
— Telegram length, max.4 kB
— Bits per character7 veya 8
— Number of stop bits1 veya 2 bit
— ParityYok, even, odd, always 1, always 0, any
Modbus RTU master
— Address area1 to 247, extended 1 to 65535
— max. number of devices32
Modbus RTU device
— Address area1 to 247, extended 1 to 65535
Telegram buffer
Buffer memory for telegrams8 kB
Number of telegrams which can be buffered255
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Hardware interruptYok
Diagnoses
Wire breakVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
Receive RxDVar; Yellow LED
Transmit TxDVar; Yellow LED
Potential separation
between backplane bus and interfaceVar
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Security
signed firmware updateVar
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.40 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; class PC2 protective coating acc. to EN 50155
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Decentralized operation
to SIMATIC S7-300Var
to SIMATIC S7-400Var
to SIMATIC S7-1500Var
to standard PROFINET controllerVar
Ölçüler
Genişlik35 mm
Yükseklik147 mm
Derinlik127 mm
Ağırlık
Ağırlık, yaklaşık0,22 kg
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
