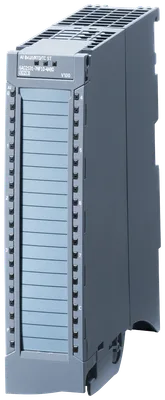

Siemens 6AG2531-7NF10-4AB0
yedek only, no repair. rail based on 6ES7531-7NF10-0AB0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), analog giriş modül 16-bit resolution, accuracy 0,3%, 8 channels in groups of 8, common mode gerilim 10 V; diagnostics; hardware interrupts 8 channels in 0,0625 ms dahil infeed element, shielding braket ve shield klemens
Ürün tipi tanımıAI 8xU/I HS
FW update possibleVar
based on6ES7531-7NF10-0AB0
I&M dataVar; I&M0 to I&M3
Isochronous modeVar
Prioritized startupVar
Ürün Hakkında
yedek only, no repair. rail based on 6ES7531-7NF10-0AB0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), analog giriş modül 16-bit resolution, accuracy 0,3%, 8 channels in groups of 8, common mode gerilim 10 V; diagnostics; hardware interrupts 8 channels in 0,0625 ms dahil infeed element, shielding braket ve shield klemens
Siemens 6AG2531-7NF10-4AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıAI 8xU/I HS
FW update possibleVar
based on6ES7531-7NF10-0AB0
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeVar
Prioritized startupVar
Measuring range scalableYok
Scalable measured valuesYok
Adjustment of measuring rangeYok
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
OversamplingVar
MSIVar
CiR - Configuration in RUN
Reparameterization possible in RUNVar
Calibration possible in RUNVar
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.240 mA; with 24 V DC supply
24 V enkoder beslemesi
Short-circuit protectionVar
Output current, max.20 mA; Maks. 47 mA per channel for a duration < 10 s
Power
Power consumption from the backplane bus1,15 W
Güç kaybı
Güç kaybı, tipik3,4 W
Analog girişler
Analog giriş sayısı8; > +60 °C maks. 4x ±20 mA veya 4x ±10 V permissible
For current measurement8
For voltage measurement8
permissible input voltage for voltage input (destruction limit), max.28,8 V
permissible input current for current input (destruction limit), max.40 mA
Giriş aralıkları (nominal değerler), gerilim
0 to +5 VYok
0 … +10 VYok
1 V to 5 VVar
— Input resistance (1 V to 5 V)50 kΩ
-10 V to +10 VVar
— Input resistance (-10 V to +10 V)100 kΩ
-2.5 V to +2.5 VYok
-25 mV to +25 mVYok
-250 mV to +250 mVYok
-5 V to +5 VVar
— Input resistance (-5 V to +5 V)50 kΩ
-50 mV to +50 mVYok
-500 mV to +500 mVYok
-80 mV to +80 mVYok
Input ranges (rated values), currents
0 … 20 mAVar
— Input resistance (0 to 20 mA)41 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC
-20 mA to +20 mAVar
— Input resistance (-20 mA to +20 mA)41 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC
4 mA to 20 mAVar
— Input resistance (4 mA to 20 mA)41 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC
Input ranges (rated values), thermocouples
Type BYok
Type CYok
Type EYok
Type JYok
Type KYok
Type LYok
Type NYok
Type RYok
Type SYok
Type TYok
Type TXK/TXK(L) to GOSTYok
Input ranges (rated values), resistance thermometer
Cu 10Yok
Cu 10 according to GOSTYok
Cu 50Yok
Cu 50 according to GOSTYok
Cu 100Yok
Cu 100 according to GOSTYok
Ni 10Yok
Ni 10 according to GOSTYok
Ni 100Yok
Ni 100 according to GOSTYok
Ni 1000Yok
Ni 1000 according to GOSTYok
LG-Ni 1000Yok
Ni 120Yok
Ni 120 according to GOSTYok
Ni 200Yok
Ni 200 according to GOSTYok
Ni 500Yok
Ni 500 according to GOSTYok
Pt 10Yok
Pt 10 according to GOSTYok
Pt 50Yok
Pt 50 according to GOSTYok
Pt 100Yok
Pt 100 according to GOSTYok
Pt 1000Yok
Pt 1000 according to GOSTYok
Pt 200Yok
Pt 200 according to GOSTYok
Pt 500Yok
Pt 500 according to GOSTYok
Input ranges (rated values), resistors
0 to 150 ohmsYok
0 to 300 ohmsYok
0 to 600 ohmsYok
0 to 3000 ohmsYok
0 to 6000 ohmsYok
PTCYok
Kablo uzunluğu
Ekranlı, maks.800 m
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Basic execution time of the module (all channels released)62,5 µs; independent of number of activated channels
Smoothing of measured values
parameterizableVar
Step: NoneVar
Step: lowVar
Step: MediumVar
Step: HighVar
Connection of signal encoders
for voltage measurementVar
for current measurement as 2-wire transducerVar
— Burden of 2-wire transmitter, max.820 Ω
for current measurement as 4-wire transducerVar
for resistance measurement with two-wire connectionYok
for resistance measurement with three-wire connectionYok
for resistance measurement with four-wire connectionYok
Errors/accuracies
Linearity error (relative to input range), (+/-)0,02 %
Temperature error (relative to input range), (+/-)0,005 %/K
Crosstalk between the inputs, max.-60 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,02 %
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)0,6 %
Current, relative to input range, (+/-)0,6 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,2 %
Current, relative to input range, (+/-)0,2 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
Common mode voltage, max.10 V
Common mode interference, min.50 dB 400 Hz; 60 dB 60 / 50 / 10 Hz
Isochronous mode
Filtering and processing time (TCI), min.80 µs
Bus cycle time (TDP), min.250 µs
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Limit value alarmVar; two upper ve two lower limit values in her biri case
Diagnoses
Monitoring the supply voltageVar
Wire breakVar; only for 1... 5 V ve 4... 20 mA
Overflow/UnderflowVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
Monitoring of the supply voltage (PWR-LED)Var; green LED
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
for module diagnosticsVar; red LED
Potential separation channels
Kanallar arasıYok
Kanallar arası, grup başına8
between the channels and backplane busVar
between the channels and the power supply of the electronicsVar
Permissible potential difference
between the inputs (UCM)20 V DC
Between the inputs and MANA (UCM)10 V DC
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]38,6 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]14,4 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]24,6 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-0.44 kg
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Security
signed firmware updateYok
data integrityYok
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.40 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik35 mm
Yükseklik147 mm
Derinlik129 mm
Ağırlık
Ağırlık, yaklaşık300 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
