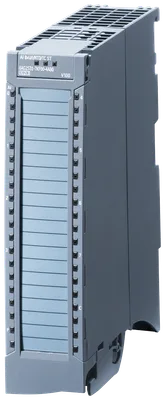

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 6AG2531-7KF00-4AB0

SIPLUS S7-1500 AI 8xU/I/RTD/TC TX rail based on 6ES7531-7KF00-0AB0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), analog giriş modül 16-bit resolution, accuracy 0,3%, 8 channels in groups of 8, 4 channels için RTD measurement, common mode gerilim 10 V; diagnostics; hardware interrupts dahil infeed element, shielding braket ve shield klemens

SiemensMFR # 6AG2531-7KF00-4AB0SKU # YLSRATX9LBAT28T

Ürün tipi tanımıAI 8xU/I/RTD/TC ST

FW update possibleVar

based on6ES7531-7KF00-0AB0

I&M dataVar; I&M0 to I&M3

Isochronous modeYok

Prioritized startupYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6AG2531-7KF00-4AB0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

Ürün tipi tanımıAI 8xU/I/RTD/TC ST

FW update possibleVar

based on6ES7531-7KF00-0AB0

Product function

I&M dataVar; I&M0 to I&M3

Isochronous modeYok

Prioritized startupYok

Measuring range scalableYok

Scalable measured valuesYok

Adjustment of measuring rangeYok

Mühendislik aracı

STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275

Operating mode

OversamplingYok

MSIVar

CiR - Configuration in RUN

Reparameterization possible in RUNVar

Calibration possible in RUNVar

Besleme gerilimi

Nominal değer (DC)24 V

İzin verilen aralık, alt sınır (DC)19,2 V

İzin verilen aralık, üst sınır (DC)28,8 V

Ters polarite korumasıVar

Giriş akımı

Akım tüketimi, maks.255 mA; with 19,2 V supply

24 V enkoder beslemesi

Short-circuit protectionVar

Output current, max.20 mA; Maks. 47 mA per channel for a duration < 10 s

Power

Power consumption from the backplane bus0,7 W

Güç kaybı

Güç kaybı, tipik2,7 W

Analog girişler

Analog giriş sayısı8; > +60 °C maks. 2x ±20 mA veya 4x ±10 V veya 4x RTD permissible

For current measurement8

For voltage measurement8

For resistance/resistance thermometer measurement4

For thermocouple measurement8

permissible input voltage for voltage input (destruction limit), max.28,8 V

permissible input current for current input (destruction limit), max.40 mA

Constant measurement current for resistance-type transmitter, typ.150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100: 1,25 mA; 6.000 Ohm, Pt500, Pt1000, Ni1000, LG-Ni1000: 0,625 mA; PTC: 0,472 mA

Technical unit for temperature measurement adjustableVar; °C/°F/K

Giriş aralıkları (nominal değerler), gerilim

0 to +5 VYok

0 … +10 VYok

1 V to 5 VVar

— Input resistance (1 V to 5 V)100 kΩ

-1 V to +1 VVar

— Input resistance (-1 V to +1 V)10 MΩ

-10 V to +10 VVar

— Input resistance (-10 V to +10 V)100 kΩ

-2.5 V to +2.5 VVar

— Input resistance (-2.5 V to +2.5 V)10 MΩ

-25 mV to +25 mVYok

-250 mV to +250 mVVar

— Input resistance (-250 mV to +250 mV)10 MΩ

-5 V to +5 VVar

— Input resistance (-5 V to +5 V)100 kΩ

-50 mV to +50 mVVar

— Input resistance (-50 mV to +50 mV)10 MΩ

-500 mV to +500 mVVar

— Input resistance (-500 mV to +500 mV)10 MΩ

-80 mV to +80 mVVar

— Input resistance (-80 mV to +80 mV)10 MΩ

Input ranges (rated values), currents

0 … 20 mAVar

— Input resistance (0 to 20 mA)25 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC

-20 mA to +20 mAVar

— Input resistance (-20 mA to +20 mA)25 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC

4 mA to 20 mAVar

— Input resistance (4 mA to 20 mA)25 Ω; Plus yaklaşık 42 ohms for overvoltage protection by PTC

Input ranges (rated values), thermocouples

Type BVar

— Input resistance (Type B)10 MΩ

Type CYok

Type EVar

— Input resistance (Type E)10 MΩ

Type JVar

— Input resistance (type J)10 MΩ

Type KVar

— Input resistance (Type K)10 MΩ

Type LYok

Type NVar

— Input resistance (Type N)10 MΩ

Type RVar

— Input resistance (Type R)10 MΩ

Type SVar

— Input resistance (Type S)10 MΩ

Type TVar

— Input resistance (Type T)10 MΩ

Type TXK/TXK(L) to GOSTYok

Input ranges (rated values), resistance thermometer

Cu 10Yok

Cu 10 according to GOSTYok

Cu 50Yok

Cu 50 according to GOSTYok

Cu 100Yok

Cu 100 according to GOSTYok

Ni 10Yok

Ni 10 according to GOSTYok

Ni 100Var; Standard/climate

— Input resistance (Ni 100)10 MΩ

Ni 100 according to GOSTYok

Ni 1000Var; Standard/climate

— Input resistance (Ni 1000)10 MΩ

Ni 1000 according to GOSTYok

LG-Ni 1000Var; Standard/climate

— Input resistance (LG-Ni 1000)10 MΩ

Ni 120Yok

Ni 120 according to GOSTYok

Ni 200 according to GOSTYok

Ni 500Yok

Ni 500 according to GOSTYok

Pt 10Yok

Pt 10 according to GOSTYok

Pt 50Yok

Pt 50 according to GOSTYok

Pt 100Var; Standard/climate

— Input resistance (Pt 100)10 MΩ

Pt 100 according to GOSTYok

Pt 1000Var; Standard/climate

— Input resistance (Pt 1000)10 MΩ

Pt 1000 according to GOSTYok

Pt 200Var; Standard/climate

— Input resistance (Pt 200)10 MΩ

Pt 200 according to GOSTYok

Pt 500Var; Standard/climate

— Input resistance (Pt 500)10 MΩ

Pt 500 according to GOSTYok

Input ranges (rated values), resistors

0 to 150 ohmsVar

— Input resistance (0 to 150 ohms)10 MΩ

0 to 300 ohmsVar

— Input resistance (0 to 300 ohms)10 MΩ

0 to 600 ohmsVar

— Input resistance (0 to 600 ohms)10 MΩ

0 to 3000 ohmsYok

0 to 6000 ohmsVar

— Input resistance (0 to 6000 ohms)10 MΩ

PTCVar

— Input resistance (PTC)10 MΩ

Temperature compensation

— ParametrelenebilirVar

— internal temperature compensationVar

— external temperature compensation via RTDVar

— Compensation for 0 °C reference point temperatureVar; fixed value can be set

— Reference channel of the moduleVar

Kablo uzunluğu

Ekranlı, maks.800 m; for U/I, 200 m for R/RTD, 50 m for TC

Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük

Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit

Entegrasyon süresi, parametrelenebilirVar

Integration time (ms)2,5 / 16,67 / 20 / 100 ms

Basic conversion time, including integration time (ms)9 / 23 / 27 / 107 ms

— additional conversion time for wire-break monitoring9 ms (to be considered in R/RTD/TC measurement)

— additional conversion time for resistance measurement150 ohm, 300 ohm, 600 ohm, Pt100, Pt200, Ni100: 2 ms, 6000 ohm, Pt500, Pt1000, Ni1000, LG-Ni1000, PTC: 4 ms

Interference voltage suppression for interference frequency f1 in Hz400 / 60 / 50 / 10 Hz

Time for offset calibration (per module)Basic conversion time of the slowest channel

Smoothing of measured values

parameterizableVar

Step: NoneVar

Step: lowVar

Step: MediumVar

Step: HighVar

Connection of signal encoders

for voltage measurementVar

for current measurement as 2-wire transducerVar

— Burden of 2-wire transmitter, max.820 Ω

for current measurement as 4-wire transducerVar

for resistance measurement with two-wire connectionVar; Only for PTC

for resistance measurement with three-wire connectionVar; All measuring ranges except PTC; internal compensation of the cable resistances

for resistance measurement with four-wire connectionVar; All measuring ranges except PTC

Errors/accuracies

Linearity error (relative to input range), (+/-)0,02 %

Temperature error (relative to input range), (+/-)0,005 %/K; With TC type T 0,02 ± % / K

Crosstalk between the inputs, max.-80 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,02 %

Temperature error of internal compensation±6 °C

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0,4 %

Current, relative to input range, (+/-)0,4 %

Resistance, relative to input range, (+/-)0,4 %

Resistance thermometer, relative to input range, (+/-)Ptxxx standard: ±1,5 K, Ptxxx climate: ±0,5 K, Nixxx standard: ±0,5 K, Nixxx climate: ±0,3 K

Thermocouple, relative to input range, (+/-)Type B: > 600 °C ±4,6 K, type E: > -200 °C ±1,5 K, type J: > -210 °C ±1,9 K, type K: > -200 °C ±2,4 K, type N: > -200 °C ±2,9 K, type R: > 0 °C ±4,7 K, type S: > 0 °C ±4,6 K, type T: > -200 °C ±2,4 K

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0,1 %

Current, relative to input range, (+/-)0,1 %

Resistance, relative to input range, (+/-)0,1 %

Resistance thermometer, relative to input range, (+/-)Ptxxx standard: ±0,7 K, Ptxxx climate: ±0,2 K, Nixxx standard: ±0,3 K, Nixxx climate: ±0,15 K

Thermocouple, relative to input range, (+/-)Type B: > 600 °C ±1,7 K, type E: > -200 °C ±0,7 K, type J: > -210 °C ±0,8 K, type K: > -200 °C ±1,2 K, type N: > -200 °C ±1,2 K, type R: > 0 °C ±1,9 K, type S: > 0 °C ±1,9 K, type T: > -200 °C ±0,8 K

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.40 dB

Common mode voltage, max.10 V

Common mode interference, min.60 dB

Interrupts/diagnostics/status information

Diagnostics functionVar

Alarms

Diagnostic alarmVar

Limit value alarmVar; two upper ve two lower limit values in her biri case

Diagnoses

Monitoring the supply voltageVar

Wire breakVar; Only for 1 to 5 V, 4 to 20 mA, TC, R, ve RTD

Overflow/UnderflowVar

Tanılama gösterge LED’i

RUN LEDVar; green LED

ERROR LED’iVar; red LED

Monitoring of the supply voltage (PWR-LED)Var; green LED

Channel status displayVar; green LED

for channel diagnosticsVar; red LED

for module diagnosticsVar; red LED

Potential separation channels

Kanallar arasıYok

Kanallar arası, grup başına8

between the channels and backplane busVar

between the channels and the power supply of the electronicsVar

Permissible potential difference

between the inputs (UCM)20 V DC

Between the inputs and MANA (UCM)10 V DC

Isolation

Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)

Standartlar, onaylar, sertifikalar

Suitable for applications according to AMS 2750Var; Declaration of Conformity, see online support entry 109757262

Suitable for applications according to CQI-9Var; Based on AMS 2750 E

Ekolojik ayak izi

Çevresel ürün beyanıVar

Küresel ısınma potansiyeli

— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]38,6 kg

— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]14,4 kg

— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]24,6 kg

— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-0.44 kg

Railway application

EN 50121-3-2Var; EMC for rail vehicles

EN 50121-4Var; EMC for signal ve telecommunications systems

EN 50121-5Var; EMC for fixed installations ve railway power supply equipment

EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC

EN 50125-1Var; Rail vehicles - see ambient conditions

EN 50125-2Var; Stationary electrical equipment - see ambient conditions

EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)

EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position

EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B

Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support

Security

signed firmware updateYok

data integrityYok

Çalışma ortam sıcaklığı

Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)

Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)

Dikey montaj, min.-40 °C; = Tmin

Dikey montaj, maks.40 °C; = Tmax

Deniz seviyesine göre çalışma yüksekliği

Installation altitude above sea level, max.2.000 m

Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)

Bağıl nem

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine

— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *

Use on land craft, rail vehicles and special-purpose vehicles

— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine

— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Var; Type 1 protection

Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017

Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A

Ölçüler

Genişlik35 mm

Yükseklik147 mm

Derinlik129 mm

Ağırlık

Ağırlık, yaklaşık310 g

Other

Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776

Aksesuarlar 10

Siemens 6AG2531-7KF00-4AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7592-2AX00-0AA0	Aksesuar · label
6AG2590-0BD00-4AA0	Aksesuar · Rack
6AG1590-0AA00-7AA0	Yedek parça · spare part
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail

İlgili Ürünler

MFR #AR30-N02E-1Z-B

SKU #YLSYFNHADE6GRKV

İlgili Aramalar

Siemens 6AG2531-7KF00-4AB0 fiyatSiemens 6AG2531-7KF00-4AB0 teklif alSiemens 6AG2531-7KF00-4AB0 satın al6AG2531-7KF00-4AB0 fiyat6AG2531-7KF00-4AB0 stok durumuSiemens yedek parçaSiemens 6AG2531-7KF00-4AB0 muadilSiemens 6AG2531-7KF00-4AB0 teknik özellikler

Çerez Kullanımı

Siemens 6AG2531-7KF00-4AB0

Ürün Hakkında

Siemens 6AG2531-7KF00-4AB0

Teknik Özellikler

Aksesuarlar 10

İlgili Ürünler

1FY2901-0EB00

1FN3050-8SA00-0AA0

1FN3100-8SA00-0AA0

1FN3150-8SA00-0AA0

1FN3300-8SA00-0AA0

1FN3450-8SA00-0AA0

1FN3600-8SA00-0AA0

1FN3900-8SA00-0AA0

1FY2105-0AA00

1FY2105-4AA00

Öne Çıkan Ürünler

AL30-03-8-A

VM8001-5

AC20A-01G-V-1-B FR/L COMBO MODULAR

EH22512

MTS32-150M

CDJ2L16-125Z-B

MXS-AS16L

NCDMC150-0600-X155US

VQC2101R-51

AR30-N02E-1Z-B

İlgili Aramalar
