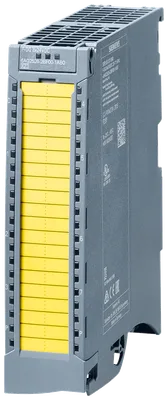

Siemens 6AG2526-2BF00-1AB0
SIPLUS S7-1500 F-DQ 8x24VDC 2A T1 rail based on 6ES7526-2BF00-0AB0 ile conformal coating, -30…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), F dijital çıkış modülü, 35 mm overall genişlik; en çok PL e (ISO 13849-1)/ SIL3 (IEC 61508)
Ürün tipi tanımıF-DQ 8x24VDC/2A PPM
FW update possibleVar
based on6ES7526-2BF00-0AB0
I&M dataVar; I&M0 to I&M3
DQVar
MSOYok
Ürün Hakkında
SIPLUS S7-1500 F-DQ 8x24VDC 2A T1 rail based on 6ES7526-2BF00-0AB0 ile conformal coating, -30…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), F dijital çıkış modülü, 35 mm overall genişlik; en çok PL e (ISO 13849-1)/ SIL3 (IEC 61508)
Siemens 6AG2526-2BF00-1AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıF-DQ 8x24VDC/2A PPM
FW update possibleVar
based on6ES7526-2BF00-0AB0
Product function
I&M dataVar; I&M0 to I&M3
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
DQVar
MSOYok
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
power supply according to NEC Class 2 requiredYok
Giriş akımı
Akım tüketimi (nominal değer)110 mA; without load
Akım tüketimi, maks.130 mA; without load
Çıkış gerilimi
Nominal değer (DC)24 V
Power
Power consumption from the backplane bus0,8 W
Güç kaybı
Güç kaybı, tipik11 W
Address space per module
Inputs6 bayt; S7-300/400F CPU, 5 bayt
Outputs6 bayt; S7-300/400F CPU, 5 bayt
Donanım yapılandırması
Automatic encodingVar
Electronic coding element type FVar
Dijital çıkışlar
Dijital çıkış sayısı8
Current-sinkingVar
Current-sourcingVar
Short-circuit protectionVar
Open-circuit detectionVar
Response threshold, typ.8 mA
Overload protectionVar
Response threshold, typ.2,9 A
Endüktif kapatma geriliminin sınırlandırılmasıPM-switching: -24 V + (-47 V), PP-switching: -24 V
Controlling a digital inputVar; digital output, according to IEC 61131-2, type 2
Çıkışların anahtarlama kapasitesi
Omik yükte, maks.2 A
Lamba yükünde, maks.10 W
Load resistance range
lower limit12 Ω
upper limit2.000 Ω
Çıkış gerilimi
“1” sinyali için, min.24 V; L+ (-0.5 V)
Çıkış akımı
“1” sinyali için nominal değer2 A
“0” sinyali için artık akım, maks.0,5 mA; Current-sourcing, veya current sourcing ve sinking switches individually, current sinking: maks. 1 mA
Anahtarlama frekansı
Omik yükte, maks.30 Hz
with inductive load, max.0,1 Hz
Lamba yükünde, maks.10 Hz
Total current of the outputs
Current per channel, max.2 A
horizontal installation
— 40 °C’ye kadar, maks.16 A
— up to 60 °C, max.8 A
vertical installation
— 40 °C’ye kadar, maks.8 A
Kablo uzunluğu
Ekranlı, maks.1.000 m
Ekransız, maks.500 m
Interrupts/diagnostics/status information
Diagnostics functionVar
Substitute values connectableYok
Alarms
Diagnostic alarmVar
Diagnoses
Monitoring the supply voltageVar
Wire breakVar
Short-circuitVar
Group errorVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
Monitoring of the supply voltage (PWR-LED)Var
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
for module diagnosticsVar; red LED
Potential separation channels
Kanallar arasıYok
between the channels and backplane busVar
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsVar
Highest safety class achievable in safety mode
Performance level according to ISO 13849-1PLe
SIL acc. to IEC 61508SIL 3
SIL in accordance with EN 50126-1, 50129, 50159, 50716SIL 2; a higher safety integrity level is possible if tested ve approved for the specific application under consideration of all local regulations.
Probability of failure (for service life of 20 years and repair time of 100 hours)
— Low demand mode: PFDavg in accordance with SIL3< 6.00E-05
— High demand/continuous mode: PFH in accordance with SIL3< 2.00E-09 1/h
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment (shielded cables required)
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT1, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-30 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-30 °C; = Tmin
Dikey montaj, maks.40 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik35 mm
Yükseklik147 mm
Derinlik129 mm
Ağırlık
Ağırlık, yaklaşık300 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 11
Siemens 6AG2526-2BF00-1AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7590-1AB60-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AC40-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AF30-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AJ30-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1BC00-0AA0 | Aksesuar · Mounting rail | |
| 6ES7592-2AX00-0AA0 | Aksesuar · label | |
| 6AG2590-0BD00-4AA0 | Aksesuar · Rack | |
| 6AG1590-0AA00-7AA0 | Yedek parça · spare part | |
| 6ES7528-0AA00-7AA0 | Yedek parça · spare part | |
| 6AG1592-6EF00-2AA0 | Yedek parça · spare part | |
| 6ES7590-1AE80-0AA0 | Zorunlu ek ürün · Mounting rail |
