Siemens
1FY2901-0EB00
MFR #1FY2901-0EB00
SKU #YLSJVRF7YVE9X
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

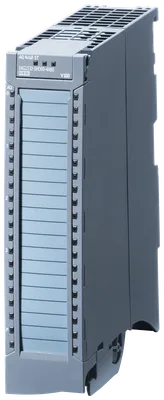

Siemens 6AG2522-5HF00-1AB0
yedek only, no repair. 5A T1 rail based on 6ES7522-5HF00-0AB0 ile conformal coating, -25…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), dijital çıkış modülü, 8 channels in groups of 1; 5 A per group; diagnostics; substitute value
Ürün tipi tanımıDQ 8x230 V AC/5 A ST (relay)
FW update possibleVar
based on6ES7522-5HF00-0AB0
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Prioritized startupVar
Ürün Hakkında
yedek only, no repair. 5A T1 rail based on 6ES7522-5HF00-0AB0 ile conformal coating, -25…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), dijital çıkış modülü, 8 channels in groups of 1; 5 A per group; diagnostics; substitute value
Siemens 6AG2522-5HF00-1AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıDQ 8x230 V AC/5 A ST (relay)
FW update possibleVar
based on6ES7522-5HF00-0AB0
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Prioritized startupVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
DQVar
DQ with energy-saving functionYok
PWMYok
OversamplingYok
MSOVar
Integrated operating cycle counterVar; FW V2.1.0 veya üstü
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.80 mA
Çıkış gerilimi
Rated value (AC)230 V; 24 V DC to 120 V DC / 24 V AC to 230 V AC
Power
Power consumption from the backplane bus0,8 W
Güç kaybı
Güç kaybı, tipik5 W
Dijital çıkışlar
Type of digital outputRelays
Dijital çıkış sayısı8
Current-sinkingVar
Current-sourcingVar
Digital outputs, parameterizableVar
Short-circuit protectionYok
Controlling a digital inputVar; possible
Size of motor starters according to NEMA, max.5
Çıkışların anahtarlama kapasitesi
Lamba yükünde, maks.1.500 W; 10.000 operating cycles
Çıkış akımı
“1” sinyali için nominal değer5 A
for signal "1" permissible range, min.5 mA; 10 V
for signal "1" permissible range, max.8 A; thermal continuous current
“0” sinyali için artık akım, maks.0 A
Parallel switching of two outputs
for logic linksVar
for upratingYok
for redundant control of a loadVar
Anahtarlama frekansı
Omik yükte, maks.2 Hz
with inductive load, max.0,5 Hz
Lamba yükünde, maks.2 Hz
Total current of the outputs
Current per channel, max.8 A; see additional description in the manual
Current per group, max.8 A; see additional description in the manual
Current per module, max.64 A; see additional description in the manual
Röle çıkışları
Röle çıkışı sayısı8
Rated supply voltage of relay coil L+ (DC)24 V
Current consumption of relays (coil current of all relays), typ.80 mA
external protection for relay outputsWith miniature circuit breaker with characteristic B for: cos φ 1,0: 600 A cos φ 0,5... 0,7: 900 A with 8 A Diazed fuse: 1.000 A
Contact connection (internal)Yok
Number of operating cycles, max.4.000.000; see additional description in the manual
Relay approved acc. to UL 508Var; 250 V AC/5 A g.p.; 120 V AC TV-4 tungsten; A300, R300
Switching capacity of contacts
— with inductive load, max.see additional description in the manual
— with resistive load, max.see additional description in the manual
Kablo uzunluğu
Ekranlı, maks.1.000 m
Ekransız, maks.600 m
Interrupts/diagnostics/status information
Diagnostics functionVar
Substitute values connectableVar
Alarms
Diagnostic alarmVar
Maintenance interruptVar
Diagnoses
Monitoring the supply voltageVar
Wire breakYok
Short-circuitYok
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iVar; Yellow LED
Monitoring of the supply voltage (PWR-LED)Var; green LED
Channel status displayVar; green LED
for channel diagnosticsYok
for module diagnosticsVar; red LED
Potential separation channels
Kanallar arasıVar; Switching of different phases permitted
Kanallar arası, grup başına1
between the channels and backplane busVar
Between the channels and load voltage L+Var
Permissible potential difference
between different circuits250 V AC between the channels ve the supply voltage L+, 250 V AC between the channels ve the backplane bus; 250 V AC between the channels (500 V AC when connecting different phases; basic insulation)
Isolation
Isolation tested with2.545 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsYok
Suitable for safety-related tripping of standard modulesVar; From FS03
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]43,8 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]9,5 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]34,5 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-0.231 kg
Highest safety class achievable for safety-related tripping of standard modules
Performance level according to ISO 13849-1PL c
Category according to ISO 13849-1Cat. 2
SIL acc. to IEC 62061SIL 1
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment (shielded cables required)
EN 50124-1Var; Railway applications - overvoltage category OV3; pollution degree PD2; UNm = 230 V AC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT1, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Security
signed firmware updateYok
data integrityYok
Çalışma ortam sıcaklığı
Yatay montaj, min.-25 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-25 °C; = Tmin
Dikey montaj, maks.60 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik35 mm
Yükseklik147 mm
Derinlik129 mm
Ağırlık
Ağırlık, yaklaşık350 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
