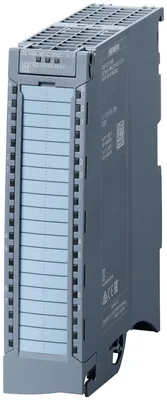

Siemens 6AG2522-5EH00-4AB0
yedek only, no repair. TX rail based on 6ES7522-5EH00-0AB0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), dijital çıkış modülü, 0,5 A; 16 channels in groups of 1, 0,5 A per group; substitute value; observe derating
Ürün tipi tanımıDQ 16x110VDC ST
FW update possibleVar
based on6ES7522-5EH00-0AB0
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Prioritized startupVar
Ürün Hakkında
yedek only, no repair. TX rail based on 6ES7522-5EH00-0AB0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), dijital çıkış modülü, 0,5 A; 16 channels in groups of 1, 0,5 A per group; substitute value; observe derating
Siemens 6AG2522-5EH00-4AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıDQ 16x110VDC ST
FW update possibleVar
based on6ES7522-5EH00-0AB0
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Prioritized startupVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
DQVar
DQ with energy-saving functionYok
PWMYok
Cam control (switching at comparison values)Yok
OversamplingYok
MSOVar
Integrated operating cycle counterVar; FW V1.1.0 veya üstü
Çıkış gerilimi
Nominal değer (DC)24 V; 48 V, 72 V, 96 V, 110 V, 125 V
Rated value (AC)24 V; 48 V (50 - 60 Hz)
Power
Power consumption from the backplane bus2 W
Güç kaybı
Güç kaybı, tipik3,8 W
Dijital çıkışlar
Type of digital outputTransistor
Dijital çıkış sayısı16; > +60 °C maks. 0,25 A per output
Current-sinkingVar
Current-sourcingVar
Digital outputs, parameterizableVar
Endüktif kapatma geriliminin sınırlandırılması200 V (suppressor diode)
Controlling a digital inputVar
Çıkışların anahtarlama kapasitesi
Omik yükte, maks.0,5 A
Lamba yükünde, maks.40 W; At 125 V DC, 10 W 48 V UC, 5 W 24 V UC
Çıkış gerilimi
“1” sinyali için, min.L+ (-1.0 V)
Çıkış akımı
“1” sinyali için nominal değer0,5 A
for signal "1" permissible range, max.0,6 A
Omik yükte çıkış gecikmesi
“0”dan “1”e, maks.5 ms
“1”den “0”a, maks.5 ms
Parallel switching of two outputs
for logic linksVar
for upratingYok
for redundant control of a loadVar
Anahtarlama frekansı
Omik yükte, maks.25 Hz
with inductive load, max.0,5 Hz
Lamba yükünde, maks.10 Hz
Total current of the outputs
Current per channel, max.0,5 A
Current per group, max.0,5 A
Current per module, max.8 A
Kablo uzunluğu
Ekranlı, maks.1.000 m
Ekransız, maks.600 m
Interrupts/diagnostics/status information
Diagnostics functionYok
Substitute values connectableVar
Alarms
Diagnostic alarmYok
Maintenance interruptVar
Diagnoses
Monitoring the supply voltageYok
Wire breakYok
Short-circuitYok
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
Monitoring of the supply voltage (PWR-LED)Yok
Channel status displayVar; green LED
for channel diagnosticsYok
for module diagnosticsVar; red LED
Potential separation channels
Kanallar arasıVar
Kanallar arası, grup başına1
between the channels and backplane busVar
Permissible potential difference
between different circuits125 V DC/48 V AC
Isolation
Isolation tested with2.000 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsYok
Suitable for safety-related tripping of standard modulesVar; From FS02
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]43,8 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]9,5 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]34,5 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-0.231 kg
Highest safety class achievable for safety-related tripping of standard modules
Performance level according to ISO 13849-1PL d
Category according to ISO 13849-1Cat. 3
SILCL according to IEC 62061SILCL 2
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment (shielded cables required)
EN 50124-1Var; Railway applications - overvoltage category OV3 (channels to backplane bus ve ground); OV2 (between the channels); pollution degree PD2; rated impulse voltage UNi = 1,5 kV; UNm = 125 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Security
signed firmware updateVar
data integrityYok
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.40 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik35 mm
Yükseklik147 mm
Derinlik129 mm
Ağırlık
Ağırlık, yaklaşık230 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 12
Siemens 6AG2522-5EH00-4AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7590-1AB60-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AC40-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AF30-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AJ30-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1BC00-0AA0 | Aksesuar · Mounting rail | |
| 6ES7592-2AX00-0AA0 | Aksesuar · label | |
| 6AG2590-0BD00-4AA0 | Aksesuar · Rack | |
| 6ES7592-1AM00-0XB0 | Aksesuar · Connection plug | |
| 6ES7592-1BM00-0XB0 | Aksesuar · Connection plug | |
| 6AG1590-0AA00-7AA0 | Yedek parça · spare part | |
| 6ES7528-0AA00-7AA0 | Yedek parça · spare part | |
| 6ES7590-1AE80-0AA0 | Zorunlu ek ürün · Mounting rail |
