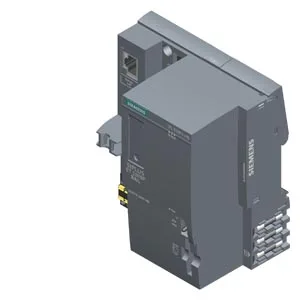

Siemens 6AG2510-1SK03-1AB0
SIPLUS ET 200SP CPU 1510SP F-1 rail based on 6ES7510-1SK03-0AB0 ile conformal coating OT2: -40...+55 °C ST1/2: 70 °C için 10 minutes. central processing ünite ile work memory 300 KB için program ve 1 MB için data, 1st arayüz: PROFINET IRT ile 3-port anahtar, 25 ns bit performance, SIMATIC bellek kartı required, BusAdapter required için port 1 ve 2
Ürün tipi tanımıCPU 1512SP F-1 PN
FW update possibleVar
based on6ES7510-1SK03-0AB0
I&M dataVar; I&M0 to I&M3
SysLogVar
via datasetVar
Ürün Hakkında
SIPLUS ET 200SP CPU 1510SP F-1 rail based on 6ES7510-1SK03-0AB0 ile conformal coating OT2: -40...+55 °C ST1/2: 70 °C için 10 minutes. central processing ünite ile work memory 300 KB için program ve 1 MB için data, 1st arayüz: PROFINET IRT ile 3-port anahtar, 25 ns bit performance, SIMATIC bellek kartı required, BusAdapter required için port 1 ve 2
Siemens 6AG2510-1SK03-1AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCPU 1512SP F-1 PN
FW update possibleVar
based on6ES7510-1SK03-0AB0
Product function
I&M dataVar; I&M0 to I&M3
Module swapping during operation (hot swapping)Var; Multi-hot swapping
Isochronous modeVar; yalnızca şununla: PROFINET; with minimum OB 6x cycle of 500 µs
SysLogVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Configuration control
via datasetVar
Control elements
Mode selector switch1
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Mains buffering
Mains/voltage failure stored energy time10 ms
Giriş akımı
Akım tüketimi (nominal değer)0,48 A
Akım tüketimi, maks.0,7 A
Ani çekiş akımı, maks.1,34 A; Rated value
I²t0,3 A²·s
Power
Infeed power to the backplane bus8,05 W
Güç kaybı
Güç kaybı, tipik3,5 W
Storage
Number of slots for SIMATIC memory card1
SIMATIC memory card requiredVar
Çalışma belleği
integrated (for program)300 kB
integrated (for data)1 MB
Yükleme belleği
Takılabilir (SIMATIC Memory Card), maks.32 Gbyte
Yedekleme
Bakım gerektirmezVar
CPU işlem süreleri
Bit işlemleri için, tipik6 ns
Word işlemleri için, tipik7 ns
for fixed point arithmetic, typ.9 ns
Kayan nokta aritmetiği için, tipik37 ns
CPU blokları
Eleman sayısı (toplam)4.000; Blocks (OB, FB, FC, DB) ve UDTs
DB
Number range1... 60.999; subdivided into: number range that can be used by the user: 1... 59.999, ve number range of DBs created via SFC 86: 60.000... 60.999
Boyut, maks.2 MB; For DBs with absolute addressing, the maks. size is 64 KB
FB
Number range0... 65.535
Boyut, maks.300 kB
FC
Number range0... 65.535
Boyut, maks.600 kB
Organizasyon blokları (OB)
Boyut, maks.300 kB
Number of free cycle OBs100
Number of time alarm OBs20
Number of delay alarm OBs20
Number of cyclic interrupt OBs20; With minimum OB 3x cycle of 250 µs
Number of process alarm OBs50
Number of DPV1 alarm OBs3
Number of isochronous mode OBs1
Number of technology synchronous alarm OBs2
Number of startup OBs100
Number of asynchronous error OBs4
Number of synchronous error OBs2
Number of diagnostic alarm OBs1
Nesting depth
per priority class24; Up to 8 possible for F-blocks
S7 counter
Number2.048
Retentivity
— adjustableVar
IEC counter
NumberAny (only limited by the main memory)
Retentivity
— adjustableVar
S7 timer
Number2.048
Retentivity
— adjustableVar
IEC timer
NumberAny (only limited by the main memory)
Retentivity
— adjustableVar
Veri alanları ve kalıcılığı
Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.256 kB; in toplam; available retentive memory for bit memories, timers, counters, DBs, ve technology data (axes): 216 KB
Merker (bayrak)
Boyut, maks.16 kB
Number of clock memories8; 8 clock memory bit, grouped into one clock memory bayt
Data blocks
Retentivity adjustableVar
Retentivity presetYok
Yerel veri
Öncelik sınıfı başına, maks.64 kB; maks. 16 KB per block
Address area
Number of IO modules2.048; maks. number of modules / submodules
I/O address area
Inputs32 kB; All inputs are in the process image
Outputs32 kB; All outputs are in the process image
per integrated IO subsystem
— Inputs (volume)8 kB
— Outputs (volume)8 kB
per CM/CP
— Inputs (volume)8 kB
— Outputs (volume)8 kB
Subprocess images
Number of subprocess images, max.32
Address space per module
Address space per module, max.288 bayt; For input ve output data respectively
Address space per station
Address space per station, max.2.560 bayt; for central inputs ve outputs; depending on configuration; 2.048 bytes for ET 200SP modules + 512 bytes for ET 200AL modules
Donanım yapılandırması
Number of distributed IO systems32; A distributed I/O system is characterized not only by the integration of distributed I/O via PROFINET veya PROFIBUS communication modules, but also by the connection of I/O via AS-i master modules veya links (e.g. IE/PB-Link)
Number of DP masters
Via CM1
Number of IO Controllers
Dahili1
via CM0
Rack
Modules per rack, max.82; CPU + 64 modules + server module (mounting width maks. 1 m) + 16 ET 200AL modules
Quantity of operable ET 200SP modules, max.64
Quantity of operable ET 200AL modules, max.16
Number of lines, max.1
PtP CM
Number of PtP CMsthe number of connectable PtP CMs is only limited by the number of available slots
Saat
TypeHardware clock
Yedekleme süresi6 wk; At 40 °C ambient temperature, typically
Günlük sapma, maks.10 s; Typ.: 2 s
Operating hours counter
Number16
Clock synchronization
DestekleniyorVar
to DP, masterVar; Via CM DP module
on DP, deviceVar; Via CM DP module
in AS, masterVar
in AS, deviceVar
on Ethernet via NTPVar
Arayüzler
PROFINET arayüz sayısı1
Number of PROFIBUS interfaces1; Via CM DP module
Optical interfaceYok
Arayüz tipleri
RJ 45 (Ethernet)Var; X1 P3; opt. X1 P1 ve X1 P2 via BusAdapter BA 2x RJ45
Port sayısı3; 1. integr. + 2. via BusAdapter
Dahili switchVar
BusAdapter (PROFINET)Var
Protokoller
IP protocolVar; IPv4
PROFINET IO kontrolcüsüVar
PROFINET IO DeviceVar
SIMATIC haberleşmesiVar
Açık IE haberleşmesiVar; Optionally also encrypted
Web sunucusuVar
Ortam yedekliliğiVar
Servisler
— PG/OP haberleşmesiVar
— Eşzamanlı (isochronous) modVar
— Direct data exchangeVar; Requirement: IRT ve isochronous mode (MRPD optional)
— IRTVar
— Dinamik çerçeve paketleme (DFP)Var
— PROFIenergyVar; per user program
— Önceliklendirilmiş başlatmaVar; Maks. 32 PROFINET devices
— Bağlanabilir IO cihazı sayısı, maks.128; In toplam, up to 512 distributed I/O devices can be connected via AS-i, PROFIBUS veya PROFINET
— Of which IO devices with IRT, max.64
— RT için bağlanabilir IO cihazı sayısı, maks.128
— Bunlardan hat üzerinde, maks.128
— Eşzamanlı etkinleştirilebilen/devre dışı bırakılabilen IO cihazı sayısı, maks.8; in toplam across all interfaces
— Number of IO Devices per tool, max.8
— Updating timesThe minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, ve on the quantity of configured user data
Update time for IRT
— for send cycle of 250 µs250 μs to 4 ms; Note: In the case of IRT with isochronous mode, the minimum update time of 500 µs of the isochronous OB is decisive
— for send cycle of 500 µs500 μs to 8 ms; Note: In the case of IRT with isochronous mode, the minimum update time of 625 µs of the isochronous OB is decisive
— for send cycle of 1 ms1 ms to 16 ms
— for send cycle of 2 ms2 ms to 32 ms
— for send cycle of 4 ms4 ms to 64 ms
— With IRT and parameterization of "odd" send cyclesUpdate time = set "odd" send clock (any multiple of 125 µs: 375 µs, 625 µs... 3.875 µs)
Update time for RT
— for send cycle of 250 µs250 µs to 128 ms
— for send cycle of 500 µs500 µs to 256 ms
— for send cycle of 1 ms1 ms to 512 ms
— for send cycle of 2 ms2 ms to 512 ms
— for send cycle of 4 ms4 ms to 512 ms
Servisler
— Eşzamanlı (isochronous) modYok
— IRTVar
— Dinamik çerçeve paketleme (DFP)Yok
— PROFIenergyVar; per user program
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.4
— activation/deactivation of I-devicesVar; per user program
— Varlık yönetimi kaydıVar; per user program
— PROFINET Security ClassSNMP Configuration ve DCP Read Only
Arayüz tipleri
RS 485Var; Via CM DP module
Port sayısı1
Protokoller
PROFIBUS DP masterVar
PROFIBUS DP deviceVar
SIMATIC haberleşmesiVar
PROFIBUS DP master
Number of connections, max.48; Of which 4 her biri reserved for ES ve HMI
max. number of DP devices125; In toplam, up to 512 distributed I/O devices can be connected via AS-i, PROFIBUS veya PROFINET
Servisler
— EquidistanceYok
— Eşzamanlı (isochronous) modYok
— activation/deactivation of DP devicesVar
RJ 45 (Ethernet)
100 MbpsVar
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Industrial Ethernet status LEDVar
RS 485
İletim hızı, maks.12 Mbit/s
Protokoller
PROFIsafeVar; V2.4 / V2.6
Bağlantı sayısı
Number of connections, max.128; via dahili interfaces of the CPU ve connected CPs / CMs
Number of connections reserved for ES/HMI/web10
Number of connections via integrated interfaces88
Number of connections per CP/CM32
Number of S7 routing paths16
Yedeklilik modu
PROFINET sistem yedekliliği (S2)Yok
PROFINET sistem yedekliliği (R1)Yok
H-Sync forwardingVar
Ortam yedekliliği
— Media redundancyVar; only via BusAdapter
— MRPVar; MRP Automanager according to IEC 62439-2 Edition 2,0, MRP Manager; MRP Client
— MRP ara bağlantısı, destekleniyorVar; as MRP ring node according to IEC 62439-2 Edition 3,0
— MRPDVar; Requirement: IRT
— Switchover time on line break, typ.200 ms; For MRP, bumpless for MRPD
— Number of stations in the ring, max.50
SIMATIC haberleşmesi
PG/OP communicationVar; encryption with TLS V1.3 pre-selected
S7 yönlendirmeVar
Data record routingVar
S7 communication, as serverVar
S7 communication, as clientVar
İş başına kullanıcı verisi, maks.See online help (S7 communication, user data size)
Açık IE haberleşmesi
TCP/IPVar
— Veri uzunluğu, maks.64 kB
— several passive connections per port, supportedVar
ISO-on-TCP (RFC1006)Var
— Veri uzunluğu, maks.64 kB
UDPVar
— Veri uzunluğu, maks.2 kB; 1.472 bytes for UDP broadcast
— UDP multicastVar; maks. 78 multicast circuits
DHCPVar
DNSVar
SNMPVar
DCPVar
LLDPVar
EncryptionVar; Optional
Web sunucusu
HTTPVar; Standard ve user pages
HTTPSVar; Standard ve user pages
— Oturum sayısı, maks.50
— number of simultaneous HTTP calls, max.4
— HTTP request body, max.131.072 bayt
OPC UA
Çalışma zamanı lisansı gerekirVar; "Small" license required
OPC UA ClientVar; Data Access (registered Read/Write), Method Call
— Uygulama kimlik doğrulamasıVar
— Security policiesAvailable security policies: Yok, Basic128Rsa15, Basic256Rsa15, Basic256Sha256
— Kullanıcı kimlik doğrulaması"anonymous" veya by user name & password
— Number of connections, max.4
— Number of nodes of the client interfaces, recommended max.1.000
— Number of elements for one call of OPC_UA_NodeGetHandleList/OPC_UA_ReadList/OPC_UA_WriteList, max.300
— Number of elements for one call of OPC_UA_NameSpaceGetIndexList, max.20
— Number of elements for one call of OPC_UA_MethodGetHandleList, max.100
— Number of simultaneous calls of the client instructions for session management, per connection, max.1
— Number of simultaneous calls of the client instructions for data access, per connection, max.5
— Number of registerable nodes, max.5.000
— Number of registerable method calls of OPC_UA_MethodCall, max.100
— Number of inputs/outputs when calling OPC_UA_MethodCall, max.20
OPC UA sunucusuVar; data access (read, write, subscribe), method call, alarms & condition (A&C), custom address space, role-based access control
— Uygulama kimlik doğrulamasıVar
— Security policiesavailable security policies: Yok, Basic128Rsa15, Basic256Rsa15, Basic256Sha256, Aes128Sha256RsaOaep, Aes256Sha256RsaPss
— Kullanıcı kimlik doğrulaması"anonymous" veya by user name & password
— GDS support (certificate management)Var
— Oturum sayısı, maks.32
— Number of accessible variables, max.50.000
— Number of registerable nodes, max.10.000
— Oturum başına abonelik sayısı, maks.50
— Örnekleme aralığı, min.100 ms
— Yayınlama aralığı, min.200 ms
— Sunucu metodu sayısı, maks.20; maks. 20 concurrently running jobs her biri for asynchronous instructions OPC_UA_ServerMethodPre ve OPC_UA_ServerMethodPost
— Number of inputs/outputs per server method, max.20
— İzlenen öğe sayısı, önerilen maks.4.000; for 1 s sampling interval ve 1 s send interval
— Sunucu arayüzü sayısı, maks.10 of her biri "Server interfaces" / "Companion specification" type ve 20 of the type "Reference namespace"
— Kullanıcı tanımlı sunucu arayüzleri için düğüm sayısı, maks.15.000
Alarms and ConditionsVar
— Number of program alarms100
— Number of alarms for system diagnostics50
Diğer protokoller
MODBUSVar; MODBUS TCP
S7 message functions
Number of login stations for message functions, max.32
number of subscriptions, max.250
number of tags/attributes for subscriptions, max.2.000
Program alarmsVar
Number of configurable program messages, max.5.000; Program messages are generated by the "Program_Alarm" block, ProDiag veya GRAPH
Number of loadable program messages in RUN, max.5.000
Number of program alarms600
Number of alarms for system diagnostics100
Number of alarms for motion technology objects160
Test commissioning functions
Joint commission (Team Engineering)Var; Parallel online access possible for up to 5 engineering systems
Status blockVar; Up to 8 simultaneously (in toplam across all ES clients)
Single stepVar
Number of breakpoints8
ProfilingVar
Durum/kontrol
Durum/kontrol değişkeniVar; without fail-safe
Değişkenlerinputs/outputs, bit memories, DBs, peripheral I/Os (without fail-safe), times, counters
— of which status variables, max.200; per job
— of which control variables, max.200; per job
Zorlama (force)
Zorlama (force)Var; without fail-safe
Forcing, variablesperipheral inputs/outputs (without fail-safe)
Number of variables, max.200
Tanılama arabelleği
MevcutVar
Number of entries, max.1.000
— of which powerfail-proof500
İzlemeler (trace)
Yapılandırılabilir izleme sayısı4
İzleme başına bellek boyutu, maks.512 kB
Tanılama gösterge LED’i
RUN/STOP LED’iVar
ERROR LED’iVar
MAINT LED’iVar
Monitoring of the supply voltage (PWR-LED)Var
Connection display LINK TX/RXVar
Supported technology objects
Motion ControlVar; Note: The number of technology objects affects the cycle time of the PLC program; selection guide via the TIA Selection Tool
Number of available Motion Control resources for technology objects1.120
— per speed-controlled axis40
— per positioning axis80
— per synchronous axis160
— per external encoder80
— per output cam20
— per cam track160
— per probe40
— Number of positioning axes at motion control cycle of 4 ms (typical value)11
— Number of positioning axes at motion control cycle of 8 ms (typical value)14
PID_CompactVar; Universal PID controller with dahili optimization
PID_3StepVar; PID controller with dahili optimization for valves
PID-TempVar; PID controller with dahili optimization for temperature
High-speed counterVar
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test); internal voltage limitation between internal chassis ve ground to ±300 V (varistor)
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]83,2 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]22,3 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]61,8 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-0.949 kg
Highest safety class achievable in safety mode
Performance level according to ISO 13849-1PLe
SIL acc. to IEC 61508SIL 3
SIL in accordance with EN 50126-1, 50129, 50159, 50716SIL 2; a higher safety integrity level is possible if tested ve approved for the specific application under consideration of all local regulations.
Probability of failure (for service life of 20 years and repair time of 100 hours)
— Low demand mode: PFDavg in accordance with SIL3< 2.00E-05
— High demand/continuous mode: PFH in accordance with SIL3< 1.00E-09
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT2, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Security
PROFINET Security Class1
signed firmware updateVar
Secure BootVar
securely removing dataVar
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.60 °C; = Tmax; +70 °C for 10 min (OT2, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; class PC2 protective coating acc. to EN 50155
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Programlama dili
— LADVar; incl. failsafe
— FBDVar; incl. failsafe
— STLVar
— SCLVar
— CFCYok
— GRAPHVar
Know-how koruması
Kullanıcı programı/şifre korumasıVar
Kopya korumasıVar
Blok korumasıVar
Erişim koruması
Gizli yapılandırma verisinin korunmasıVar
Koruma seviyesi: yazma korumasıVar
Koruma seviyesi: okuma/yazma korumasıVar
Protection level: Write protection for FailsafeVar
Koruma seviyesi: tam korumaVar
Kullanıcı yönetimiVar; device-wide ve centralized
Kullanıcı sayısı100
Grup sayısı100
Rol sayısı50
Çevrim süresi izleme
lower limitadjustable minimum cycle time
upper limitadjustable maximum cycle time
Ölçüler
Genişlik100 mm
Yükseklik117 mm
Derinlik75 mm
Ağırlık
Ağırlık, yaklaşık265 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 48
Siemens 6AG2510-1SK03-1AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG1972-0AA02-7XA0 | Aksesuar · Repeater bus components | |
| 6ES7193-6CP84-2AC0 | Aksesuar · label | |
| 6ES7193-6CP85-2AC0 | Aksesuar · label | |
| 6AG1193-6AA00-0AA0 | Aksesuar · Accessories (mounting) | |
| 6AG1193-6AB00-0AA0 | Aksesuar · Accessories (mounting) | |
| 6ES7193-6CP83-2AB0 | Aksesuar · label | |
| 6ES7193-6CP82-2AB0 | Aksesuar · label | |
| 6ES7193-6CP86-2AC0 | Aksesuar · label | |
| 6ES7193-6CP73-2AA0 | Aksesuar · label | |
| 6AG1972-0AB01-4XA0 | Aksesuar · Repeater bus components | |
| 6AG1972-0BB70-7XA0 | Aksesuar · PROFIBUS connector | |
| 6AG2193-6AF00-4AA0 | Aksesuar · BusAdapter | |
| 6AG2193-6AR00-4AA0 | Aksesuar · BusAdapter | |
| 6AG2193-6AM00-4AA0 | Aksesuar · BusAdapter | |
| 6ES7193-6CP00-2MA0 | Aksesuar · label | |
| 6ES7193-6CP01-2MA0 | Aksesuar · label | |
| 6ES7193-6CP02-2MA0 | Aksesuar · label | |
| 6ES7193-6CP81-2AB0 | Aksesuar · label | |
| 6ES7193-6CP03-2MA0 | Aksesuar · label | |
| 6ES7193-6CP04-2MA0 | Aksesuar · label | |
| 6ES7193-6CP11-2MT0 | Aksesuar · label | |
| 6ES7193-6CP72-2AA0 | Aksesuar · label | |
| 6ES7193-6CP71-2AA0 | Aksesuar · label | |
| 6ES7193-6CP12-2MT0 | Aksesuar · label | |
| 6ES7193-6CP63-2MA0 | Aksesuar · label | |
| 6ES7193-6CP62-2MA0 | Aksesuar · label | |
| 6ES7193-6CP52-2MC0 | Aksesuar · label | |
| 6ES7193-6CP51-2MC0 | Aksesuar · label | |
| 6ES7193-6CP41-2MB0 | Aksesuar · label | |
| 6ES7193-6CP13-2MT0 | Aksesuar · label | |
| 6ES7193-6CP10-2MT0 | Aksesuar · label | |
| 6ES7954-8LC03-0AA0 | Yedek parça · Memory card | |
| 6ES7954-8LE03-0AA0 | Yedek parça · Memory card | |
| 6ES7954-8LF03-0AA0 | Yedek parça · Memory card | |
| 6ES7954-8LT03-0AA0 | Yedek parça · Memory card | |
| 6ES7954-8LP03-0AA0 | Yedek parça · Memory card | |
| 6AG1193-6PA00-7AA0 | Yedek parça · spare part | |
| 6ES7954-8LL03-0AA0 | Yedek parça · Memory card | |
| 6ES7193-6MR00-0AA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0BA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0CA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0DA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7954-8LT04-0AA0 | Zorunlu ek ürün · Memory card | |
| 6ES7954-8LL04-0AA0 | Zorunlu ek ürün · Memory card | |
| 6ES7954-8LF04-0AA0 | Zorunlu ek ürün · Memory card | |
| 6ES7954-8LE04-0AA0 | Zorunlu ek ürün · Memory card | |
| 6ES7954-8LC04-0AA0 | Zorunlu ek ürün · Memory card | |
| 6ES7954-8LP04-0AA0 | Zorunlu ek ürün · Memory card |
İlgili Ürünler
Detayları Gör
Siemens
1FN3050-8SA00-0AA0
MFR #1FN3050-8SA00-0AA0
SKU #YLSPEYTCHSLPEPH
Detayları Gör
Siemens
1FN3100-8SA00-0AA0
MFR #1FN3100-8SA00-0AA0
SKU #YLSJZNRPZ4VXXL
Detayları Gör
Siemens
1FN3150-8SA00-0AA0
MFR #1FN3150-8SA00-0AA0
SKU #YLSZOWEGFUAGXOH
Detayları Gör
Siemens
1FN3300-8SA00-0AA0
MFR #1FN3300-8SA00-0AA0
SKU #YLSZMAEBPCROKIZ
Detayları Gör
Siemens
1FN3450-8SA00-0AA0
MFR #1FN3450-8SA00-0AA0
SKU #YLSNONBMS6EF28
Detayları Gör
Siemens
1FN3600-8SA00-0AA0
MFR #1FN3600-8SA00-0AA0
SKU #YLS8CPR47M6DMNJ
Detayları Gör
Siemens
1FN3900-8SA00-0AA0
MFR #1FN3900-8SA00-0AA0
SKU #YLSQEN1CGSWWALU
Detayları Gör
Siemens
1FY2105-0AA00
MFR #1FY2105-0AA00
SKU #YLSGTZWOTRQID
Detayları Gör
Siemens
1FY2105-4AA00
MFR #1FY2105-4AA00
SKU #YLSDLAYIMNHTZJE
Öne Çıkan Ürünler
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
İlgili Aramalar
Siemens 6AG2510-1SK03-1AB0 fiyatSiemens 6AG2510-1SK03-1AB0 teklif alSiemens 6AG2510-1SK03-1AB0 satın al6AG2510-1SK03-1AB0 fiyat6AG2510-1SK03-1AB0 stok durumuSiemens yedek parçaSiemens 6AG2510-1SK03-1AB0 muadilSiemens 6AG2510-1SK03-1AB0 teknik özellikler
