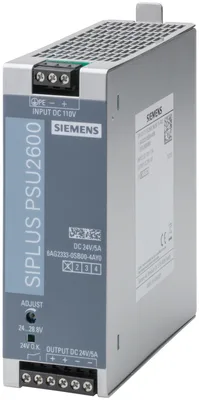

Siemens 6AG2333-0SB00-4AY0
SIPLUS PS PSU2600 24V/5A TX rail giriş: 110 V DC, çıkış: 24 V DC/5 A, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes),
product brand nameSIPLUS
product type designationPSU2600
product designationPower supply rail vehicles
type of current supply24 V/5 A
type of the power supply networkDC voltage
voltage curve at inputDC
Ürün Hakkında
SIPLUS PS PSU2600 24V/5A TX rail giriş: 110 V DC, çıkış: 24 V DC/5 A, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes),
Siemens 6AG2333-0SB00-4AY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSIPLUS
product type designationPSU2600
product designationPower supply rail vehicles
type of current supply24 V/5 A
manufacturer's article number of the basic version used for SIPLUS product versions6EP4333-0SB00-0AY0
input
type of the power supply networkDC voltage
voltage curve at inputDC
supply voltage at DC110 V
input voltage at DC77... 154 V
wide range inputVar
buffering time for rated value of the output current in the event of power failure minimum20 ms
operating condition of the mains bufferingVin = 110 V
at rated input voltage 110 V1,2 A
current limitation of inrush current at 25 °C maximum25 A
fuse protection typeinternal
fuse protection type in the feederYok required. Fuse protection starting from 6 A Char. C possible
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
output voltage at DC rated value24 V
at output 1 at DC rated value24 V
at output 1 at DC24 V
output voltage adjustableVar; via potentiometer
adjustable output voltage24... 28,8 V; maks. 120 W
relative overall tolerance of the voltage3 %
on slow fluctuation of input voltage0,1 %
on slow fluctuation of ohm loading0,2 %
maximum50 mV
maximum200 mV
display version for normal operationGreen LED for 24 V OK
type of signal at outputRelay contact (NO contact, rating 60 V DC/ 0,3 A) for "24 V OK"
behavior of the output voltage when switching onYok overshoot of Vout (soft start)
response delay maximum1,5 s
maximum500 ms
rated value5 A
rated range0... 5 A; 5 A up to +60°C; 4 A up to +70°C
supplied active power typical120 W
on short-circuiting during the start-up typical6 A
bridging of equipmentYok
efficiency
efficiency in percent87 %
at rated output voltage for rated value of the output current typical17,5 W
during no-load operation maximum1 W
closed-loop control
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,1 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical1 %
load step 50 to 100% typical0,2 ms
load step 100 to 50% typical0,2 ms
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical2 %
load step 10 to 90% typical0,2 ms
load step 90 to 10% typical0,2 ms
maximum10 ms
protection and monitoring
design of the overvoltage protection< 32 V
property of the output short-circuit proofVar
design of short-circuit protectionShutdown ve periodic restart attempts
typical6 A
typical6 A
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass I
maximum3,5 mA
typical1,1 mA
protection class IPIP20
EMC
for emitted interferenceEN 50121-3-2
for interference immunityEN 50121-3-2
standards, specifications, approvals
CE markingVar
standards, specifications, approvals other
railway application in accordance with EN 50121-3-2Var; EMC for rail vehicles
railway application in accordance with EN 50124-1Var; Rail vehicles - Overvoltage category OV2; Pollution degree PD2
railway application in accordance with EN 50125-1Var; Rail vehicles - see ambient conditions
railway application in accordance with EN 50155Var; Rail vehicles - Temperature class OT4/ST1/ST2 maks. 4 A, yatay installation, interruption class S3, switching class C1
railway application in accordance with EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
fire protection in accordance with EN 45545-2Var; Rail vehicles - proof talep üzerine
ambient conditions
in horizontal mounting position during operation-40... +70 °C; +85 °C for 10 min (OT4/ST1/ST2 acc. to EN 50155 maks. 4 A)
during transport-40... +85 °C
during storage-40... +85 °C
installation altitude at height above sea level maximum5.000 m
ambient condition relating to ambient temperature - air pressure - installation altitudeIn case of operation altitudes of 2000 - 5000 m above sea level: Output power derating of -7.5 %/1000 m veya reduction of the ambient temperature by 5 K/1000 m
type of coating for electronic devices in railway applications according to EN 50155Var; Protective coating of Class PC2 acc. to EN 50155:2017
connection method
type of electrical connectionscrew terminal
at inputInput, output ve ground: 1 screw terminal her biri for 0,2... 2,5 mm² single-core/finely stranded
at output+, -: 2 screw terminals her biri for 0,2... 2,5 mm²
for auxiliary contacts13, 14 (alarm signal): 1 screw terminal her biri for 0,05... 2,5 mm²
mechanical data
width × height × depth of the enclosure42 × 125 × 125 mm
installation width × mounting height42 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,6 kg
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
