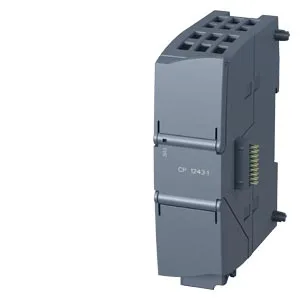

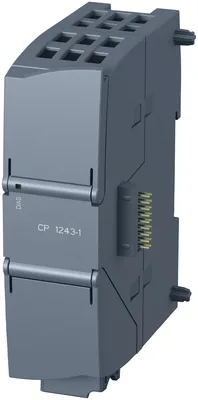

Siemens 6AG2243-1BX30-1XE0
SIPLUS S7-1200 CP 1243-1 rail based on 6GK7243-1BX30-0XE0 ile conformal coating, -25…+70 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), communications processor CP 1243-1 için bağlantı of SIMATIC S7-1200 as ek Ethernet arayüz ve için bağlantı to kontrol centers via telecontrol protocols (DNP3, IEC 60870, TeleControl temel), security (firewall, VPN)
product brand nameSIPLUS
at the 1st interface10... 100 Mbit/s
for power supply0
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
power loss [W]1,25 W
Ürün Hakkında
SIPLUS S7-1200 CP 1243-1 rail based on 6GK7243-1BX30-0XE0 ile conformal coating, -25…+70 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), communications processor CP 1243-1 için bağlantı of SIMATIC S7-1200 as ek Ethernet arayüz ve için bağlantı to kontrol centers via telecontrol protocols (DNP3, IEC 60870, TeleControl temel), security (firewall, VPN)
Siemens 6AG2243-1BX30-1XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIPLUS
transfer rate
at the 1st interface10... 100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet1
at the 1st interface / according to Industrial Ethernet1
for power supply0
at the 1st interface / according to Industrial EthernetRJ45 port
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
from backplane bus / at DC / at 5 V / typical0,25 A
power loss [W]1,25 W
ambient conditions
for vertical installation / during operation-25... +60 °C
for horizontally arranged busbars / during operation-25... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
note+70 °C for 10 min (OT1, ST1/ST2 according to EN 50155)
installation altitude / at height above sea level / maximum2000 m
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation
chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets
conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna), Class 3B3 talep üzerine
conformity according to EN 60721-3-5Var; Class 5B2 mold ve fungal spores (excluding fauna), Class 5B3 talep üzerine
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.
conformity according to EN 60721-3-5Var; Class 5C3 (RH < 75%) including salt spray acc. to EN 60068-2-52 (Severity level 3). The supplied plug covers must remain in place over the unused interfaces during operation!
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
conformity according to EN 60721-3-5Var; Class 5S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation!
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Var; Protection of the type 1
type of coating / for electronic devices in railway applications according to EN 50155Var; Protective coating of the Class PC2 according to EN 50155:2017
type of test / of the coating / according to MIL-I-46058CVar; Coating discoloration during service life possible
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, class A
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-1200 single width
width30 mm
height110 mm
depth75 mm
net weight0,122 kg
35 mm DIN-rail mountingVar
wall mountingVar
product features, product functions, product components / general
per CPU / maximum3
product functions / cloud connectivity
Message Queuing Telemetry Transport (MQTT)Var
Advanced Message Queuing Protocol (AMQP)Yok
trigger managementVar
time stampingVar
product feature / for cloud connectivity / buffered message frame memoryYok
number of active connections / for cloud connectivity1
number of data points per device / maximum500
performance data / open communication
by means of T blocks / maximumlike CPU
performance data / S7 communication
maximumlike CPU
performance data / IT functions
as email client / maximum1
performance data / telecontrol
node stationYok
substationVar
TIM control centerYok
control center connectionFor use with TeleControl Server Basic, WinCC ve PCS7
by means of a permanent connectionsupported
noteConnection to SCADA system via Telecontrol Server Basic ve Standard Telecontrol protocols
DNP3Var
IEC 60870-5Var
product function / data buffering if connection is abortedVar; 64,000 events
number of data points per device / maximum200
in send direction / maximum3
in receive direction / maximum15
performance data / teleservice
diagnostics function / online diagnostics with SIMATIC STEP 7Var
program download with SIMATIC STEP 7Var
remote firmware updateVar
product functions / management, configuration, engineering
requiredSTEP 7 Basic/Professional
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar
product functions / security
firewall versionstateful inspection
product function / with VPN connectionIPsec, SINEMA RC
type of encryption algorithms / with VPN connectionAES-256, AES-192, AES-128, 3DES-168
type of authentication procedure / with VPN connectionPreshared key (PSK), X.509v3 certificates
type of hashing algorithms / with VPN connectionMD5, SHA-1, SHA-2
number of possible connections / with VPN connection8
password protection for Web applicationsYok
password protection for teleservice accessYok
encrypted data transmissionVar
ACL - IP-basedYok
ACL - IP-based for PLC/routingYok
switch-off of non-required servicesVar
blocking of communication via physical portsYok
log file for unauthorized accessYok
product functions / time
NTPVar
NTP (secure)Var
from NTP-serverVar
from control centerVar
product functions / position detection
certificate of suitability / railway application in accordance with EN 50121-3-2Var; EMC for railway vehicles
certificate of suitability / railway application in accordance with EN 50121-4Var; EMC for signaling ve telecommunications equipment
certificate of suitability / railway application in accordance with EN 50124-1Var; Railway applications - Overvoltage category OV2 pollution degree PD2 rated impulse voltage UNi = 0,5 kVUNm = DC 24
certificate of suitability / railway application in accordance with EN 50125-1Var; Railway vehicles - See ambient conditions
certificate of suitability / railway application in accordance with EN 50125-2Var; Fixed-electrical installations - see ambient conditions
certificate of suitability / railway application in accordance with EN 50125-3Var; Signal ve telecommunications equipment - see Ambient conditions vibrations ve shocks: Application point outside the rails (distance 1 m to 3 m from rail)
certificate of suitability / railway application in accordance with EN 50155Var; Railway vehicles - temperature class OT1, ST1/ST2, yatay mounting position
certificate of suitability / railway application in accordance with EN 61373Var; Railway vehicles - Vibrations ve shocks Category 1 Class A/B
certificate of suitability / fire protection in accordance with EN 45545-2Var; Railway vehicles - for proof, see Service & Support
