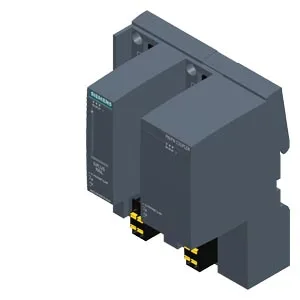

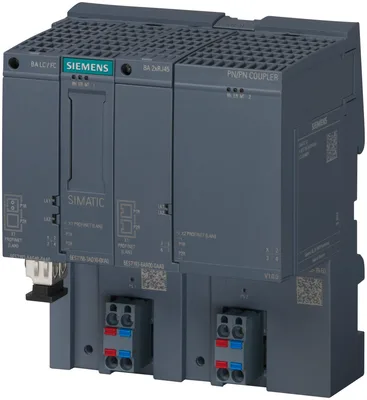

Siemens 6AG2158-3AD10-4XA0
yedek only, no repair. based on 6ES7158-3AD10-0XA0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), için deterministic data exchange between max. 4 PN controllers per side also across network boundaries, transmission via PROFIsafe, I/O, MSI, MSO ve data set communication, redundant akım infeed PN bağlantı via SIMATIC BusAdapter (BA), supplied olmadan BusAdapter
Ürün tipi tanımıPN/PN coupler
FW update possibleVar
based on6ES7158-3AD10-0XA0
I&M dataVar; I&M0 to I&M3
Isochronous modeYok; For operation on isochronous bus
Tool changerVar; Docking station ve docking unit
Ürün Hakkında
yedek only, no repair. based on 6ES7158-3AD10-0XA0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), için deterministic data exchange between max. 4 PN controllers per side also across network boundaries, transmission via PROFIsafe, I/O, MSI, MSO ve data set communication, redundant akım infeed PN bağlantı via SIMATIC BusAdapter (BA), supplied olmadan BusAdapter
Siemens 6AG2158-3AD10-4XA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıPN/PN coupler
FW update possibleVar
based on6ES7158-3AD10-0XA0
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok; For operation on isochronous bus
Tool changerVar; Docking station ve docking unit
Local coupling, IO dataVar
— Number of coupling modules16
— Number of coupling submodules per module4; 1x write, 3x read
Local coupling, data recordsVar
— Number of coupling modules16
— Number of coupling submodules per module4; 1x write, 3x read
— Record length, max.4.096 bayt
— FIFO depth in storage mode8
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
PROFINET from GSD version/GSD revisionGSDML V2.4.x
Installation type/mounting
MountingMounting rail 7,5 mm ve 15 mm
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Mains buffering
Mains/voltage failure stored energy time10 ms
Giriş akımı
Akım tüketimi, maks.360 mA; For 19,2 V input voltage the right-hand supply terminal, including 2 plugged BA 2x LC
Ani çekiş akımı, maks.1,6 A
I²t0,031 A²·s
from supply voltage 1L+, max.320 mA; For 19,2 V input voltage the left-hand supply terminal, including 2 plugged BA 2x LC
Güç kaybı
Güç kaybı, tipik4 W; For 24 V input voltage ve 2 plugged BA 2x RJ45 If BusAdapters with an optical interface are plugged, there is an additional 750 mW per optical interface (3 W with 2 plugged BA 2x LC)
Address space per module
Address space per module, max.254 bayt; maks. 254 bytes of input data ve 253 bytes of output data
Address space per station
Address space per station, max.1.440 bayt; per input / output
Submodules
Number of submodules per station, max.116
Arayüzler
PROFINET arayüz sayısı2; One PROFINET interface per line side
Optical interfaceVar; Via SIMATIC BusAdapter
İletim hızı, maks.100 Mbit/s
Arayüz tipleri
Port sayısı2; via BusAdapter
Dahili switchVar
BusAdapter (PROFINET)Var; Compatible BusAdapter: BA 2x RJ45, BA 2x FC, BA 2x SCRJ, BA SCRJ / RJ45, BA SCRJ / FC, BA 2x LC, BA LC / RJ45, BA LC / FC
Protokoller
PROFINET IO DeviceVar
Açık IE haberleşmesiVar
Ortam yedekliliğiVar; As MRP veya MRPD client; maks. 50 veya 30 devices in the ring
Servisler
— IRTVar
— Dinamik çerçeve paketleme (DFP)Var
— PROFIenergyYok
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.4; per line side
Arayüz tipleri
Port sayısı2; via BusAdapter
Dahili switchVar
BusAdapter (PROFINET)Var; Compatible BusAdapter: BA 2x RJ45, BA 2x FC, BA 2x SCRJ, BA SCRJ / RJ45, BA SCRJ / FC, BA 2x LC, BA LC / RJ45, BA LC / FC
Protokoller
PROFINET IO DeviceVar
Açık IE haberleşmesiVar
Ortam yedekliliğiVar; As MRP veya MRPD client; maks. 50 veya 30 devices in the ring
Servisler
— IRTVar
— Dinamik çerçeve paketleme (DFP)Var
— PROFIenergyYok
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.4; per line side
RJ 45 (Ethernet)
Transmission procedurePROFINET with 100 Mbit/s full duplex (100BASE-TX)
10 MbpsYok
100 MbpsVar; PROFINET with 100 Mbit/s full duplex (100BASE-TX)
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Protokoller
PROFINET IO protokolünü desteklerVar
EtherNet/IPYok
Protokoller (Ethernet)
TCP/IPVar
SNMPVar
LLDPVar
pingVar
ARPVar
Yedeklilik modu
PROFINET sistem yedekliliği (S2)Var; NAP S2 acc. to IEC
PROFINET sistem yedekliliği (R1)Yok
H-Sync forwardingVar
Ortam yedekliliği
— MRPVar
— MRPDVar
Açık IE haberleşmesi
TCP/IPVar
SNMPVar
LLDPVar
Interrupts/diagnostics/status information
Status indicatorVar
AlarmsVar
Diagnostics functionVar; Parameterizable
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iVar; Yellow LED
LINK LEDVar; 2x green link LEDs on BusAdapter
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Potential separation
between supply voltage and electronicsVar; to power input 2
between Ethernet and electronicsVar
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Network loading class3
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Security
PROFINET Security Class1
Çalışma ortam sıcaklığı
min.-40 °C; = Tmin (incl. condensation/frost)
maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Mechanics/material
Strain reliefVar; Optional, for RJ45 ve FC BusAdapter only
Ölçüler
Genişlik100 mm; Minimized with good handling
Yükseklik117 mm
Derinlik74 mm; with mounting rail
Ağırlık
Ağırlık, yaklaşık200 g; without BusAdapter
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
