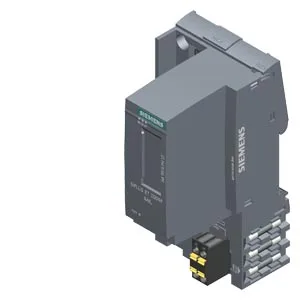

Siemens 6AG2155-6AU02-4BN0
SIPLUS ET 200SP IM155-6PN ST RAIL based on 6ES7155-6AU02-0BN0 ile conformal coating, -40...+70 °C arayüz modülleri IM 155-6 PN ST, max. 32 I/O modülleri, ve 16 ET 200AL modülleri, multi hot swap, optional PN strain relief, dahil server modül (6AG1193-6PA00-7AA0)
Ürün tipi tanımıIM 155-6 PN ST
Firmware sürümüV6.4.0
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0313H
based on6ES7155-6AU02-0BN0
Ürün Hakkında
SIPLUS ET 200SP IM155-6PN ST RAIL based on 6ES7155-6AU02-0BN0 ile conformal coating, -40...+70 °C arayüz modülleri IM 155-6 PN ST, max. 32 I/O modülleri, ve 16 ET 200AL modülleri, multi hot swap, optional PN strain relief, dahil server modül (6AG1193-6PA00-7AA0)
Siemens 6AG2155-6AU02-4BN0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıIM 155-6 PN ST
Firmware sürümüV6.4.0
FW update possibleVar
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0313H
Manufacturer ID according to ODVA (VendorID)04E3H
Device ID according to ODVA (Product code)0FA2H
based on6ES7155-6AU02-0BN0
Product function
I&M dataVar; I&M0 to I&M4
Module swapping during operation (hot swapping)Var; Multi-hot swapping
Isochronous modeYok
IRTVar
Local coupling, IO dataVar
— Number of coupling modules6; 1x output + maks. 5x input
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
PROFINET from GSD version/GSD revisionGSDML V2.45
Configuration control
via datasetVar
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Short-circuit protectionVar
Mains buffering
Mains/voltage failure stored energy time10 ms
Giriş akımı
Akım tüketimi (nominal değer)350 mA
Akım tüketimi, maks.450 mA
Ani çekiş akımı, maks.1 A
I²t0,05 A²·s
Güç kaybı
Güç kaybı, tipik1,8 W
Address space per module
Address space per module, max.288 bayt; For input ve output data respectively
Address space per station
Address space per station, max.1.440 bayt
Rack
Quantity of operable ET 200SP modules, max.32
Quantity of operable ET 200AL modules, max.16
Submodules
Number of submodules per station, max.256
Arayüzler
Transmission procedure100BASE-TX
PROFINET arayüz sayısı1; 2 ports (switch)
Arayüz tipleri
RJ 45 (Ethernet)Var; with BusAdapter
Port sayısı2; with BusAdapter
Dahili switchVar
BusAdapter (PROFINET)Var
Protokoller
PROFINET IO DeviceVar
Açık IE haberleşmesiVar
Ortam yedekliliğiVar; PROFINET MRP client
Servisler
— IRTVar; 1 ms to 4 ms an interval of 125 µs
— Dinamik çerçeve paketleme (DFP)Var
— Fast ForwardingVar
— FragmentationVar
— PROFIenergyVar
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.4
RJ 45 (Ethernet)
Transmission procedurePROFINET with 100 Mbit/s full duplex (100BASE-TX)
100 MbpsVar
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Protokoller
PROFINET IO protokolünü desteklerVar
PROFIsafeVar
PROFIBUSYok
EtherNet/IPYok
Modbus TCPYok
Yedeklilik modu
PROFINET sistem yedekliliği (S2)Yok
PROFINET sistem yedekliliği (R1)Yok
Ortam yedekliliği
— MRPVar
— MRPDVar
Açık IE haberleşmesi
TCP/IPVar
UDPVar
SNMPVar
LLDPVar
ARPVar
IGMPVar
MulticastVar
BroadcastVar
IPv4Var
IPv6Yok
Interrupts/diagnostics/status information
Status indicatorVar
AlarmsVar
Diagnostics functionVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iVar; Yellow LED
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Connection display LINK TX/RXVar; 2x green link LEDs on BusAdapter
Potential separation
between backplane bus and electronicsYok
between PROFINET and all other circuitsVar; 1500 V AC (type test)
between supply and all other circuitsYok
Permissible potential difference
between different circuitsSafety extra low voltage SELV
Isolation
Isolation tested with707 V DC (type test)
Standartlar, onaylar, sertifikalar
Network loading class3
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Security
PROFINET Security Class1
signed firmware updateVar
securely removing dataVar
data integrityVar
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-6Var; class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; class PC2 protective coating acc. to EN 50155
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
ET-Connection
via BU/BA SendVar; + 16 ET 200AL modules
Mechanics/material
Strain reliefVar; Optional
Ölçüler
Genişlik50 mm
Yükseklik117 mm
Derinlik74 mm
Ağırlık
Ağırlık, yaklaşık125 g; without BusAdapter
Aksesuarlar 10
Siemens 6AG2155-6AU02-4BN0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG1193-6AA00-0AA0 | Aksesuar · Accessories (mounting) | |
| 6AG1193-6AB00-0AA0 | Aksesuar · Accessories (mounting) | |
| 6AG1193-6PA00-7AA0 | Yedek parça · spare part | |
| 6ES7193-6MR00-0AA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0BA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0CA0 | Zorunlu ek ürün · Mounting rail | |
| 6ES7193-6MR00-0DA0 | Zorunlu ek ürün · Mounting rail | |
| 6AG2193-6AM00-4AA0 | Zorunlu ek ürün · BusAdapter | |
| 6AG2193-6AR00-4AA0 | Zorunlu ek ürün · BusAdapter | |
| 6AG2193-6AF00-4AA0 | Zorunlu ek ürün · BusAdapter |
