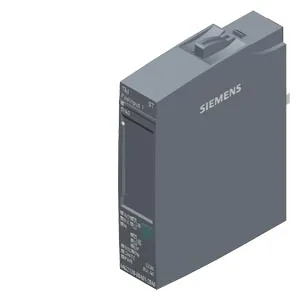

Siemens 6AG2138-6BA01-2BA0
SIPLUS ET 200SP TM Posinput 1 RAIL based on 6ES7138-6BA01-0BA0 ile conformal coating -40...+70 °C, OT4 ile ST1/2 (+70 °C için 10 minutes). 1 counter ve konum detection modül için RS-422 incremental enkoder veya SSI absolute enkoder, 2 DI, 2DQ suitable için BU tip A0, pack quantity: 1 ünite pack quantity: 1 ünite
Ürün tipi tanımıTM PosInput 1
FW update possibleVar
based on6ES7138-6BA01-0BA0
usable BaseUnitsBU type A0
I&M dataVar; I&M0 to I&M3
Isochronous modeVar
Ürün Hakkında
SIPLUS ET 200SP TM Posinput 1 RAIL based on 6ES7138-6BA01-0BA0 ile conformal coating -40...+70 °C, OT4 ile ST1/2 (+70 °C için 10 minutes). 1 counter ve konum detection modül için RS-422 incremental enkoder veya SSI absolute enkoder, 2 DI, 2DQ suitable için BU tip A0, pack quantity: 1 ünite pack quantity: 1 ünite
Siemens 6AG2138-6BA01-2BA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıTM PosInput 1
FW update possibleVar
based on6ES7138-6BA01-0BA0
usable BaseUnitsBU type A0
Color code for module-specific color-coded labelCC00
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Besleme gerilimi
Nominal değer (DC)24 V
Yük gerilimi L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.75 mA; without load
Encoder supply
Number of outputs2
5 V encoder supply
5 VVar
Short-circuit protectionVar; electronic/thermal
Output current, max.300 mA; Total current of all encoders
24 V enkoder beslemesi
24 VVar; L+ (-0.8 V)
Short-circuit protectionVar; electronic/thermal
Output current, max.300 mA; Total current of all encoders
Güç kaybı
Güç kaybı, tipik1,5 W
Address space per module
Inputs16 bayt; 4 bytes in Fast mode
Outputs12 bayt; 4 bytes for Motion Control, 0 bytes for Fast mode
Donanım yapılandırması
Automatic encodingVar
Mechanical coding elementVar
Type of mechanical coding elementtype B
Dijital girişler
Dijital giriş sayısı2
Digital inputs, parameterizableVar
Input characteristic curve in accordance with IEC 61131, type 3Var
Digital input functions, parameterizable
Gate start/stopVar; only for pulse ve incremental encoders
CaptureVar
SynchronizationVar; only for pulse ve incremental encoders
Freely usable digital inputVar
Giriş gerilimi
Nominal değer (DC)24 V
“0” sinyali için-5... +5 V
“1” sinyali için+11 to +30V
permissible voltage at input, min.-30 V; -5 V continuous, -30 V brief reverse polarity protection
permissible voltage at input, max.30 V
Giriş akımı
for signal "1", typ.2,5 mA
Standart girişler için
— ParametrelenebilirVar; yok / 0,05 / 0,1 / 0,4 / 0,8 / 1,6 / 3,2 / 12,8 / 20 ms
Teknolojik fonksiyonlar için
— ParametrelenebilirVar
Kablo uzunluğu
Ekranlı, maks.1.000 m
Ekransız, maks.600 m
Dijital çıkışlar
Type of digital outputTransistor
Dijital çıkış sayısı2
Digital outputs, parameterizableVar
Short-circuit protectionVar; electronic/thermal
Response threshold, typ.1 A
Endüktif kapatma geriliminin sınırlandırılmasıL+ (-53 V)
Controlling a digital inputVar
Digital output functions, parameterizable
Switching tripped by comparison valuesVar
Freely usable digital outputVar
Çıkışların anahtarlama kapasitesi
Omik yükte, maks.0,5 A; Per digital output
Lamba yükünde, maks.5 W
Load resistance range
lower limit48 Ω
upper limit12 kΩ
Çıkış gerilimi
“1” sinyali için, min.23,2 V; L+ (-0.8 V)
Çıkış akımı
“1” sinyali için nominal değer0,5 A; Per digital output
for signal "1" permissible range, max.0,6 A; Per digital output
for signal "1" minimum load current2 mA
“0” sinyali için artık akım, maks.0,5 mA
Omik yükte çıkış gecikmesi
“0”dan “1”e, maks.50 µs
“1”den “0”a, maks.50 µs
Anahtarlama frekansı
Omik yükte, maks.10 kHz
with inductive load, max.0,5 Hz; Acc. to IEC 60947-5-1, DC-13; observe derating curve
Lamba yükünde, maks.10 Hz
Total current of the outputs
Current per module, max.1 A
Kablo uzunluğu
Ekranlı, maks.1.000 m
Ekransız, maks.600 m
Encoder signals, incremental encoder (symmetrical)
Input voltageRS 422
Input frequency, max.1 MHz
Sayma frekansı, maks.4 MHz; with quadruple evaluation
Cable length, shielded, max.32 m; 1 MHz
Signal filter, parameterizableVar
Incremental encoder with A/B tracks, 90° phase offsetVar
Incremental encoder with A/B tracks, 90° phase offset and zero trackVar
pulse encoderVar
Pulse encoder with directionVar
pulse encoder with one impulse signal per count directionVar
Encoder signals, incremental encoder (asymmetrical)
Input voltage5 V TTL (push-pull encoders only)
Input frequency, max.1 MHz
Sayma frekansı, maks.4 MHz; with quadruple evaluation
Signal filter, parameterizableVar
Incremental encoder with A/B tracks, 90° phase offsetVar
Incremental encoder with A/B tracks, 90° phase offset and zero trackVar
pulse encoderVar
pulse encoder with directionVar
pulse encoder with one impulse signal per count directionVar
Encoder signals, absolute encoder (SSI)
Input signalto RS-422
Telegram length, parameterizable10... 40 bit
Clock frequency, max.2 MHz; 125 kHz, 250 kHz, 500 kHz, 1 MHz, 1,5 MHz veya 2 MHz
Binary codeVar
Gray codeVar
Cable length, shielded, max.320 m; Cable length, RS-422 SSI absolute encoders, Siemens type 6FX2001-5, 24 V supply: 125 kHz, 320 meters shielded, maks.; 250 kHz, 160 meters shielded, maks.; 500 kHz, 60 meters shielded, maks.; 1 MHz, 20 meters shielded, maks. 1,5 MHz, 10 meters shielded, maks.; 2 MHz, 8 meters shielded, maks.
Parity bit, parameterizableVar
Monoflop time16, 32, 48, 64 µs & automatic
MultiturnVar
SingleturnVar
Arayüz tipleri
TTL 5 VVar; push-pull encoders only
RS 422Var
Arayüzler
Number of RS 485 interfaces0
Interrupts/diagnostics/status information
Substitute values connectableVar; Parameterizable
Alarms
Diagnostic alarmVar
Hardware interruptVar
Diagnoses
Monitoring the supply voltageVar
Wire breakVar
Short-circuitVar
A/B transition error at incremental encoderVar
Telegram error at SSI encoderVar
Group errorVar
Tanılama gösterge LED’i
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Channel status displayVar; green LED
for module diagnosticsVar; green/red DIAG LED
Status indicator forward counting (green)Var
Status indicator backward counting (green)Var
Entegre fonksiyonlar
CounterVar
Sayıcı sayısı1
Sayma frekansı, maks.4 MHz; with quadruple evaluation
Fast modeVar
Counting functions
Can be used with TO High_Speed_CounterVar; only for pulse ve incremental encoders
Continuous countingVar
Counter response parameterizableVar
Hardware gate via digital inputVar
Software gateVar
Event-controlled stopVar
Synchronization via digital inputVar
Counting range, parameterizableVar
Comparator
— Number of comparators2
— Direction dependencyVar
— Can be changed from user programVar
Position detection
Incremental acquisitionVar
Absolute acquisitionVar
Suitable for S7-1500 Motion ControlVar
Measuring functions
Measuring time, parameterizableVar
Dynamic measurement period adjustmentVar
Number of thresholds, parameterizable2
Measuring range
— Frequency measurement, min.0,04 Hz
— Frequency measurement, max.4 MHz
— Cycle duration measurement, min.0,25 µs
— Cycle duration measurement, max.25 s
Accuracy
— Frequency measurement100 ppm; depending on measuring interval ve signal evaluation
— Cycle duration measurement100 ppm; depending on measuring interval ve signal evaluation
— Velocity measurement100 ppm; depending on measuring interval ve signal evaluation
Potential separation channels
between the channels and backplane busVar
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsYok
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment (shielded cables required)
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT2, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.60 °C; = Tmax; +70 °C for 10 min (OT2, ST1/ST2 acc. to EN 50155); +70 °C continuously with configured slots to the left ve right of the module (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax; see Derating BasedOn (e.g. manual)
ceiling installation, min.-40 °C; = Tmin
ceiling installation, max.50 °C; = Tmax
floor installation, min.-40 °C; = Tmin
floor installation, max.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; class PC2 protective coating acc. to EN 50155
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Decentralized operation
to SIMATIC S7-300Var
to SIMATIC S7-400Var
to SIMATIC S7-1200Var
to SIMATIC S7-1500Var
to standard PROFIBUS masterVar
to standard PROFINET controllerVar
Ölçüler
Genişlik15 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık45 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 4
Siemens 6AG2138-6BA01-2BA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG2193-6BP00-4BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP00-4DA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP20-4BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP20-4DA0 | Zorunlu ek ürün · BaseUnit |
İlgili Ürünler
Detayları Gör
Siemens
1FN3050-8SA00-0AA0
MFR #1FN3050-8SA00-0AA0
SKU #YLSPEYTCHSLPEPH
Detayları Gör
Siemens
1FN3100-8SA00-0AA0
MFR #1FN3100-8SA00-0AA0
SKU #YLSJZNRPZ4VXXL
Detayları Gör
Siemens
1FN3150-8SA00-0AA0
MFR #1FN3150-8SA00-0AA0
SKU #YLSZOWEGFUAGXOH
Detayları Gör
Siemens
1FN3300-8SA00-0AA0
MFR #1FN3300-8SA00-0AA0
SKU #YLSZMAEBPCROKIZ
Detayları Gör
Siemens
1FN3450-8SA00-0AA0
MFR #1FN3450-8SA00-0AA0
SKU #YLSNONBMS6EF28
Detayları Gör
Siemens
1FN3600-8SA00-0AA0
MFR #1FN3600-8SA00-0AA0
SKU #YLS8CPR47M6DMNJ
Detayları Gör
Siemens
1FN3900-8SA00-0AA0
MFR #1FN3900-8SA00-0AA0
SKU #YLSQEN1CGSWWALU
Detayları Gör
Siemens
1FY2105-0AA00
MFR #1FY2105-0AA00
SKU #YLSGTZWOTRQID
Detayları Gör
Siemens
1FY2105-4AA00
MFR #1FY2105-4AA00
SKU #YLSDLAYIMNHTZJE
Öne Çıkan Ürünler
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
İlgili Aramalar
Siemens 6AG2138-6BA01-2BA0 fiyatSiemens 6AG2138-6BA01-2BA0 teklif alSiemens 6AG2138-6BA01-2BA0 satın al6AG2138-6BA01-2BA0 fiyat6AG2138-6BA01-2BA0 stok durumuSiemens yedek parçaSiemens 6AG2138-6BA01-2BA0 muadilSiemens 6AG2138-6BA01-2BA0 teknik özellikler
