Siemens 6AG2136-6DC00-1CA0

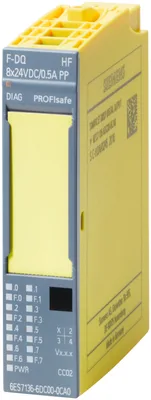

SIPLUS ET 200SP F-DQ 8x24VDC/0.5A rail based on 6ES7136-6DC00-0CA0 with conformal coating, -30…+60 °C, OT1 with ST1/2 (+70 °C for 10 minutes), fail-safe digital outputs Cat. 4, PL e (EN ISO 13849-1) up to SIL 3 (IEC 61508)
Ürün tipi tanımıF-DQ 8x24 V DC/0,5 A PP HF
FW update possibleVar
based on6ES7136-6DC00-0CA0
usable BaseUnitsBU type A0
I&M dataVar; I&M0 to I&M3
Nominal değer (DC)24 V
Ürün Hakkında
SIPLUS ET 200SP F-DQ 8x24VDC/0.5A rail based on 6ES7136-6DC00-0CA0 with conformal coating, -30…+60 °C, OT1 with ST1/2 (+70 °C for 10 minutes), fail-safe digital outputs Cat. 4, PL e (EN ISO 13849-1) up to SIL 3 (IEC 61508)
Siemens 6AG2136-6DC00-1CA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıF-DQ 8x24 V DC/0,5 A PP HF
FW update possibleVar
based on6ES7136-6DC00-0CA0
usable BaseUnitsBU type A0
Color code for module-specific color-coded labelCC02
Product function
I&M dataVar; I&M0 to I&M3
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
power supply according to NEC Class 2 requiredYok
Giriş akımı
Akım tüketimi (nominal değer)75 mA; without load
Akım tüketimi, maks.21 mA; From the backplane bus
Çıkış gerilimi
Nominal değer (DC)24 V
Power
Power consumption from the backplane bus70 mW
Güç kaybı
Güç kaybı, tipik3 W
Address space per module
Inputs6 bayt; 5 bytes non-RIOforFA; 6 bytes RIOforFA
Outputs6 bayt; 5 bytes non-RIOforFA; 6 bytes RIOforFA
Donanım yapılandırması
Automatic encodingVar
Electronic coding element type FVar
Dijital çıkışlar
Type of digital outputTransistor
Dijital çıkış sayısı8
Digital outputs, parameterizableVar
Short-circuit protectionVar
Response threshold, typ.Min. 0,7 A
Open-circuit detectionYok
Endüktif kapatma geriliminin sınırlandırılmasıTyp. -39 V
Controlling a digital inputVar; digital output, according to IEC 61131-2, type 0,5
Çıkışların anahtarlama kapasitesi
Omik yükte, maks.0,5 A
Lamba yükünde, maks.2 W
Load resistance range
lower limit48 Ω
upper limit12.000 Ω
Çıkış gerilimi
“1” sinyali için, min.24 V; L+ (-0.5 V)
Çıkış akımı
“1” sinyali için nominal değer0,5 A
“0” sinyali için artık akım, maks.0,5 mA
Anahtarlama frekansı
Omik yükte, maks.30 Hz; Symmetrical
with inductive load, max.0,1 Hz; according to IEC 60947-5-1, DC-13, symmetrical
with capacitive load, max.2 Hz; Symmetrical
Lamba yükünde, maks.10 Hz; Symmetrical
Total current of the outputs
Current per channel, max.0,5 A; note derating data in the manual
Current per module, max.3 A; note derating data in the manual
horizontal installation
— 40 °C’ye kadar, maks.3 A; note derating data in the manual
— up to 50 °C, max.2,5 A; note derating data in the manual
— up to 60 °C, max.2 A; note derating data in the manual
— up to 70 °C, max.2 A; note derating information in the manual; yalnızca şununla: configured slots to the left ve right of the module
vertical installation
— up to 50 °C, max.2 A; note derating data in the manual
Kablo uzunluğu
Ekranlı, maks.100 m
Ekransız, maks.100 m
Interrupts/diagnostics/status information
Diagnostics functionVar; See Chapter "Alarms/diagnostic messages" in the manual
Substitute values connectableYok
Alarms
Diagnostic alarmVar
Hardware interruptYok
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
for module diagnosticsVar; green/red DIAG LED
Potential separation channels
Kanallar arasıYok
between the channels and backplane busVar
between the channels and the power supply of the electronicsYok
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsVar
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]88,3 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]13,1 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]76,6 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-1.37 kg
Highest safety class achievable in safety mode
Performance level according to ISO 13849-1PLe
Category according to ISO 13849-1Cat. 4
SIL acc. to IEC 61508SIL 3
SIL in accordance with EN 50126-1, 50129, 50159, 50716SIL 2; a higher safety integrity level is possible if tested ve approved for the specific application under consideration of all local regulations.
Probability of failure (for service life of 20 years and repair time of 100 hours)
— Low demand mode: PFDavg in accordance with SIL3< 6.00E-05
— High demand/continuous mode: PFH in accordance with SIL3< 2.00E-09 1/h
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment (shielded cables required)
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT1, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-30 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155); +70 °C continuously with spacing modules (6AG2193-6BN00-4BA0) veya configured empty slots to the left ve right of the module (OT3, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-30 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik15 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık48 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
