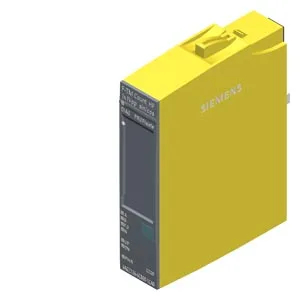

Siemens 6AG2136-6CB00-1CA0
SIPLUS ET 200SP F-TM Count HF RAIL based on 6ES7136-6CB00-0CA0 with conformal coating OT1: -25...+55 °C ST1/2: 70 °C for 10 minutes . 1x1 Vpp sin/cos HF, PROFIsafe, 1 channel, for incremental rotary encoders, sin/cos 1 Vpp, suitable for BU type A0, pack quantity: 1 unit
Ürün tipi tanımıF-TM Count 1x1Vpp sin/cos HF
FW update possibleVar
based on6ES7136-6CB00-0CA0
usable BaseUnitsBU type A0
I&M dataVar; I&M0 to I&M3
Nominal değer (DC)24 V
Ürün Hakkında
SIPLUS ET 200SP F-TM Count HF RAIL based on 6ES7136-6CB00-0CA0 with conformal coating OT1: -25...+55 °C ST1/2: 70 °C for 10 minutes . 1x1 Vpp sin/cos HF, PROFIsafe, 1 channel, for incremental rotary encoders, sin/cos 1 Vpp, suitable for BU type A0, pack quantity: 1 unit
Siemens 6AG2136-6CB00-1CA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıF-TM Count 1x1Vpp sin/cos HF
FW update possibleVar
based on6ES7136-6CB00-0CA0
usable BaseUnitsBU type A0
Color code for module-specific color-coded labelCC01
Product function
I&M dataVar; I&M0 to I&M3
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Besleme gerilimi
Nominal değer (DC)24 V
power supply according to NEC Class 2 requiredYok
Yük gerilimi L+
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.50 mA; without load, 150 mA with 300 mA encoder load
5 V encoder supply
5 VVar; 5,1 V ±3,5 %
Short-circuit protectionVar; Electronic overload protection; no protection on applying a normal veya counter voltage.
Output current, max.300 mA
Güç kaybı
Güç kaybı, tipik1,25 W
Address space per module
Inputs14 bayt; S7-300/400F CPU, 13 bayt
Outputs5 bayt; S7-300/400F CPU, 4 bayt
Donanım yapılandırması
Automatic encodingVar
Electronic coding element type HVar
Dijital girişler
Dijital giriş sayısı1; (counter input)
Digital inputs, parameterizableVar
Digital input functions, parameterizable
Gate start/stopVar
Counter for incremental encoderVar
— Number, max.1
Giriş gerilimi
Type of input voltagesin/cos 1 Vpp
Input delay (for rated value of input voltage)
Minimum pulse width for program reactions2,5 µs
Teknolojik fonksiyonlar için
— ParametrelenebilirVar
Kablo uzunluğu
Ekranlı, maks.150 m
Bağlanabilir enkoderler
Incremental encoder (symmetrical)Var; up to 200 kHz depending on cable type ve length
Encoder signals, incremental encoder (symmetrical)
Input voltage1 Vpp, centered 2,5 V offset
Input frequency, max.200 kHz
Sayma frekansı, maks.800 kHz; with quadruple evaluation
Cable length, shielded, max.150 m
Incremental encoder with A/B tracks, 90° phase offsetVar; sin/cos
Incremental encoder with A/B tracks, 90° phase offset and zero trackVar; sin/cos/zero
Arayüzler
Number of RS 485 interfaces0
Interrupts/diagnostics/status information
Diagnostics functionVar; see chapter "Diagnostic Messages" in the manual
Alarms
Diagnostic alarmVar
Hardware interruptYok
Diagnoses
Monitoring the supply voltageVar
Wire breakVar
Short-circuitVar
A/B transition error at incremental encoderVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
Monitoring of the supply voltage (PWR-LED)Var; green LED
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
for module diagnosticsVar; green/red DIAG LED
Entegre fonksiyonlar
CounterVar
Sayıcı sayısı1
Sayma frekansı, maks.800 kHz; with quadruple evaluation
Safety monitoring functions
Safe Operating Stop (SOS)Var
Safely-Limited Speed (SLS)Var
Safe Direction (SDI)Var
Safe Speed Monitor (SSM)Var
Counting functions
Continuous countingVar
Counter response parameterizableVar
Software gateVar
Counting range, parameterizableVar
Measuring range
— Frequency measurement, min.0,04 Hz
— Frequency measurement, max.800 kHz; with quadruple evaluation
— Cycle duration measurement, min.1 µs
— Cycle duration measurement, max.25 s
— Velocity measurement, min.0 (speed in configured units per selected time basis - speed*1.000)
— Velocity measurement, max.2.147.483 (speed in configured units per selected time basis - speed*1.000)
Accuracy
— Frequency measurementup to 100 ppm; depending on measuring interval ve signal evaluation; low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)
— Cycle duration measurementup to 100 ppm; depending on measuring interval ve signal evaluation; low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)
— Velocity measurementup to 100 ppm; depending on measuring interval ve signal evaluation; low frequency external noise may have an effect on accuracy (reference the graph in 2.2.3)
Potential separation channels
Kanallar arasıYok; Only one channel is available
between the channels and backplane busVar
Between the channels and load voltage L+Yok
between the channels and the power supply of the electronicsYok
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsVar
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]88,3 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]13,1 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]76,6 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-1.37 kg
Highest safety class achievable in safety mode
Performance level according to ISO 13849-1Cat. 4, PLe
SIL acc. to IEC 61508SIL 3
SIL in accordance with EN 50126-1, 50129, 50159, 50716SIL 2; a higher safety integrity level is possible if tested ve approved for the specific application under consideration of all local regulations.
Probability of failure (for service life of 20 years and repair time of 100 hours)
— low demand mode: PFDavg in accordance with SIL1< 2.00E-03 signal monitoring disabled
— Low demand mode: PFDavg in accordance with SIL3< 3.00E-05
— high demand/continuous mode: PFH in accordance with SIL1< 3.00E-08 1/h signal monitoring disabled
— High demand/continuous mode: PFH in accordance with SIL3< 1.00E-09 1/h
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT1, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-25 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155); +70 °C continuously with spacing modules (6AG2193-6BN00-4BA0) veya configured empty slots to the left ve right of the module (OT3, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-25 °C; = Tmin
Dikey montaj, maks.55 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; class PC2 protective coating acc. to EN 50155
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik15 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık42 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 4
Siemens 6AG2136-6CB00-1CA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG2193-6BP00-4BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP00-4DA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP20-4BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP20-4DA0 | Zorunlu ek ürün · BaseUnit |
