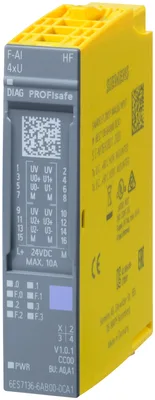

Siemens 6AG2136-6AB00-1CA1
SIPLUS ET 200SP F-AI 4xU 0..10 V HF rail based on 6ES7136-6AB00-0CA1, ile conformal coating, -30…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), fail-safe analog giriş, en çok PL e (ISO 13849), en çok SIL 3 (IEC 61508)
Ürün tipi tanımıF-AI 4XU 0..10V HF
FW update possibleVar
based on6ES7136-6AB00-0CA1
usable BaseUnitsBU type A0, A1
I&M dataVar; I&M0 to I&M3
cyclic measurementVar
Ürün Hakkında
SIPLUS ET 200SP F-AI 4xU 0..10 V HF rail based on 6ES7136-6AB00-0CA1, ile conformal coating, -30…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), fail-safe analog giriş, en çok PL e (ISO 13849), en çok SIL 3 (IEC 61508)
Siemens 6AG2136-6AB00-1CA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıF-AI 4XU 0..10V HF
FW update possibleVar
based on6ES7136-6AB00-0CA1
usable BaseUnitsBU type A0, A1
Color code for module-specific color-coded labelCC00
Product function
I&M dataVar; I&M0 to I&M3
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
cyclic measurementVar
OversamplingYok
MSIYok
CiR - Configuration in RUN
Reparameterization possible in RUNYok
Calibration possible in RUNYok
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
power supply according to NEC Class 2 requiredYok
Giriş akımı
Akım tüketimi (nominal değer)0,38 A
Akım tüketimi, maks.0,4 A
24 V enkoder beslemesi
24 VVar; min. L+ (-1.5 V)
Short-circuit protectionVar
Output current, max.300 mA; toplam current of all encoders/channels
Power
Power consumption from the backplane bus70 mW
Güç kaybı
Güç kaybı, tipik2 W
Address space per module
Inputs14 bayt; S7-300/400F CPU, 13 bayt
Outputs5 bayt; S7-300/400F CPU, 4 bayt
Donanım yapılandırması
Automatic encodingVar
Electronic coding element type HVar
Analog girişler
Analog giriş sayısı4
For voltage measurement4
permissible input voltage for voltage input (destruction limit), max.36 V
Giriş aralıkları (nominal değerler), gerilim
0 … +10 VVar
— Giriş direnci (0 … 10 V)16 kΩ
Kablo uzunluğu
Ekranlı, maks.200 m
Analog value generation for the inputs
Measurement principleSigma Delta
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Entegrasyon süresi, parametrelenebilirVar
Integration time (ms)20 / 16,667
Interference voltage suppression for interference frequency f1 in Hz50 / 60 Hz
Smoothing of measured values
Number of smoothing levels7
parameterizableVar
Step: NoneVar; 1x conversion cycle time
Step: lowVar; 2x / 4x conversion cycle time
Step: MediumVar; 8x / 16x conversion cycle time
Step: HighVar; 32x / 64x conversion cycle time
Average value filterVar
Connection of signal encoders
for voltage measurementVar
Errors/accuracies
Linearity error (relative to input range), (+/-)0,1 %
Temperature error (relative to input range), (+/-)0,023 %/K
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,1 %
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)2,6 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,1 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
Series mode interference (peak value of interference < rated value of input range), min.40 dB
Common mode voltage, max.10 V
Common mode interference, min.70 dB
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Limit value alarmYok
Diagnoses
Monitoring the supply voltageVar
Wire breakVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
for module diagnosticsVar; green/red DIAG LED
Potential separation channels
Kanallar arasıYok
between the channels and backplane busVar
between the channels and the power supply of the electronicsVar
Permissible potential difference
between the inputs (UCM)10 Vpp
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]88,3 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]13,1 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]76,6 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-1.37 kg
Highest safety class achievable in safety mode
Performance level according to ISO 13849-1PLe
Category according to ISO 13849-1Cat. 4
SIL acc. to IEC 61508SIL 3
SIL in accordance with EN 50126-1, 50129, 50159, 50716SIL 2; a higher safety integrity level is possible if tested ve approved for the specific application under consideration of all local regulations.
Probability of failure (for service life of 20 years and repair time of 100 hours)
— Low demand mode: PFDavg in accordance with SIL3< 5.00E-05
— High demand/continuous mode: PFH in accordance with SIL3< 1.00E-09 1/h
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT1, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-30 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155); +70 °C continuously with spacing modules (6AG2193-6BN00-4BA0) veya configured empty slots to the left ve right of the module (OT3, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-30 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik15 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık48 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 5
Siemens 6AG2136-6AB00-1CA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG2193-6BP00-4BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP00-4DA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP00-4DA1 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP20-4BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP20-4DA0 | Zorunlu ek ürün · BaseUnit |
