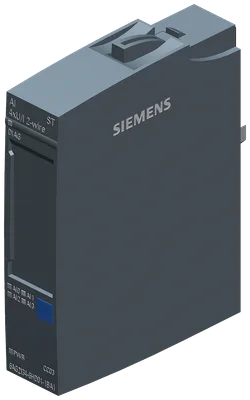

Siemens 6AG2134-6HD01-1BA1
SIPLUS ET 200SP AI 4xU/I 2-wire T1 rail based on 6ES7134-6HD01-0BA1 ile conformal coating, -40…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), analog giriş modül, suitable için BU tip A0, A1, renk code CC03, modül diagnostics, 16 bit, +/-0.3%
Ürün tipi tanımıAI 4x U/I 2-wire
FW update possibleVar
based on6ES7134-6HD01-0BA1
usable BaseUnitsBU type A0, A1
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Ürün Hakkında
SIPLUS ET 200SP AI 4xU/I 2-wire T1 rail based on 6ES7134-6HD01-0BA1 ile conformal coating, -40…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), analog giriş modül, suitable için BU tip A0, A1, renk code CC03, modül diagnostics, 16 bit, +/-0.3%
Siemens 6AG2134-6HD01-1BA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıAI 4x U/I 2-wire
FW update possibleVar
based on6ES7134-6HD01-0BA1
usable BaseUnitsBU type A0, A1
Color code for module-specific color-coded labelCC03
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Measuring range scalableYok
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
OversamplingYok
MSIYok
CiR - Configuration in RUN
Reparameterization possible in RUNVar
Calibration possible in RUNYok
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.37 mA; without sensor supply
24 V enkoder beslemesi
24 VVar
Short-circuit protectionVar
Output current, max.20 mA; maks. 50 mA per channel for a duration < 10 s
Güç kaybı
Güç kaybı, tipik0,85 W; Without encoder supply voltage
Address space per module
Address space per module, max.8 bayt; + 1 bayt for QI information
Donanım yapılandırması
Mechanical coding elementVar
Selection of BaseUnit for connection variants
2-wire connectionBU type A0, A1
Analog girişler
Analog giriş sayısı4; Differential inputs
permissible input voltage for voltage input (destruction limit), max.30 V
permissible input current for current input (destruction limit), max.50 mA
Cycle time (all channels), min.Sum of the basic conversion times ve additional processing times (depending on the parameterization of the active channels)
Giriş aralıkları (nominal değerler), gerilim
0 … +10 VVar; 15 bit
— Giriş direnci (0 … 10 V)120 kΩ
1 V to 5 VVar; 15 bit
— Input resistance (1 V to 5 V)120 kΩ
-10 V to +10 VVar; 16 bit incl. sign
— Input resistance (-10 V to +10 V)120 kΩ
-5 V to +5 VVar; 16 bit incl. sign
— Input resistance (-5 V to +5 V)120 kΩ
Input ranges (rated values), currents
0 … 20 mAVar; 15 bit
— Input resistance (0 to 20 mA)100 Ω; + yaklaşık 0,7 V diode forward voltage
4 mA to 20 mAVar; 15 bit
— Input resistance (4 mA to 20 mA)100 Ω; + yaklaşık 0,7 V diode forward voltage
Kablo uzunluğu
Ekranlı, maks.1.000 m; 200 m for voltage measurement
Analog value generation for the inputs
Measurement principleintegrating (Sigma-Delta)
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Entegrasyon süresi, parametrelenebilirVar
Interference voltage suppression for interference frequency f1 in Hz16,6 / 50 / 60 Hz
Dönüşüm süresi (kanal başına)180 / 60 / 50 ms
Smoothing of measured values
Number of smoothing levels4; Yok; 4/8/16 times
ParameterizableVar
Connection of signal encoders
for voltage measurementVar
for current measurement as 2-wire transducerVar
— Burden of 2-wire transmitter, max.650 Ω
for current measurement as 4-wire transducerYok
Errors/accuracies
Linearity error (relative to input range), (+/-)0,01 %
Temperature error (relative to input range), (+/-)0,005 %/K
Crosstalk between the inputs, min.50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,05 %
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)0,7 %
Current, relative to input range, (+/-)0,7 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,3 %
Current, relative to input range, (+/-)0,3 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
Series mode interference (peak value of interference < rated value of input range), min.70 dB
Common mode voltage, max.10 V
Common mode interference, min.90 dB
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Limit value alarmYok
Diagnoses
Monitoring the supply voltageVar
Wire breakVar; 4 to 20 mA
short-circuitVar; with 1 to 5 V veya 2-wire mode: Short-circuit of the encoder supply to ground veya of an input to the encoder supply
Group errorVar
Overflow/UnderflowVar
Tanılama gösterge LED’i
Monitoring of the supply voltage (PWR-LED)Var; green LED
Channel status displayVar; green LED
for channel diagnosticsYok
for module diagnosticsVar; green/red LED
Potential separation channels
Kanallar arasıVar; channel group-specific between 2-wire current input group ve voltage input group
between the channels and backplane busVar
between the channels and the power supply of the electronicsVar; only for voltage inputs
Permissible potential difference
between the inputs (UCM)10 V DC
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT1, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost); start-up @ -30 °C
Yatay montaj, maks.60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin; startup @ -30 °C
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik15 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık31 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 5
Siemens 6AG2134-6HD01-1BA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG2193-6BP00-4BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP00-4DA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP00-4DA1 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP20-4BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP20-4DA0 | Zorunlu ek ürün · BaseUnit |
