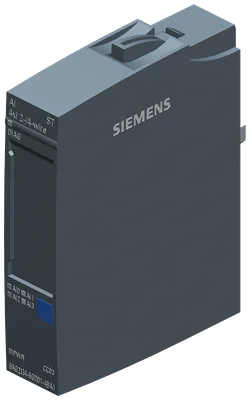

Siemens 6AG2134-6GD01-4BA1

SIPLUS ET 200SP AI 4xI 2-/4-wire TX rail based on 6ES7134-6GD01-0BA1 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), analog giriş modül, suitable için BU tip A0, A1, renk code CC03, modül diagnostics, 16-bit, +/-0.3%

SiemensMFR # 6AG2134-6GD01-4BA1SKU # YLSGNAM6BQKOJX

Ürün tipi tanımıAI 4xI 2-/4-wire ST

FW update possibleVar

based on6ES7134-6GD01-0BA1

usable BaseUnitsBU type A0, A1

I&M dataVar; I&M0 to I&M3

Isochronous modeYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6AG2134-6GD01-4BA1

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

Ürün tipi tanımıAI 4xI 2-/4-wire ST

FW update possibleVar

based on6ES7134-6GD01-0BA1

usable BaseUnitsBU type A0, A1

Color code for module-specific color-coded labelCC03

Product function

I&M dataVar; I&M0 to I&M3

Isochronous modeYok

Measuring range scalableYok

Mühendislik aracı

STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275

Operating mode

OversamplingYok

MSIYok

CiR - Configuration in RUN

Reparameterization possible in RUNVar

Calibration possible in RUNYok

Besleme gerilimi

Nominal değer (DC)24 V

İzin verilen aralık, alt sınır (DC)19,2 V

İzin verilen aralık, üst sınır (DC)28,8 V

Ters polarite korumasıVar

Giriş akımı

Akım tüketimi, maks.37 mA; without sensor supply

24 V enkoder beslemesi

24 VVar

Short-circuit protectionVar

Output current, max.20 mA; maks. 50 mA per channel for a duration < 10 s

Güç kaybı

Güç kaybı, tipik0,85 W; Without encoder supply voltage

Address space per module

Address space per module, max.8 bayt; + 1 bayt for QI information

Donanım yapılandırması

Automatic encodingVar

Mechanical coding elementVar

Type of mechanical coding elementType A

Selection of BaseUnit for connection variants

2-wire connectionBU type A0, A1

4-wire connectionBU type A0, A1

Analog girişler

Analog giriş sayısı4; > 60 °C maks. 1x ±20 mA permissible

permissible input current for current input (destruction limit), max.50 mA

Cycle time (all channels), min.Sum of the basic conversion times ve additional processing times (depending on the parameterization of the active channels)

Input ranges (rated values), currents

0 … 20 mAVar; 16 bit incl. sign

— Input resistance (0 to 20 mA)100 Ω; + yaklaşık 0,7 V diode forward voltage in 2-wire operation

-20 mA to +20 mAVar

— Input resistance (-20 mA to +20 mA)100 Ω

4 mA to 20 mAVar; 15 bit

— Input resistance (4 mA to 20 mA)100 Ω; + yaklaşık 0,7 V diode forward voltage in 2-wire operation

Kablo uzunluğu

Ekranlı, maks.1.000 m

Analog value generation for the inputs

Measurement principleintegrating (Sigma-Delta)

Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük

Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit

Entegrasyon süresi, parametrelenebilirVar

Interference voltage suppression for interference frequency f1 in Hz16,6 / 50 / 60 Hz

Dönüşüm süresi (kanal başına)180 / 60 / 50 ms

Smoothing of measured values

Number of smoothing levels4; Yok; 4/8/16 times

parameterizableVar

Connection of signal encoders

for voltage measurementYok

for current measurement as 2-wire transducerVar

— Burden of 2-wire transmitter, max.650 Ω

for current measurement as 4-wire transducerVar

Errors/accuracies

Linearity error (relative to input range), (+/-)0,01 %

Temperature error (relative to input range), (+/-)0,005 %/K

Crosstalk between the inputs, min.50 dB; Applies to up to ±5 V overvoltage in other channels

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,05 %

Operational error limit in overall temperature range

Current, relative to input range, (+/-)0,7 %

Basic error limit (operational limit at 25 °C)

Current, relative to input range, (+/-)0,3 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.70 dB

Common mode voltage, max.10 V

Common mode interference, min.90 dB

Interrupts/diagnostics/status information

Diagnostics functionVar

Alarms

Diagnostic alarmVar

Limit value alarmYok

Diagnoses

Monitoring the supply voltageVar

Wire breakVar; 4 to 20 mA

Short-circuitVar; 2-wire mode: Short-circuit of the encoder supply to ground veya of an input to the encoder supply

Group errorVar

Overflow/UnderflowVar

Tanılama gösterge LED’i

Monitoring of the supply voltage (PWR-LED)Var; green LED

Channel status displayVar; green LED

for channel diagnosticsYok

for module diagnosticsVar; green/red LED

Potential separation channels

Kanallar arasıVar; channel group-specific between 2-wire current input group ve 4-wire voltage input group

between the channels and backplane busVar

between the channels and the power supply of the electronicsVar; only for 4-wire transducer

Permissible potential difference

between the inputs (UCM)10 V DC

Isolation

Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)

Railway application

EN 50121-3-2Var; EMC for rail vehicles

EN 50121-4Var; EMC for signal ve telecommunications systems

EN 50121-5Var; EMC for fixed installations ve railway power supply equipment

EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC

EN 50125-1Var; Rail vehicles - see ambient conditions

EN 50125-2Var; Stationary electrical equipment - see ambient conditions

EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)

EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position

EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B

Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support

Çalışma ortam sıcaklığı

Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)

Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)

Dikey montaj, min.-40 °C; = Tmin

Dikey montaj, maks.50 °C; = Tmax

Deniz seviyesine göre çalışma yüksekliği

Installation altitude above sea level, max.2.000 m

Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)

Bağıl nem

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine

— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *

— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Use on land craft, rail vehicles and special-purpose vehicles

— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine

— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *

— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Var; Type 1 protection

Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017

Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A

Ölçüler

Genişlik15 mm

Yükseklik73 mm

Derinlik58 mm

Ağırlık

Ağırlık, yaklaşık31 g

Other

Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776

Aksesuarlar 5

Siemens 6AG2134-6GD01-4BA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6AG2193-6BP00-4BA0	Zorunlu ek ürün · BaseUnit
6AG2193-6BP00-4DA0	Zorunlu ek ürün · BaseUnit
6AG2193-6BP00-4DA1	Zorunlu ek ürün · BaseUnit
6AG2193-6BP20-4BA0	Zorunlu ek ürün · BaseUnit
6AG2193-6BP20-4DA0	Zorunlu ek ürün · BaseUnit
