Siemens 6AG2134-3AB00-3AY0 için nasıl fiyat teklifi alabilirim?

Siemens 6AG2134-3AB00-3AY0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSKINYMDWB3XLZ ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6AG2134-3AB00-3AY0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6AG2134-3AB00-3AY0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6AG2134-3AB00-3AY0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

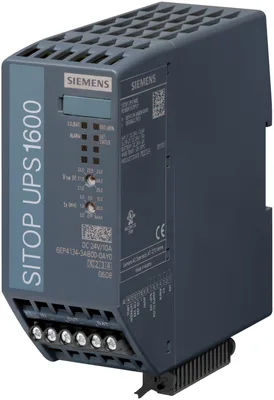

Siemens 6AG2134-3AB00-3AY0

SIPLUS PS UPS1600 DC 24V/ 10 A rail based on 6EP4134-3AB00-0AY0 with conformal coating, -25…+70 °C, OT3 with ST1/2 (+85 °C for 10 minutes), uninterruptible power supply input: 24 V DC output: 24 V DC/ 10 A

SiemensMFR # 6AG2134-3AB00-3AY0SKU # YLSKINYMDWB3XLZ

product brand nameSIPLUS

product type designationUPS1600

type of current supplyDC UPS 24 V/10 A

voltage curve at inputDC

supply voltage at DC rated value24 V

input voltage at DC21... 29 V

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6AG2134-3AB00-3AY0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSIPLUS

product type designationUPS1600

type of current supplyDC UPS 24 V/10 A

manufacturer's article number of the basic version used for SIPLUS product versions6EP4134-3AB00-0AY0

input

voltage curve at inputDC

supply voltage at DC rated value24 V

input voltage at DC21... 29 V

adjustable response value voltage for buffer connection preset21,5 V

adjustable response value voltage for buffer connection21... 25 V; Adjustable: 21 V, 21,5 V, 22 V, 22,5 V, 23 V, 24 V, 25 V DC

input current at rated input voltage 24 V rated value14 A; for maks. charging current (3 A)

memory

type of energy storagewith batteries

product function DC-UPS modularly expandableVar

design of the mains power cut bridging-connectionAdjustable range using rotary coding switch: 0,5 min, 1 min, 2 min, 5 min, 10 min, 20 min, maks. buffering time

output

in normal operation at DC rated value24 V

in buffering mode at DC rated value24 V

formula for output voltageVin - yaklaşık 0,2 V

startup delay time typical60 ms

voltage increase time of the output voltage typical60 ms

output voltage in buffering mode at DC18,5... 27 V

rated value10 A

in normal operation0... 30 A

in buffering mode0... 30 A

peak current30 A

property of the output short-circuit proofVar

design of short-circuit protectionLimitation to 3 x I rated for 30 ms/min; through-conductivity for 1,5 x I rated for 5 sec/min

charging current0,1 A, 3 A

efficiency

at rated output voltage for rated value of the output current typical97,5 %

in case of operation on rechargeable battery typical97,5 %

at rated output voltage for rated value of the output current typical6 W

in case of operation on rechargeable battery typical6 W

supplied active power typical240 W

protection and monitoring

reverse polarity protection against energy storage unit polarity reversalVar

reverse polarity protection against input voltage polarity reversalVar

for normal operationNormal operation: LED green (OK), floating changeover contact "Bat/OK" to setting "OK" ("OK" means: Voltage of the supplying power supply unit is greater than cut-in threshold set the DC UPS module); Lack of buffer standby: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Battery replacement required: LED red (alarm) flashing with yaklaşık 0,25 Hz, floating changeover contact "Alarm/Bat" switching with yaklaşık 0,25 Hz; Energy storage > 85%: LED green (Bat > 85%), floating NOcontact "Bat > 85" closed; Permissible contact current capacity: DC 60 V/1 A veya AC 30 V /1 A

in buffering modeBuffered mode: LED yellow (Bat), floating changeover contact "OK/Bat" to setting "Bat"; Prewarning battery voltage < 20,4 VDC: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Energy storage > 85%: LED green (Bat > 85%), floating NO contact "Bat > 85" closed

interfaces

product component PC interfaceYok

product function communication functionVar

design of the interfacewithout

safety

galvanic isolation between input and outputYok

operating resource protection classClass III

protection class IPIP20

for emitted interferenceEN 55022 Class B

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

Regulatory Compliance Mark (RCM)Var

MTBF at 40 °C415.574 h

standards, specifications, approvals other

railway application in accordance with EN 50121-3-2Var

railway application in accordance with EN 50124-1Var

railway application in accordance with EN 50125-1Var

railway application in accordance with EN 50155Var; Rail vehicles - Temperature class OT3, ST1/ST2, yatay installation

railway application in accordance with EN 61373Var

fire protection in accordance with EN 45545-2Var; Proof see Service & Support

ambient conditions

in horizontal mounting position during operation-25... +70 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

installation altitude at height above sea level maximum6.000 m

ambient condition relating to ambient temperature - air pressure - installation altitudeIn case of operation altitudes of 2000 - 6000 m above sea level: Output power derating of -7.5 %/1000 m veya reduction of the ambient temperature by 5 K/1000 m

relative humidity with condensation according to IEC 60068-2-38 maximum100 %; RH incl. condensation/frost (no commissioning if condensation is present), yatay installation

chemical resistance to commercially available cooling lubricantsVar; incl. diesel ve oil droplets in the air

resistance to biologically active substances conformity according to EN 60721-3-3Var; Class 3B2 mold, fungal, sponge spores (except fauna); class 3B3 upon request

resistance to chemically active substances conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3)

resistance to mechanically active substances conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust

coating for equipped printed circuit board according to EN 61086Var; Class 2 for high availability

type of coating protection against pollution according to EN 60664-3Var; Type 1 protection

type of test of the coating according to MIL-I-46058CVar; Discoloration of the coating during service life possible

product conformity of the coating Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal Coating, Class A

connection method

type of electrical connectionscrew terminal

at input24 V DC: 2 screw terminals for 0,2... 6 mm²/24... 13 AWG

at output24 V DC: 2 screw terminals for 0,2... 6 mm²/24... 13 AWG

for rechargeable battery module24 V DC: 2 screw terminals for 0,2... 6 mm²/24... 13 AWG

for control circuit and status message14 screw terminals for 0,2... 1,5 mm²/24... 16 AWG

mechanical data

width × height × depth of the enclosure50 × 139 × 125 mm

installation width × mounting height50 mm × 239 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight0,38 kg

accessories

electrical accessoriesBattery module

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
