Siemens 6AG2132-6MD00-4BB1

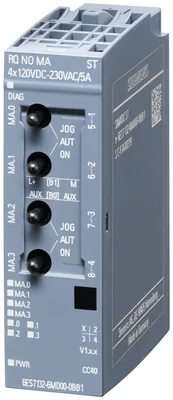

SIPLUS ET 200SP RQ 4x120/230V MA TX rail based on 6ES7132-6MD00-0BB1 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), röle modül normally open, suitable için BU tip B0 veya B1, modül diagnostics ile manuel çalışma
Ürün tipi tanımıRQ 4x120 V DC... 230 V AC/5 A NO MA ST
FW update possibleVar
based on6ES7132-6MD00-0BB1
usable BaseUnitsBU type B0, B1
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Ürün Hakkında
SIPLUS ET 200SP RQ 4x120/230V MA TX rail based on 6ES7132-6MD00-0BB1 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), röle modül normally open, suitable için BU tip B0 veya B1, modül diagnostics ile manuel çalışma
Siemens 6AG2132-6MD00-4BB1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıRQ 4x120 V DC... 230 V AC/5 A NO MA ST
FW update possibleVar
based on6ES7132-6MD00-0BB1
usable BaseUnitsBU type B0, B1
Color code for module-specific color-coded labelCC40
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
DQVar
DQ with energy-saving functionYok
PWMYok
OversamplingYok
MSOYok
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.100 mA; without load
Güç kaybı
Güç kaybı, tipik1,5 W
Address space per module
Inputs1 bayt; + 1 bayt for QI information
Outputs1 bayt
Donanım yapılandırması
Automatic encodingVar
Mechanical coding elementVar
Type of mechanical coding elementtype C
Selection of BaseUnit for connection variants
2-wire connectionBU type B1
3-wire connectionBU type B0
Dijital çıkışlar
Type of digital outputRelays
Dijital çıkış sayısı4
Current-sinkingVar
Current-sourcingVar
Digital outputs, parameterizableVar
Short-circuit protectionYok
Anahtarlama frekansı
Omik yükte, maks.2 Hz
with inductive load, max.0,5 Hz
with inductive load (acc. to IEC 60947-5-1, DC13), max.0,5 Hz; provide one freewheeling diode for switching frequencies higher than 0,1 Hz
with inductive load (acc. to IEC 60947-5-1, AC15), max.0,5 Hz
Lamba yükünde, maks.2 Hz
Total current of the outputs
Current per channel, max.5 A
Current per module, max.20 A
horizontal installation
— up to 50 °C, max.20 A
— up to 60 °C, max.16 A
— up to 70 °C, max.12 A
vertical installation
— 40 °C’ye kadar, maks.20 A
— up to 50 °C, max.16 A
Röle çıkışları
Röle çıkışı sayısı4
Rated supply voltage of relay coil L+ (DC)24 V
Current consumption of relays (coil current of all relays), max.40 mA
external protection for relay outputsVar, with 6A
Number of operating cycles, max.7.000.000; see additional description in the manual
Switching capacity of contacts
— with inductive load, max.2 A; see additional description in the manual
— with resistive load, max.5 A; see additional description in the manual
— Thermal continuous current, max.5 A
— Switching current, min.100 mA; 5 V DC
— Rated switching voltage (DC)24 V DC to 120 V DC
— Rated switching voltage (AC)24V AC to 230V AC
Kablo uzunluğu
Ekranlı, maks.1.000 m
Ekransız, maks.200 m
Interrupts/diagnostics/status information
Diagnostics functionVar
Substitute values connectableVar
Alarms
Diagnostic alarmVar
Diagnoses
Monitoring the supply voltageVar
Wire breakYok
Short-circuitYok
Group errorVar
Tanılama gösterge LED’i
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Channel status displayVar; green LED
for channel diagnosticsYok
for module diagnosticsVar; green/red DIAG LED
Potential separation channels
Kanallar arasıVar
between the channels and backplane busVar
between the channels and the power supply of the electronicsVar
Permissible potential difference
between channels and backplane bus/supply voltage240 V AC
Isolation
Isolation tested with2.545 V DC (type test) ve according to EN 50155 (routine test)
tested with
between channels and backplane bus/supply voltage2.545 V DC (type test) ve according to EN 50155 (routine test)
between backplane bus and supply voltage750 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsYok
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment (shielded cables required)
EN 50124-1Var; Railway applications - overvoltage category OV3; pollution degree PD2; UNm = 230 V AC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik20 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık45 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
