Siemens 6AG2132-6HD01-4BB1 için nasıl fiyat teklifi alabilirim?

Siemens 6AG2132-6HD01-4BB1 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSJE117DTAJRM ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6AG2132-6HD01-4BB1 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6AG2132-6HD01-4BB1 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6AG2132-6HD01-4BB1 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

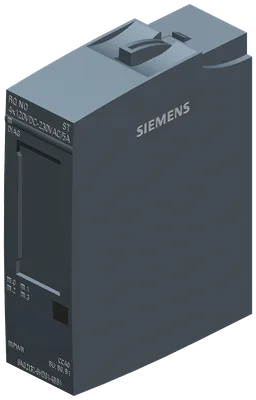

Siemens 6AG2132-6HD01-4BB1

SIPLUS ET 200SP RQ 4x120VDC/230 TX rail based on 6ES7132-6HD01-0BB1 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), röle modül normally open, suitable için BU tip B0 veya B1, renk code CC40, substitute value çıkış, modül diagnostics için: besleme gerilimi

SiemensMFR # 6AG2132-6HD01-4BB1SKU # YLSJE117DTAJRM

Ürün tipi tanımıRQ 4x120 VDC... 230 VAC/5 A NO ST

FW update possibleYok

based on6ES7132-6HD01-0BB1

usable BaseUnitsBU type B0, B1

I&M dataVar; I&M0 to I&M3

Isochronous modeYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6AG2132-6HD01-4BB1

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

Ürün tipi tanımıRQ 4x120 VDC... 230 VAC/5 A NO ST

FW update possibleYok

based on6ES7132-6HD01-0BB1

usable BaseUnitsBU type B0, B1

Product function

I&M dataVar; I&M0 to I&M3

Isochronous modeYok

Mühendislik aracı

STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275

Operating mode

DQVar

DQ with energy-saving functionYok

PWMYok

OversamplingYok

MSOYok

Redundancy

Redundancy capabilityVar

Besleme gerilimi

Nominal değer (DC)24 V

İzin verilen aralık, alt sınır (DC)19,2 V

İzin verilen aralık, üst sınır (DC)28,8 V

Ters polarite korumasıVar

Giriş akımı

Akım tüketimi (nominal değer)55 mA; without load

Çıkış gerilimi

Rated value (AC)230 V

Güç kaybı

Güç kaybı, tipik1,5 W

Address space per module

Inputs+ 1 bayt for QI information

Outputs1 bayt

Donanım yapılandırması

Automatic encodingVar

Mechanical coding elementVar

Type of mechanical coding elementtype C

Selection of BaseUnit for connection variants

2-wire connectionBU type B1

3-wire connectionBU type B0

Dijital çıkışlar

Type of digital outputRelays

Dijital çıkış sayısı4

Current-sinkingVar

Current-sourcingVar

Digital outputs, parameterizableVar

Short-circuit protectionYok

Parallel switching of two outputs

for logic linksVar

for upratingYok

for redundant control of a loadVar

Anahtarlama frekansı

Omik yükte, maks.2 Hz

with inductive load (acc. to IEC 60947-5-1, DC13), max.0,5 Hz; provide one freewheeling diode for switching frequencies higher than 0,1 Hz

with inductive load (acc. to IEC 60947-5-1, AC15), max.0,5 Hz

Lamba yükünde, maks.2 Hz

Total current of the outputs

Current per channel, max.5 A; > +60 °C maks. continuous current per relay 3 A

Current per module, max.20 A

horizontal installation

— up to 50 °C, max.20 A

— up to 60 °C, max.16 A

— up to 70 °C, max.12 A

vertical installation

— 40 °C’ye kadar, maks.20 A

— up to 50 °C, max.16 A; in all other mounting positions

Röle çıkışları

Röle çıkışı sayısı4

Rated supply voltage of relay coil L+ (DC)24 V

Current consumption of relays (coil current of all relays), max.40 mA

external protection for relay outputsVar, with miniature fuse maks. 6 A tripping current ve quick-response tripping characteristic

Number of operating cycles, max.7.000.000; see additional description in the manual

Switching capacity of contacts

— with inductive load, max.2 A; see additional description in the manual

— with resistive load, max.5 A; see additional description in the manual

— Thermal continuous current, max.5 A; Maks. 1.385 VA, 150 W

— Switching current, min.100 mA; 5 V DC

— Rated switching voltage (DC)24 V DC to 120 V DC

— Rated switching voltage (AC)24V AC to 230V AC

Kablo uzunluğu

Ekranlı, maks.1.000 m

Ekransız, maks.200 m

Interrupts/diagnostics/status information

Diagnostics functionVar

Substitute values connectableVar

Alarms

Diagnostic alarmVar

Diagnoses

Monitoring the supply voltageVar

Wire breakYok

Short-circuitYok

Tanılama gösterge LED’i

Monitoring of the supply voltage (PWR-LED)Var; green PWR LED

Channel status displayVar; green LED

for channel diagnosticsYok

for module diagnosticsVar; green/red DIAG LED

Potential separation channels

Kanallar arasıVar

between the channels and backplane busVar

between the channels and the power supply of the electronicsVar

Permissible potential difference

between channels and backplane bus/supply voltage240 V AC

Isolation

Isolation tested with2.545 V DC (type test) ve according to EN 50155 (routine test)

tested with

between channels and backplane bus/supply voltage2.545 V DC (type test) ve according to EN 50155 (routine test)

between backplane bus and supply voltage750 V DC (type test) ve according to EN 50155 (routine test)

Standartlar, onaylar, sertifikalar

Suitable for safety functionsYok

Railway application

EN 50121-3-2Var; EMC for rail vehicles

EN 50121-4Var; EMC for signal ve telecommunications systems

EN 50121-5Var; EMC for fixed installations ve railway power supply equipment (shielded cables required)

EN 50124-1Var; Railway applications - overvoltage category OV3; pollution degree PD2; UNm = 230 V AC

EN 50125-1Var; Rail vehicles - see ambient conditions

EN 50125-2Var; Stationary electrical equipment - see ambient conditions

EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)

EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position

EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B

Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support

Çalışma ortam sıcaklığı

Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)

Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)

Dikey montaj, min.-40 °C; = Tmin

Dikey montaj, maks.50 °C; = Tmax

Deniz seviyesine göre çalışma yüksekliği

Installation altitude above sea level, max.2.000 m

Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)

Bağıl nem

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning under condensation conditions)

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine

— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *

— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Use on land craft, rail vehicles and special-purpose vehicles

— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine

— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *

— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Var; Type 1 protection

Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017

Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A

Ölçüler

Genişlik20 mm

Yükseklik73 mm

Derinlik58 mm

Ağırlık

Ağırlık, yaklaşık40 g

Other

Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776

Aksesuarlar 1

Siemens 6AG2132-6HD01-4BB1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6AG2193-6BP20-4BB1	Zorunlu ek ürün · BaseUnit
