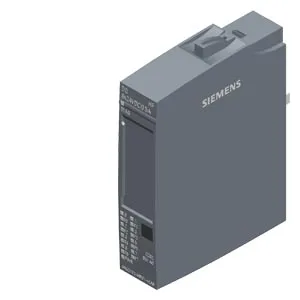

Siemens 6AG2132-6BF01-4CA0
SIPLUS ET 200SP DQ 8x24 V DC/0,5 A ST rail based on 6ES7132-6BF01-0CA0 ile conformal coating OT4: -40...+70 °C ST1/2: 85 °C için 10 minutes çıkış modül, DQ 8x24 V DC/0,5 A High Feature, source çıkış (PNP,sourcing çıkış) packing ünite: 1 ünite, suitable için BU tip A0, renk code CC02, channel diagnostics için: short-circuit ve wire break, besleme gerilimi, channel arıza
Ürün tipi tanımıDQ 8x24VDC/0,5A HF
FW update possibleVar
based on6ES7132-6BF01-0CA0
usable BaseUnitsBU type A0
I&M dataVar; I&M0 to I&M3
Isochronous modeVar
Ürün Hakkında
SIPLUS ET 200SP DQ 8x24 V DC/0,5 A ST rail based on 6ES7132-6BF01-0CA0 ile conformal coating OT4: -40...+70 °C ST1/2: 85 °C için 10 minutes çıkış modül, DQ 8x24 V DC/0,5 A High Feature, source çıkış (PNP,sourcing çıkış) packing ünite: 1 ünite, suitable için BU tip A0, renk code CC02, channel diagnostics için: short-circuit ve wire break, besleme gerilimi, channel arıza
Siemens 6AG2132-6BF01-4CA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıDQ 8x24VDC/0,5A HF
FW update possibleVar
based on6ES7132-6BF01-0CA0
usable BaseUnitsBU type A0
Color code for module-specific color-coded labelCC02
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
DQVar
DQ with energy-saving functionYok
PWMYok
OversamplingYok
MSOVar
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.20 mA; without load
Çıkış gerilimi
Nominal değer (DC)24 V
Güç kaybı
Güç kaybı, tipik1 W
Address space per module
Address space per module, max.8 bayt; 2 channels per submodule + QI information
Donanım yapılandırması
Automatic encodingVar
Mechanical coding elementVar
Type of mechanical coding elementType A
Submodules
Number of configurable submodules, max.4
Selection of BaseUnit for connection variants
1-wire connectionBU type A0
2-wire connectionBU type A0
3-wire connectionBU type A0 with AUX terminals veya potential distributor module
Dijital çıkışlar
Type of digital outputSource output (PNP, current-sourcing)
Dijital çıkış sayısı8
Current-sinkingYok
Current-sourcingVar
Digital outputs, parameterizableVar
output type acc. to IEC 61131, type 0.5Var
Short-circuit protectionVar; Electronic
Response threshold, typ.0,7 to 1,3 A
Open-circuit detectionVar
Endüktif kapatma geriliminin sınırlandırılmasıTyp. L+ (-50 V)
Controlling a digital inputVar
Çıkışların anahtarlama kapasitesi
Omik yükte, maks.0,5 A
with inductive load, max.0,5 A
Lamba yükünde, maks.5 W
Load resistance range
lower limit48 Ω
upper limit12 kΩ
Çıkış akımı
“1” sinyali için nominal değer0,5 A
for signal "1" permissible range, max.0,5 A
“0” sinyali için artık akım, maks.0,1 mA
Omik yükte çıkış gecikmesi
"0" to "1", typ.50 µs
"1" to "0", typ.100 µs
Parallel switching of two outputs
for upratingYok
for redundant control of a loadVar
Anahtarlama frekansı
Omik yükte, maks.100 Hz
with inductive load, max.0,1 Hz; higher frequencies are possible, see Equipment Manual "Maximum permitted switching frequency of inductive loads"
Lamba yükünde, maks.10 Hz
Total current of the outputs
Current per channel, max.0,5 A
Current per module, max.4 A
horizontal installation
— up to 60 °C, max.4 A
— up to 70 °C, max.3 A
vertical installation
— up to 50 °C, max.4 A
Kablo uzunluğu
Ekranlı, maks.1.000 m
Ekransız, maks.600 m
Isochronous mode
Execution and activation time (TCO), min.48 µs
Bus cycle time (TDP), min.500 µs
Jitter, max.8 µs
Interrupts/diagnostics/status information
Diagnostics functionVar
Substitute values connectableVar
Alarms
Diagnostic alarmVar
Diagnoses
Monitoring the supply voltageVar
— ParametrelenebilirVar
Wire breakVar; channel by channel
Short-circuit to groundVar; channel by channel
Short-circuit to L+Var; channel by channel
Group errorVar
Tanılama gösterge LED’i
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
for module diagnosticsVar; green/red DIAG LED
Potential separation channels
Kanallar arasıYok
between the channels and backplane busVar
Between the channels and load voltage L+Yok
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsYok
Suitable for safety-related tripping of standard modulesVar; see FAQ Entry ID: 39198632
Highest safety class achievable for safety-related tripping of standard modules
Performance level according to ISO 13849-1PL d
Category according to ISO 13849-1Cat. 3
SIL acc. to IEC 62061SIL 2
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity degree 3)
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3)
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; class PC2 protective coating acc. to EN 50155
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik15 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık30 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
