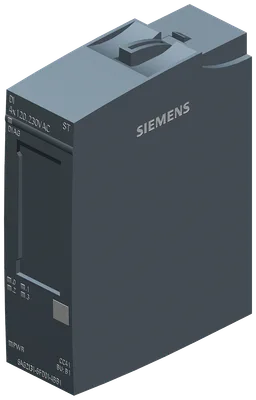

Siemens 6AG2131-6FD01-4BB1
SIPLUS ET 200SP DI 4x120/230VAC TX rail based on 6ES7131-6FD01-0BB1 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), dijital giriş modülü, suitable için BU tip B1, renk code CC41, modül diagnostics giriş tip 3 (IEC 61131),
Ürün tipi tanımıDI 4x120...230VAC ST
FW update possibleYok
based on6ES7131-6FD01-0BB1
usable BaseUnitsBU type B1
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Ürün Hakkında
SIPLUS ET 200SP DI 4x120/230VAC TX rail based on 6ES7131-6FD01-0BB1 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), dijital giriş modülü, suitable için BU tip B1, renk code CC41, modül diagnostics giriş tip 3 (IEC 61131),
Siemens 6AG2131-6FD01-4BB1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıDI 4x120...230VAC ST
FW update possibleYok
based on6ES7131-6FD01-0BB1
usable BaseUnitsBU type B1
Color code for module-specific color-coded labelCC41
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
suitable for operation on PROFINET R1 IMsVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
DIVar
CounterYok
OversamplingYok
MSIYok
Besleme gerilimi
Rated value (AC)230 V
permissible range, upper limit (AC)264 V
Ters polarite korumasıYok
Giriş akımı
Akım tüketimi (nominal değer)10 mA
Encoder supply
Number of outputs4
Short-circuit protectionYok; when using BU type B1, a fuse with 10 A tripping current must be provided
Çıkış akımı
up to 60 °C, max.10 A
Güç kaybı
Güç kaybı, tipik1 W; Active power, load voltage 230 V, all inputs connected with 230 V, 50 Hz
Address space per module
Address space per module, max.1 bayt; + 1 bayt for QI information
Donanım yapılandırması
Automatic encodingVar
Mechanical coding elementVar
Type of mechanical coding elementtype C
Selection of BaseUnit for connection variants
1-wire connectionBU type B1
2-wire connectionBU type B1
3-wire connectionBU type B1
4-wire connectionBU type B1 + potential distributor module
Dijital girişler
Dijital giriş sayısı4
Digital inputs, parameterizableVar
Kaynak/çeken girişP-reading
Input characteristic curve in accordance with IEC 61131, type 3Var
Giriş gerilimi
Rated value (AC)230 V
“0” sinyali için0V AC to 40V AC
“1” sinyali için74 V AC to 264 V AC
Giriş akımı
for signal "1", typ.10,8 mA
Standart girişler için
— ParametrelenebilirYok
— “0”dan “1”e, min.1,5 ms
— “0”dan “1”e, maks.4 ms
— at "1" to "0", min.10 ms
— at "1" to "0", max.10 ms
Kablo uzunluğu
Ekranlı, maks.1.000 m
Ekransız, maks.600 m
Bağlanabilir enkoderler
2 telli sensörVar
Alarms
Diagnostic alarmYok
Maintenance interruptYok
Hardware interruptYok
Diagnoses
Monitoring the supply voltageYok
Wire breakYok
Short-circuitYok
Tanılama gösterge LED’i
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Channel status displayVar; green LED
for channel diagnosticsYok
for module diagnosticsVar; green/red DIAG LED
Potential separation channels
Kanallar arasıYok
between the channels and backplane busVar
between the channels and the power supply of the electronicsYok
Isolation
Isolation tested with2.545 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsYok
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment (shielded cables required)
EN 50124-1Var; Railway applications - overvoltage category OV3; pollution degree PD2; UNm = 230 V AC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik20 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık36 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
