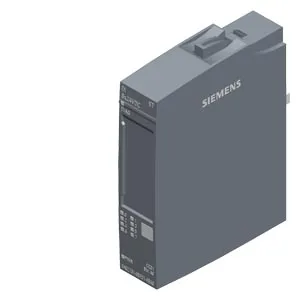

Siemens 6AG2131-6BF01-4BA0
SIPLUS ET 200SP DI 8x24 V DC ST rail based on 6ES7131-6BF01-0BA0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), dijital giriş modülü giriş tip 3 (IEC 61131), sink giriş, (PNP, sinking giriş), packing ünite: 1 ünite, suitable için BU tip A0, renk code CC01, giriş delay 0.05..20 ms; modül diagnostics için: enkoder güç kaynağı short circuit, wire break, besleme gerilimi
Ürün tipi tanımıDI 8x24 VDC ST
Firmware sürümüV0.0
FW update possibleYok
based on6ES7131-6BF01-0BA0
usable BaseUnitsBU type A0
I&M dataVar; I&M0 to I&M3
Ürün Hakkında
SIPLUS ET 200SP DI 8x24 V DC ST rail based on 6ES7131-6BF01-0BA0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), dijital giriş modülü giriş tip 3 (IEC 61131), sink giriş, (PNP, sinking giriş), packing ünite: 1 ünite, suitable için BU tip A0, renk code CC01, giriş delay 0.05..20 ms; modül diagnostics için: enkoder güç kaynağı short circuit, wire break, besleme gerilimi
Siemens 6AG2131-6BF01-4BA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıDI 8x24 VDC ST
Firmware sürümüV0.0
FW update possibleYok
based on6ES7131-6BF01-0BA0
usable BaseUnitsBU type A0
Color code for module-specific color-coded labelCC01
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
DIVar
CounterYok
OversamplingYok
MSIYok
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.50 mA; All channels are supplied from the encoder supply
Encoder supply
Number of outputs8
Output voltage, min.19,2 V
Short-circuit protectionVar; per module
24 V enkoder beslemesi
24 VVar
Short-circuit protectionVar
Output current, max.700 mA
Output current per channel, max.700 mA
Output current per module, max.700 mA
Güç kaybı
Güç kaybı, tipik1 W; 24 V, 8 inputs supplied via encoder supply
Address space per module
Inputs1 bayt; + 1 bayt for QI information
Donanım yapılandırması
Automatic encodingVar
Mechanical coding elementVar
Type of mechanical coding elementType A
Selection of BaseUnit for connection variants
1-wire connectionBU type A0
2-wire connectionBU type A0
3-wire connectionBU type A0 with AUX terminals veya potential distributor module
4-wire connectionBU type A0 + Potential distributor module
Dijital girişler
Dijital giriş sayısı8
Digital inputs, parameterizableVar
Kaynak/çeken girişP-reading
Input characteristic curve in accordance with IEC 61131, type 3Var
Giriş gerilimi
Nominal değer (DC)24 V
“0” sinyali için-30 to +5 V
“1” sinyali için+11 to +30V
Giriş akımı
for signal "1", typ.2,5 mA
Standart girişler için
— ParametrelenebilirVar; 0,05 / 0,1 / 0,4 / 0,8 / 1,6 / 3,2 / 12,8 / 20 ms (in her biri case + delay of 30 to 500 µs, depending on line length)
— “0”dan “1”e, min.0,05 ms
— “0”dan “1”e, maks.20 ms
— at "1" to "0", min.0,05 ms
— at "1" to "0", max.20 ms
Kablo uzunluğu
Ekranlı, maks.1.000 m
Ekransız, maks.600 m
Bağlanabilir enkoderler
2 telli sensörVar
— permissible quiescent current (2-wire sensor), max.1,5 mA
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Diagnoses
Diagnostic information readableVar
Monitoring the supply voltageVar
— ParametrelenebilirVar
Monitoring of encoder power supplyVar; Module-by-module, optional protective circuit for preventing wire-break diagnostics in the case of simple encoder contacts: 25 kOhm to 45 kOhm
Wire breakVar; module-wise
Short-circuitVar; module-wise
Tanılama gösterge LED’i
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Channel status displayVar; green LED
for channel diagnosticsYok
for module diagnosticsVar; green/red DIAG LED
Potential separation channels
Kanallar arasıYok
between the channels and backplane busVar
between the channels and the power supply of the electronicsYok
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsYok
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]15,9 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]3,69 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]12,7 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-0.495 kg
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0//6AG1193-6AB00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; Level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0/6AG1193-6AB00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; class PC2 protective coating acc. to EN 50155
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik15 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık28 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
