Siemens
1FY2901-0EB00
MFR #1FY2901-0EB00
SKU #YLSJVRF7YVE9X
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

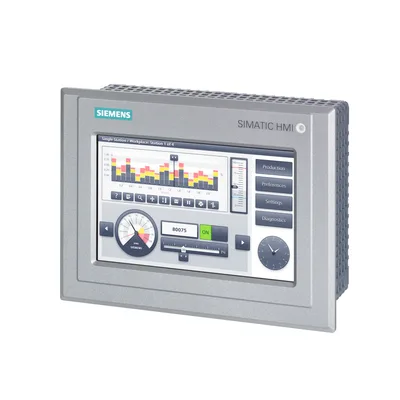

Siemens 6AG2124-0GC13-1AX0
SIPLUS HMI TP700 outdoor rail based on 6AV2124-0GC13-0AX0 ile conformal coating, -30…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), TP700 Comfort Outdoor, Comfort panel, touch çalışma, 7" widescreen TFT gösterge, 16 million colors, PROFINET arayüz, MPI/PROFIBUS DP arayüz, 12 MB configuration memory, Windows CE 6,0, configurable WinCC Comfort V13 SP1 ve higher, HSP
Ürün tipi tanımıTP700 Outdoor
based on6AV2124-0GC13-0AX0
Design of displayTFT, bonded, daylight-readable
Screen diagonal7 in
Display width152,4 mm
Display height91,4 mm
Ürün Hakkında
SIPLUS HMI TP700 outdoor rail based on 6AV2124-0GC13-0AX0 ile conformal coating, -30…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), TP700 Comfort Outdoor, Comfort panel, touch çalışma, 7" widescreen TFT gösterge, 16 million colors, PROFINET arayüz, MPI/PROFIBUS DP arayüz, 12 MB configuration memory, Windows CE 6,0, configurable WinCC Comfort V13 SP1 ve higher, HSP
Siemens 6AG2124-0GC13-1AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıTP700 Outdoor
based on6AV2124-0GC13-0AX0
Display
Design of displayTFT, bonded, daylight-readable
Screen diagonal7 in
Display width152,4 mm
Display height91,4 mm
Number of colors16.777.216
Resolution (pixels)
Horizontal image resolution800 pixel
Vertical image resolution480 pixel
Backlighting
MTBF backlighting (at 25 °C)50.000 h
Backlight dimmableVar; LED, can be dimmed manually veya automatically
Keyboard
— Number of function keys0
— Number of function keys with LEDs0
Keys with LEDYok
System keysYok
Numeric keyboardVar; Onscreen keyboard
alphanumeric keyboardVar; Onscreen keyboard
Touch operation
Design as touch screenVar; Analog-resistive
Expansions for operator control of the process
— F1...Fx0
— F1...Fx0
Direct keys (touch buttons as S7 input I/O)32
Installation type/mounting
Mounting positiondikey
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation35°
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)0,7 A
Starting current inrush I²t0,5 A²·s
Power
Active power input, typ.17 W
Processor
Processor typeX86
Storage
FlashVar
RAMVar
Memory available for user data12 MB
Type of output
Info LEDYok
Power LEDYok
Error LEDYok
BuzzerYok
SpeakerVar
Saat
Donanım saati (gerçek zamanlı)Var
Software clockYok
retentiveVar; Back-up duration typically 6 weeks
synchronizableVar
Arayüzler
Number of industrial Ethernet interfaces2
Number of RS 485 interfaces1; RS 422 / 485 combined
Number of RS 422 interfaces1
Number of RS 232 interfaces0
Number of USB interfaces2; USB 2,0
USB Mini B1; 5-pole
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of SD card slots2
With software interfacesYok
Industrial Ethernet
Industrial Ethernet status LED2
Number of ports of the integrated switch2
Protokoller
PROFINETVar
PROFINET IO protokolünü desteklerVar
IRTVar; WinCC V13 SP1 HSP veya üstü
PROFIBUSVar
EtherNet/IPVar
MPIVar
Protokoller (Ethernet)
TCP/IPVar
DHCPVar
SNMPVar
DCPVar
LLDPVar
WEB characteristics
HTTPVar
HTTPSYok
HTMLVar
XMLYok
CSSVar
Active XYok
JavaScriptVar
Java VMYok
Ortam yedekliliği
— MRPVar; WinCC V13 SP1 HSP veya üstü
Diğer protokoller
CANYok
MODBUSVar
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP66
IP (rear)IP20
Enclosure Type 4 at the frontVar
Enclosure Type 4x at the frontVar
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; rail vehicles - temperature class OT1, ST1/ST2, yatay dikey mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Ambient conditions
Suited for indoor useVar
Suited for outdoor useVar; Powder-coated, UV resistant
Operation (vertical installation)
— For vertical installation, min.-30 °C; = Tmin (incl. condensation/frost)
— For vertical installation, max.60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155)
Operation (max. tilt angle)
— At maximum tilt angle, min.-30 °C; = Tmin
— At maximum tilt angle, max.50 °C; = Tmax
Operation (vertical installation, portrait format)
— For vertical installation, min.-30 °C; = Tmin
— For vertical installation, max.50 °C; = Tmax
Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.-30 °C; = Tmin
— At maximum tilt angle, max.45 °C; = Tmax
Depolama/taşıma ortam sıcaklığı
min.-30 °C
maks.70 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning when condensation present), yatay dikey mounting position
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against contaminant acc. to EN 60721-3-5Var; Class 5F3 (excluding gasoline)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Operating systems
proprietaryYok
pre-installed operating system
Windows CEVar
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Process value display (output)Var
Process value default (input) possibleVar
Recipe managementVar
Configuration software
STEP 7 Basic (TIA Portal)Yok
STEP 7 Professional (TIA Portal)Yok
WinCC flexible CompactYok
WinCC flexible StandardYok
WinCC flexible AdvancedYok
WinCC Basic (TIA Portal)Yok
WinCC Comfort (TIA Portal)Var; WinCC V13 SP1 Update 7 + HSP veya üstü
WinCC Advanced (TIA Portal)Var; WinCC V13 SP1 Update 7 + HSP veya üstü
WinCC Professional (TIA Portal)Var; WinCC V13 SP1 Update 7 + HSP veya üstü
Online languages
Number of online/runtime languages32
Project languages
Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesVar
Web browserVar
Pocket WordVar
Pocket ExcelVar
PDF ViewerVar
Media PlayerVar
SIMATIC WinCC Sm@rtServerVar
SIMATIC WinCC AuditVar
Number of Visual Basic ScriptsVar
time-controlledVar
task-controlledVar
Number of characters per info text70
Message system
Number of alarm classes32
— Number of bit messages4.000
— Number of analog messages200
S7 alarm number procedureVar
System messages HMIVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Var
Number of characters per message80
Number of process values per message8
Acknowledgment groupsVar
Message indicatorVar
— Number of entries1.024
— Circulating bufferVar
— retentiveVar
— maintenance-freeVar
Recipe management
Number of recipes300
Data records per recipe500
Entries per data record1.000
Size of internal recipe memory2 MB
Recipe memory expandableVar
Variables
Number of variables per device2.048
Number of variables per screen400
Limit valuesVar
MultiplexingVar
StructuresVar
ArraysVar
Images
Number of configurable images500
Permanent window/defaultVar
Global imageVar
Image selection by PLCVar
Image number in the PLCVar
Image objects
Number of objects per image400
Text fieldsVar
I/O fieldsVar
Graphic I/O fields (graphics list)Var
Symbolic I/O fields (text list)Var
Date/time fieldsVar
SwitchesVar
ButtonsVar
Graphic displayVar
IconsVar
Geometric objectsVar
Complex image objects
Number of complex objects per screen20
Alarm viewVar
Trend viewVar
User viewVar
Status/controlVar
Sm@rtClient viewVar
Recipe viewVar
f(x) trend viewVar
System diagnostics viewVar
Media PlayerVar
HTML browserVar
PDF displayVar
IP camera displayVar; Webcam type see FAQs
Bar graphsVar
SlidersVar
Pointer instrumentsVar
Analog/digital clockVar
Lists
Number of text lists per project500
Number of entries per text list500
Number of graphics lists per project500
Number of entries per graphics list500
Archiving
Number of archives per device50
Number of entries per archive20.000
Message archiveVar
Process value archiveVar
— Sequential archiveVar
— Short-term archiveVar
— Memory cardVar
— USB memoryVar
— EthernetVar
— CSVVar
— TXTVar
— RDBVar
Security
Number of user groups50
Number of user rights32
Kullanıcı sayısı50
Password export/importVar
SIMATIC LogonVar
Logging through printer
AlarmsVar
Report (shift log)Var
HardcopyVar
Electronic print to fileVar; PDF, HTML
Character sets
— US EnglishVar
Transfer (upload/download)
MPI/PROFIBUS DPVar
USBVar
EthernetVar
using external storage mediumVar; Backup/restore
Process coupling
S7-1200Var
S7-1500Var
S7-200Var
S7-300/400Var
LOGO!Var
WinACVar
SINUMERIKVar; with SINUMERIK option package
SIMOTIONVar
Allen Bradley (EtherNet/IP)Var
Allen Bradley (DF1)Var
Mitsubishi (MC TCP/IP)Var
Mitsubishi (FX)Var
OMRON (FINS TCP)Yok
OMRON (Host Link)Var
Modicon (Modbus TCP/IP)Var
Modicon (Modbus RTU)Var
OPC UA ClientVar
OPC UA sunucusuVar
Service tools/configuration aids
Backup/Restore manuallyVar
Backup/Restore automaticallyVar
SimulationVar
Device switchoverVar
Peripherals/Options
PrinterVar
SIMATIC HMI MM memory card: Multi Media CardVar
SIMATIC HMI SD memory card: Secure Digital memory cardVar
SIMATIC HMI CF memory card Compact Flash CardYok
USB memoryVar; e.g. USB RFID reader, see FAQ entry ID: 99808171
SIMATIC IPC USB Flashdrive (USB stick)Var
SIMATIC HMI USB stickVar
Network cameraVar; See FAQ Entry ID: 62383298 ve entry ID: 65647473
Mechanics/material
plasticYok
AluminumVar; Powder-coated, UV resistant
Stainless steelYok
Ölçüler
Width of the housing front214 mm
Height of housing front158 mm
Mounting cutout, width198 mm
Mounting cutout, height142 mm
mounting depth64,6 mm
Ağırlık
Weight (without packaging)1,5 kg
Weight (with packaging)1,7 kg
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 4
Siemens 6AG2124-0GC13-1AX0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG2193-6BP00-4BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP00-4DA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP20-4BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP20-4DA0 | Zorunlu ek ürün · BaseUnit |
İlgili Ürünler
Detayları Gör
Siemens
1FN3050-8SA00-0AA0
MFR #1FN3050-8SA00-0AA0
SKU #YLSPEYTCHSLPEPH
Detayları Gör
Siemens
1FN3100-8SA00-0AA0
MFR #1FN3100-8SA00-0AA0
SKU #YLSJZNRPZ4VXXL
Detayları Gör
Siemens
1FN3150-8SA00-0AA0
MFR #1FN3150-8SA00-0AA0
SKU #YLSZOWEGFUAGXOH
Detayları Gör
Siemens
1FN3300-8SA00-0AA0
MFR #1FN3300-8SA00-0AA0
SKU #YLSZMAEBPCROKIZ
Detayları Gör
Siemens
1FN3450-8SA00-0AA0
MFR #1FN3450-8SA00-0AA0
SKU #YLSNONBMS6EF28
Detayları Gör
Siemens
1FN3600-8SA00-0AA0
MFR #1FN3600-8SA00-0AA0
SKU #YLS8CPR47M6DMNJ
Detayları Gör
Siemens
1FN3900-8SA00-0AA0
MFR #1FN3900-8SA00-0AA0
SKU #YLSQEN1CGSWWALU
Detayları Gör
Siemens
1FY2105-0AA00
MFR #1FY2105-0AA00
SKU #YLSGTZWOTRQID
Detayları Gör
Siemens
1FY2105-4AA00
MFR #1FY2105-4AA00
SKU #YLSDLAYIMNHTZJE
Öne Çıkan Ürünler
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
İlgili Aramalar
Siemens 6AG2124-0GC13-1AX0 fiyatSiemens 6AG2124-0GC13-1AX0 teklif alSiemens 6AG2124-0GC13-1AX0 satın al6AG2124-0GC13-1AX0 fiyat6AG2124-0GC13-1AX0 stok durumuSiemens yedek parçaSiemens 6AG2124-0GC13-1AX0 muadilSiemens 6AG2124-0GC13-1AX0 teknik özellikler
