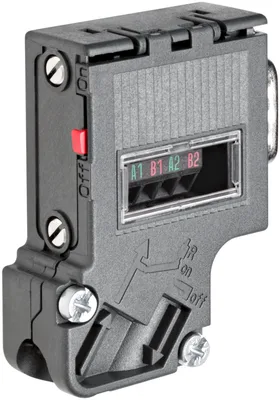

Siemens 6AG1972-0BA42-7XA0
SIPLUS DP PROFIBUS plug ile R - olmadan PG - inclined based on 6ES7972-0BA42-0XA0 ile conformal coating, -40…+70 °C, bağlantı plug için PROFIBUS en çok 12 Mbps, ile inclined kablo outlet, terminating resistor ile isolating fonksiyon, olmadan PG socket
product brand nameSIPLUS
based on6ES7972-0BA42-0XA0
transfer rate / with PROFIBUS DP9,6 kbit/s... 12 Mbit/s
for PROFIBUS cables2
for PROFIBUS cablesScrew
material / of the enclosureplastic
Ürün Hakkında
SIPLUS DP PROFIBUS plug ile R - olmadan PG - inclined based on 6ES7972-0BA42-0XA0 ile conformal coating, -40…+70 °C, bağlantı plug için PROFIBUS en çok 12 Mbps, ile inclined kablo outlet, terminating resistor ile isolating fonksiyon, olmadan PG socket
Siemens 6AG1972-0BA42-7XA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIPLUS
suitability for usefor connecting PROFIBUS stations to the PROFIBUS bus cable
based on6ES7972-0BA42-0XA0
transfer rate
transfer rate / with PROFIBUS DP9,6 kbit/s... 12 Mbit/s
interfaces
for PROFIBUS cables2
for network components or terminal equipment1
for PROFIBUS cablesScrew
for network components or terminal equipment9-pin sub D connector
type of electrical connection / FastConnectYok
mechanical data
design of terminating resistorResistor combination dahili ve connectable via slide switch
material / of the enclosureplastic
locking mechanism designScrewed joint
design, dimensions and weights
type of cable outlet35 degree cable outlet
width15,8 mm
height54 mm
depth39,5 mm
net weight60 g
ambient conditions
during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
in horizontal mounting position / during operation70... -40 °C
during storage and transport70... -40 °C
installation altitude / at height above sea level / maximum5000 m
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
with condensation / maximum100 %; RH incl. condensation/frost permitted (no commissioning in bedewed state)
with condensation / according to IEC 60068-2-38 / maximum100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
conformity according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
conformity according to EN 60721-3-6Var; Class 6B2 mold ve fungal spores (excluding fauna); Class 6B3 talep üzerine
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
conformity according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
environmental category / according to IEC 60721 / note* The supplied plug covers must remain in place over the unused interfaces during operation!
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high reliability
protection against pollution according to EN 60664-3Var; Type 1 protection
for electronic devices in railway applications according to EN 50155Var; protective coating of the Class PC2 according to EN 50155:2022
type of test / of the coating / according to MIL-I-46058CVar; Discoloration of coating possible during service life
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
protection class IPIP20
product features, product functions, product components / general
silicon-freeVar
PG connection socketYok
strain reliefVar
standards, specifications, approvals
RoHS conformityVar
UL onayıVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
