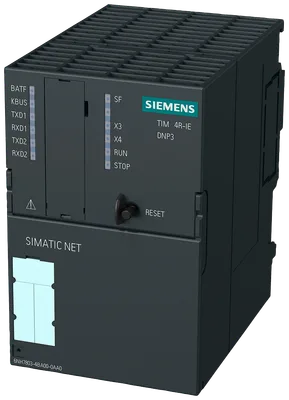

Siemens 6AG1803-4BA00-7AA0
. 4R-IE DNP3 based on 6NH7803-4BA00-0AA0 ile conformal coating, -25…+70 °C, TIM 4R-IE DNP3 communications modül için SIMATIC S7-300, S7-400, PC; ile two RS 232/RS 485 interfaces için DNP3 communication via classic wide area networks ve two RJ45 interfaces için DNP3 communication via IP- based networks (WAN veya LAN)
product brand nameSIPLUS
for Industrial Ethernet10... 100 Mbit/s
according to RS 2329600... 115200 bit/s
for power supply1
of Industrial Ethernet interfaceRJ45 port
for power supply2-pole plugable terminal block
Ürün Hakkında
. 4R-IE DNP3 based on 6NH7803-4BA00-0AA0 ile conformal coating, -25…+70 °C, TIM 4R-IE DNP3 communications modül için SIMATIC S7-300, S7-400, PC; ile two RS 232/RS 485 interfaces için DNP3 communication via classic wide area networks ve two RJ45 interfaces için DNP3 communication via IP- based networks (WAN veya LAN)
Siemens 6AG1803-4BA00-7AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIPLUS
transfer rate
for Industrial Ethernet10... 100 Mbit/s
according to RS 2329600... 115200 bit/s
interfaces
number of interfaces / according to Industrial Ethernet2
for external data transmission / according to RS 2322
for power supply1
of Industrial Ethernet interfaceRJ45 port
at interface 1 / for external data transmission9 pin Sub-D-connector, RS232 switchable to RS485
at interface 2 / for external data transmission9-pole D-sub connector, RS232 can be switched to RS485
for power supply2-pole plugable terminal block
C-PLUGVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage20,4... 28,8 V
supply voltage / external / at DC / rated value24 V
supply voltage / external / at DC / rated value20,4... 28,8 V
from backplane bus / at DC / at 24 V / maximum0,2 A
from external supply voltage / at DC / at 24 V / maximum0,17 A
power loss [W]4,6 W
product extension / optional / backup batteryVar
type of batteryLithium AA / 3,6 V / 2,3 Ah
typical100 µA
maximum160 µA
ambient conditions
during operation-25... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
installation altitude / at height above sea level / maximum5000 m
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation
chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets
conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna), Class 3B3 talep üzerine
conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.
conformity according to EN 60721-3-6Var
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Var; Protection of the type 1
type of test / of the coating / according to MIL-I-46058CVar; Coating discoloration during service life possible
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, class A
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-300 double width
width80 mm
height125 mm
depth120 mm
net weight0,4 kg
product features, product functions, product components / general
noteNumber of TIMs per S7‑300 / S7-400: 1
with RS 232 interface / maximum6 m
with RS 485 interface / maximum30 m
performance data / S7 communication
maximum5; only via LAN
with PG connections / maximum2
with OP connections / maximum1
PG/OP communicationVar
performance data / telecontrol
node stationVar
substationVar
TIM control centerVar
DNP3Var
Modbus RTUVar
product function / data buffering if connection is abortedVar; 200,000 data points with one master
for Ethernet / maximum8
with RS 232 interface / maximum1
number of Modbus RTU devices / maximum1
product functions / management, configuration, engineering
requiredSINAUT ST7 ES
storage location / of TIM configuration dataon the CPU veya TIM
product functions / time
product component / hardware real time clockVar
product feature / hardware real time clock w. battery backupVar
accuracy / of the hardware real time clock / per day / maximum4 s
from NTP-serverVar
