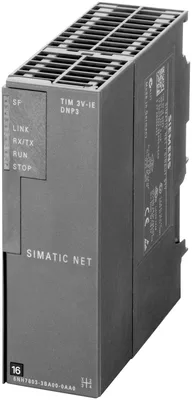

Siemens 6AG1803-3BA00-7AA0
yedek only, no repair. 3V-IE DNP3 based on 6NH7803-3BA00-0AA0 ile conformal coating, -25…+70 °C, communications modül için SIMATIC S7-300 ile an RS232 arayüz
product brand nameSIPLUS
for power supply1
for power supply2-pole plugable terminal block
C-PLUGYok
type of voltage / of the supply voltageDC
power loss [W]5,8 W
Ürün Hakkında
yedek only, no repair. 3V-IE DNP3 based on 6NH7803-3BA00-0AA0 ile conformal coating, -25…+70 °C, communications modül için SIMATIC S7-300 ile an RS232 arayüz
Siemens 6AG1803-3BA00-7AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIPLUS
interfaces
number of interfaces / according to Industrial Ethernet1
for power supply1
for power supply2-pole plugable terminal block
C-PLUGYok
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
from external supply voltage / at DC / at 24 V / maximum0,2 A
power loss [W]5,8 W
ambient conditions
during operation-25... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
installation altitude / at height above sea level / maximum5000 m
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax - 20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
with condensation / according to IEC 60068-2-38 / maximum100 %; RH including condensation/frost (no commissioning when condensation is present), yatay installation
chemical resistance / to commercially available cooling lubricantsVar; incl. airborne diesel ve oil droplets
conformity according to EN 60721-3-3Var; Class 3B2 mold ve fungal spores (excluding fauna), Class 3B3 talep üzerine
conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal ve dry rot spores (excluding fauna)
conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (Severity 3). The supplied plug covers must remain in place on the unused interfaces during operation.
conformity according to EN 60721-3-6Var
conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust. The supplied plug covers must remain in place over the unused interfaces during operation.
coating / for equipped printed circuit board / according to EN 61086Var; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Var; Protection of the type 1
type of test / of the coating / according to MIL-I-46058CVar; Coating discoloration during service life possible
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, class A
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-300 single width
width40 mm
height125 mm
depth120 mm
net weight0,25 kg
product features, product functions, product components / general
noteNumber of TIMs per S7-300: 1
performance data / S7 communication
maximum3; only via LAN
with PG connections / maximum2
performance data / telecontrol
node stationVar
substationVar
TIM control centerVar
DNP3Var
product function / data buffering if connection is abortedVar; 64,000 data points with one master
product functions / management, configuration, engineering
requiredSINAUT ST7 ES
